Popular in Europe: Low-Noise Air Source Heat Pump for Air Conditioning

Product ID: 68589271

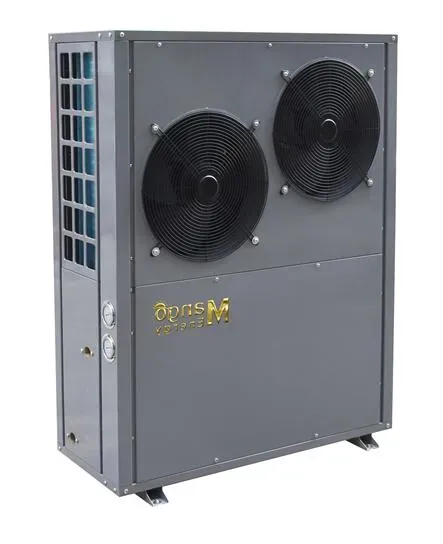

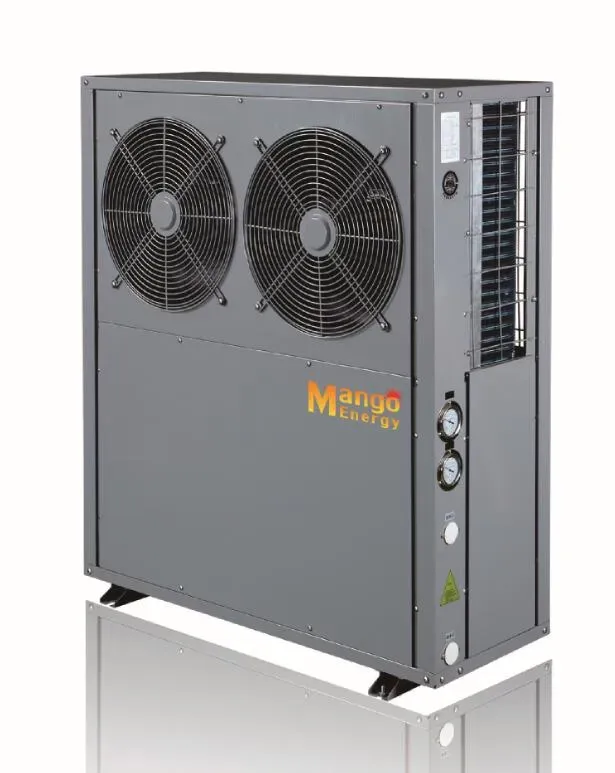

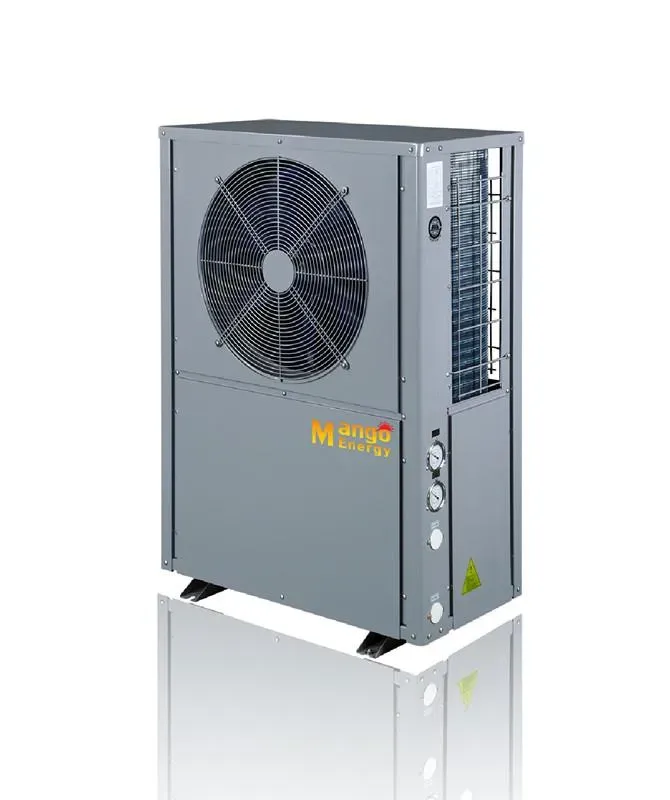

Popular in Europe: Low-Noise Air Source Heat Pump for Air Conditioning

Contact Now

Description

Basic Info.

Model NO.

MG-050KFGRS

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, CB, RoHS, SASO

Transport Package

Ply Wood

Specification

810*691*750

Trademark

mango energy

Origin

China

HS Code

84189910

Production Capacity

5000000 Unit/Year

Product Description

Popular in Europe Air Source Heating Air to Water Heat Pump Air Conditioning with lower noise

Model				MG-03KFGRS	MG-03KFGRS/380	MG-05KFGRS	MG-10KFGRS	MG-20KFGRS
Standard components	Cabinet/color			Spray coating
	Refrigerant			R407C
	Power supply			220V~240V/50Hz/1pH	380V~415V/50Hz/3pH
	Compressor type			Copeland EVI compressor
	Compressor model * quantity			ZW30KSE*1	ZW34KSE*1	ZW61KSE*1	ZW61KSE*2	ZW108KSE*2
	Condenser			High efficiency shell and tube heat exchanger
	Economy unit			Plate heat exchanger
	Evaporator			Blue hydrophilic aliuminium foil, wavy fin and copper tube heat exchanger
	Throttle unit			Heat expansion valve
	A/C contactor
	Thermal relay
	Controller			Muti-function controller
	Protection function			Tempreature protection, time protection, water flow protection, antifreeze protection, current protection
	Low pressure switch			0.05/0.15MPa
	High pressure switch			3.0/3.2MPa
	Power supply line size			2.5mm²	2.5mm²	4mm²	6mm²	10mm²
	Package		WDH	9105001320	9105001320	11605001410	15108201320	194011202180
Specifications	Heating capacity	20ºC	KW	10.8	11.8	20.6	40.6	74.4
	Input power when heating		KW	2.81	3.1	5.4	10.7	19.6
	Rated current		A	12.4	5.9	9	17.6	35.2
	COP			3.84	3.81	3.81	3.79	3.80
	Hot water capacity		L/H	232	254	443	873	1599
	Heating capacity	-10ºC	KW	6.3	7	12.6	24.4	43.2
	Input power when heating		KW	2.58	2.9	5.1	9.9	17.4
	COP			2.44	2.41	2.47	2.46	2.48
	Hot water capacity		L/H	135	150	271	524	929
	Heating capacity	-20ºC	KW	4.9	5.4	10.3	19.6	31
	Input power when heating		KW	2.45	2.68	5.05	9.8	15.36
	COP			2.00	2.01	2.04	2.00	2.02
	Hot water capacity		L/H	105	116	221	421	666
	Rated outlet water temp		ºC	55
	Max outlet water temp		ºC	60
	Water flow		M³/H	2415	2638	4606	9078	16636
	Level of protection			IPX4	IPX4	IPX4	IPX4	IPX4
	Electric shock proof grade			I	I	I	I	I
	Noise		dB(A)	≤55	≤55	≤58	≤66	≤75
	Net weight		Kg	112	112	164	320	556
	Gross weight		Kg	118	118	174	333	606
	Dimension		WDH	8304901160	8304901160	10904801260	14507401150	185010001950
	Pipe size		mm	DN25	DN25	DN25	DN32	DN50
	Working mode			Heating

Q1> What does Mango energy company do?
A1: Mango energy is professional manufacturer of all type heat pumps, EVI air to water heat pump, Nomal air source heat pump, water to water heat pump, ground source heat pump. Water chiller heat pump, air to water chiller heat pump. Swimming pool heat pump...

Q2> What is the daily production of Mango energy company?
A2: Mango energy one day produce heat pump water heater around 150~300PCS / day.

Q3> What is Mango energy heat pump certification?

A3: Mango energy have: SGS, CE, CB, IEC60335-2-40, EN14511 certificate from TUV Lab, ISO9001. ISO18001, ISO14001 and CCC certificate. Get Class A+, A as ERP EN14825 test report.

Q4> Where are the Mango energy heat pump export to till now?

A4: Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.

Q5> What is the marketing cooperation case with Mango energy?

A5: Mango energy all find exclusive agent / distributor / wholesale / OEM

Mango energy is manufacturer, so we do not directly face to end user / retail,

After sign sales contract at this district, we will do not sales to others buyers again,

So agent / distributor care for this district sales & service.

Q6> What mango energy do for their agent / distributor /OEM?

A6: Mango energy offer sales training, heat pump & solar air conditioner product training,

After sales service training, maintenance machine training, big air chiller, or heating

Project design case training, inside parts exchange training and test training.

Q7> How can get training from Mango energy?

A7: If have time, can visit to my factory to training, or invite we engineer team to yours side

Training, or by Video training online.

Q8> What Mango energy offer to their business partner?

A8: Mango enrgy offer 1%~2% free spare parts according to order quantity.

Offer whole this district market exclusive sales right.

Offer rebate as this district agent sales amount within one year.

Offer best competitive price & repair parts.

Offer 24 hours online service.

Q9> where is heat pump using?

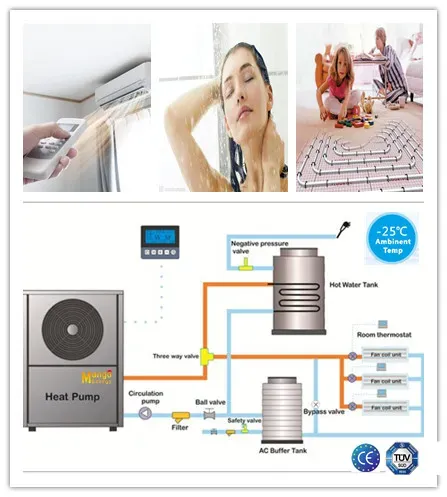

A9: Because Air source heat pump save energy around 70%, ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating, restaurants, hospitals, schools, bath center, residential central heating and hot water plants, etc.
