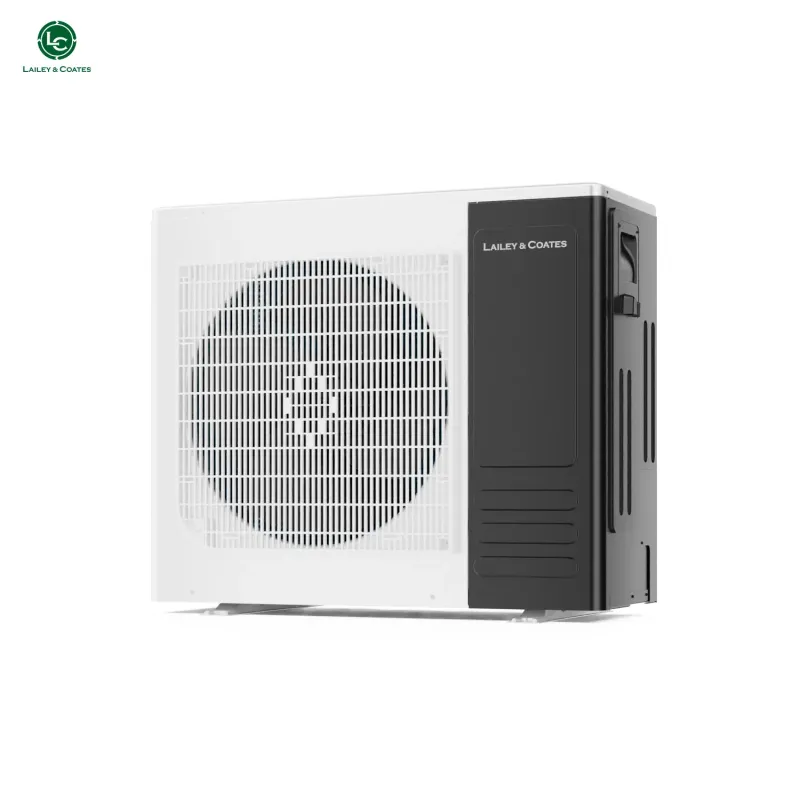

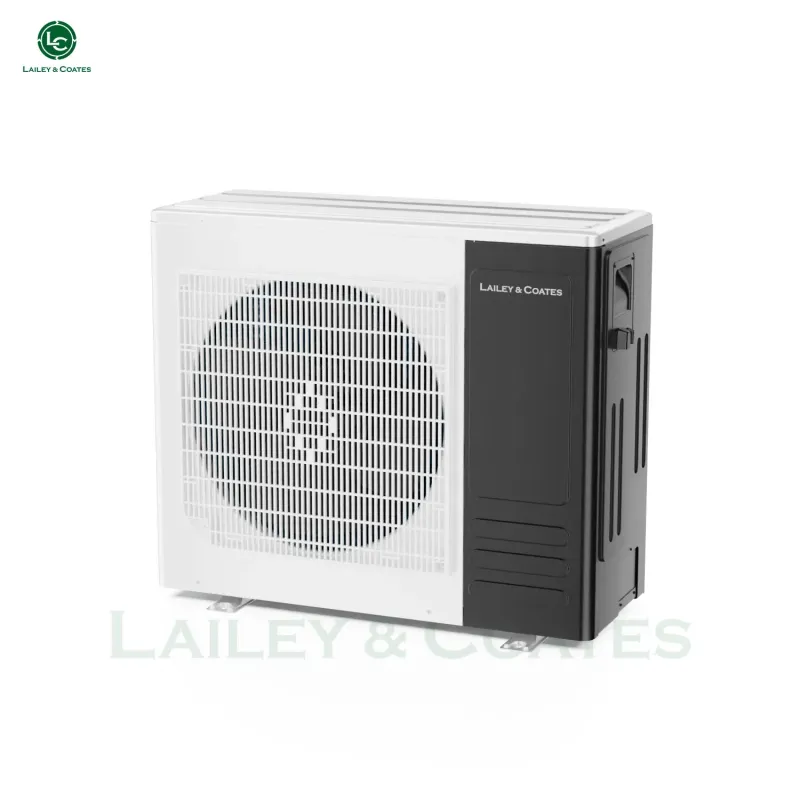

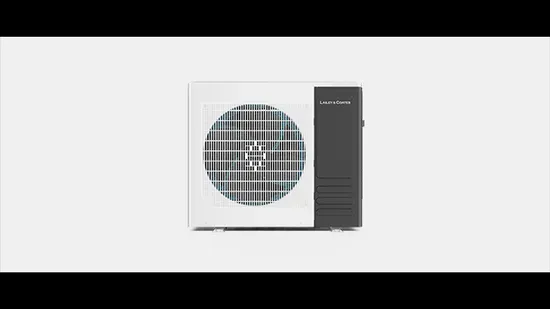

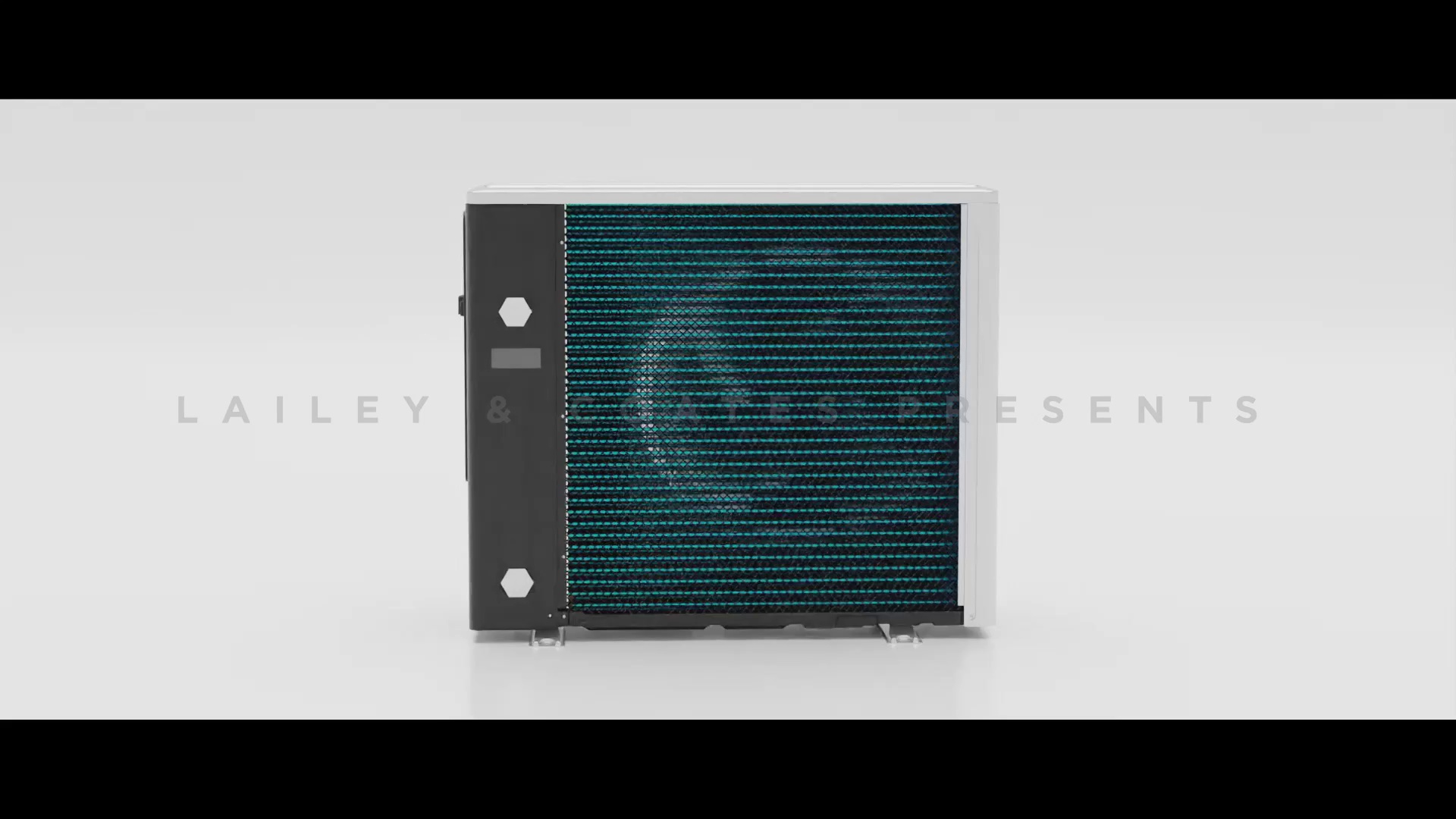

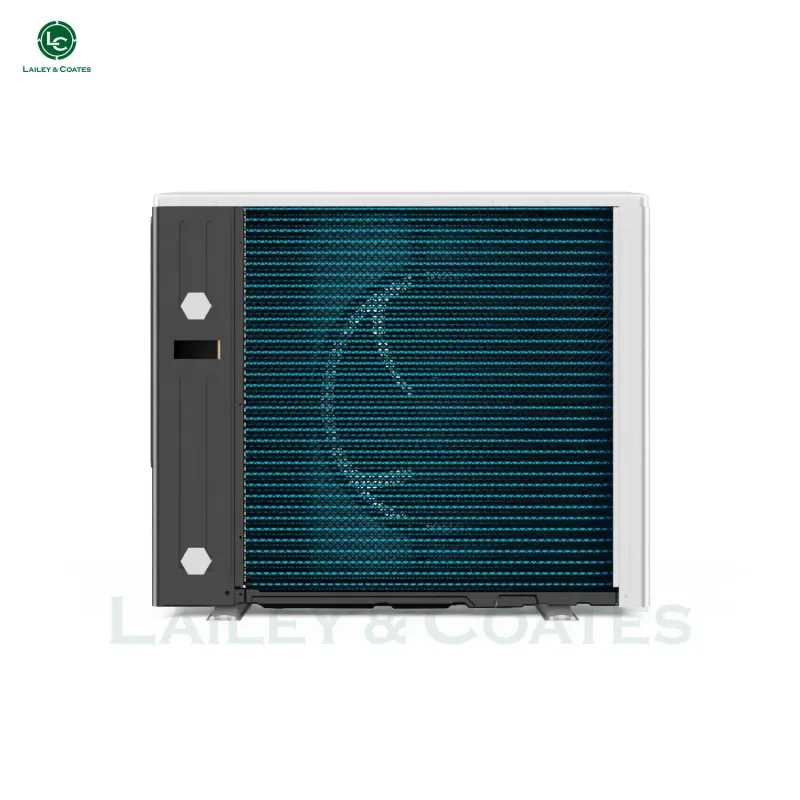

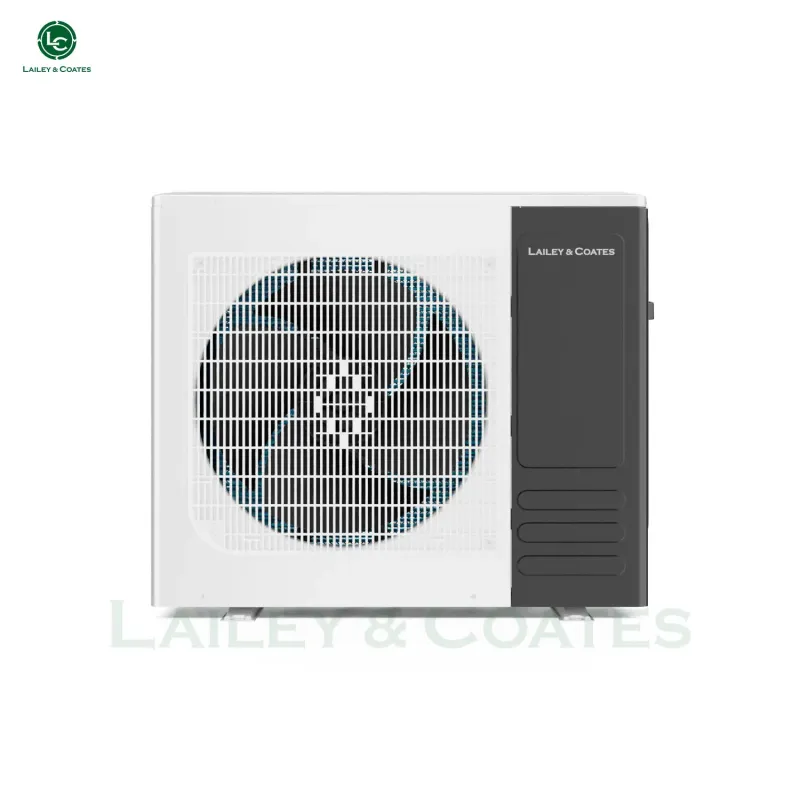

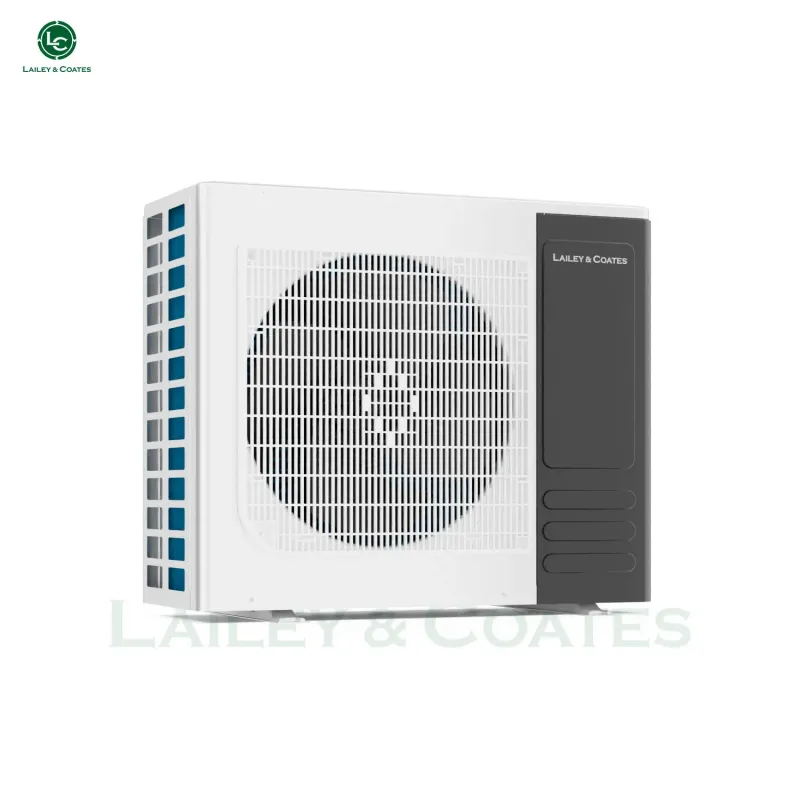

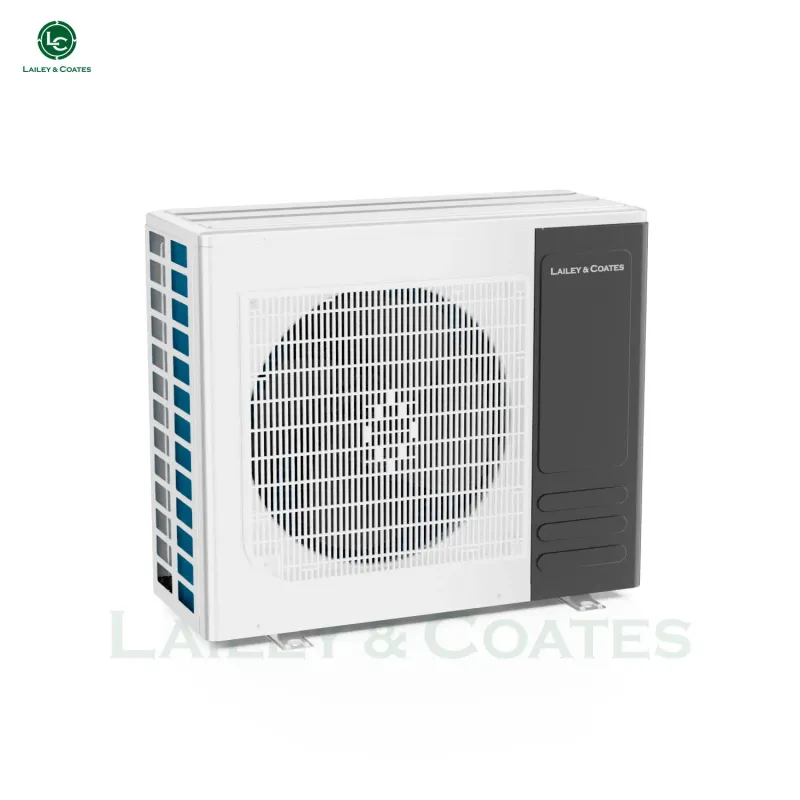

TUV Evi Air to Water Heat Pump for Home Heating, Cooling & Hot Water
Description
Overview
Basic Info.
- Model NO. LCM
- Refrigerant R32
- Compressor Type DC Inverter
- Wi-Fi Control Yes
- Application House Heating/ Cooling, Domestic Hot Water
- Working Ambient Temperature(ºC) -10~43
- Heat Exchanger Titanium
- Heating Capacity(Kw) 2.7-5
- Delivery Within 35 Days
- Transport Package Carton Box, Wooden Pallet
- Trademark Lailey & Coates / OEM
- Origin Zhongshan, China
- HS Code 8418612090
- Production Capacity 50000/Year
Product Description
KEY FEATURES
- High efficiency A+++ ErP energy label
- Fully MCS approved
- Designed by British heating engineers, being user-friendly
- Wi-Fi remote control with APP
- Automatic software update via internet. (Saves time/money for engineers call outs)
- User-friendly touch screen controller
- Energy monitoring
- R32 Gas
- 7,10,15,20kW range
- Low noise fans
- Vacation mode
- Anti-legionella function
- Weather compensation
- Boost hot water heating
Product Parameters
| Model | Air Temp. (ºC) DB/ WB | Leaving Water Temp.(ºC) | LCM-60R | LCM-100R | LCM-150R | LCM-180R |
|---|---|---|---|---|---|---|
| Heating Capacity(kW) | 7/6 | 35 | 7.15 | 10.94 | 15.40 | 20.18 |
| 7/6 | 55 | 6.29 | 9.19 | 11.23 | 14.97 | |
| Power Input (kW) | 7/6 | 35 | 1.45 | 2.18 | 3.26 | 4.21 |
| 7/6 | 55 | 2.01 | 2.93 | 4.21 | 5.56 | |
| COP (W/W) | 7/6 | 35 | 4.93 | 5.01 | 4.73 | 4.79 |
| 7/6 | 55 | 3.13 | 3.14 | 2.67 | 2.69 | |
| Cooling Capacity(kW) | 35 / 24 | 18 | 7.29 | 10.52 | 14.37 | 18.40 |
| Power Input (kW) | 35 / 24 | 18 | 1.59 | 2.50 | 3.56 | 4.90 |
| EER (W/W) | 35 / 24 | 18 | 4.60 | 4.20 | 4.04 | 3.75 |
| Sound Pressure Level (at 1 m) Rated [dB (A)] | 47 | 48 | 50 | 51 | ||
| Maximum Running Current (A) | 10 | 18 | 25 | 30 | ||
| Rated Water Flow Rate (at LWT 35ºC) (LPM) | 21 | 32 | 46 | 56 | ||
| Dimensions (Unit) (LxWxH) (mm) | 1044*421*757 | 1094*421*910 | 1094*451*1389 | 1094*451*1389 | ||
| Net Weight (kg) | 75 | 86 | 106 | 128 | ||
| Power Supply (V/ Phase / Hz) | 220 ~ 240 / 1 / 50 | |||||
| Refrigerant | R32 |
Detailed Photos
ENERGY EFFICIENCY RATING LABEL
Home heating Series is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does home heating Series use R32 green gas, but also is rated with A+++ energy label. With top energy rating A+++, the unit is energy efficient and can greatly reduce energy bills for users.
47dB(A) QUIET RUNNING
Full inverter compressor and DC brushless fans enable the units to run quietly. Meanwhile, new noise reduction measures are adopted to control the sound of the units at a satisfactory level. Our Self-developed Controller Series can achieve low noise running of 47dB(A) when testing at sound pressure.
R32 REFRIGERANT
The R32 refrigerant is more environmentally friendly compared to other traditional refrigerants. Its ability to enable an inverter heat pump to recharge and recycle more effectively than some other refrigerants means that the unit can run at much higher efficiencies.
IN-APP WIRELESS CONTROL
With a Wi-Fi and 4G/5G connection, you can take full control of your swimming pool heat pump on your smartphone via an app. The app can be found in the App Stores. Controller Appearance is available to be customized by customer's requirements.
OUR CERTIFICATIONS
Delivery
Term of Delivery: WITHIN 35 DAYS after receiving deposit.
Payment
L/C, T/T, D/P are available.
Warranty
3-year-guarantee with FREE spare parts.
FAQ
- Q What are the strengths of you company?
- A We are British privated owned company based in China, offering you the heat pump products with excellent British quality and competitive Chinese prices.
- Q How can you guarantee quality?
- A Fully tested before package for each heat pump.
- Q What products do you have?
- A Inverter Air source Heat Pump, EVI Air to Heat Pump, Swimming Pool Heat Pump, Heat pump water heater, Mini pool spa heat pump, hot water heat pump.
- Q What services can you offer?
- A Accepted Delivery Terms: FOB, CFR, CIF, EXW. Accepted Payment Currency: USD, CNY. Accepted Payment Type: T/T, L/C, D/P. Language Spoken: English, Chinese.
- Q How many years have your company been in heat pump industry?
- A More than 10 years experience of heat pump manufacturing.
- Q Do you accept OEM & ODM?
- A Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design, and produce a totally new products.
- Q How about the channel management?
- A In order to lead global positive market competition, We would not sell the same product to two clients in one region. Long term customer have the right to priority to get the latest products in our company.
- Q What support do you offer to clients?
- A We can: provide product certification requirements for local markets; provide catalogs, technical manuals, customised product TVC; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market's media by our news release resources.
- Q Are you trading company or manufacturer?
- A We are manufacturer. With 4,600 sq meters modern factory in Zhongshan City, Guangdong, China. with OEM service provided.
- Q What is the function of heat pump?
- A 1) Heating in winter 2) Cooling in summer 3) WI-Fi control.
