Basic Info.

• Model NO. MGSDC-030IIC
• Work Environment Low-temperature Heat Pump
• Heat Source Air-source + Water-source
• Heating Type Circulating Heat
• Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
• Certification CE, TUV, FCC, Erpa+++
• Heating Capacity 12.1kw
• Refrigerant R290
• Voltage 220V & 380V
• Energy ERP a+++
• System Full Inverter
• Warranty 5 years Full Unit
• Noise 35dB(a)
• Transport Package Plywood
• Trademark Mango Energy
• Origin Guangzhou
• HS Code 8418612090
• Production Capacity 500000

Product Description

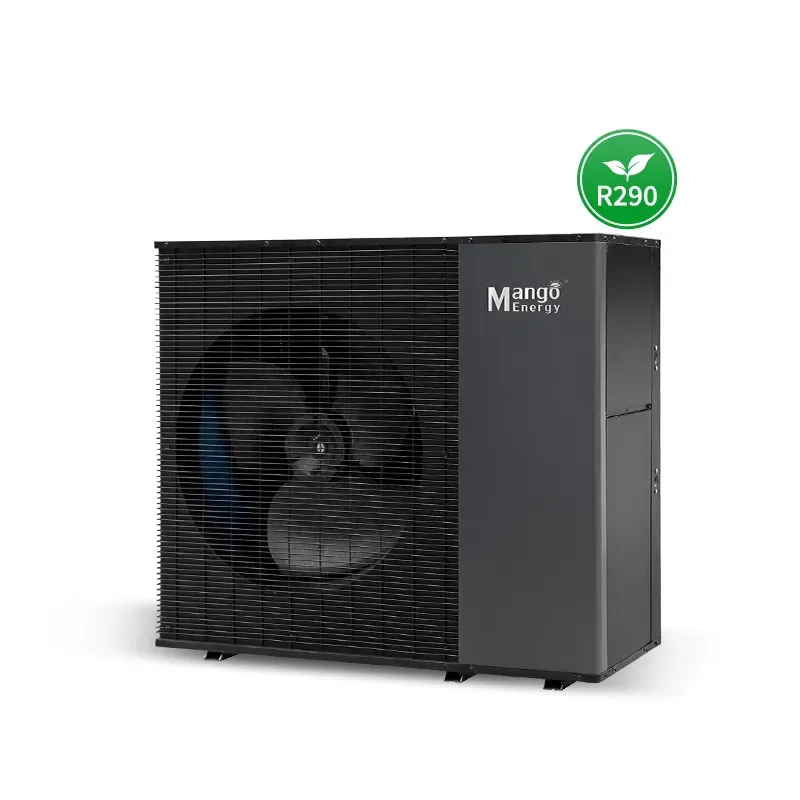

R290 35dB low noise heat pump 16kw 18kw 20kw Heating Cooling house commercial DC Inverter Air to Water Heat Pump heater

Model

• MGSDC-030IIC
• MGSDC-050IIC
• MGSDC-060IIC
• MGSDC-080IIC
• MGSDC-100IIC

Power supply

• V/Ph/Hz: 220-240/1/50 or 380-415/3/50

Max Heat Capacity (Without considering energy efficiency)

• KW: 1.8~12.3
• KW: 4.5~15.2
• KW: 6.2~19
• KW: 10~24.4
• KW: 11~26.5

The following data ensures energy efficiency in ERP A+++

Heating A7W35

• Capacity W: 8000
• Rated input W: 1606
• Current input 220V(A): 7.7
• Current input 380V(A): /
• COP: 4.98

Heating A7W45

• Capacity W: 7600
• Rated input W: 2235
• Current input 220V(A): 10.0
• Current input 380V(A): /
• COP: 3.39

Heating A7W55

• Capacity W: 7400
• Rated input W: 2356
• Current input 220V(A): 11.9
• Current input 380V(A): /
• COP: 3.14

Heating A-10W35

• Capacity W: 5000
• Rated input W: 2222
• Current input 220V(A): 10.7
• Current input 380V(A): /
• COP: 3.15

Cooling A35W18

• Capacity W: 8300
• Rated input W: 1667
• Current input 220V(A): 8.0
• Current input 380V(A): /
• COP: 4.98

Cooling A35W7

• Capacity W: 7450
• Rated input W: 2343
• Current input 220V(A): 11.2
• Current input 380V(A): /
• COP: 3.18

SCOP Average climate, W35°C

• A+++: 5.18

SCOP Average climate, W55°C

• A++: 3.93

SEER Average climate, W7°C

• 5.32

SEER Average climate, W18°C

• 7.24

ErP sound power level

• dB: 56

Sound pressure (1m) Heating A7W35

• dB(A): 42

Cooling A35W18

• dB(A): 41

Refrigerant Type (GWP)

• R290 (3)

Charged volume g

• 1100
• 1500

Unit dimensions mm

• 1280*480*928 / 1330*510*1135

Packing dimensions mm

• 1339*520*1015 / 1380*560*1235

Net/Gross weight kg

• 92 / 106
• 175 / 202
• 185 / 212

Water side connection DN25

Outdoor air temperature range

• Cooling °C: -5 ~ 46
• Heating °C: -25 ~ 35
• DHW °C: -25 ~ 46

Water setting temperature range

• Cooling °C: 5 ~ 25
• Heating °C: 25 ~ 80
• DHW °C: 20 ~ 70

Single Fan R290 ERPA+++ Inverter Heat Pump Parameter

FAQ : Marketing of Mango Energy.

• Q1: What does mango energy company do? A1: Mango energy is professional manufacturer of ON/OFF heat pump, DC inverter heat pump, air source heat pump, water to water heat pump, swimming pool heat pump, high temperature heat pump so on all kind of heat pump.
• Q2: What is the daily production of Mango energy company? A2: Mango energy one day produce heat pump water heater around 150~255 PCS / day.
• Q3: What is Mango heat pump certification? A3: Mango energy have: CE, CB, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and CCC certificate. Get Class A+, A as ErP EN14825 test report.
• Q4: Where are the Mango energy heat pump export to till now? A4: Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.
• Q5: What is the marketing cooperation case with Mango energy? A5: Mango energy all find exclusive agent / distributor / wholesale / OEM. Mango energy is manufacturer, so we do not directly face to end user / retail. After sign sales contract at this district, we will do not sales to others buyers again. So agent / distributor care for this district sales & service.
• Q6: What Mango energy do for their agent / distributor / OEM? A6: Mango energy offer sales training, heat pump & solar air conditioner product training, after sales service training, maintenance machine training, big air chiller, or heating, project design case training, inside parts exchange training and test training.
• Q7: How can get training from Mango energy? A7: If have time, can visit to my factory to training, or invite we engineer team to yours side Training, or by Video training online.
• Q8: What Mango energy offer to their business partner? A8: Mango enrgy offer 1%~2% free spare parts according to order quantity. Offer whole this district market exclusive sales right. Offer rebate as this district agent sales amount within one year. Offer best competitive price & repair parts. Offer 24 hours online service.
• Q9: where is Mango energy heat pump using? A9: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating, restaurants, hospitals, schools, bath center, residential central heating and hot water plants, etc.

If you are interesting in our system heat pump, please for free contact me now!!!
