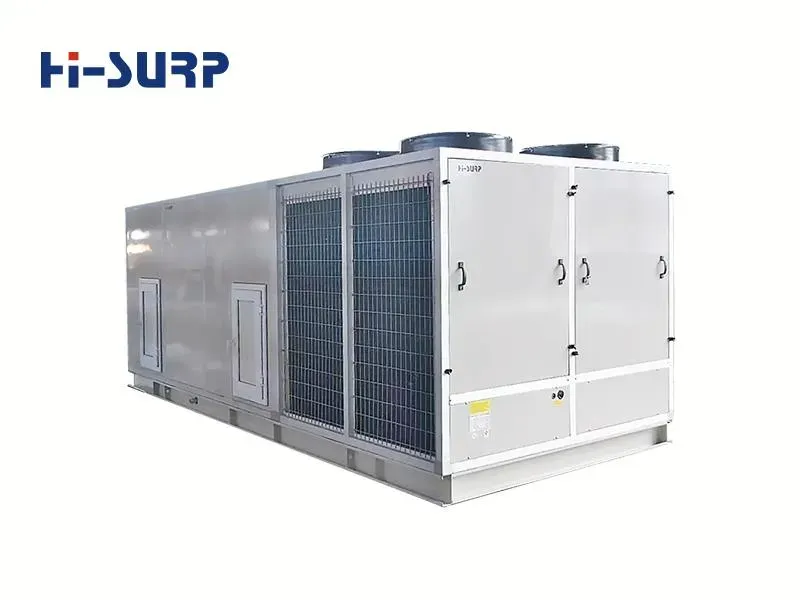

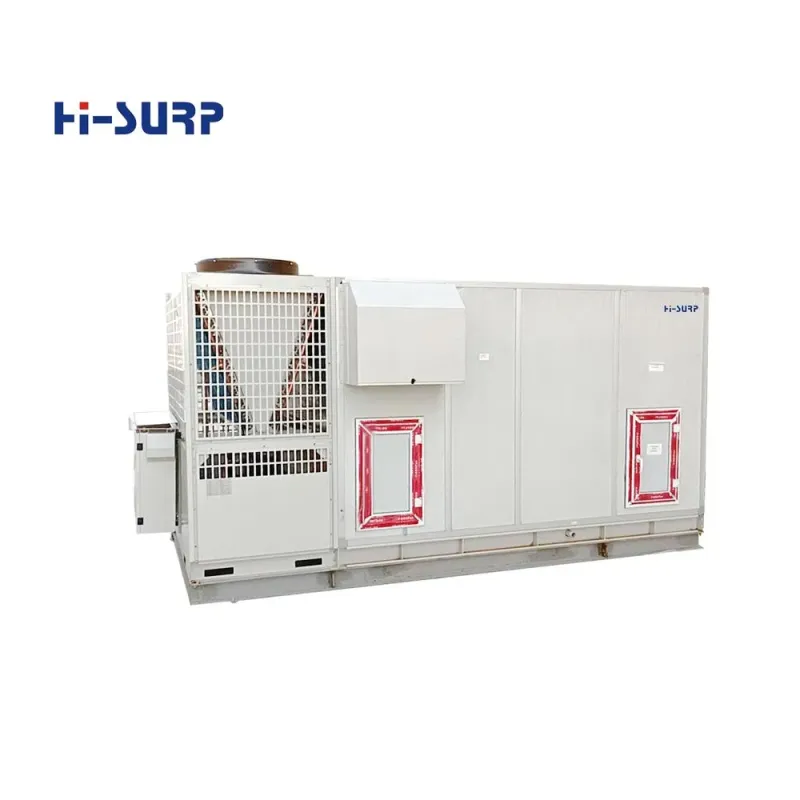

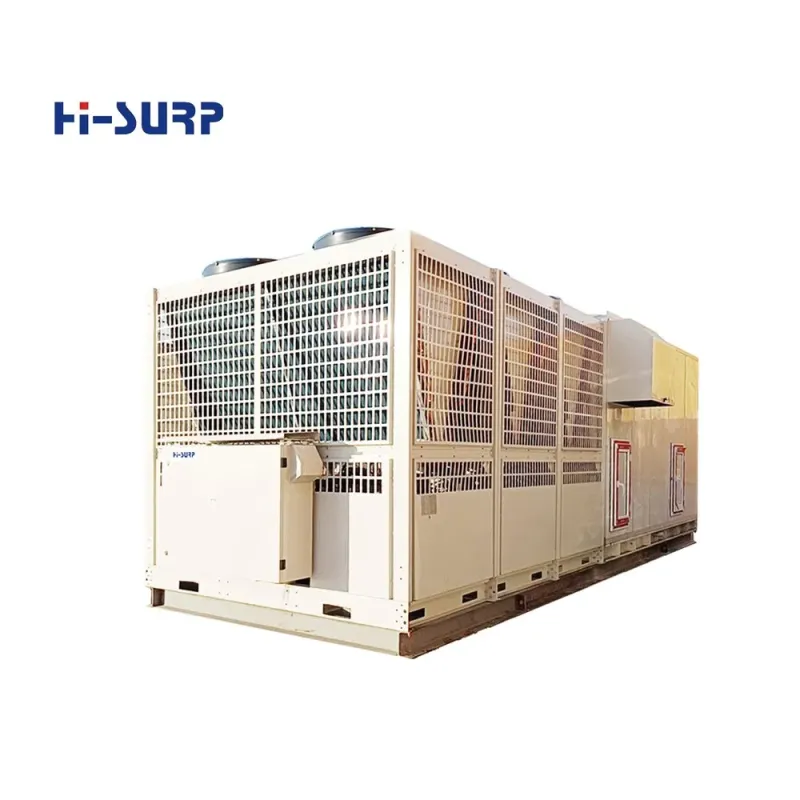

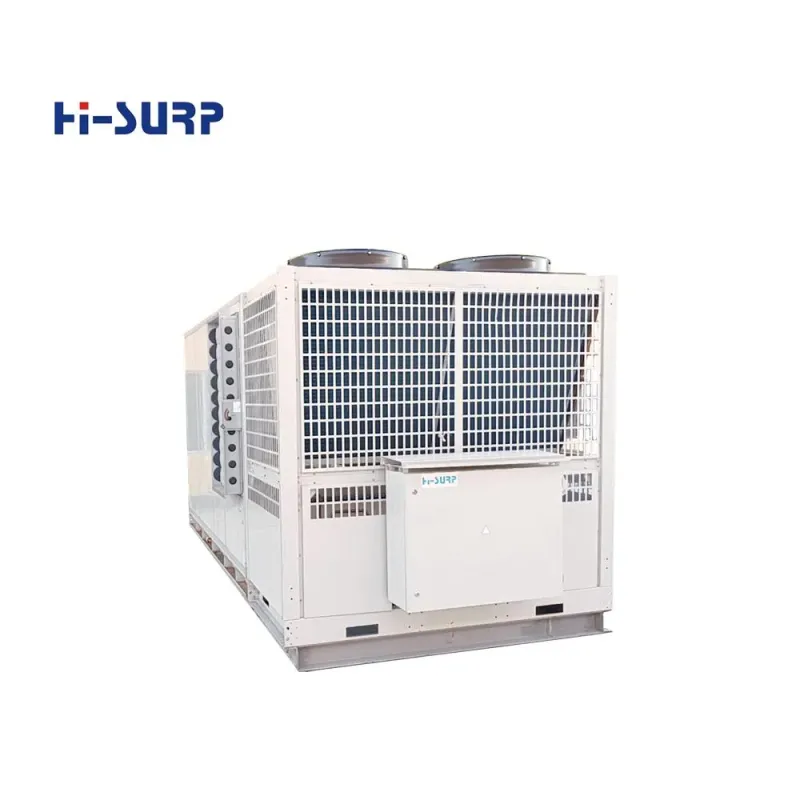

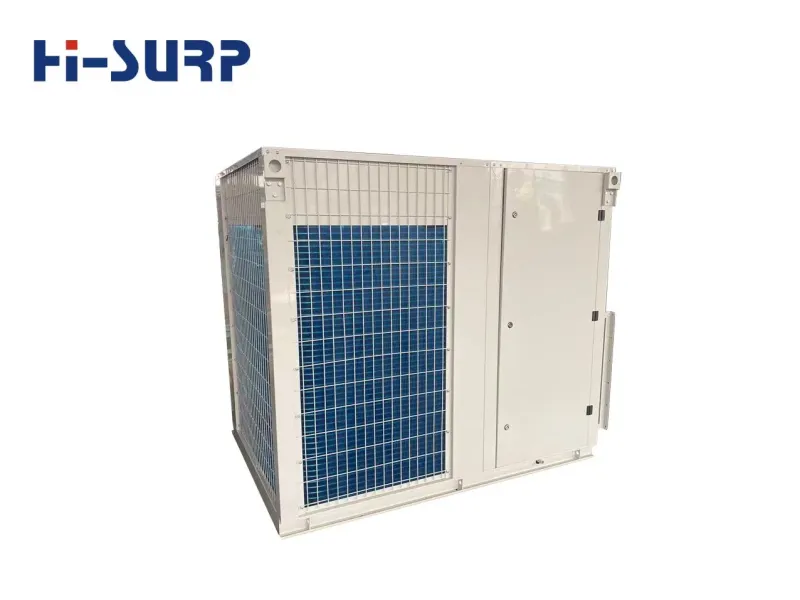

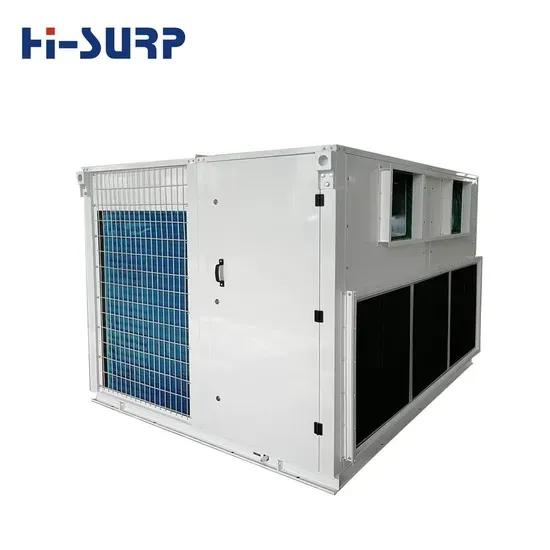

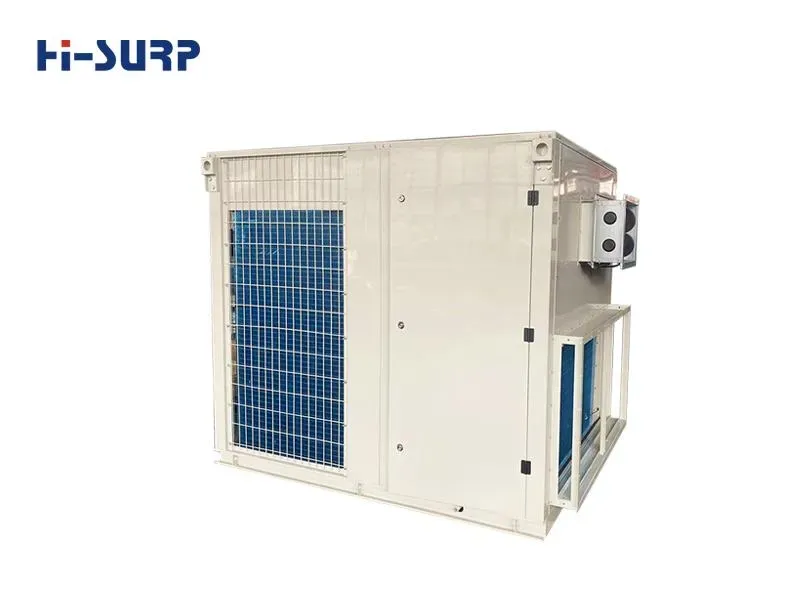

Energy Saving Rooftop Unit Packaged Air Conditioning Factory Price with Turnkey Solution
Description
Basic Info.
Product Description
Energy Saving Rooftop Unit Packaged Air Conditioning Factory Price with Turnkey Solution is widely used in
*large-scale civil
*commercial buildings
*industrial plants
*large conference centers
*gymnasiums
*exhibition centers
*large supermarkets
*cinemas
*theaters
*Especially in places with high noise requirements or inconvenient indoor installations.
--Cooling capacity: 10kw to 420kw
--Scroll compressor, rotary compressor
--Thermal expansion valve
--Thermal insulation double skins sandwich panels, aluminum alloy frame with anti-thermal bridge, minimum thermal loss.
--Variable speeds blower.
--Optional inverter motors, inverter fan blower, inverter compressors.
--Optional heat recovery for fresh air.
--Compatibility with ModBUS and BMS systems is optional.
--Washable G4 filter.
--Smart defrost system.
--Remote control and control panel
--Filter dirty alarm.
--Stainless steel drainage.
--Hot water coil for heating is optional.
--Easy to transport with crane.
Parameter Chart (example):
Return air type:
| Model | HAHU(Z)-10H | HAHU(Z)-12H | HAHU(Z)-17H | HAHU(Z)-20H | HAHU(Z)-22H | HAHU(Z)-25H | ||
| Project Parameter | ||||||||
| Unit characteristics | Cooling capacity | (kW) | 10 | 12 | 17 | 20 | 22 | 25 |
| Heating capacity (heat pump) |
(kW) | 10.5 | 12.6 | 17.9 | 21.0 | 23.1 | 26.3 | |
| Auxiliary electric heating (optional) | (kW) | 4.5 | 4.5 | 6.0 | 6.0 | 9.0 | 9.0 | |
| Circulation air volume |
(m3/h) | 2000 | 2400 | 3600 | 4200 | 4600 | 5200 | |
| Outside static pressure range | (Pa) | 50~200 | 50~200 | 100~300 | 100~300 | 100~300 | 100~300 | |
| Temperature control range and accuracy |
18ºC~30ºC±1ºC | 18ºC~30ºC±1ºC | 18ºC~30ºC±1ºC | 18ºC~30ºC±1ºC | 18ºC~30ºC±1ºC | 18ºC~30ºC±1ºC | ||
| Energy regulation | % | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | |
| power supply | 3P-AC380V/ 50HZ/N/PE |
3P-AC380V/ 50HZ/N/PE |
3P-AC380V/ 50HZ/N/PE |
3P-AC380V/ 50HZ/N/PE |
3P-AC380V/ 50HZ/N/PE |
3P-AC380V/ 50HZ/N/PE |
||
| Operating power (minimum static pressure) |
(kW) | 3.9 | 4.7 | 6.6 | 7.8 | 8.6 | 9.8 | |
| Electrical parameters - no electric heating |
Maximum operating power |
5.1 | 6.1 | 8.6 | 10.2 | 11.2 | 12.7 | |
| reference current | 9.6 | 11.5 | 16.4 | 19.2 | 21.2 | 24.0 | ||
| Recommended incoming line specification (mm2) |
2.5 | 2.5 | 4.0 | 4.0 | 6.0 | 6.0 | ||
| Electrical parameters - with electric heating |
Maximum operating power |
9.6 | 10.6 | 14.6 | 16.2 | 20.2 | 21.7 | |
| reference current | 18.1 | 20.1 | 27.7 | 30.6 | 38.2 | 41.1 | ||
| Recommended incoming line specification (mm2) |
6.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | ||
| air conditioning part | Primary filter | Type and grade | Plate G3/G4 | Plate G3/G4 | Plate G3/G4 | Plate G3/G4 | Plate G3/G4 | Plate G3/G4 |
| Intermediate filter (optional) |
Type and grade | Plate FB5 | Plate FB5 | Plate FB5 | Plate FB5 | Plate FB5 | Plate FB5 | |
| Evaporator | Type | Hydrophilic louver type aluminum fins | Hydrophilic louver type aluminum fins | Hydrophilic louver type aluminum fins | Hydrophilic louver type aluminum fins | Hydrophilic louver type aluminum fins | Hydrophilic louver type aluminum fins | |
| direct wind speed | <=2.5 | <=2.5 | <=2.5 | <=2.5 | <=2.5 | <=2.5 | ||
| Throttling mode | Expansion valve | Expansion valve | Expansion valve | Expansion valve | Expansion valve | Expansion valve | ||
| Auxiliary electric heating (Optional) |
Electric heating type | PTC ceramics | PTC ceramics | PTC ceramics | PTC ceramics | PTC ceramics | PTC ceramics | |
| Power (kW) | 4.5 | 4.5 | 6 | 6 | 9 | 9 | ||
| Diameter of drain pipe | DN | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | |

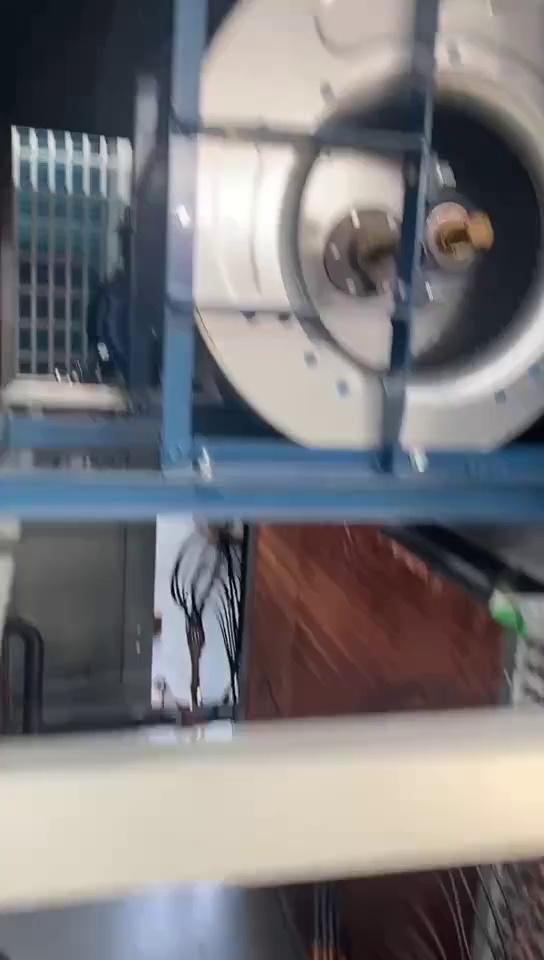

| Blower | Type | Low noise centrifugal fan | Low noise centrifugal fan | Low noise centrifugal fan | Low noise centrifugal fan | Low noise centrifugal fan | Low noise centrifugal fan | |
| transfer method | pulley drive | pulley drive | pulley drive | pulley drive | pulley drive | pulley drive | ||
| Fan model | KTS7-7C | KTS7-7C | KTS10-10 | KTS10-10 | KTS12-9 | KTS12-9 | ||
| Fan qty | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Air outlet size | 259×228 | 259×228 | 331×289 | 331×289 | 309×341 | 309×341 | ||
| compression condensing part | Compressor | Type | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll |
| QTY | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Refrigerant | Refrigerant model | R410A/R22 | R410A/R22 | R410A/R22 | R410A/R22 | R410A/R22 | R410A/R22 | |
| Filling amount kg | 3.0 | 3.6 | 5.1 | 6.0 | 6.6 | 7.5 | ||
| Condenser | Type | Copper tube aluminum fin | Copper tube aluminum fin | Copper tube aluminum fin | Copper tube aluminum fin | Copper tube aluminum fin | Copper tube aluminum fin | |
| Fan part | Fan type | Axial fan blade | Axial fan blade | Axial fan blade | Axial fan blade | Axial fan blade | Axial fan blade | |
| Fan model | RZLC550 | RZLC550 | RZLC600 | RZLC600 | RZLC650 | RZLC650 | ||
| QTY | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Air volume(m3/h) | 5600 | 5600 | 8040 | 8040 | 9930 | 9930 | ||
| Power (kW) | 0.37 | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | ||
| Dimensions | Length (mm) | 1260 | 1260 | 1360 | 1360 | 1460 | 1460 | |
| Width (mm) | 900 | 900 | 1000 | 1000 | 1100 | 1100 | ||
| Height (mm) | 1160 | 1160 | 1260 | 1260 | 1460 | 1460 | ||
| Weight (Kg) | 200 | 220 | 320 | 340 | 420 | 460 | ||
| Noise (dB) A | 66 | 66 | 67 | 68 | 72 | 72 | ||
Note:
1. Rated cooling capacity test conditions: outdoor dry bulb 35°C, indoor dry bulb/wet bulb 27°C/19°C
2. Rated heating test conditions: outdoor dry bulb/wet bulb 7°C/6°C, indoor dry bulb 20°C
3. When heating, the ambient temperature is lower than 0°C, it is recommended to use electric heating.
4. The static pressure of the unit in the fan characteristics is selected according to the integral multiple of 50 within the given static pressure range.
Detailed Introduction:
1. Heating and cooling heat pump type, single cooling plus electric heating type, or single cooling plus steam (hot water) heating type.
2. Easy installation and maintenance
3. Fully enclosed compressor. Compressor and the air supply fan have vibration damping devices. Operation is quiet, so the installation basis of the unit is simple.
4. Provides a double-layer washable primary filter. Disassembly and cleaning are simple and convenient.
5. Not occupy the indoor area, and the noise during the operation of the indoor inorganic group.
5. Unit has high and low pressure protection, overcurrent protection, phase sequence protection and other functions with high reliability. Durable.
6. Aluminum profile frame structure and sheet metal frame structure can select.
7. Microcomputer, large LED screen, has the function of timing switch, real-time clock display, etc. Optimized unit monitoring logic, well-designed unit operating data and fault alarm full code query and prompt functions, easy to operate.
8. Widely used in various large-space civil, commercial buildings and industrial plants; such as large conference centers, stadiums, exhibition centers, large supermarkets, theaters, electronic plants,desert etc.
9.Cooling capacity: 10kw to 420kw
