Full Color Flip COB LED Display Panel for Retail Stores
Description
Overview
Product Details
- Model NO. 1.538
- Pixel Pitch 1.538mm
- Pixel Configuration 1R, 1G, 1B
- Pixel Density 27,777 dots / m²
- Scanning Mode 1/8 Scan
- System Operating Platform WIN2000
- Display Type LED Video Display
- Application Stage Performance
- IP Rating IP54
- Certification CE, RoHS, CCC, ETL
- Aspect Ratio Other
- Warranty 3 Years
- Place of Origin Guangdong, China
- Screen Type Touchscreen, Infrared
- Transport Package Flight Case
- Specification 500x1000mm
- Trademark Junchen
- Origin China
Product Description
COB LED Module Displays

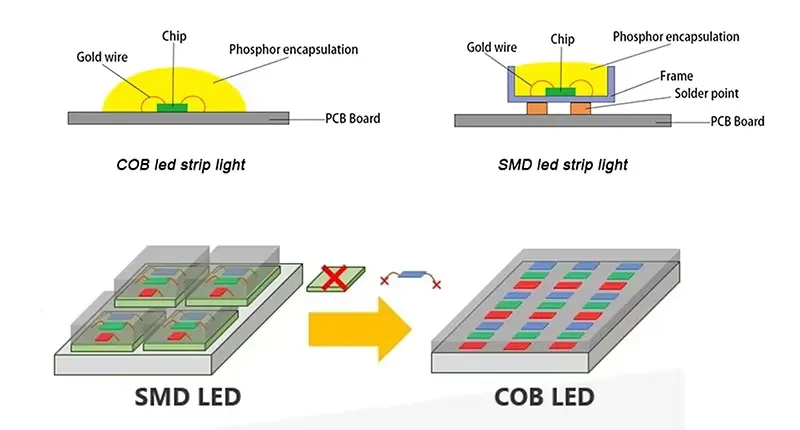

Wire bonding is a common technique used in the assembly of electronics, including COB (Chip-on-Board) LED module displays. In COB displays, multiple LED chips are directly mounted on a PCB (Printed Circuit Board) without using individual packages. Wire bonding is the process of connecting the LED chips to the PCB using extremely thin wires made of gold, aluminum, or copper. These wires are carefully bonded to the designated bonding pads on the LED chips and the PCB using specialized equipment.
- Compact Design: Wire bonding allows for a compact design, making COB LED displays ideal for space-limited applications.
- High Density Packaging: Enables more LED chips to be mounted on the PCB, resulting in higher pixel density and improved image quality.
- Improved Heat Dissipation: Better heat dissipation compared to traditional LED displays for longevity and reliability.
- Enhanced Performance: Reliable electrical connections for stable and consistent illumination over time.
- Lower Power Consumption: Energy-efficient and cost-effective in the long run.
- Wide Viewing Angle: Offers a wide viewing angle for good visibility from various positions and angles.
- Customization Options: Versatile customization in terms of LED chip number, arrangement, sizes, shapes, and resolutions.
- Durability: Known for durability and resistance to shocks, vibrations, and environmental factors.
COB LED module displays from Guangzhou Junchen Display Technology Co., Ltd. are designed to provide a compact, high-density, energy-efficient, and durable solution for various applications such as digital signage, information display, and home theater.
Product Specifications
| Items | P0.93 | P1.25 | P1.56 |
|---|---|---|---|
| Module size | 150*168.75mm | ||
| Lamp resolution | 160*180 | 120*135 | 96*108 |
| Scan the number | 54S | 60S | 54S |
| Lamp surface process | Mute surface | ||
| surface hardness | 4H | ||
| Displays the unit size | V168-35B:600*675*39.5mm/V168-27B:600*337.5*39.5mm | ||
| Unit weight | Approximately 7.9kg(35 inch 600*675)/approximately 4kg(27 inch 600*337.5) | ||
| Cell resolution | 640*720/640*360 | 480*540/480*270 | 384*432/384*216 |
| Every square pixel | 1137777 points | 640000 points | 409600 points |
| Circuit scheme | Gongyin circuit | Gongyang circuit | |
| Flash Correct the storage | have | ||
| Control system | Nova Star | ||
| White balance brightness | Standard size of 600 cd / m2 | ||
| refresh rate | 3840Hz | ||
| contrast ratio | 10000:1 (without ambient light) | ||
| colour temperature | 9300K (Standard) | ||
| maximum power (White balance 600nit) | Approximately 150W / box (600 * 675mm) about 75W / box (600*337.5mm) | Approximately 130W / box (600 * 675mm) about 65W / box (600*337.5mm) | Approximately 130W / box (600 * 675mm) about 65W / box (600*337.5mm) |
| Viewing Angle | 160° | ||
| Maintenance mode | Front service | ||
| Lamp surface IP levels of protection | IP54 (surface) | ||
| LED Life | 100,000 hours | ||
| Supply Voltage | AC 100~240V 50/60Hz | ||
| Operating Temperature | -10ºC-+40ºC | ||
| Operating Humidity | 10%RH-90%RH | ||
| Storage temperature and humidity range | -20ºC-+60ºC/10%RH-90%RH | ||
| attestation | 3C, EMC CLASS-A, ROHS, energy conservation |
Product Case
Company Information
Welcome to Guangzhou Junchen Display Technology Co., Ltd.
Guangzhou Junchen Display Technology Co., Ltd. specializes in developing, manufacturing, and marketing high-quality indoor and outdoor LED display products. With over 8 years of experience, we have established a strong reputation both domestically and internationally.
Committed to efficiency and integrity, we strictly adhere to the ISO9001:2015 quality system to ensure excellent quality, competitive pricing, sincere service, and prompt technical support for our customers. Our products are exported to over 70 countries across Asia, the Middle East, America, Europe, and Africa. We hold several patents in China and possess certifications such as CE, FCC, CCC, and ROHS.
If you are interested in our products or wish to discuss a project, please don't hesitate to contact us. We look forward to establishing a successful business relationship with you and strive for mutually beneficial cooperation.
Guangzhou Junchen Display Technology Co., Ltd. offers the innovative LED Sphere Display, providing cutting-edge solutions for captivating visual experiences in both indoor and outdoor settings. With our high-quality LED display products, you can create stunning visual displays that will impress your audience.
Our Services
Welcome to Guangzhou Junchen Group Purchase Co., Ltd.
Pre-sales Support
- Expert technical advice for product selection
- Assistance in choosing products within your budget
- Technical drawings and framework structures provided
- Custom software customization available
After-sales Service
- Warranty service exceeding two years
- Free maintenance services, including remote configuration and troubleshooting
- Lifetime follow-up service for continuous improvement
- Training on operating and maintaining products
FAQ
- What are the benefits of LED screens? LED screens offer high brightness, wide angles, energy efficiency, and long lifespan, suitable for indoor and outdoor uses.
- Can LED screens be customized in size? Yes, we provide tailored LED screen solutions to match your requirements.
- How do I choose the right LED screen? Consider factors like usage, distance, lighting, and screen quality when selecting.
- How is an LED screen maintained? Regularly clean the surface to prevent dust buildup and avoid contact with water or chemicals.
- Can LED screens be used outdoors? Yes, we offer waterproof screens suitable for outdoor advertising and events.
