High-Performance Long-Distance Belt Conveyor for Port Bulk Cargo Transport
Description
Basic Info.
Model NO.: Customized
Structure: Belt Conveyor
Material: Carbon Steel
Material Feature: Oil Resistant, Heat Resistant, Fire Resistant
Application: Chemical Industry, Mining Transport, Power Plant
Condition: New
Conveyor Length: 800~3000 M
Belt Width: 650~2400 mm
Belt Speed: 1.6 ~ 6.3 M/S
Drive Pulley Diam.: 500~3000 mm
Roller Diam.: 89~219 mm
Transport Package: Standard Export Package
Specification: Customized
Trademark: Lemei Brand
Origin: China
HS Code: 8428399000
Production Capacity: 500 Sets Per Year
Product Description
Long-Distance Overland Belt Conveyor
BASIC INTRODUCTION
Long distance overland flat turn belt conveyor is a continuous conveying equipment that uses steel rope core conveyor belts as traction components. Its ultra long conveying distance and super large conveying capacity, as well as the multi-point horizontal turning curve conveying method, can maximize the satisfaction of high yield and efficient material transportation in working faces. It is a key equipment for comprehensive mining and production systems to achieve intelligent complete sets, and is currently a large-scale intelligent environmental protection and energy-saving conveying equipment vigorously promoted and used by countries around the world.
PRODUCT FEATURES
The long distance overland conveyor is a special type of belt conveyor that achieves long-distance and curved transportation. It can perform flat turns, as well as vertical convex and concave turns, forming a spatial curve. This is achieved by lifting the inner curve of the conveyor belt, adjusting the deflection angle of the idler, and using deep groove idler groups to generate an outward centrifugal thrust during operation to overcome the centripetal force of the conveyor caused by turning, ensuring the smooth operation of the belt during turns. By using a curved track, it can avoid obstacles or unfavorable terrain, and achieve the goal of simplying the system and saving investment by reducing or eliminating the need for intermediate transfer stations.
APPLICATION INDUSTRIES
Long distance overland flat turn belt conveyor is widely used in various industries such as mining, coal, power plants, ports, docks, building materials, metallurgy, cement, chemistry, steel, etc.
ADVANTAGES
- Continuous long-distance transportation, stable and reliable work
- Large conveying capacity, high production efficiency
- Low noise, low pollution, low energy consumption
- Simple structure and low operating costs
TYPICAL PROJECT CASE STUDY

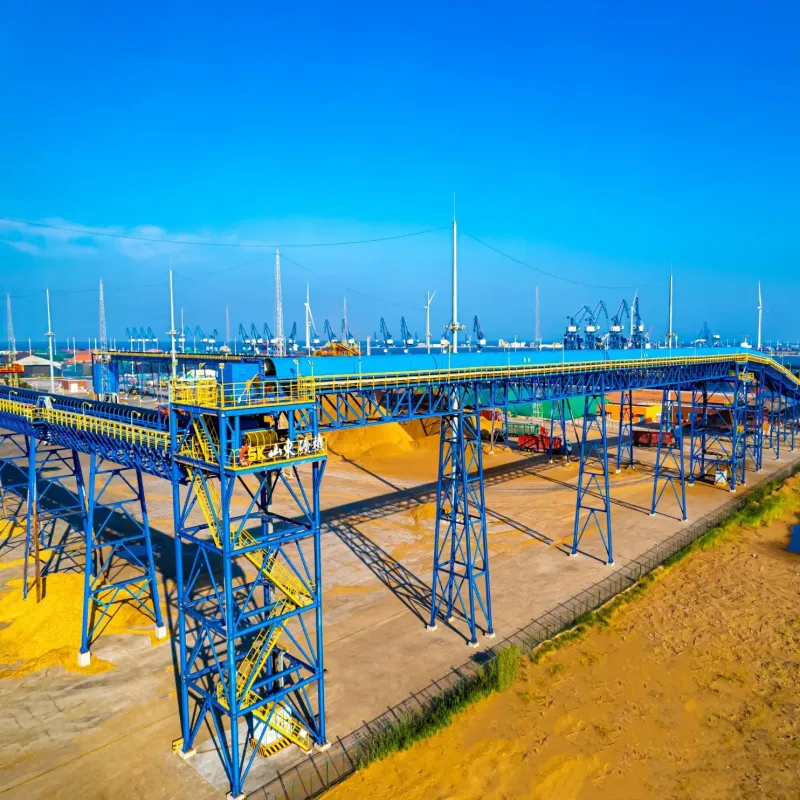

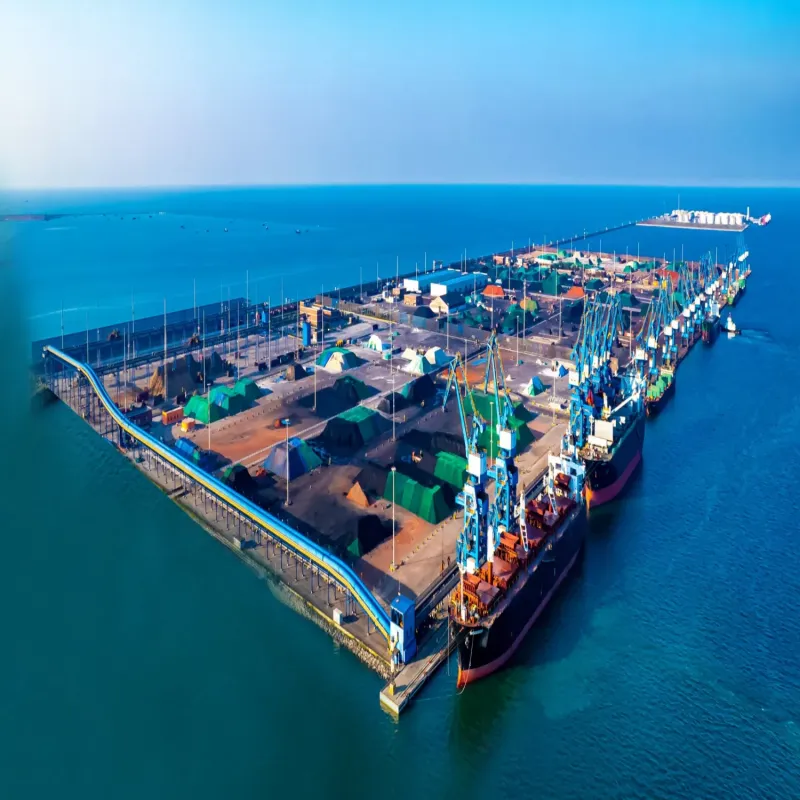

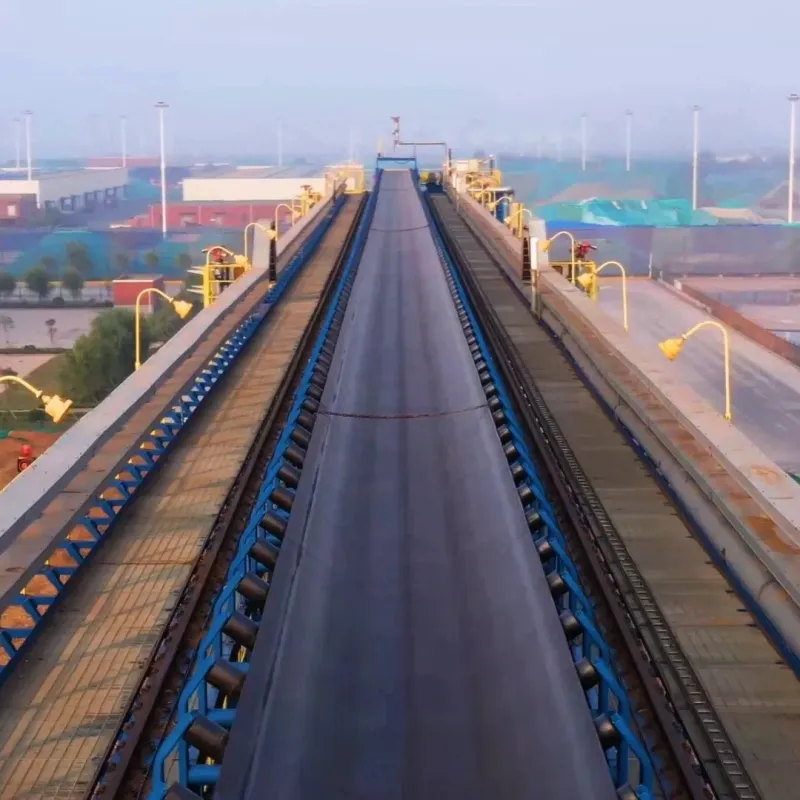

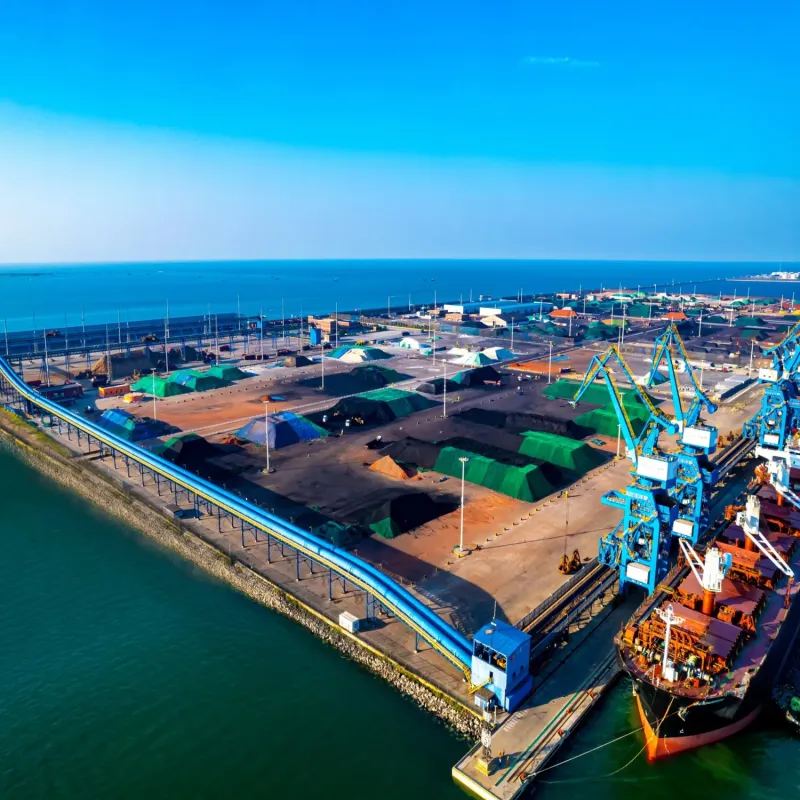

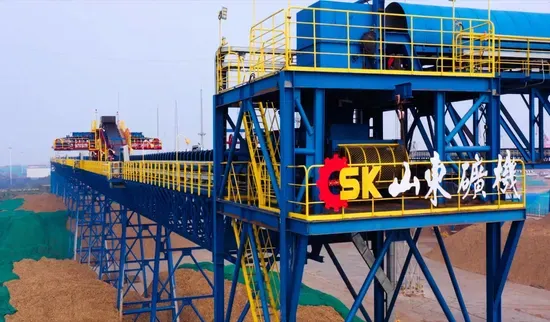

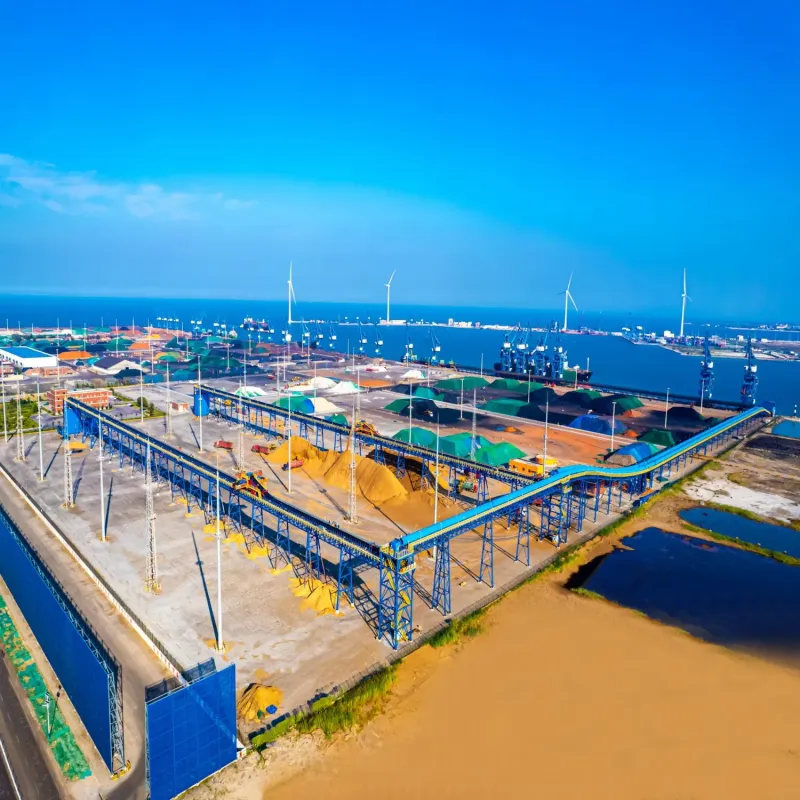

Belt Conveyor EPC Project for Weifang Port

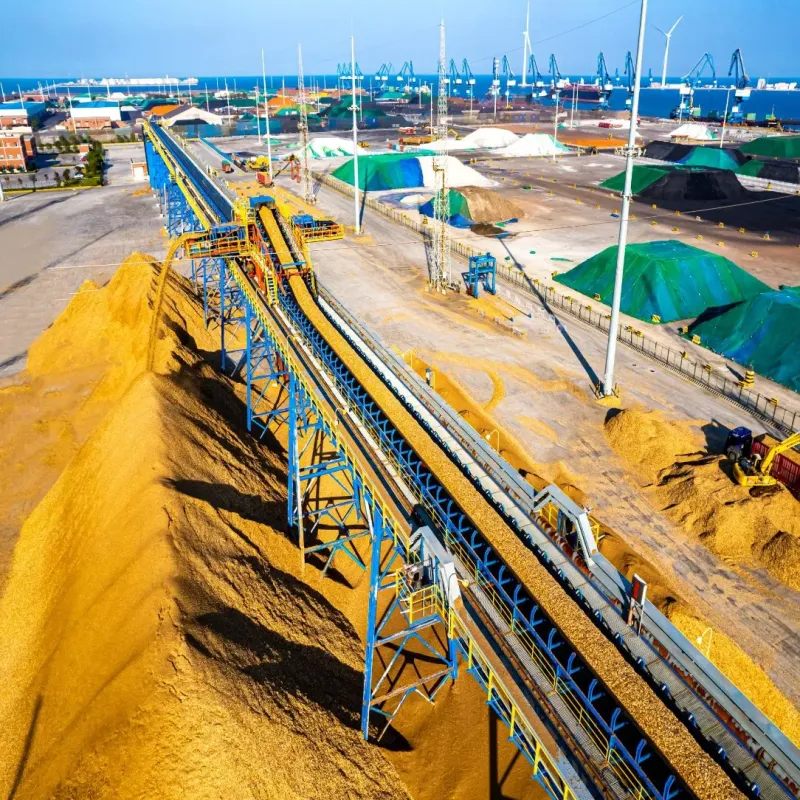

Project Background: Weifang Port Wood Chip Terminal is a dedicated terminal for storing wood chips imported. Terminal Berth Tonnage = 200,000 Tons. Terminal Annual Throughput = 6 million Tons. Total Conveyor Length = 2km. Belt Width = 2m. Conveying Capacity = 2500 t/h. Supply Scope: belt conveyor body, steel structure, power supply and lighting system, lightning protection and grounding system, control system, water supply and drainage system, automatic fire fighting system, dust collection system, as well as yard unloading trolley.
COMPANY INTRODUCTION
Manufacturer & EPC Contractor of Belt Conveyor
Company History: 70 Years
Stock Code: 002526
Company Subsidiaries: 18
Employees: 2600 + (including 400+ technicians)
Company Fixed Asset: $ 700 Million
Company Annual Revenue: $ 600 Million
Factory Area: 2,000,000 m2
National Patents: 300 +
Honor Certificates: 200 +
Belt Conveyor Annual Sales Revenue: $ 150 Million
Belt Conveyor Annual Output: 500 sets (50000 Ton)
Related Industries: mining, coal, steel, metallurgy, port, power, cement, chemical, cocking, construction materials, industrial parks, etc.
EPC General Contracting Services: project consultation, engineering design, manufacturing, supervision, installation and commissioning, operation and maintenance, and after-sales services (spare parts supply, personnel training etc.).
BELT CONVEYOR DESIGN CAPABILITY
Our company's belt conveyor has form the coal mine universal series, the DT II & DT II (A) universal series, and the dedicated series for overland conveyor, flat turning conveyor, bi-directional conveyor, large inclined angle up and down conveyor, corrugated edge protection conveyor, as well as pipe conveyor (pipe diameter φ150~850mm). The main components have been standardized and serialized. Our design range of belt conveyor: belt width is 650~2400mm, the maximum belt speed is 6.3m/s, the maximum conveying capacity reaches 13,000 t/h, the maximum transportation distance of a single convoyor is 12.6 km, and the maximum installed power reaches 6400KW.
BELT CONVEYOR MANUFACTURING CAPABILITY
Our company has the manufacturing capabilities of complete belt conveyors such as casting, forging, heat treatment, electroplating, welding, machining, surface treatment, automated spraying, and assembly. It has four factories for belt conveyor:
1. Conveyor Roller Factory
Equipped with three automatic production lines for rollers with diameters ranging from φ89 to φ219 mm, length ranging from 200~2800 mm, annual production capacity of 1.6 million sets.
2. Conveyor Pulley Factory
Conveyor diameter φ 250 ~ φ 2200 mm; conveyor length 600~ 3000 mm; maximum weight for single set is 12 tons. Annual production capacity is over 5000 Sets.
3. Steel Structure Factory
Mainly for belt conveyor body steel structure part. Annual designed production capacity is 100,000 tons.
4. Belt Conveyor Auxiliaries Factory
Belt cleaners, impact beds, non-powered (or low-powered) guide chutes, hydraulic or mechanical belt aligning devices, three-way and four-way chutes, curved coal chutes, plow-type unloaders, and other conveyor accessories. The workshop also produces intelligent rapid loading systems, unloading vehicles, material distributors, feeders, and other bulk material conveying specialized equipment, enhancing the cleanliness and completeness of bulk material conveying and transportation systems.
5. Electric Factory
A high standard clean production workshop is configured with an annual output value over USD 7 Million. Equipped with high-performance professional production equipment such as fully automatic copper bar processing machines, automatic terminal crimping machines, and automatic packaging machines, with a complete range of testing instruments.
BELT CONVEYOR FACTORY AND EQUIPMENT SHOW
