6-Bit Programmable Color Screen DC Power Supply (15A-900W)
Description
Overview
Basic Info
- Output Power: 90-6000W
- Input Voltage: 220VAC+10%
- Connection Mode: Wiring
- Starting Mode: Self-excited Switching Power Supply
- Voltage Regulating Mode: Frequency Modulation Type
- Power Supplying System: Terminal Power Distribution Equipment
- Energy Transmission: One-way Transmission
- Modulation System: /
- Certification: CE, ISO
- Brand: Idealplusing
- Output Voltage: 0~450VDC
- Output Current: 0~60A
- Max Power: 900W
- OEM: Support
- Size: 377*215*89mm
- Net Weight: 6kg-9kg
- Gross Weight: 7kg-10kg
- Customized: Support
- Transport Package: The Wooden Case
- Trademark: IDEALPLUSING
- Origin: China
- Production Capacity: 1000PCS/ Month
Product Description
6-Bit Programmable Color Screen Cabinet DC Power Supply
INTRODUCTION
This series of products is a single output DC voltage stable power supply, LED digital display, can simultaneously display the output voltage, current, power and equivalent impedance, voltage and current continuous adjustable.

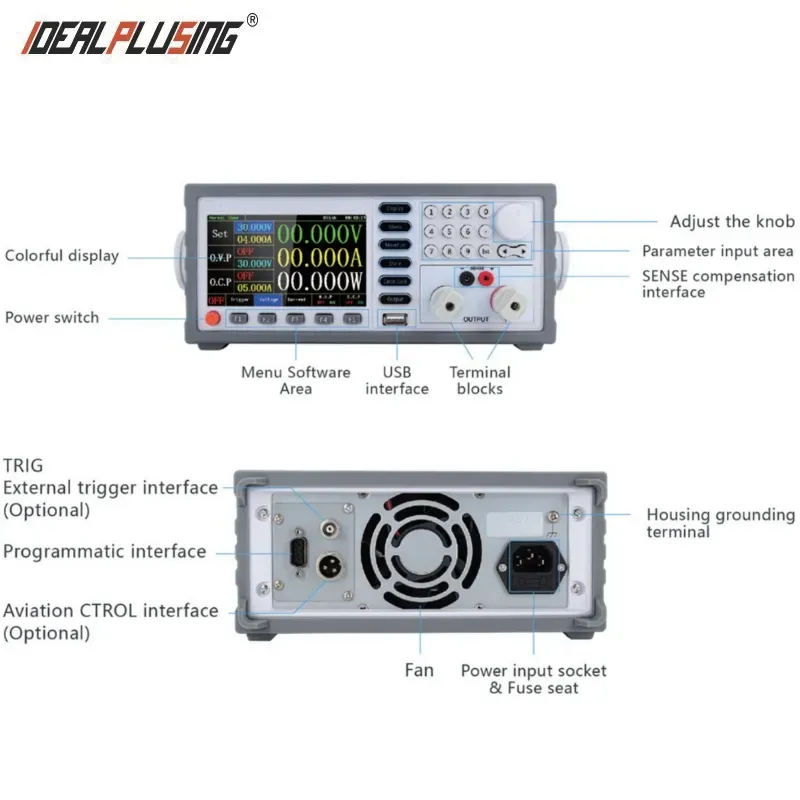

FEATURES
- LED digital display, simple and intuitive display of power output voltage, current, power, and time.
- Stable voltage and stable current automatic switching, one key output on/off switch, more flexible output control.
- Five powerful protection functions including overvoltage, overcurrent, over power, over temperature, and short circuit protection.
- 10 sets of quick parameter callback and storage functions.
- Programmable sequence output with hardware List.
- RS232 interface as standard, USB as optional, RS485, LAN interface (choose one from four).
- Standard SENSE compensation interface.
- Switchable options for output timing shutdown and output timing function.
- Voltage and current values can be pre designed for easy operation when the output is turned off.
- Temperature controlled fan, energy-saving and power-saving.
- One click keyboard lock to prevent accidental operation.
Specification
- Brand: IDEALPLUSING
- Model: IPS-ATDM1560, IPS-ATDM3020S, IPS-ATDM3030, IPS-ATDM6010, IPS-ATDM6015, IPS-ATDM8011
- Voltage (VDC): 0~15V, 0~30V, 0~30V, 0~60V, 0~60V, 0~80V
- Current (AMPS): 0~60A, 0~20A, 0~30A, 0~10A, 0~15A, 0~11A
- Power (WATT): 900W, 600W, 900W, 600W, 900W, 880W
- Voltage Output Ripples And Noise: 5mVrms, 30mVpp
- Precision Setting: ±(0.03%of reading +10mV)(25±5ºC)
- Resolution Setting: 1mV(5-bit)/0.1mV(6-bit)
- Current Output:
- Current Effect: ≤0.2%+3mA
- Load Effect: ≤0.2%+5mA
- Ripples And Noise: ≤10mArms
- Precision Setting: ±(0.03%of reading +10mA)(25±5ºC)
- Resolution Setting: 1mA(5-bit)/0.1mA(6-bit)
- Display:
- Voltage Resolution: 1mV(5-bit)/0.1mV(6-bit)
- Current Resolution: 1mA(5-bit)/0.1mA(6-bit)
- Readability: ±(0.02%of reading +5mV)(25±5ºC);±(0.05%of reading +10mA)(25±5ºC)
- Protection: Over-voltage protection, over-current protection, overpower protection, over-temperature protection, short circuit protection
- Programming Interface: RS232, USB, 485(Matching), LAN interface, Internal hard disk. Supports SCPI protocol or Modbus protocol
- Size: 400(D)x215(W)x89(H)mm
- Weight: 4.5kg
Model List
| Model | Output Peak Voltage | Output Peak Current | Output Peak Power | Size (MM) |
|---|---|---|---|---|
| IPS-ATDM1560 | 15 VDC | 60 A | 900W | 400*215*89MM |
| IPS-ATDM3020S | 30 VDC | 20 A | 600W | 400*215*89MM |
| IPS-ATDM3030 | 30 VDC | 30A | 900W | 400*215*89MM |
| IPS-ATDM6010 | 60 VDC | 10 A | 600W | 400*215*89MM |
| IPS-ATDM6015 | 60 VDCD | 15 A | 900W | 400*215*89MM |
| IPS-ATDM8011 | 80 VDC | 11 A | 880W | 400*215*89MM |

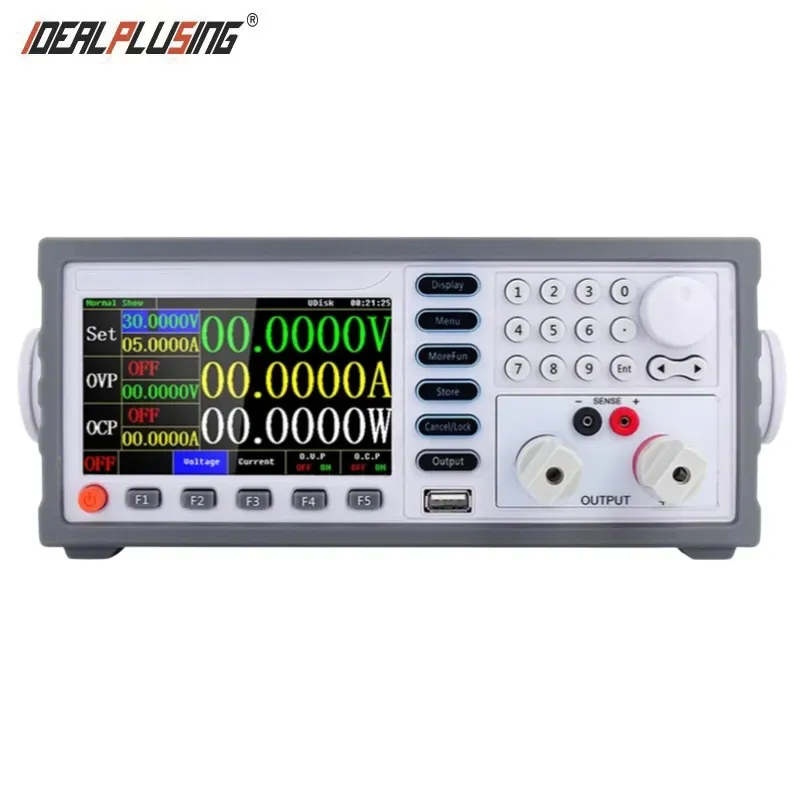

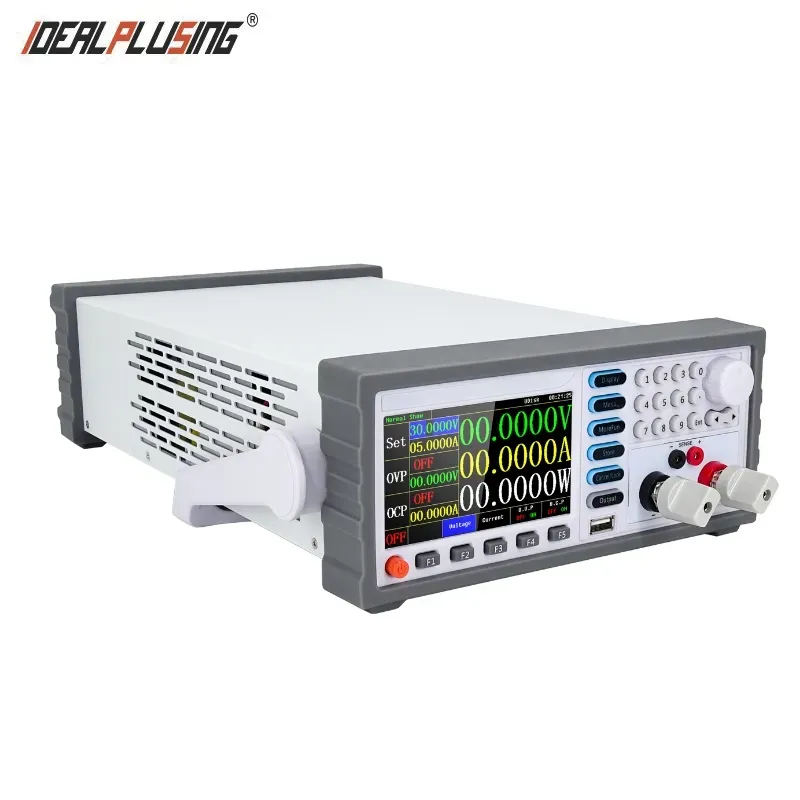

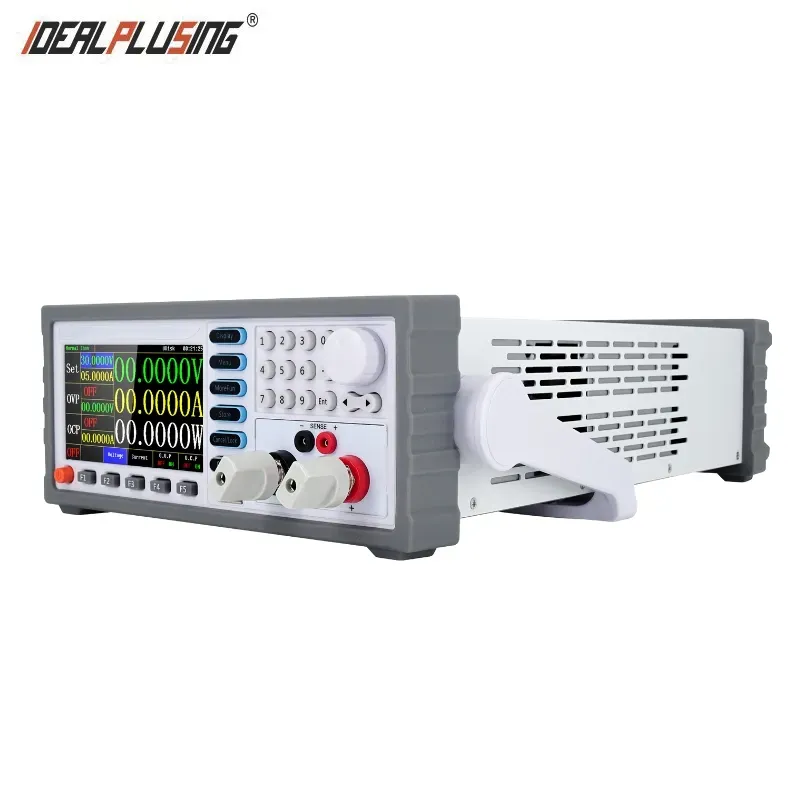

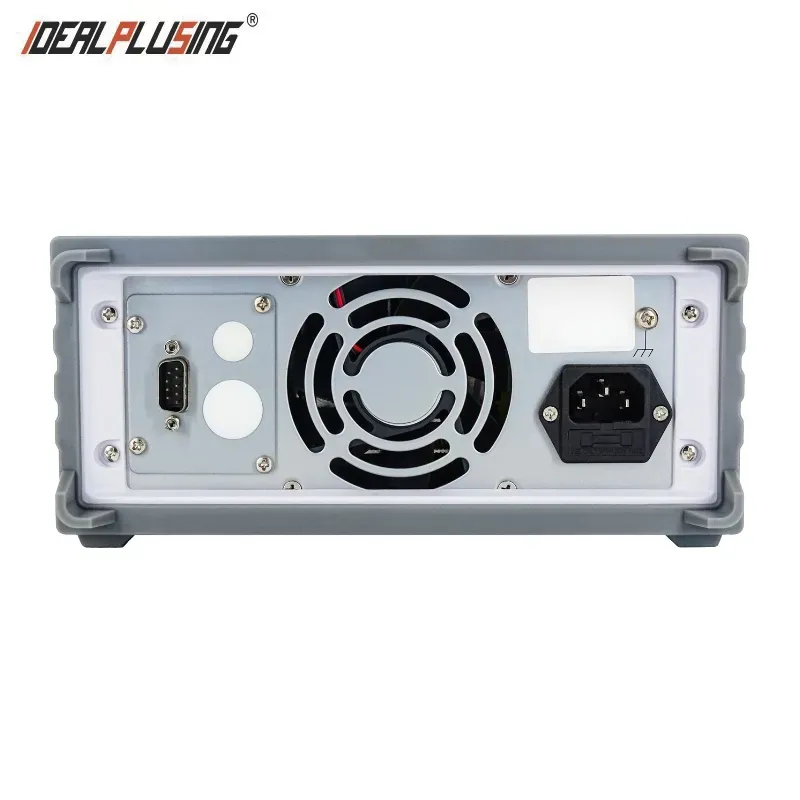

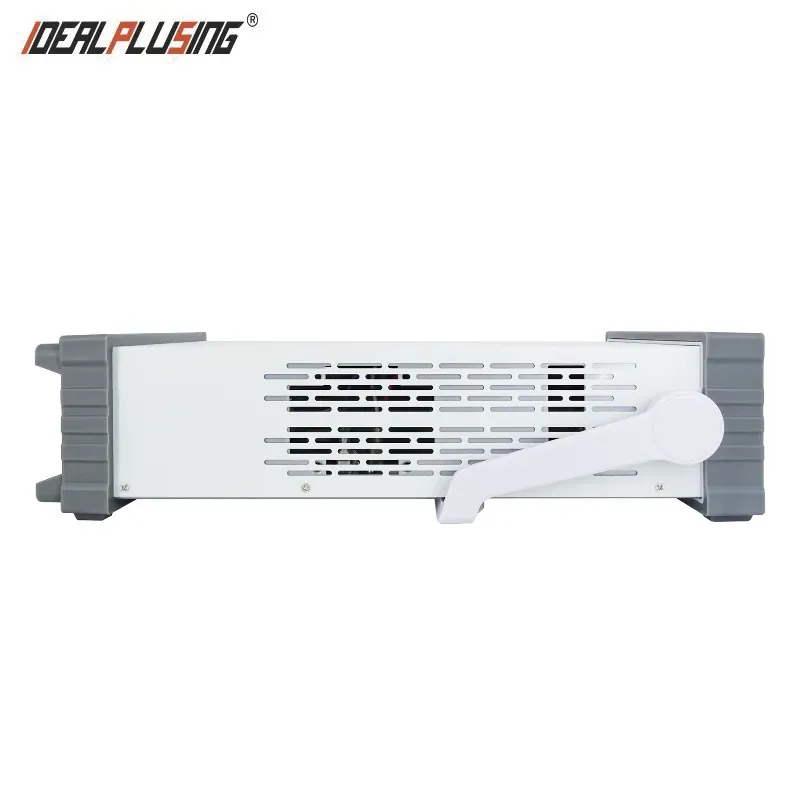

Detailed Photos
Hot Selling
MODEL: IPS-ATDM30200 High Voltage DC Power Supply Programmable Power Supply
SPECIFICATION: 1.AC input: 220VAC±10%,50Hz or 110VAC 2.DC output: 30VDC, 200A 3.Power: 6000W 4.Dimension: 540*430*130MM 5.NW: 13KG 6.Communication Interface: Standard SNESE; Standard 232, 485, USB three serial ports (choose one from the three and cannot be used at the same time); Modbus protocol
MODEL: IPS-ATDM5030 High Precision Desktop Power Supply
SPECIFICATION: 1.AC input: 220VAC±10%,50Hz or 110VAC 2.DC output: 50VDC, 30A 3.Power: 1500W 4.Dimension: 330*250*155MM 5.NW: 5KG
MODEL: IPS-ATDM1560 Adjustable DC Regulated Power Supply
SPECIFICATION: 1.AC input: 220VAC±10%,50Hz or 110VAC 2.DC output: 15VDC, 60A 3.Power: 900W 4.Dimension: 330*250*155MM 5.NW: 5KG
MODEL: IPS-ATDM1560 Adjustable DC Regulated Power Supply
SPECIFICATION: 1.AC input: 220VAC ± 10%, 50/60Hz 2.DC output: 15VDC, 60A 3.Power: 900W 4.Dimension: 377*215*89MM 5.NW: 6KG
MODEL: IPS-ATDM2002 Digital tube high-precision programmable switching power supply
SPECIFICATION: 1.AC input: 220VAC ± 10%, 50/60Hz 2.DC output: 200VDC, 2A 3.Power: 400W 4.Dimension: 352*215*89MM 5.NW: 5~8KG
MODEL: IPS-ATDM303 Digital tube high-precision programmable linear power supply
SPECIFICATION: 1.AC input: 220VAC ± 10%, 50/60Hz 2.DC output: 30VDC, 3A 3.Power: 90W 4.Dimension: 400*215*88MM 5.NW: 5.5KG
