China Factory Supplier Programmable Cabinet Tube Switching Stabilized DC Power Supply **Title:** Programmable Cabinet DC Power Supply with Tube Switching and Stabilization
Description
Overview
Basic Info
- Model NO. HZDY-300V/10A
- Input Voltage 110-220V
- Connection Mode Parallel Switching Power Supply
- Starting Mode Self-excited Switching Power Supply
- Voltage Regulating Mode Frequency Modulation Type
- Power Supplying System Terminal Power Distribution Equipment
- Energy Transmission Two-way Transmission
- Modulation System PFAW
- Certification CE, ISO
- Operation Method Touch Screen
- Output Current 10A
- Power Frequency AC220V±10% 50Hz
- Working Environment -10 ºC ~ +40 ºC Relative Humidity <80
- Storage Environment -20 ºC ~ +80 ºC Relative Humidity < 80
- Voltage Stability ≤0.2%
- Current Stability ≤ 0.5%
- Load Stability ≤ 0.5%
- Ripple and Noise ≤1% (RMS)
- Place of Origin Wuhan
- Deliver Time 7 Days After The Deposit
- Input Frequency 50Hz/60Hz
- Features High Precision, High Efficiency
- Relative Humidity Less Than 80
- Transport Package Wooden Box
- Specification 400*300*200mm
- Trademark HRZTZ POWER
- Origin Wuhan, China
- HS Code 9030332000
- Production Capacity 1000/Year
Packaging & Delivery
- Package Size 50.00cm * 45.00cm * 30.00cm
- Package Gross Weight 20.000kg
Product Description
HZDY-300V/10A DC voltage stabilized power supply is a single DC power supply output with LED digital display, showing voltage and current at the same time. This power supply is a switching type voltage stabilized power supply with the advantages of high precision, high efficiency, low weight, energy saving and environmental protection. Perfect protection function, with over-voltage (adjustable), over-temperature, overload, short-circuit current-limiting protection multiple protection functions, can effectively protect your products and the power supply itself from being damaged. Regulated voltage, regulated current automatic conversion, can be used as a regulated voltage power supply, can also be used as a regulated current power supply. Widely used in electrolytic plating, motor, PCB manufacturing, battery charging and other places that need DC regulated power supply, is the first choice of power supply products for factories, colleges and universities, scientific research, maintenance and so on.
Technical Parameters
Technical specifications
- Rated working conditions:
- Input voltage: AC220V±10% 50Hz (AC110V input or AC110V/AC220V manual switching)
- Working environment: -10 ºC ~ +40 ºC relative humidity <80
- Storage environment: -20 ºC ~ +80 ºC relative humidity < 80
- Power output parameters:
- Voltage Stability: ≤0.2%
- Current stability: ≤ 0.5%
- Load Stability: ≤0.5%
- Ripple and noise: ≤1% (RMS)

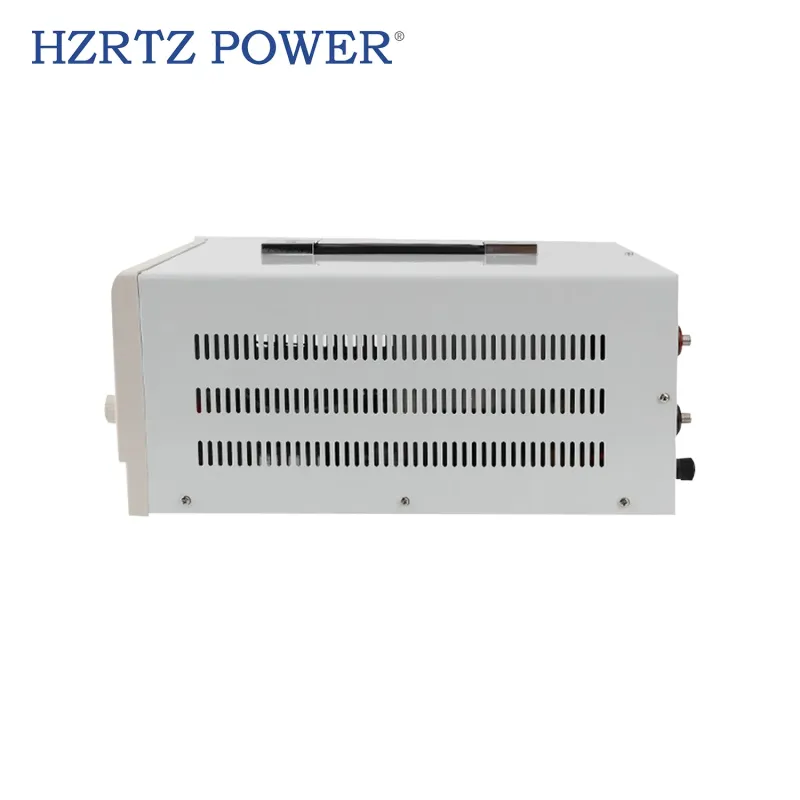

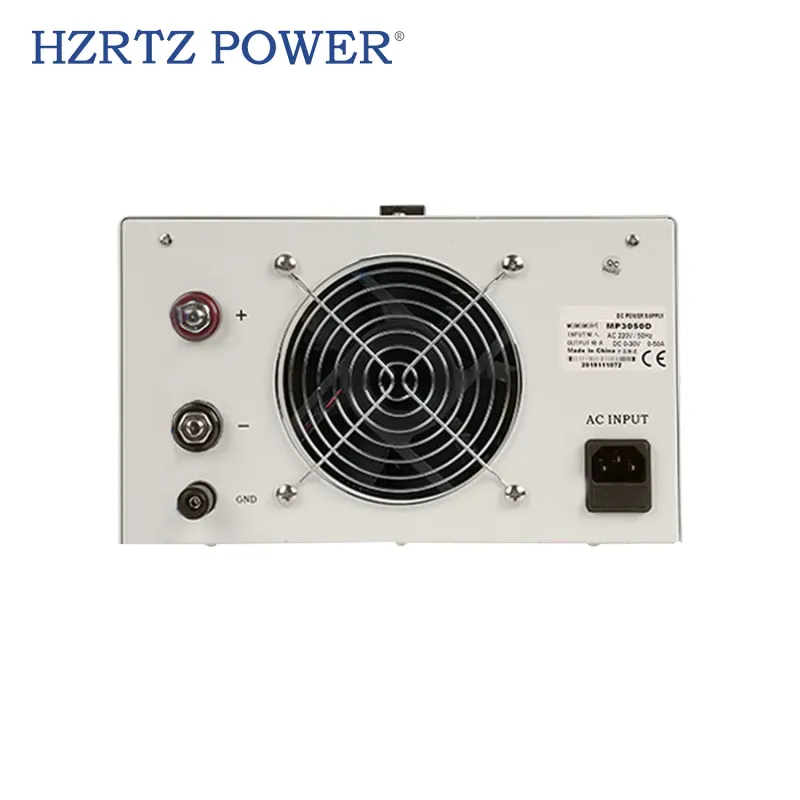

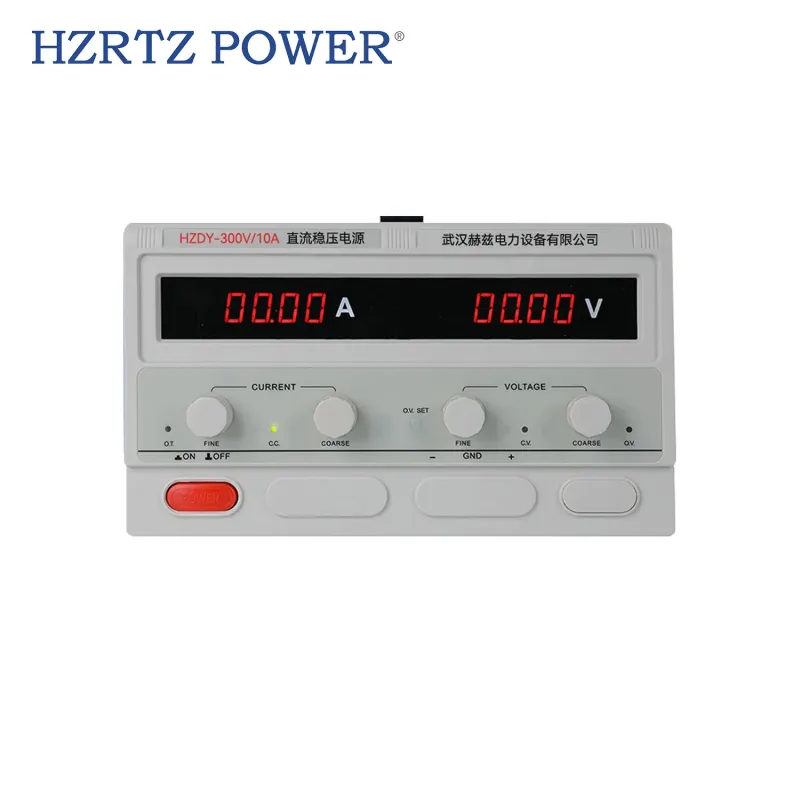

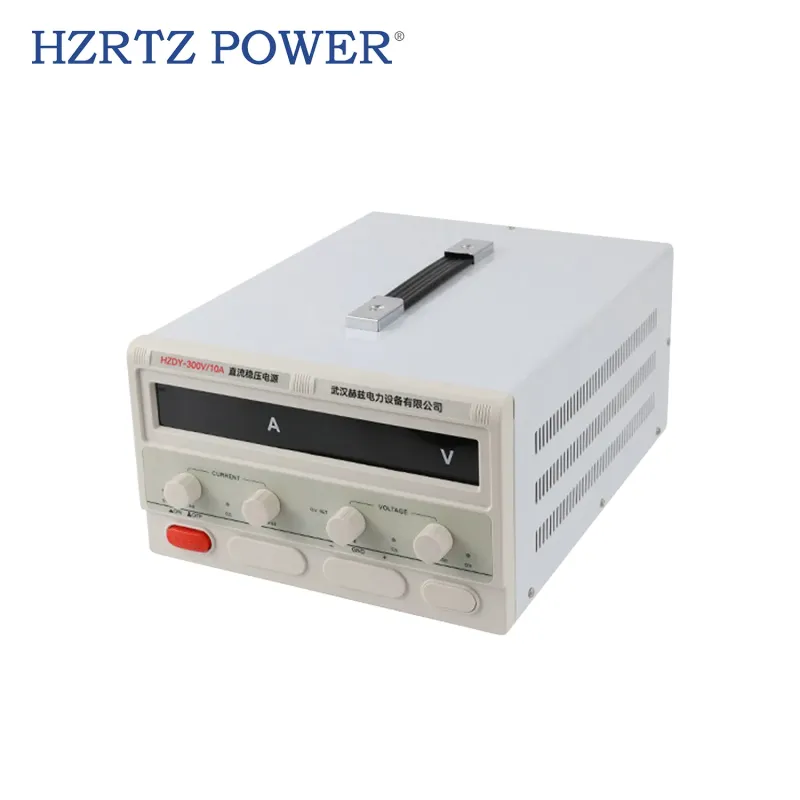

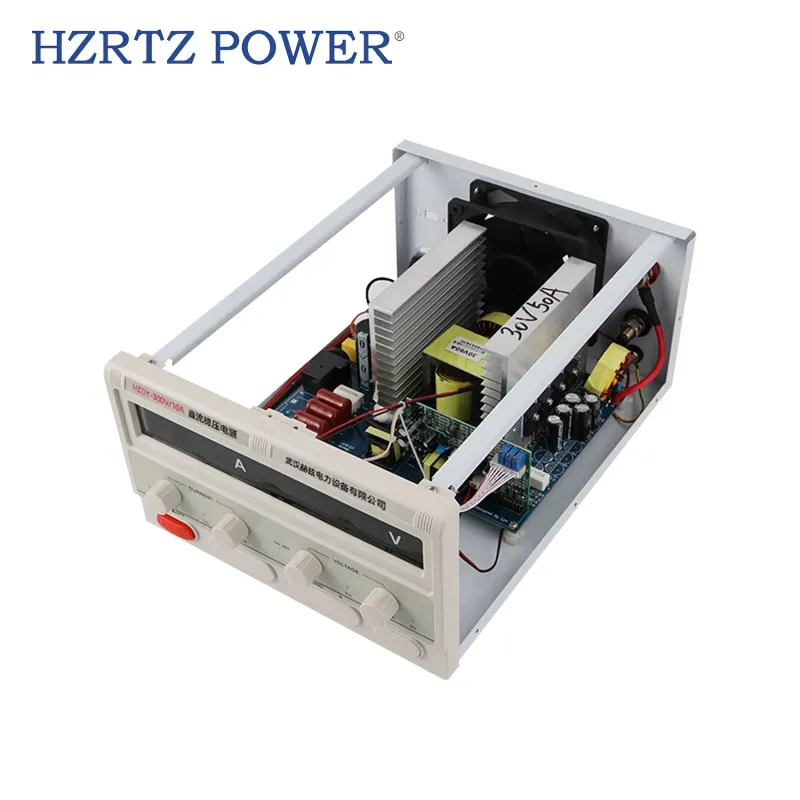

Detailed Photos
