Overview

Basic Info.

• Model NO. MC-288-4
• Melting Point 217-221ºC
• Chemical Composition Sn96.5 Ag3.0 Cu0.5
• Function Printing Application
• Selling Units Single Item
• Single Gross Weight 0.500 Kg
• Storage Condition 2-10ºC
• Powder Size T4: 20 - 38μm; T5: 15 - 25μm
• Appearance Uniform Paste, No Flux Separation
• Weight 500±5g
• Customize Support OEM, ODM
• Viscosity 190 ± 30PA·s (Can Be Customized as R
• Product Name Solder Paste
• Product Name2 No-Clean Solder Paste
• Single Package Size 10X5X5cm
• Specification 500g
• Trademark APS
• Origin Fujian, China
• HS Code 3810100000
• Production Capacity 500000/Month

Packaging & Delivery

• Package Size 30.00cm * 20.00cm * 10.00cm
• Package Gross Weight 1.000kg

Product Description

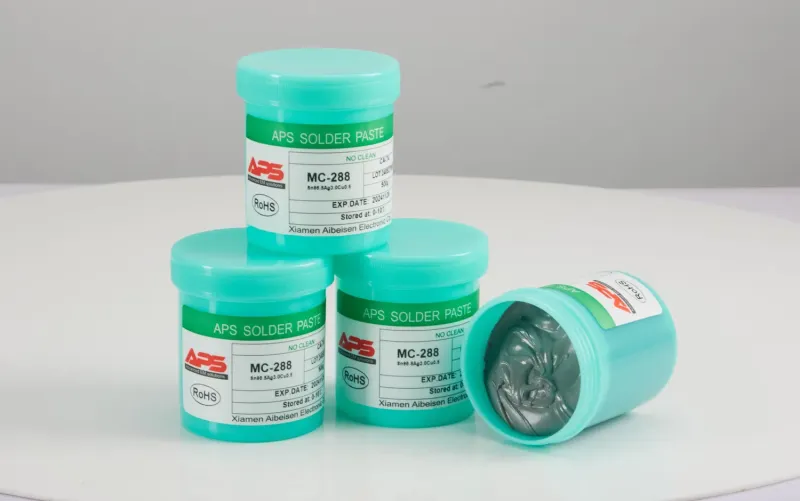

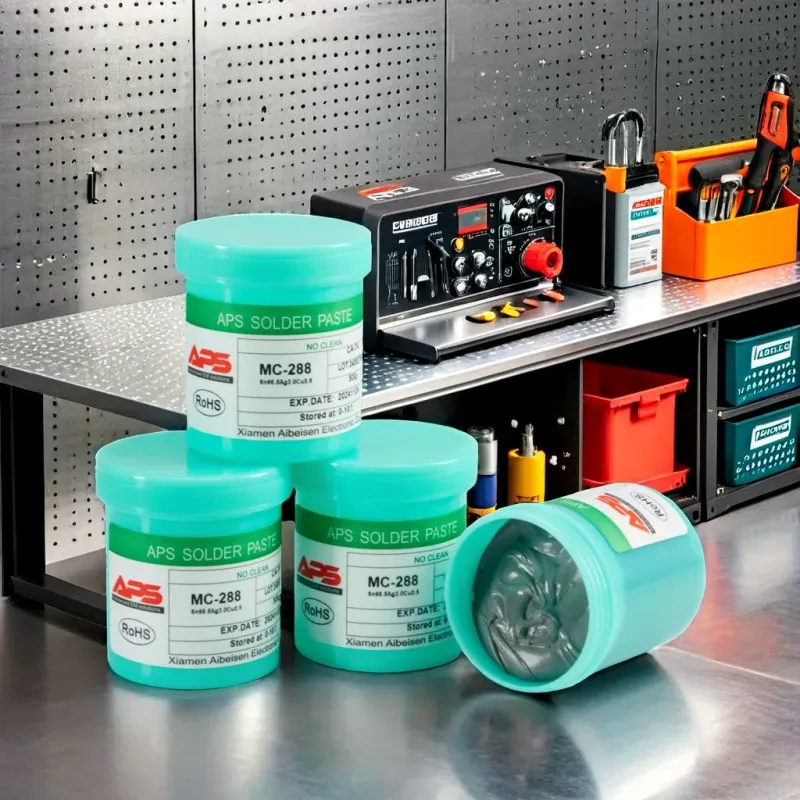

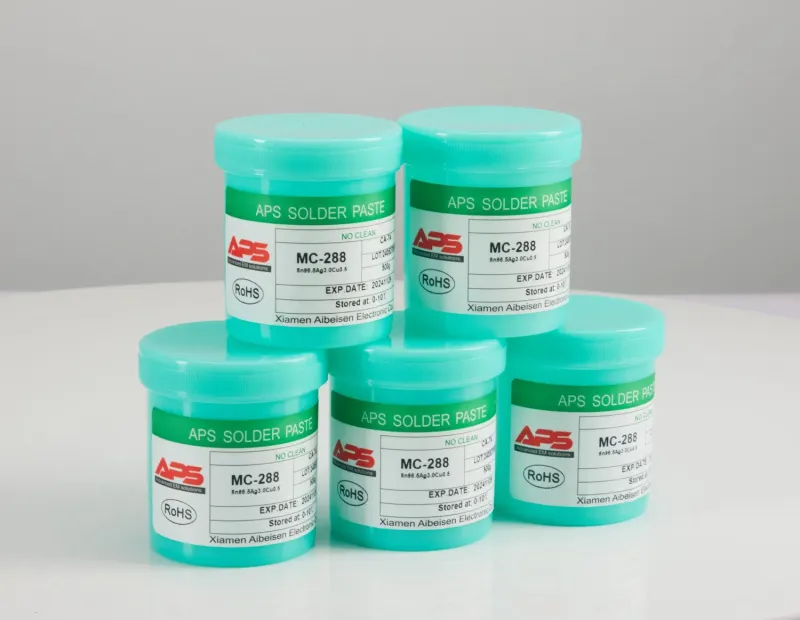

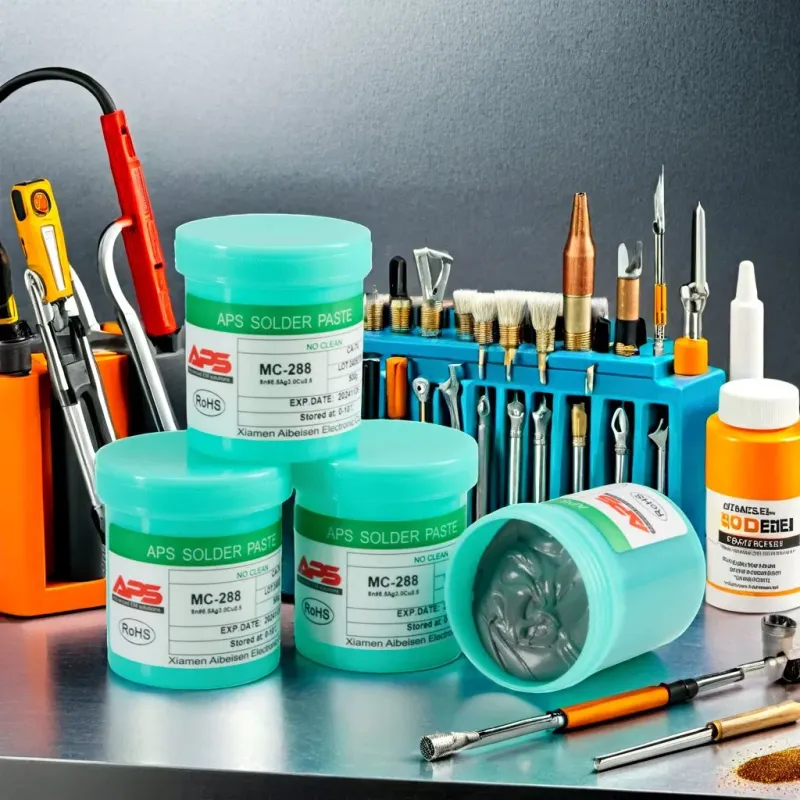

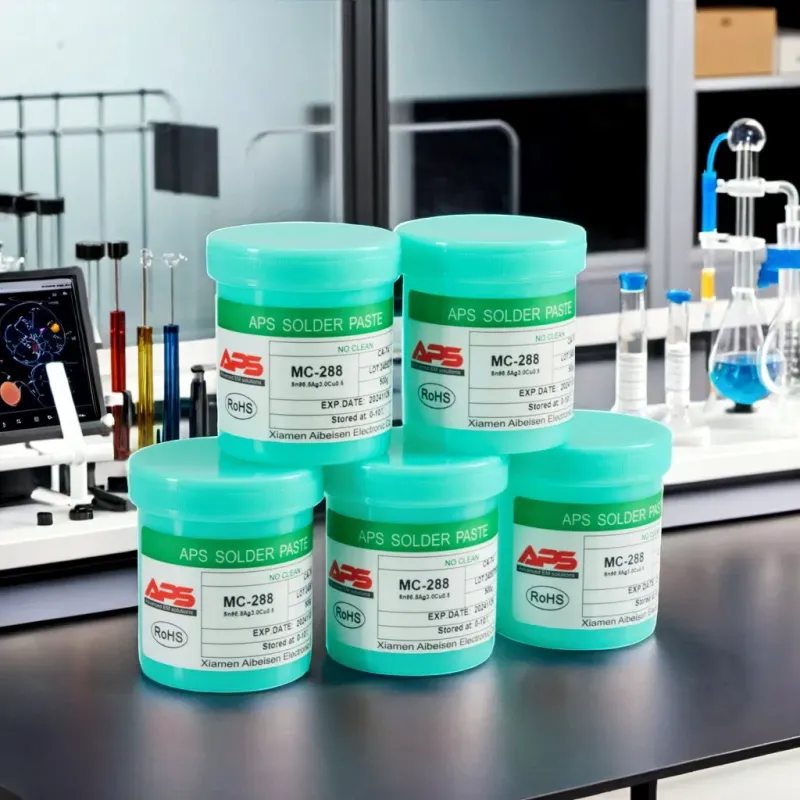

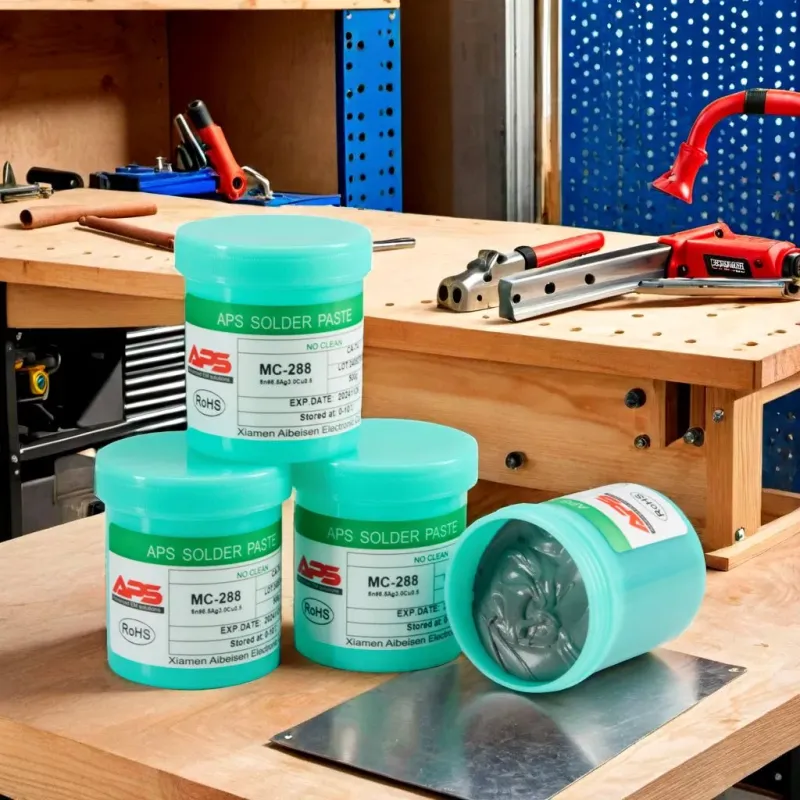

Sn96.5 Ag3.0 Cu0.5 Advanced Lead-Free Solder Paste for PCB Assembly

APS MC-288 (SAC305) lead-free no-clean solder paste is a lead-free and halogen-free solder paste suitable for ultra-fine process printing and reflow soldering. This solder paste has a wide process window and provides a surface mount technology solution for 01005-inch components. It offers excellent printing performance during 8 hours of use. With an outstanding reflow process window, it can still achieve good soldering results on Cu OSP boards even when using a high wetting curve. It has a good bond with printed dots of various sizes. Its excellent anti-collapse performance can effectively suppress the generation of solder balls. The solder joints have an excellent appearance and are easy to visually inspect. The void performance reaches IPC CLASS 3 level and the IPC flux classification is ROL0 level, ensuring the environmental friendliness and reliability of the product.

Specification

• product name solder paste
• Place of Origin China
• Fujian
• Brand Name APS
• Model Number MC-288
• Type lead-free solder paste
• Material Sn96.5 Ag3.0 Cu0.5
• Application This solder paste is suitable for standard-pitch and ultra-fine-pitch screen printing applications. The printing speed ranges from 12.5mm/s to 100mm/s. A standard screen with a thickness of 0.08mm - 0.15mm is used. Depending on the printing speed, the squeegee pressure should also fluctuate within the recommended pressure range. The higher the printing speed, the greater the squeegee pressure. The wide reflow curve gives this product high soldering performance, excellent appearance, and fewer defects.

Storage

Store at 2 - 10ºC and use within 6 months from the production date. Ensure low-temperature transportation during shipping. Before opening the lid for use, make sure to bring the solder paste back to room temperature to prevent water vapor from condensing on the solder paste.
