Basic Info.

Model NO. XQC-I/XQC-I digital
Magnification <50X
Type Biological
Number of Cylinder Monocular
Mobility Desktop
Stereoscopic Effect Without Stereoscopic Effect
Kind of Light Source Ordinary Light
Shape Rectangular Prism
Usage Research
Principle Optics
Principle of Optics Biological
Function Measuring Microscope
Transport Package Foamed in Paper Box
Trademark OEM
Origin China
HS Code 901180009
Production Capacity 20 pieces/Month

Packaging & Delivery

Package Size 42.00cm * 32.00cm * 38.00cm
Package Gross Weight 16.000kg

Product Description

1. Introduction: The measuring microscope XQC-I is a multifunctional microscope measuring system which integrates optical, mechanical, electrical and video elements. It is the equipment used for measuring two-dimensional length, especially applicable for non-contact parts.

2. Wide application: It's widely used for observing and analyzing in the field of machinery, electronics, instrumentation, plastics, as well as for precision measurement in the area of electronic and machinery industry.

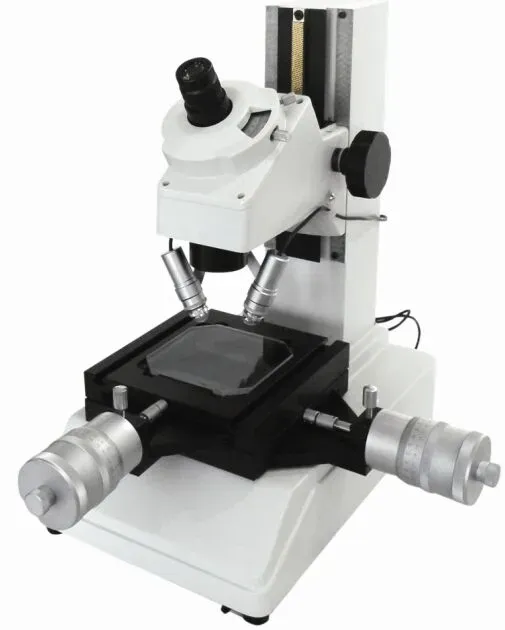

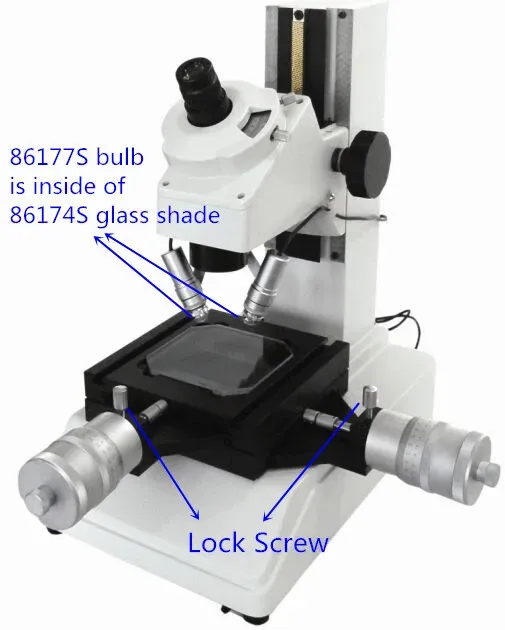

3. Photo:

Professional Measuring Microscope Xqc-I/Xqc-I Digital with High Quality

Specifications

Eyepiece 15X with reticle, 360° rotatable
Objective 2X, working distance 67mm
XY travel range 50X50mm
Reading mechanical micrometer, moving range 0-25mm, minimum division 0.002mm (0.0001″), Minimum angle reading 6′
Focusing Manual method
Illumination Reflected/Transmitted, adjustable ray with green filter
Power supply 220V/110V 50Hz/60HZ
Lamp source 24V/2W
Optional Accessory
360° Rotary table
5X, 10X objective
1/3" 4.2M Pixel CCD camera
Single/double crosshair generators
