Basic Info.

Model NO. BS-2052AT
Type Biological
Number of Cylinder ≥Three
Mobility Desktop
Stereoscopic Effect Without Stereoscopic Effect
Kind of Light Source Ordinary Light
Shape Cylindrical Shaped Lens
Usage Teaching, Research
Principle Optics
Principle of Optics Finite Optical System
Nosepiece Backward Quadruple Nosepiece
Eyepiece Wf10X/18mm
Objective Finite Achromatic Objectives 4X, 10X, 40X, 100X
Focusing Coaxial Coarse and Fine Adjustment
Illumination S-LED Illumination
Condenser Abbe Condenser Na1.25
Stage Double Layer Mechanical Stage
Transport Package Strong Carton with Polyfoam Protection
Specification 1pc/carton, 36*26*46mm, gross weight: 8kg
Trademark BestScope
Origin Beijing
HS Code 9011800090
Production Capacity 1000PCS/Month

Product Description

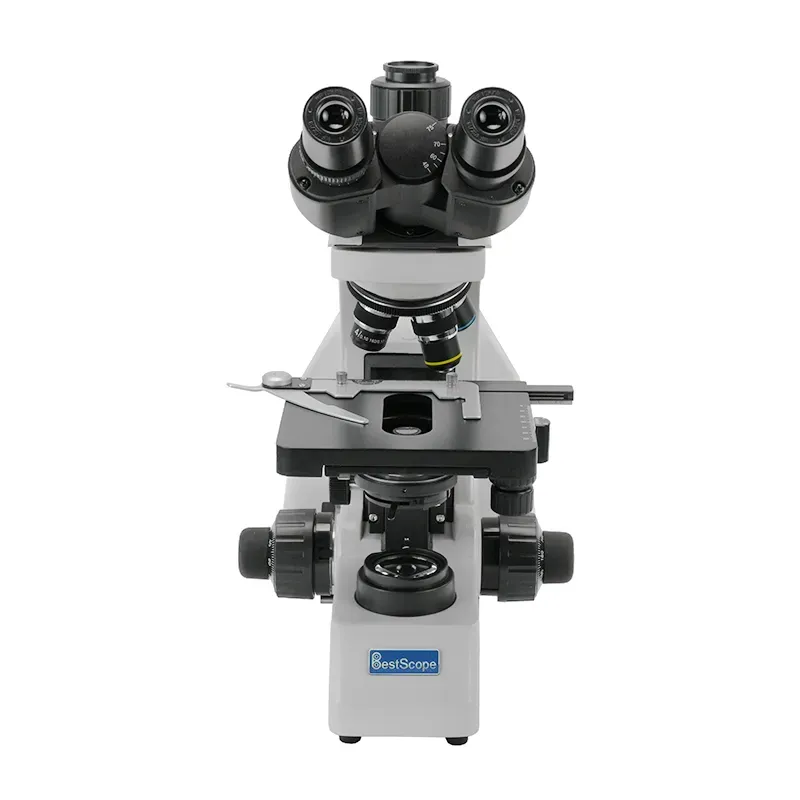

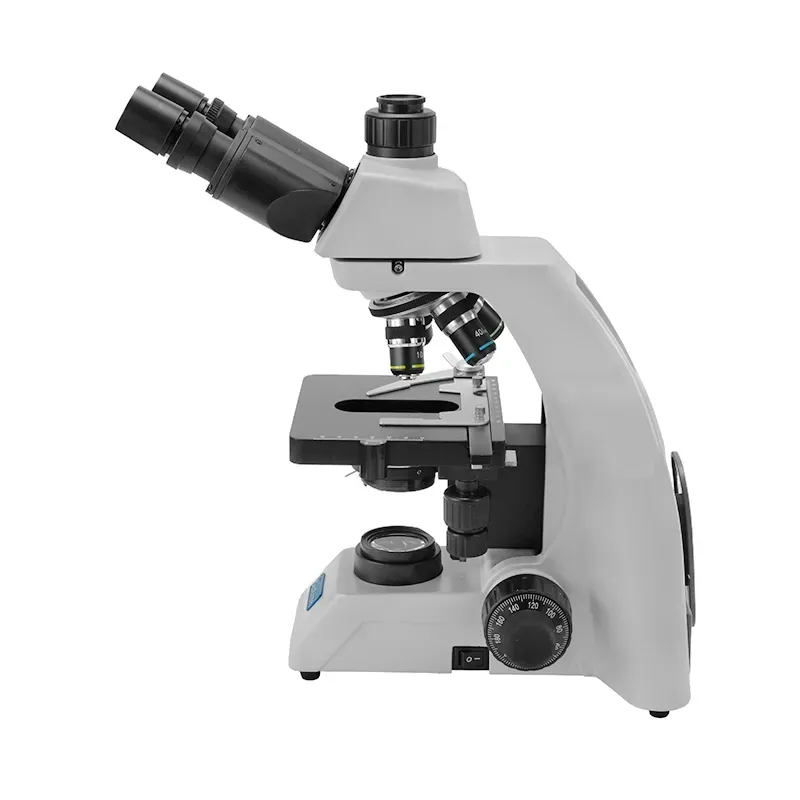

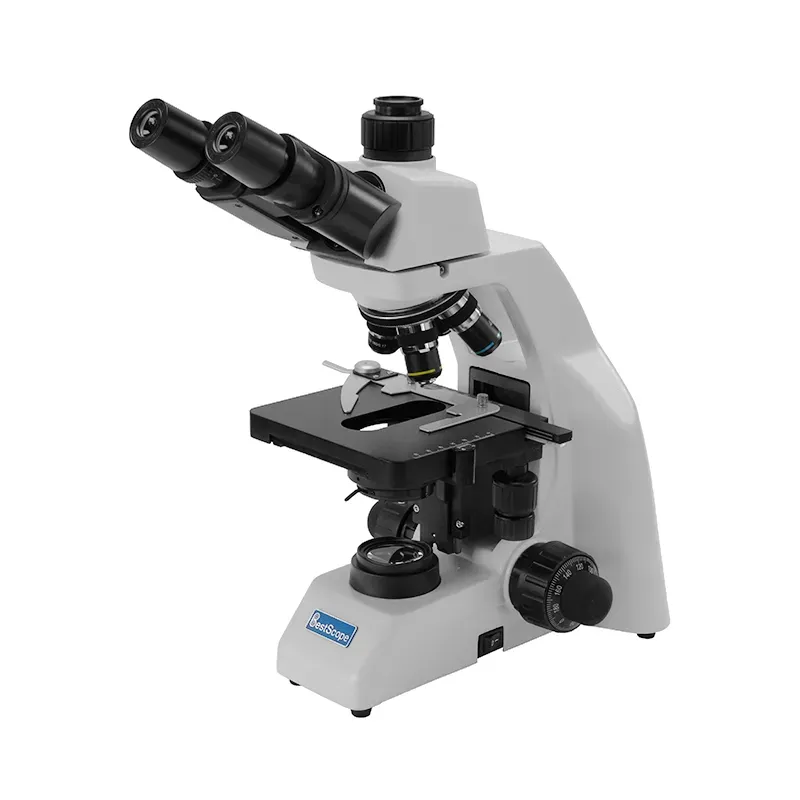

BestScope BS-2052AT High Definition 400x N.A.1.25 Trinocular Biological Microscope

Introduction: BS-2052 series microscopes are classical biological microscopes with ingenious stand, high definition optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

High contrast and sharp image with high quality optical system.
Low environment requirement with Anti-mould technology.
Comfortable operation with low position coarse and fine adjustment knobs.
ECO function is optional, automatically turn off after 15 mins of no use.
With cord rest on the back, making the working table clean and tidy.

Application

BS-2052 series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.

Specification

Item	Specification	BS-2052A	BS-2052B
Optical System	Finite Optical System	·
Infinite Optical System		·	○
Eyepiece	WF10×/18mm	·
WF10×/20mm		·	○
Viewing Head	Monocular Head, inclined at 30°	○
Seidentopf Binocular Head, inclined at 30°, Interpupillary 47-78mm		·	○
Seidentopf Trinocular Head, inclined at 30°, Interpupillary 47-78mm	○	○	○

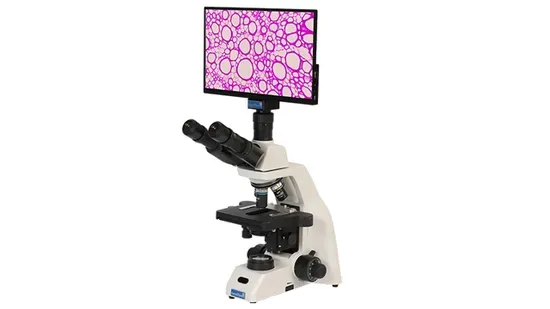

Digital Binocular Head with built-in camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, Support Wifi	○	○	○
Digital Binocular Head with Tablet camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, 8" LCD, Android OS	○	○	○
Objective	Finite Achromatic Objectives 4×, 10×, 40×, 100×	·
Finite Achromatic Objectives 20×, 60×	○		○
Finite Semi-Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100×	○		○
Finite Plan Achromatic Objectives 4×, 10×, 20×, 40×, 60×, 100×	○		○
Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40×, 100×		·	○
Infinite Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100×		○	○
Infinite Plan Fluorescent Objective 4×, 10×, 20×, 40×, 100×		○	○
Nosepiece	Backward Quadruple Nosepiece	·	·
Backward Quintuple Nosepiece	○	○	○

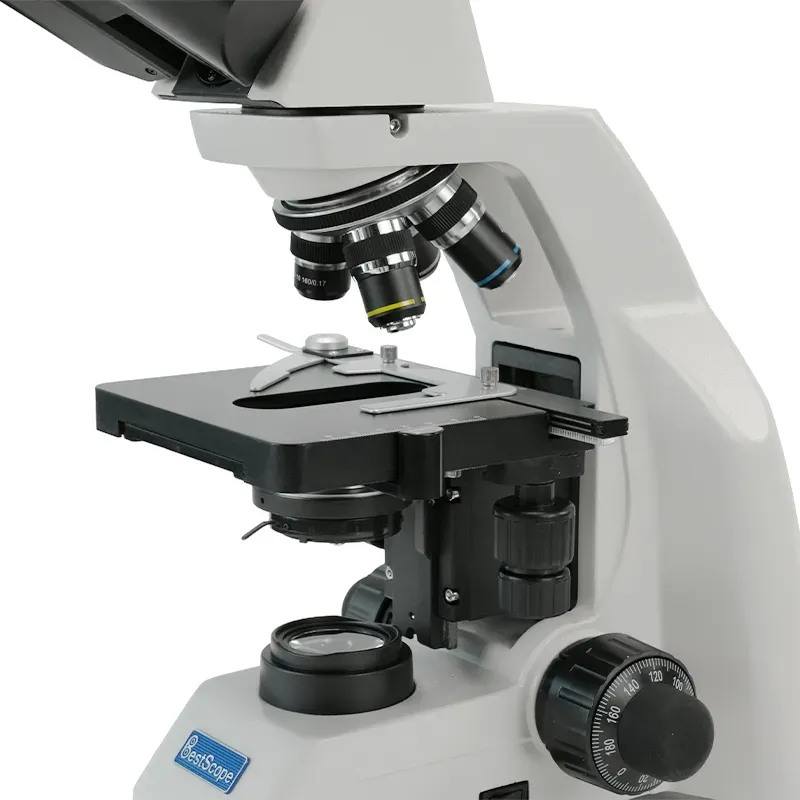

Stage	Double Layers Mechanical Stage 140mm×140mm, Moving Range 75mm×50mm	·
Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm		·	○
Condenser	Abbe Condenser NA1.25	·	·
Dark Field Condenser (Dry / Oil)	○	○	○
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm	·	·
Illumination	S-LED Illumination, Brightness Adjustable	·	·
S-LED Illumination with Rechargeable Battery, Brightness Adjustable	○	○	○
6V/20W Halogen Lamp, Brightness Adjustable	○	○	○
Kohler Illumination	○	○	○
ECO Function, automatically turn off after 15 mins of no use	○	○	○
Plane-concave Mirror	○	○	○
Optional accessories	Phase Contrast Kit	○	○
Polarizing Set	○	○	○
FL-LED Epi-fluorescent Attachment		○	○
Package	1pc/carton, 362646mm, gross weight: 8kg	·	·
