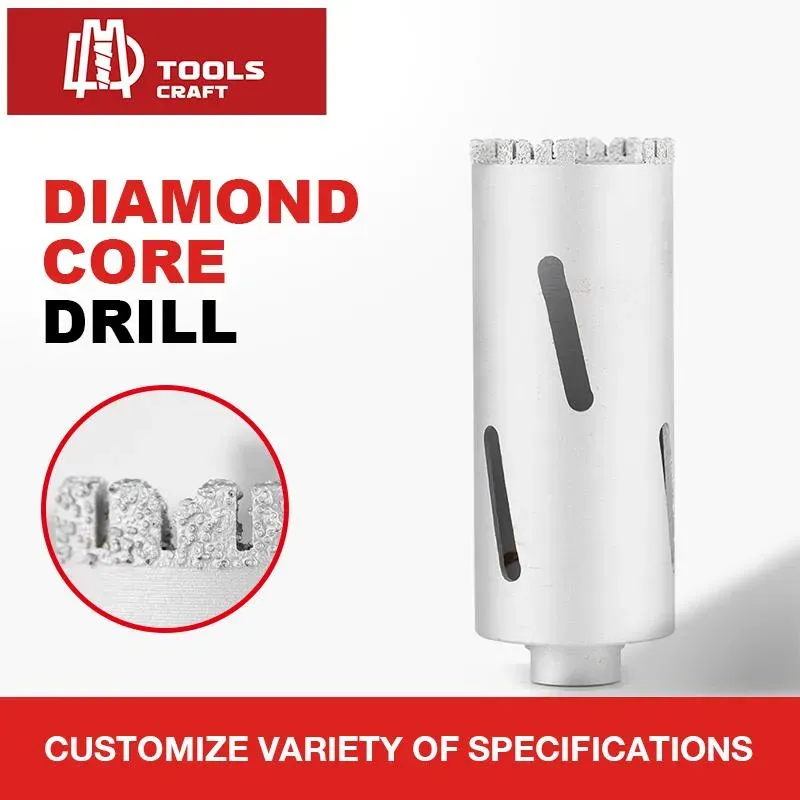

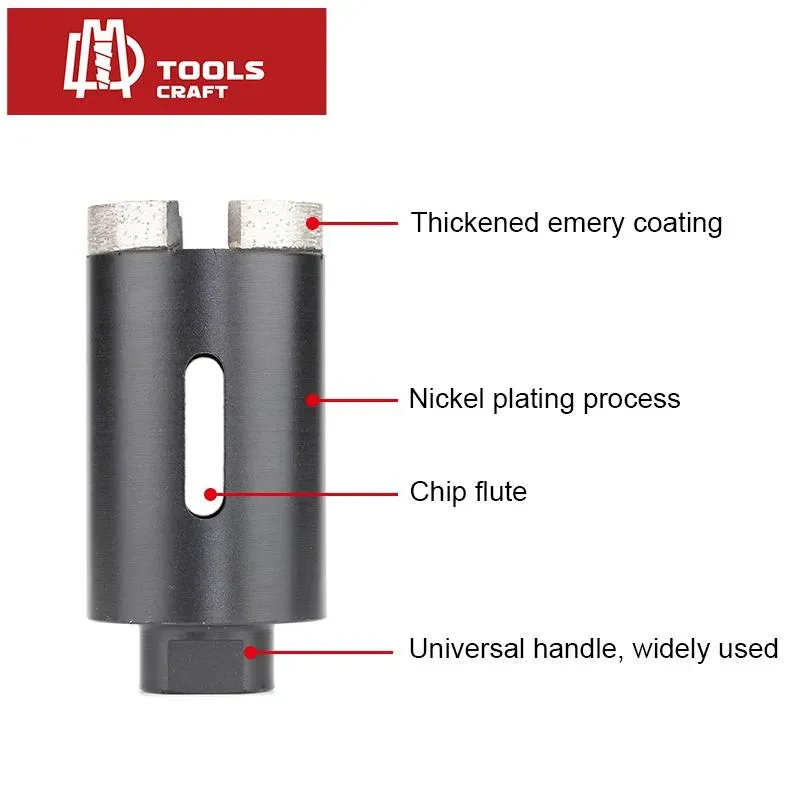

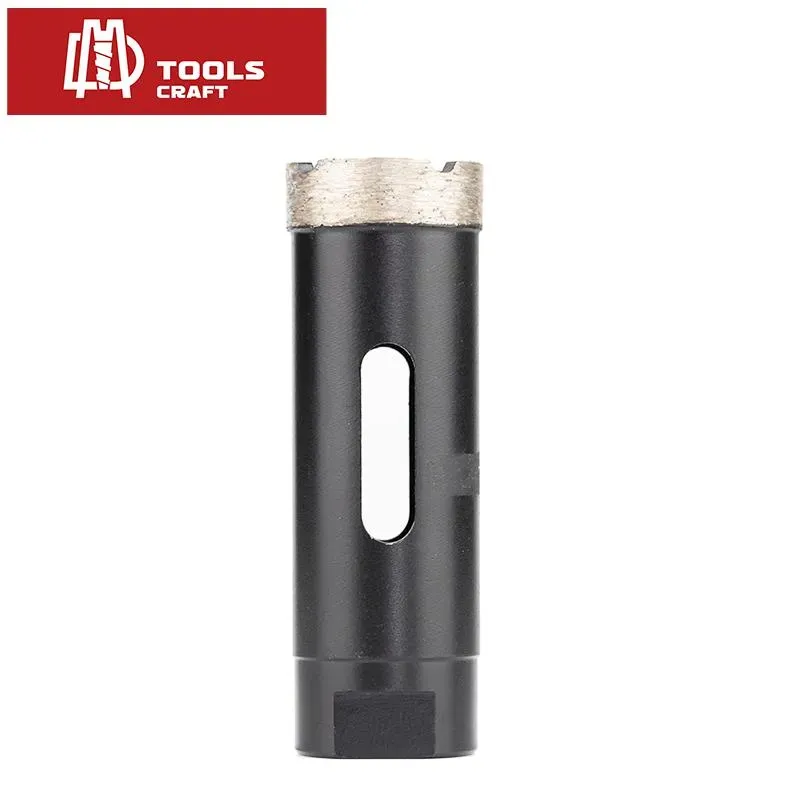

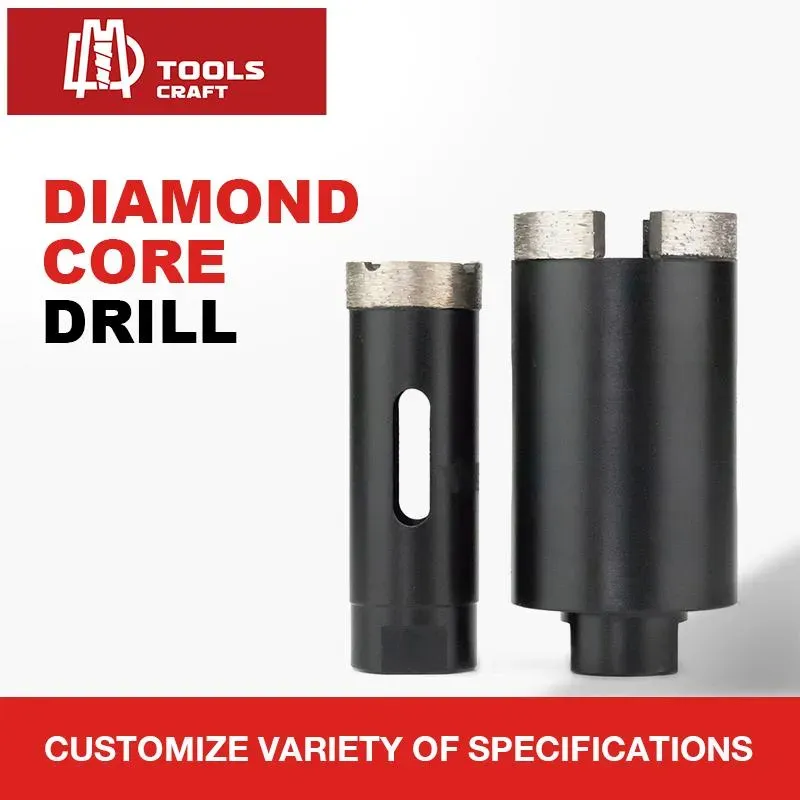

Vacuum Brazed Dry Tile Drilling Diamond Core Drill Bit
Contact Now
Description
Basic Info.
Model NO.
15DN0015
Length
120/160/370/450
Type
Core Drill Bit
Material
Diamond
Usage
Granite,Marble,Concrete and Construcion
Diameter
27-250mm
Seg.Thickness
3.8/4.0/4.5mm
Blade Welding Technology
Laser/Silver Welding
Seg.Height
8/10mm
Thread
5/8"-11, 11/4"-7
Connection
11/4-7unc, 1/2bsp,5/8-11'',M14,
Application
for Granite,Marble,Concrete and Construcion
Feature
Sharpness,Smooth Cutting
Transport Package
Inner Paper Box or Blister Card and Outer Carton
Specification
27-250mm
Trademark
DM
Origin
Danyang City, Jiangsu Province, China
Production Capacity
80000PC Per Month
Product Description
Our company
1) We're a direct manufacturer and 100% export worldwide (USA, Israel, Jordan, Iran, Thailand, Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 15 years of producing experience.
3) Our drill product: HSS drill bits, masonry drill, SDS drill, glass&tile drill, step drill, wood flat drill, wood auger bit, wood brad drill, center drill, left hand drill, drill set etc.
4) Above 95% of customers will place a formal order after testing the samples.
PRODUCT CATALOGS
DIAMOND CORE DRILL
2. By Air or by Sea for batch goods, from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7 days for samples; 2-3.5 weeks for batch goods
OUR CUSTOMERS FEEDBACK
For more information, please feel free to contact us now. We will reply to you within 1 working day. Thank you for your interest!
1) We're a direct manufacturer and 100% export worldwide (USA, Israel, Jordan, Iran, Thailand, Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 15 years of producing experience.
3) Our drill product: HSS drill bits, masonry drill, SDS drill, glass&tile drill, step drill, wood flat drill, wood auger bit, wood brad drill, center drill, left hand drill, drill set etc.
4) Above 95% of customers will place a formal order after testing the samples.
PRODUCT CATALOGS
DIAMOND CORE DRILL

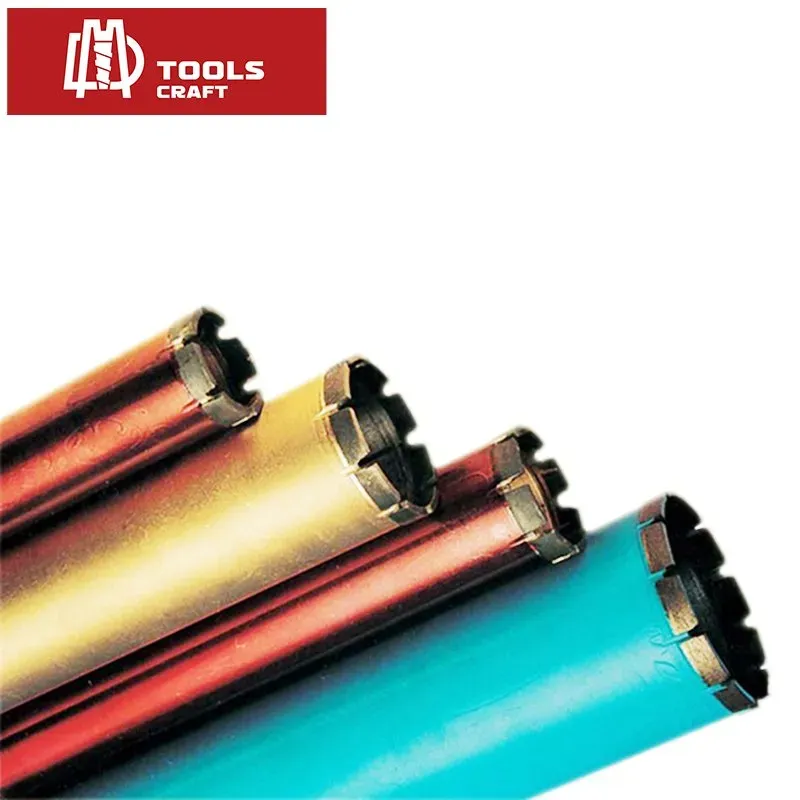

Type: Laser welded diamond core drill bits for wet drilling reinforced concrete, 1-1/4"UNC connection thread concrete drilling diamond core bits, professional China diamond core drill bits manufacturer and supplier, laser welded wet drilling diamond core drill bits, diamond core drill bits for concrete brick wall.
Features: Drill aggressively with long working life, somooth drill with good balance, widely used in professional construction projects, high precision steel core tube, working length 450mm.
Applications: Concrete, reinforced concrete, brick, block, general building materials.
Machinery: Hydraulic Drilling machine, electric drilling machine, electric portable drill, hand held core drill, stand core drill.
| Item Number: 15DN0101 | |||||
| Description:*Silver brazed diamond core drill for wet cutting building materials such as concrete, bricks, granite, marble, stone,cements, etc. High professional quality to fast cut reaching 12-15meters. *Max. cutting depth 450mm. |
|||||
| Diameter (D) | Max Coring Depth(C) | Overall Length(L) | Connecting | Item Number | |
| Metric(mm) | Inches | mm | mm | ||
| 51 | 2" | 450 | 500 | 1-1/4"UNS | 15DN0101001 |
| 58 | 2-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101002 |
| 63 | 2-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101003 |
| 70 | 2-3/4" | 450 | 500 | 1-1/4"UNS | 15DN0101004 |
| 78 | 3" | 450 | 500 | 1-1/4"UNS | 15DN0101005 |
| 83 | 3-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101006 |
| 89 | 3-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101007 |
| 102 | 4" | 450 | 500 | 1-1/4"UNS | 15DN0101008 |
| 112 | 4-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101009 |
| 121 | 4-3/4" | 450 | 500 | 1-1/4"UNS | 15DN0101010 |
| 127 | 5" | 450 | 500 | 1-1/4"UNS | 15DN0101011 |
| 132 | 5-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101012 |
| 140 | 5-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101013 |
| 152 | 6" | 450 | 500 | 1-1/4"UNS | 15DN0101014 |
| 159 | 6-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101015 |
| 165 | 6-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101016 |
| 182 | 7" | 450 | 500 | 1-1/4"UNS | 15DN0101017 |
| 205 | 8" | 450 | 500 | 1-1/4"UNS | 15DN0101018 |
| 230 | 9" | 450 | 500 | 1-1/4"UNS | 15DN0101019 |
| 255 | 10" | 450 | 500 | 1-1/4"UNS | 15DN0101020 |
| 300 | 12" | 450 | 500 | 1-1/4"UNS | 15DN0101021 |
DIAMOND CORE DRILL BITS |
|||||||
| ITEM | *EFF | DIAMETER(MM) | SEGMENT DIMENSIONS | ||||
| LENGTH | O.D | I.D | LENGTH | WIDTH | HEIGHT | QTY | |
| DCL12 | 300 | 12 | 8 | RING | 2.5 | 7 | 1 |
| DCL14 | 300 | 14 | 9 | RING | 2.5 | 7 | 1 |
| DCL16 | 300 | 16 | 11 | RING | 2.5 | 7 | 1 |
| DCL18 | 300 | 18 | 13 | RING | 2.5 | 7 | 1 |
| DCL20 | 300 | 20 | 15 | RING | 2.5 | 7 | 1 |
| DCL22 | 300 | 22 | 17 | RING | 2.5 | 7 | 1 |
| DCL24 | 300 | 24 | 19 | RING | 2.5 | 7 | 1 |
| DCL26 | 300 | 26 | 20 | 16 | 3 | 7 | 3 |
| DCL32 | 300 | 32 | 26 | 16 | 3 | 7 | 3 |
| DCL38 | 300 | 38 | 31 | 24 | 3.5 | 7 | 3 |
| DCL44 | 300 | 44 | 37 | 24 | 3.5 | 7 | 3 |
| DCL52 | 300 | 52 | 45 | 24 | 3.5 | 7 | 4 |
| DCL62 | 300 | 62 | 55 | 24 | 3.5 | 7 | 4 |
| DCL72 | 300 | 72 | 65 | 24 | 3.5 | 7 | 5 |
| DCL82 | 300 | 82 | 75 | 24 | 3.5 | 7 | 5 |
| DCL92 | 300 | 92 | 85 | 24 | 3.5 | 7 | 6 |
| DCL102 | 400 | 102 | 95 | 24 | 3.5 | 7 | 6 |
| DCL112 | 400 | 112 | 104 | 24 | 4 | 7 | 7 |
| DCL122 | 400 | 122 | 114 | 24 | 4 | 7 | 7 |
| DCL132 | 400 | 132 | 124 | 24 | 4 | 7 | 8 |
| DCL142 | 400 | 142 | 134 | 24 | 4 | 7 | 8 |
| DCL152 | 400 | 152 | 144 | 24 | 4 | 7 | 8 |
| DCL162 | 400 | 162 | 154 | 24 | 4 | 7 | 9 |
| DCL172 | 400 | 172 | 164 | 24 | 4 | 7 | 9 |
| DCL182 | 400 | 182 | 174 | 24 | 4 | 7 | 10 |
| DCL202 | 400 | 202 | 194 | 24 | 4 | 7 | 10 |
PACKAGE
Inner paper box or blister card and outer carton box, white box or pallet
Shipping
1. TNT/FedEx/DHL/UPS for samples or under 45KG weight goods, Door to Door.2. By Air or by Sea for batch goods, from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7 days for samples; 2-3.5 weeks for batch goods
WIDELY USED
Household, Industrial Use
Household, Industrial Use
