Product ID: 68591905

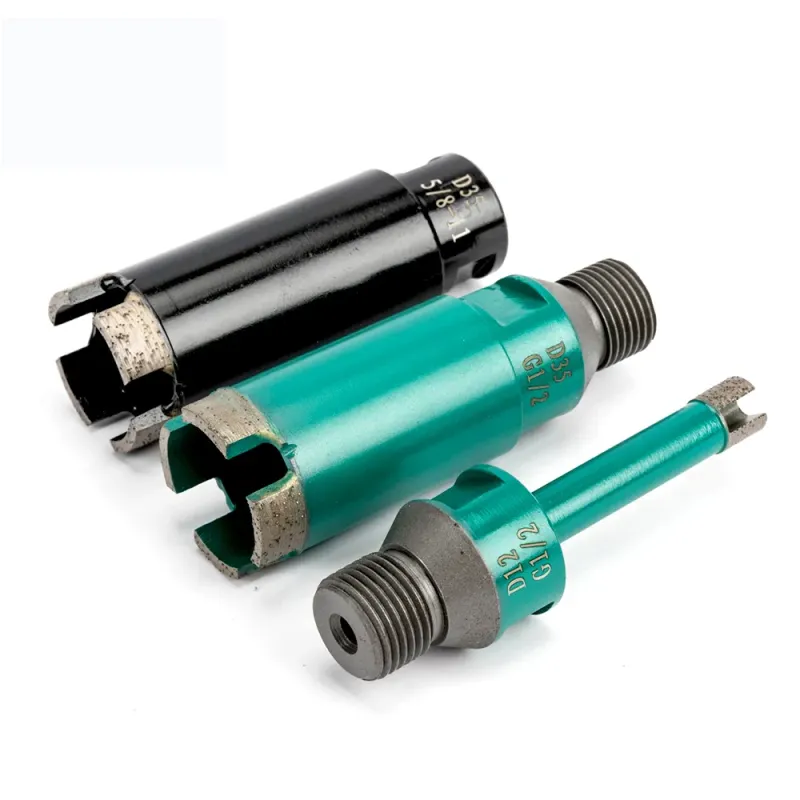

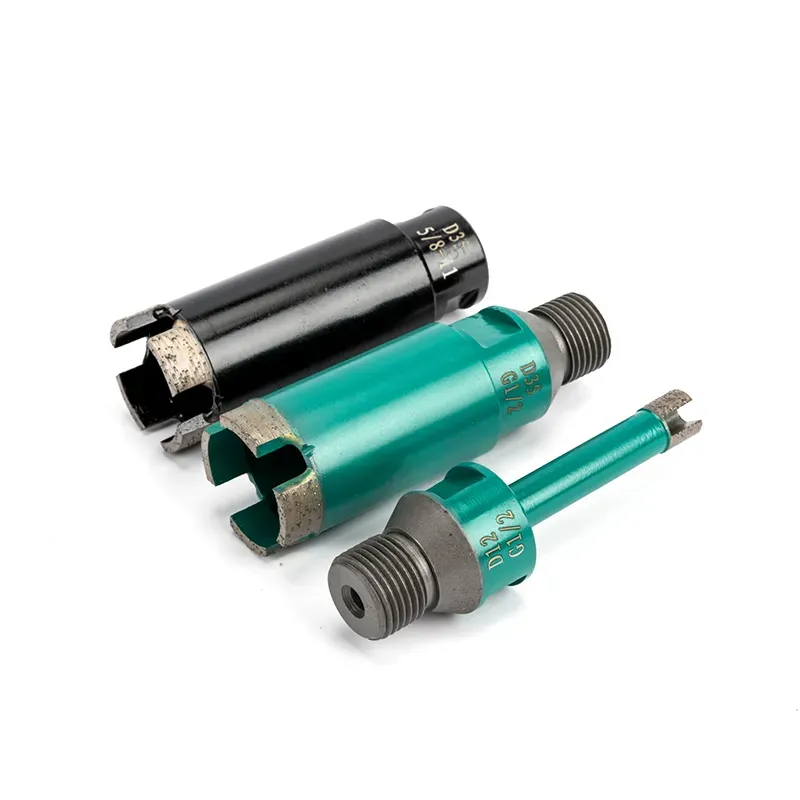

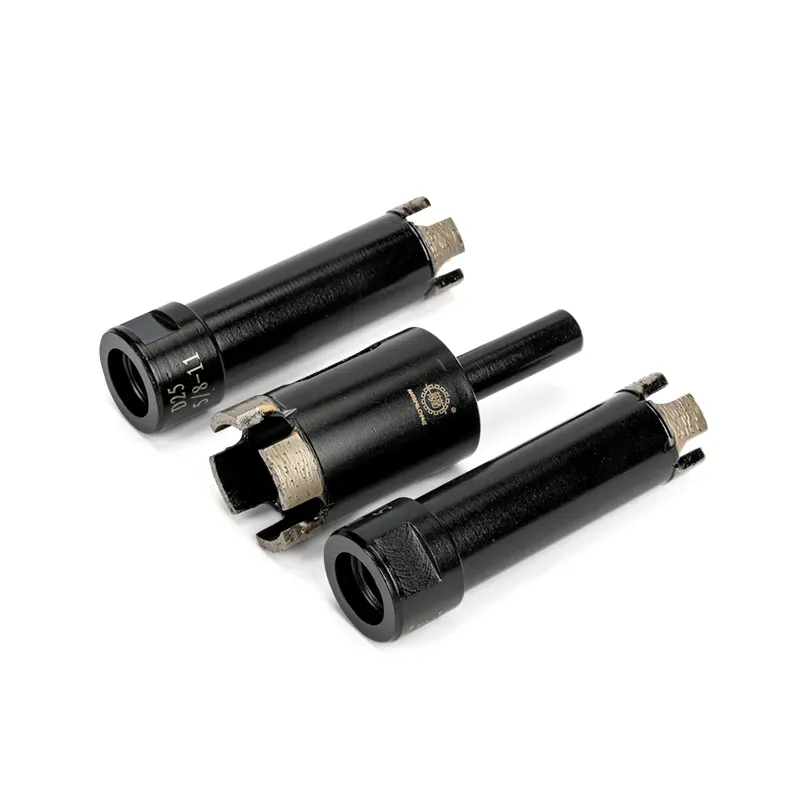

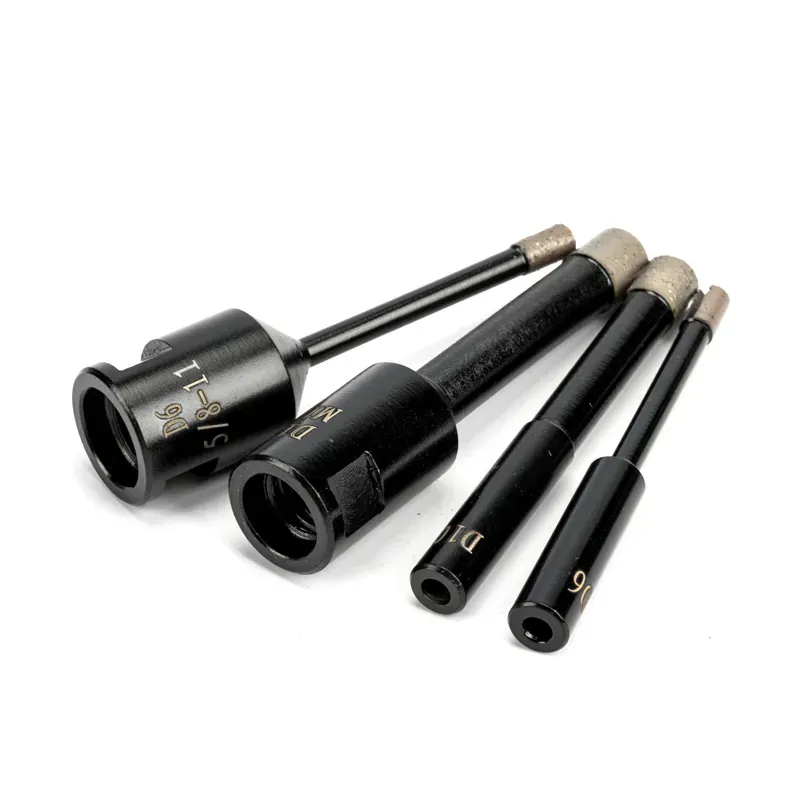

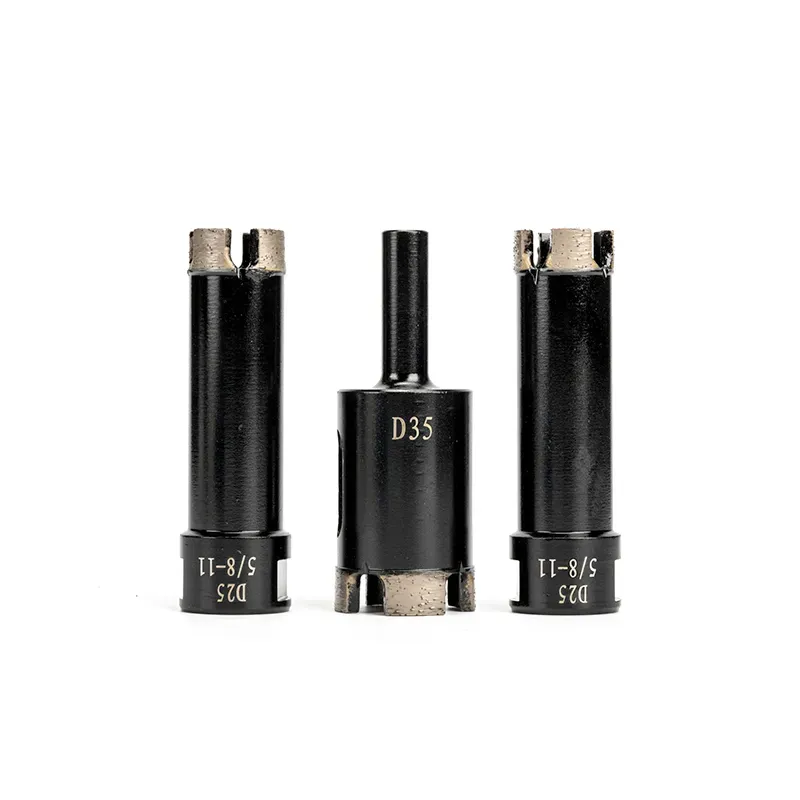

Dry Diamond Core Drill Bit
Contact Now
Description
Basic Info.
Model NO.
drill bit
Manufacturing Arts
Welding
Kind
Diamond Drill
Product Name
Vacuum Brazed Dry Core Drill Bit
Diameter(mm)
6.3-100
Segment Height(mm)
8.0-10
Usable Length(mm)
35/50/60
Connection
Shank / M14 / 5/8"-11 / G 1/2"
Transport Package
Available Upon Request
Specification
6.3-100mm vacuum brazed diamond core bit
Trademark
wanlong
Origin
Quanzhou City
Production Capacity
100, 000, 000PCS/Year
Product Description
Dry core drill bit
Features and Application
1. Excellent cutting speed with a long cutting life compared to electroplated core bits;
2. Ideal for marble and limestone drilling, can perform on granite, tiles, porcelain, concrete and more;
3. Could be used wet or dry with cooling slots design for easier core removal when stuck.
Other specifieations available upon request
Features and Application
1. Excellent cutting speed with a long cutting life compared to electroplated core bits;
2. Ideal for marble and limestone drilling, can perform on granite, tiles, porcelain, concrete and more;
3. Could be used wet or dry with cooling slots design for easier core removal when stuck.
Other specifieations available upon request
| Diameter(Inch/mm) | Segment Height(mm) | Usable Length(mm) | Connection |
| 1/4" /ø 6.30 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3/8" /ø 9.50 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1/2" /ø 12.7 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 5/8" /ø 15.9 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3/4" /ø 19.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1" /ø 25.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-1/8" /ø 29.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-1/4" /ø 32.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-3/8" /ø 35.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-1/2" /ø 38.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-5/8" /ø 41.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-3/4" /ø 45.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2" /ø 51.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2-1/4" /ø 57.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2-1/2" /ø 63.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2-3/4" /ø 70.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3" /ø 76.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3-1/2" /ø 90.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 4" /ø 100 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
