Dry Use 63mm Laser Welded Diamond Core Drill Bit
Description
Overview
Basic Info.
Model NO. FSDLD
Diameter 25-152mm
Segment Height 9mm
Technology Laser Welded
Working Length 150mm
Application Dry Drilling Concrete, Brick, Block, Masonry
Transport Package Carton/Pallet
Specification 1-6Inch
Trademark FIOSHINE
Origin China
HS Code 82079010
Production Capacity 8000PCS/Month
Packaging & Delivery
Package Size 49.00cm * 27.00cm * 17.00cm
Package Gross Weight 25.000kg
Product Description

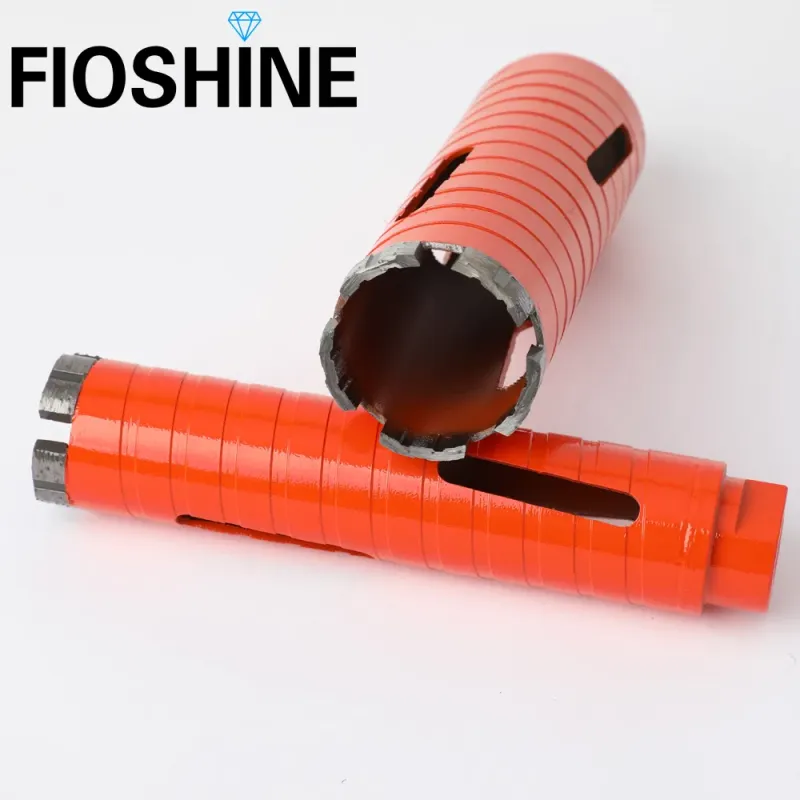

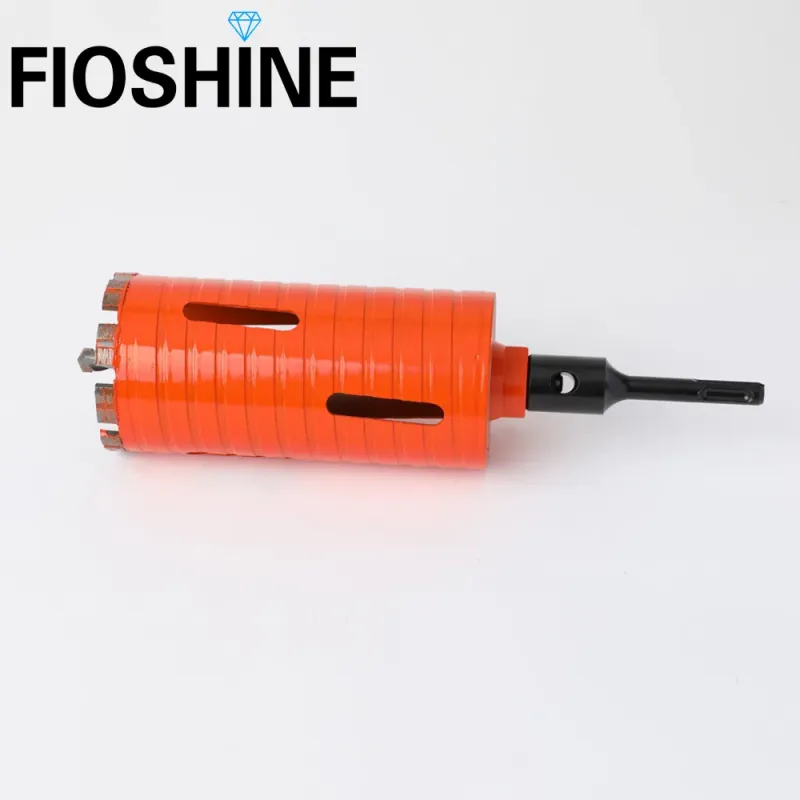

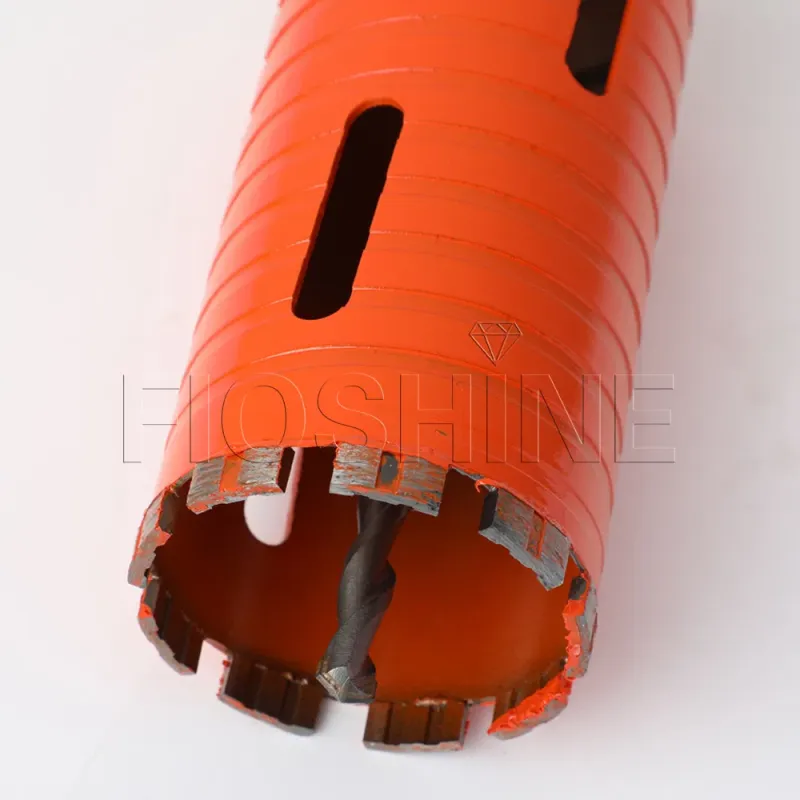

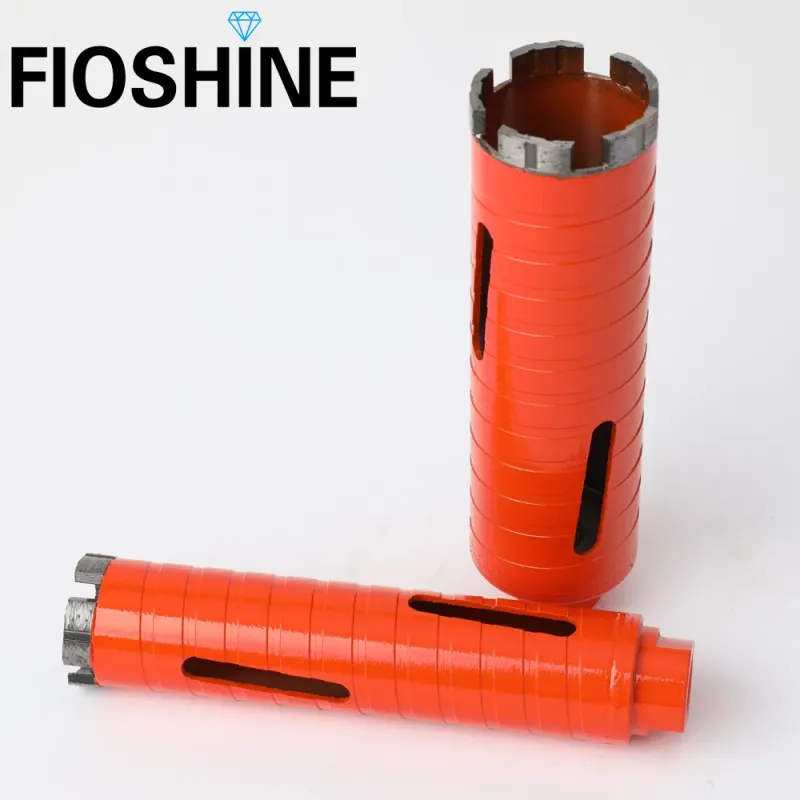

Dry diamond core drill bits, using the highest grade diamonds, are designed to be used on concrete, brick, block, and other masonry materials. The tubes of the diamond core drill bits are slotted to aid in both cooling of the core bit and removal of the cuttings, allowing for fast, clean drilling of holes without the need for water. The large slots facilitate cooling of the bit as well as extracting the cores. The thinner wall provides increased drilling speed. Available in sizes 1" - 6" with 150mm working length.
Product Parameters
| Item No. | Diameter | Segment Height | Connection | Working Length |
|---|---|---|---|---|
| FSDLD025 | 25mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD032 | 32mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD038 | 38mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD042 | 42mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD051 | 51mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD056 | 56mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD063 | 63mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD076 | 76mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD082 | 82mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD089 | 89mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD102 | 102mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD108 | 108mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD112 | 112mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD127 | 127mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD142 | 142mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD152 | 152mm | 9mm | M16/ 5/8"-11 | 150mm |
Our Advantages
- High quality diamonds provide fast and long lasting drilling
- Great for dry drilling concrete, bricks, blocks and masonry
- Slotted core drill tube helps with cooling and removing cuttings
- The large slots facilitate cooling of the bit as well as extracting the cores
- The thinner wall provides increased drilling speed
Application
Dry diamond core drill bits, using the highest grade diamonds, are designed to be used on concrete, brick, block, and other masonry materials. The tubes of the diamond core drill bits are slotted to aid in both cooling of the core bit and removal of the cuttings, allowing for fast, clean drilling of holes without the need for water. The large slots facilitate cooling of the bit as well as extracting the cores.
Common Delivery Time
Our full production capacity is 8000pcs per month, in this case we can ensure a short delivery time. For samples, 1 week will be well prepared. For bulk order, usually we need 2-3 weeks.
More Diamond Tools
Fioshine Diamond Tools offers full range of professional diamond tools, including diamond saw blade, diamond core drill, diamond cup wheels, diamond polishing/grinding pad and diamond wire saw.
