Overview

Basic Info.

Model NO. CWDA
Manufacturing Technology Laser Welding
Segment Height 10mm
Diameter 25mm - 350mm
Drilling Condition Wet Drilling
Drilling Machine Core Drilling Machine, Hand Drill
Transport Package Carton, Case, Pallet
Specification 350x10x450mm
Trademark COREDIAM
Origin China
HS Code 82071910
Production Capacity 2000 Pieces Per Month

Product Description

1. Introduction

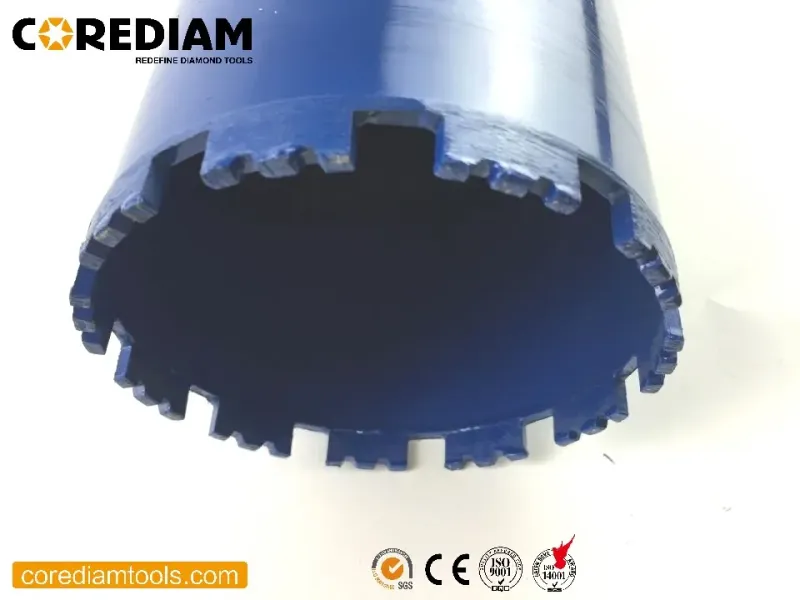

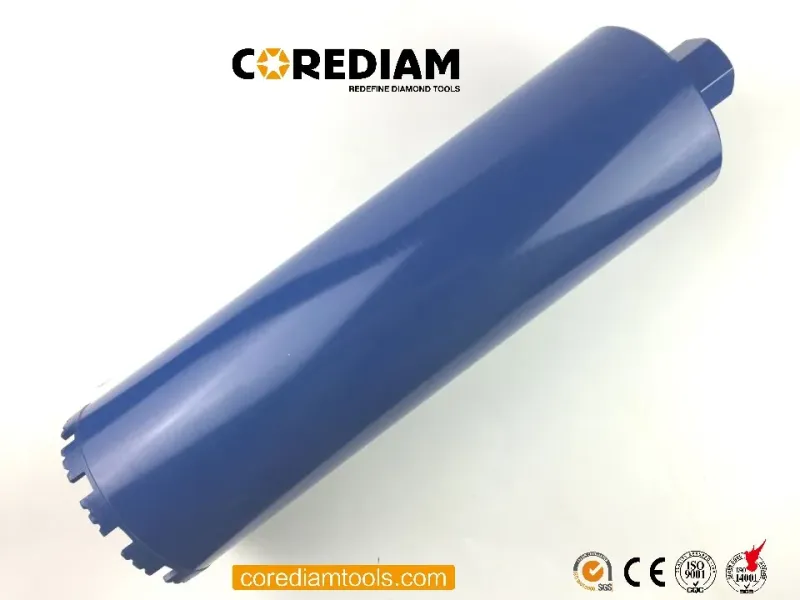

This type of core drill is laser welded, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The segment sharp is normal rectangular segments. It can be installed on Stand Core Driller, Hand-Held Drills. The diameter is 350mm.

2. Features

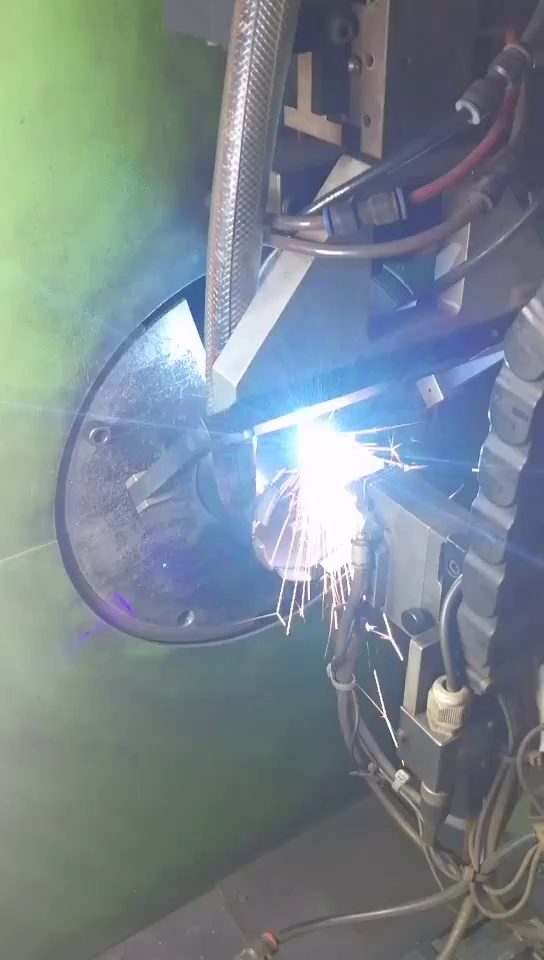

Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.

3. Specification

Item No.	Diameter	Segment Height	Arbor	Effective Length
CWDA02545010	25mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA03245010	32mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA03645010	36mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA04245010	42mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA05245010	52mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA06245010	62mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA06645010	66mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA07245010	72mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA07645010	76mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA08245010	82mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA09245010	92mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA10245010	102mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA11245010	112mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA12745010	127mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA13245010	132mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA15245010	152mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA16245010	162mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA17245010	172mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA18245010	182mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA20045010	200mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA25045010	250mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA30045010	300mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA35045010	350mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
