China Best Manufacture Mini Compact Small Wheeled Tracked Track 50HP 65HP 75HP 85 HP 90HP 120HP 850/1200 Kg Diesel EPA Euro5 Engine Skid Steer Loader Price

Video

Product ID: 68592452

China Best Manufacture Mini Compact Small Wheeled Tracked Track 50HP 65HP 75HP 85 HP 90HP 120HP 850/1200 Kg Diesel EPA Euro5 Engine Skid Steer Loader Price

Contact Now

Description

Basic Info.

Model NO.

LST140

Certification

ISO, RoHS, CE

Condition

New

Transmission

Hydraulic - Mechanical

Load and Unload Mode

Front Discharge

Walking Mode

Crawler

Type

Small Loader

Overall Length

3700

Overall Width

2124

Overall Height

4070

Wheel Base

1500

Total Height (mm)

2160

Hinge Pin Height (mm)

3100

Rated Operating Capacity(Kg)

1500

Transport Package

Container

Trademark

TOPWIN

Origin

China

HS Code

8429590000

Production Capacity

5000

Packaging & Delivery

Package Size

216.00cm * 314.00cm * 300.00cm

Package Gross Weight

4800.000kg

Product Description

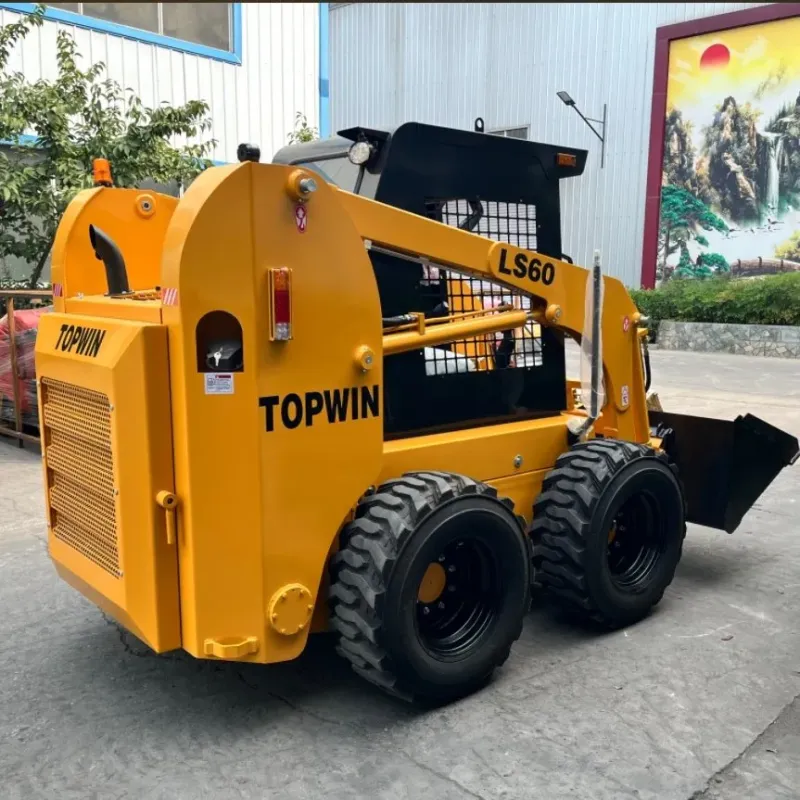

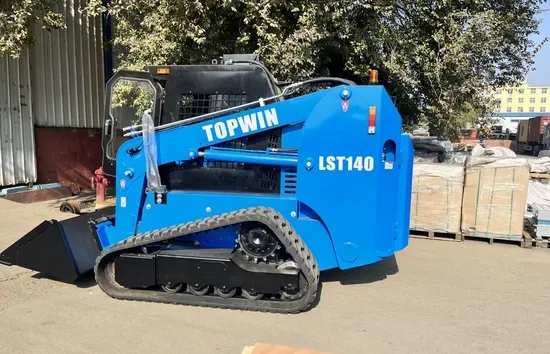

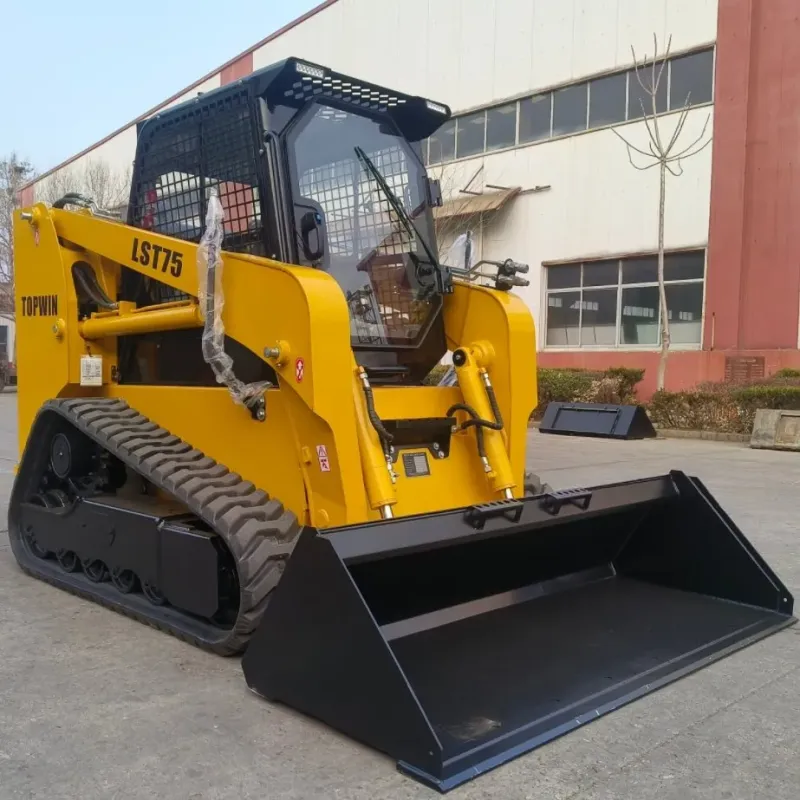

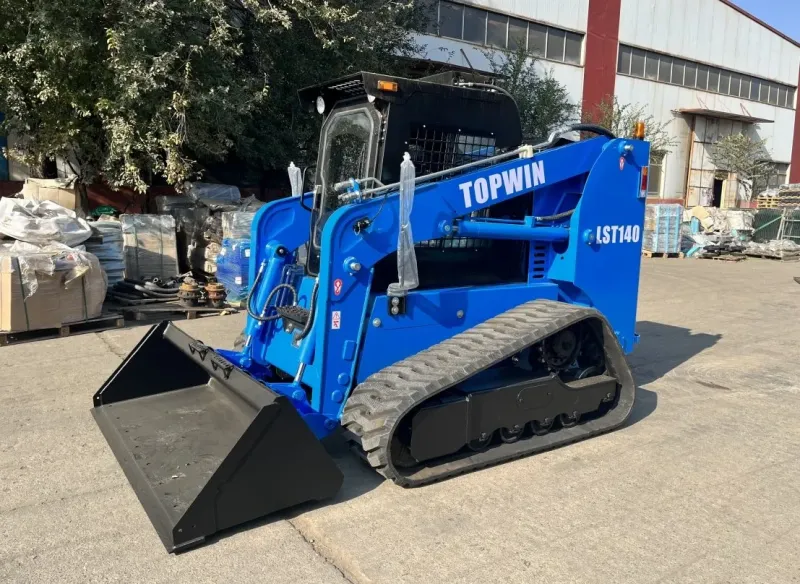

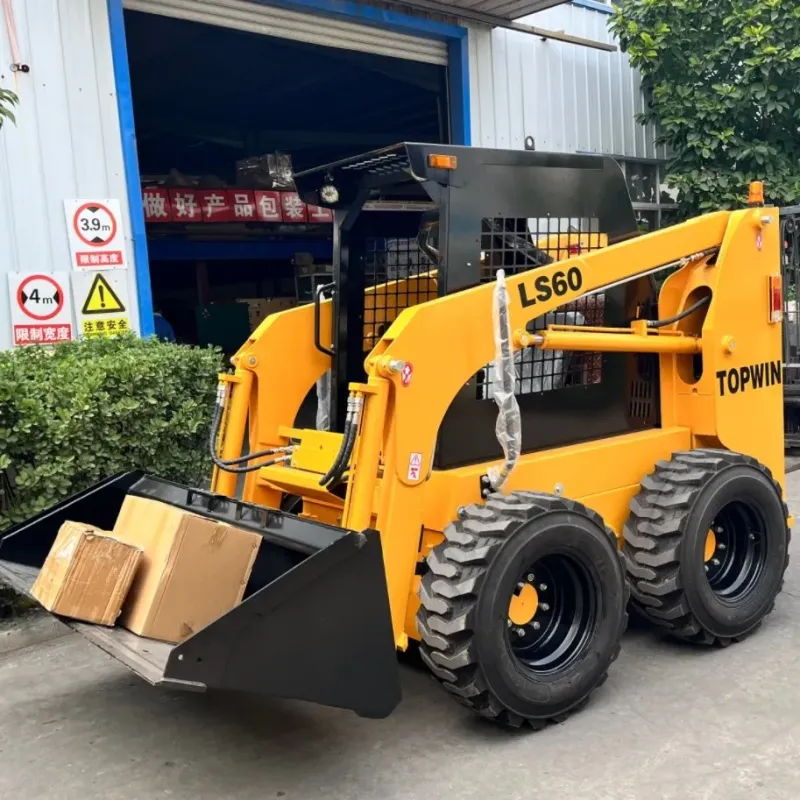

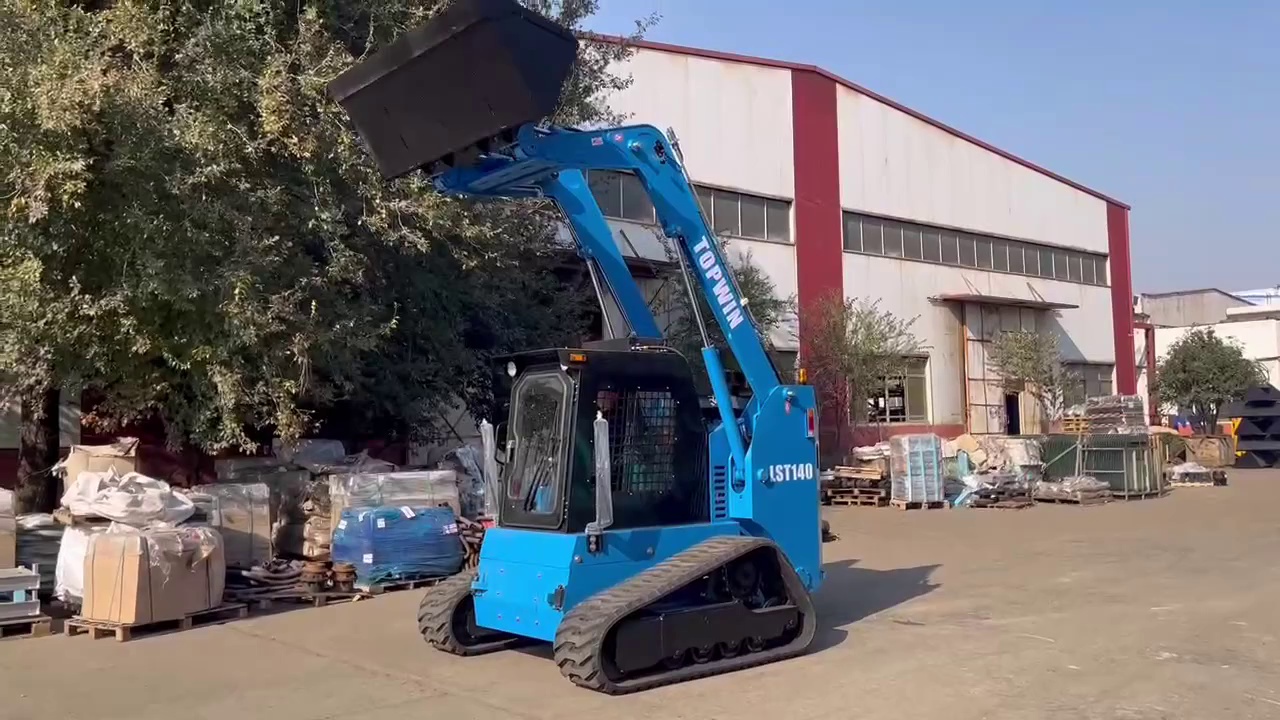

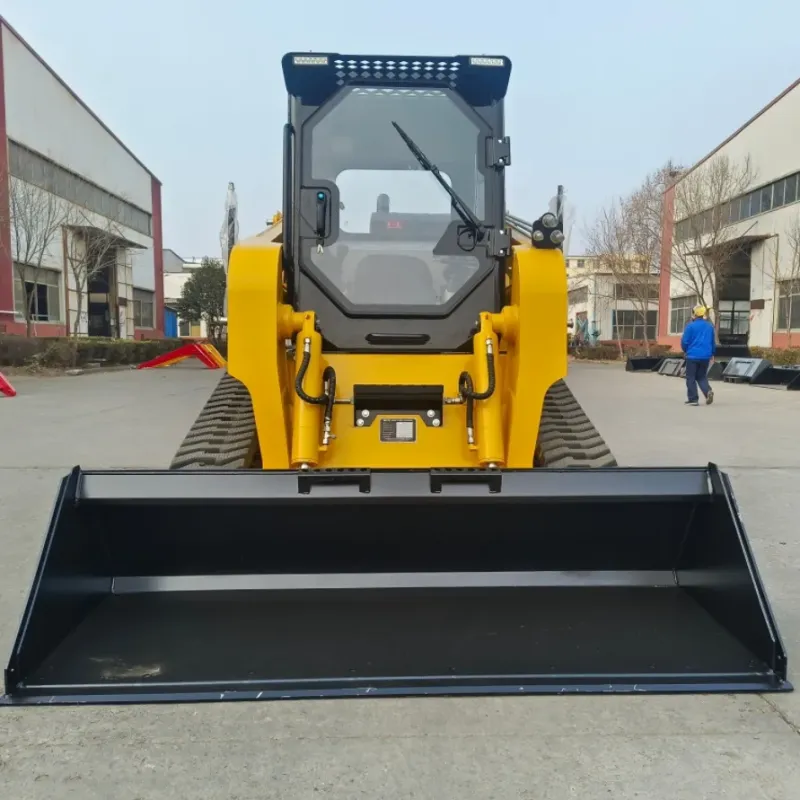

TOPWIN Original Manufacturer Mini Skid Steer Loader

TOPWIN TWS60G with strong power and rich attachments, the TOPWIN skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.

Advantages and Highlights:

1. Strong and Efficient Power Transmission System
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.
* The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

2. Incomparable Multi-Functionalities
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

3. Solid and Reliable Design
The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.

4. Flexible Operations
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.
China Best Manufacture Mini Compact Small Wheeled Tracked Track 50HP 65HP 75HP 85 HP 90HP 120HP 850/1200 Kg Diesel EPA Euro5 Engine Skid Steer Loader Price

Skid Steer Loader Specs.

SN	Model	LS25	LS40	LS50	LS60	LS75	LS100	LS140	LST50	LST75	LST100	LST140
1	Type	Wheel type	Wheel type	Wheel type	Wheel type	Wheel type	Wheel type	Wheel type	Track type	Track type	Track type	Track type
2	Operating load (kg)	300	500	700	850	950	1200	1200	700	1000	1200	1500
3	Max Speed(km/h)	9	10	12	12	12	12/18	12\18	10	12/18	12/18	12\18
4	Rated flux (L/min)	50	60	75	75	80	80	75	60	75	88	88
5	High Flow Flux (L/min) Optional	/	/	/	/	120	140	140	/	120	140	140
6	Tire(track) model	23x8.5-15	8.5-15	10-16.5	12-16.5	12-16.5	12-16.5	12-16.5	300X52.5	320X84	320X84	450 X86
7	Rated power (kW/HP)	18.4/25	29.5/40	37/50	45/61	55/75	74/100	103/140	36/49	55/75	74/100	103/140
8	Fuel tank capacity (L)	25	60	65	80	75	90	90	50	80	90	90
9	Self weight bucket (kg)	1500	2300	3000	3200	3350	3550	3600	2800	3800	4500	4800
10	Bucket capacity (m 3 )	0.2	0.3	0.4	0.5	0.5	0.55	0.55	0.3	0.5	0.55	0.6
A	Overall operating height (mm)	3590	3300	3980	4000	4000	4070	4070	3350	3480	4070	4070
B	Height to bucket hinge pin (mm)	2650	2725	3080	3100	3100	3150	3280	2770	2900	3150	3280
C	height to top of cab (mm)	2050	2000	2140	2160	2160	2160	2160	2050	2150	2160	2160
D	Height to bottom of level bucket(mm)	2470	2558	2913	2933	2933	2983	3140	2603	2730	2983	3140
E	Overall length without bucket(mm)	2430	2300	2640	2750	2750	2880	2880	2300	2750	3000	3000
F	Overall length with bucket(mm)	3170	3080	3420	3490	3490	3580	3580	2950	3500	3700	3700
G	Dumping angle at maximum height(° )	40	40	40	40	40	40	40	40	40	40	40
H	Dumping height(mm)	1920	2050	2380	2400	2400	2450	2500	2100	2230	2450	2500
I	Dumping reach(mm)	720	790	700	750	750	700	700	790	715	700	700
J	Rollback of bucket on ground(° )	30	30	30	30	30	30	30	30	30	30	30
K	Rollback of bucket at full height(° )	104	104	104	104	104	104	104	104	104	104	104
L	Wheelbase(mm)	801	897	991	991	1085	1185	1115	1240	1500	1500	1500
M	Ground clearance(mm)	180	140	185	205	205	205	205	140	200	200	200
N	Angle of departure(° )	20	20	20	20	20	20	20	20	20	20	20
O	Front turning radius without bucket(mm)	971	1098	1168	1198	1204	1278	1278	1064	1298	1365	1365
P	Front tuning radius with bucket (mm)	1681	1760	1958	1958	2030	2144	2144	1825	2010	2200	2200
Q	Rear tuning radius(mm)	1371	1296	1630	1728	1706	1857	1857	1264	1714	1742	1742
R	Rear axle to bumper (mm)	940	964	1108	1208	1082	1082	1082	594	890	938	938
S	Tread width, centerline to centerline (mm)	882	1080	1450	1500	1500	1500	1500	1102	1462	1654	1654
T	Width (mm)	1110	1350	1720	1880	1880	1880	1880	1402	1782	1994	2124
U	Bucket width (mm)	1150	1400	1740	1880	1880	1880	1880	1500	1830	2030	2160

Skid steer loader applications:

The TOPWIN skid steer loader is small enough to get in the tight spots, including:
road maintenance, road construction, general construction, beach cleaning, municipal cleaning, solid waste management, paper industry, mushroom farming,narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings.

Skid steer loader features:

Strong and Efficient Power Transmission System
Incomparable Multi-Functionalities
Solid and Reliable Design
Flexible Operations
Powerful Hydraulics
Selectable Joystick Control
Increased Lifting Capabilities

China Best Manufacture Mini Compact Small Wheeled Tracked Track 50HP 65HP 75HP 85 HP 90HP 120HP 850/1200 Kg Diesel EPA Euro5 Engine Skid Steer Loader Price

Skid Steer Loader details

Skid Steer Loader Attachments
TOPWIN skid steer loader is a versatile tool carrier that's fully equipped to run numerous job-matched attachments, including:
backhoe,hydraulic breaker,pallet forks,angle broom,sweeper,auger,mower,
snow blower,stump grinder,tree spade,trencher,dumping hopper,pavement miller,
ripper,tillers,grapple,tilt,roller,snow blade,wheel saw,cement mixer,wood chipper machine, etc..

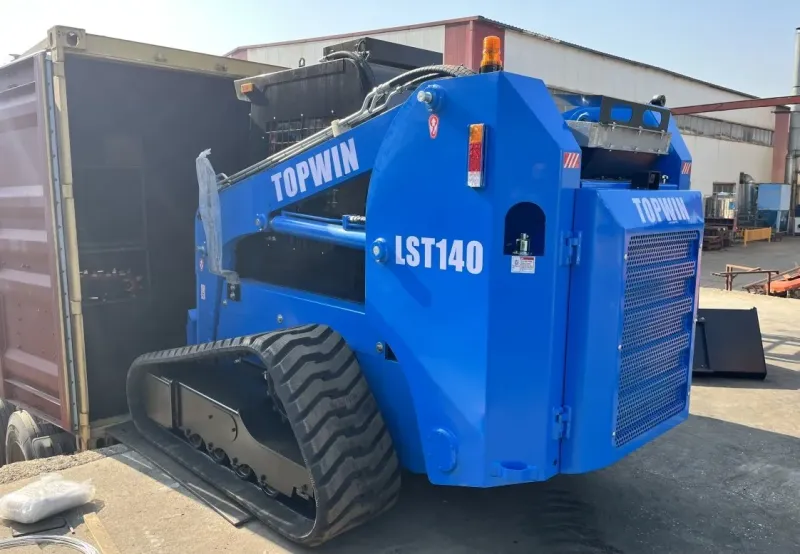

3 units standard Skid Steer Loaders can be loaded in one 20feet container.

7 units standard machines can be loaded in one 40feet HQ container.
