Cheapest Metal Roof Sheet Solar Mounting Bracket
Description
Overview
Basic Info.
- Model NO. PD-U70
- Certification ISO, CE, SGS
- Application Industrial
- Material Aluminum Alloy
- Type Roof Bracket
- Color Silver
- Samples Free Samples
- Snow Load 1.4 kN/M²
- Wind Speed 60 M/S
- Surface Treatment Anodized
- Port of Loading Xiamen Port
- Lead Time 21 Days
- OEM Acceptable
- Transport Package Carton
- Specification Component: AL6005-T5; Parts: AL6005-T5/SUS304
- Trademark PandaSolar
- Origin Fujian, China
- Production Capacity 20 Containers Per Month
Packaging & Delivery
- Package Size 27.00cm * 21.60cm * 20.00cm
- Package Gross Weight 10.000kg
Product Description

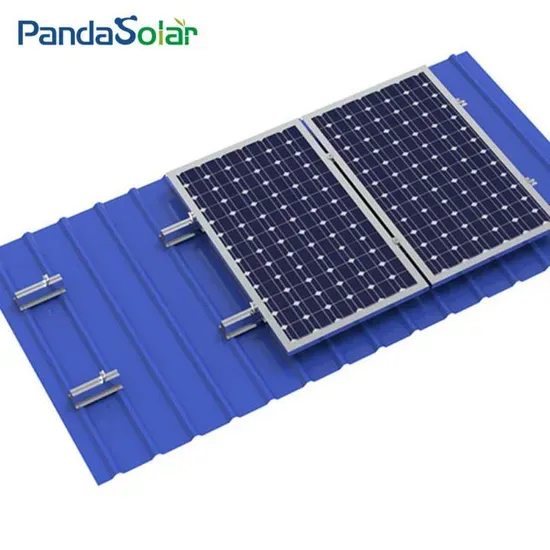

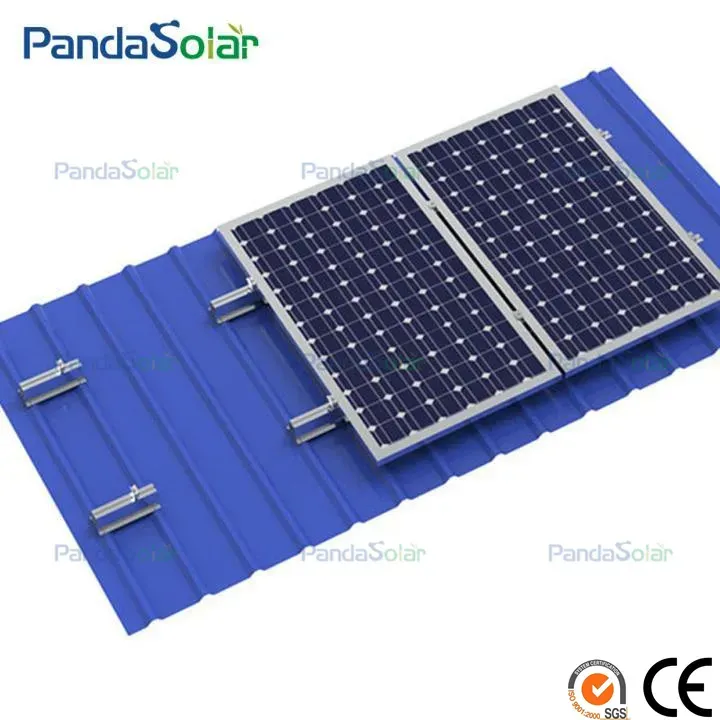

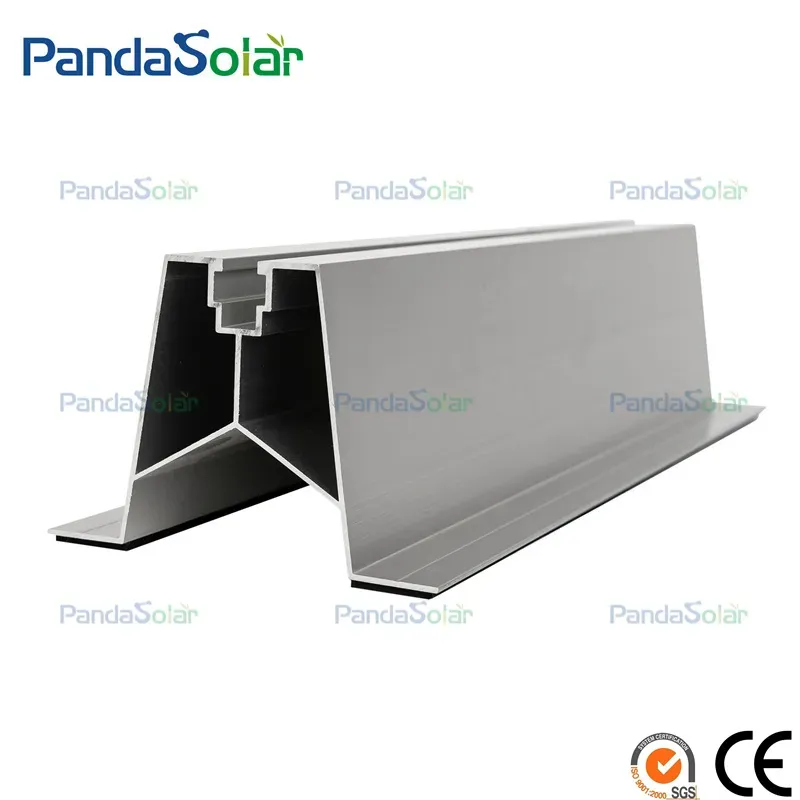

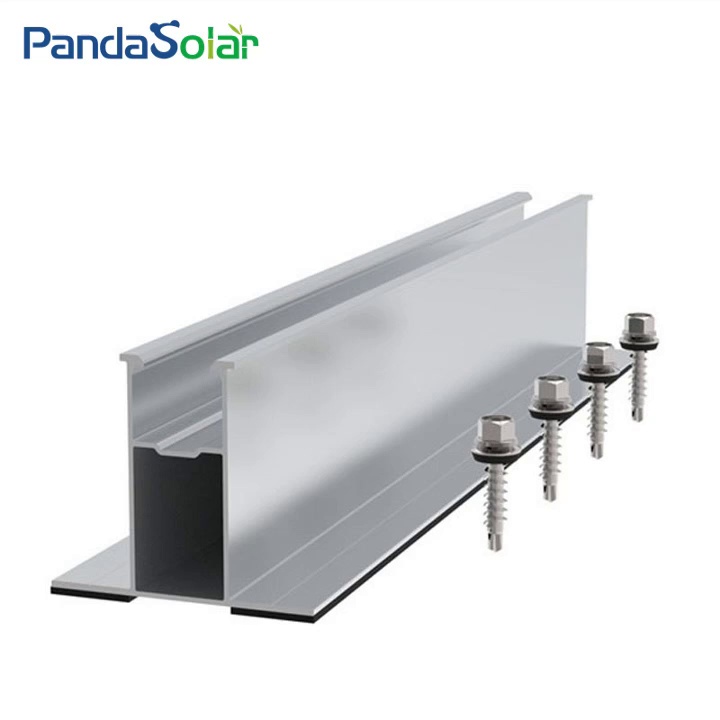

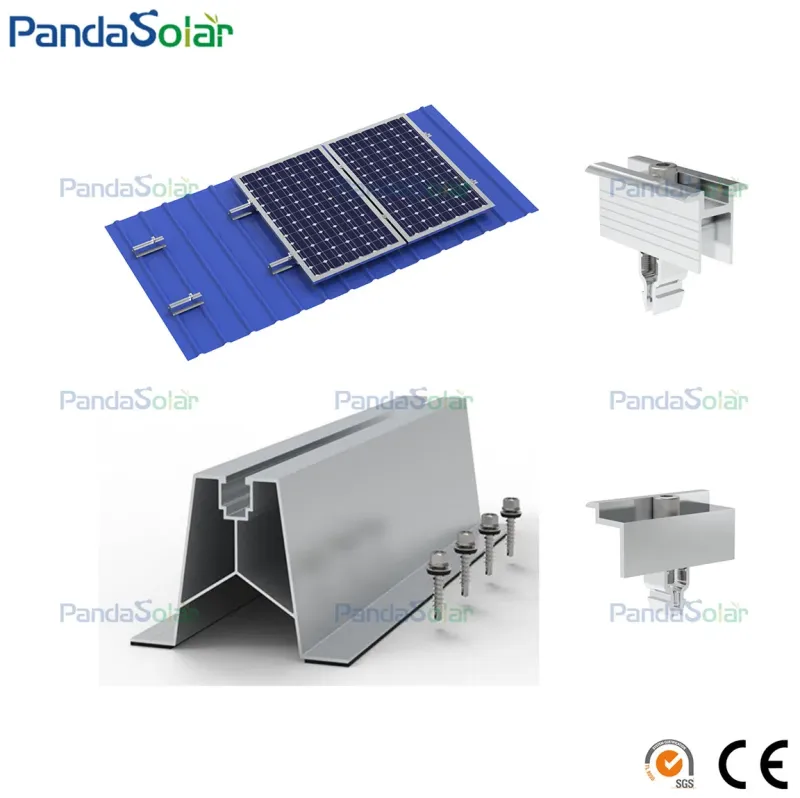

PandaSolar Factory Directly Supply Solar Panel Tin Roof Montage System Anodized Aluminum Alloy Made Solar Short Rail Kit. The U70 solar mini rail is made of AL6005-T5 (anodized), which have great performance on corrosion and acid and alkali resistance. It's the most economical solar solution that apply to solar tin roof mounting. The components are solar short rail, EPDM waterproof strip and self-drilling screws. It's easy to install and have higher installation efficiency. The solar panels can be placed vertically and horizontally. The typical length is 120mm/150mm/200mm/250mm/300mm/350mm. Using carton packaging, easy to transport, low transportation cost. In common, solar panels are placed vertical, short rail length is depended on the span of the roof crest span; If it placed horizontally, the 120mm is enough. AL-6005-T5 have high strength which meets European design standards.
Why Choose Us:
- Highly pre-assembled structure, help your installation more easier and efficiency
- Great flexibility in different designs to meet your demands.
- High quality ensure the long service life
- Accept OEM & ODM
- Favorable ex-work price to help you with lower cost but final found good products
- Accept LOGO printing to promote your brand
- One-shop-stop service from free solution design, customizable production, arrange shipment to installation instruction.
Detailed Photos
Product Parameters
- Material Structure: AL6005-T5 (Anodized); Components: AL6005-T5 (Anodized); SUS304; EPDM
- Application Solar Roof Mounting
- Panels Array Vertical Layout / Horizontal Layout
- Length Can be customized
- Surface Treatment Mill finish / Silver anodized / Black anodized
- Wind Speed 0-45 m/s
- Snow Load 0-150cm
- Design Standard AS/NZS 1170, DIN 1055, JIS C8955: 2017, International Building Code IBC 2009
- Service Life Over 30 years
- Warranty 12 years
EASY INSTALLATION ONLY NEED TWO STEPS:

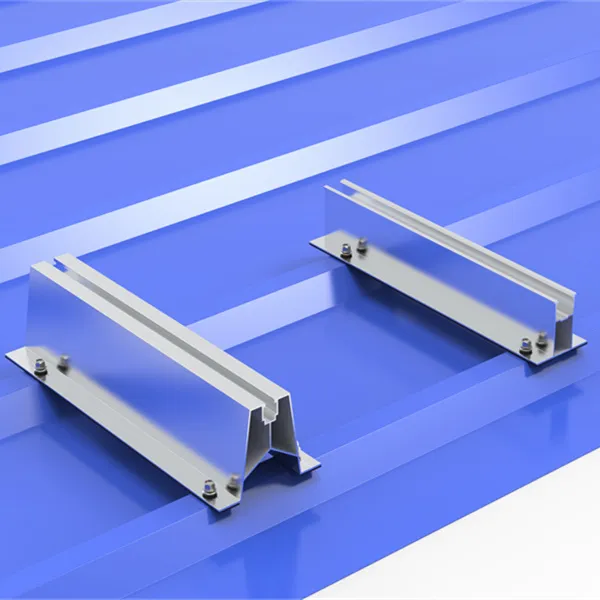

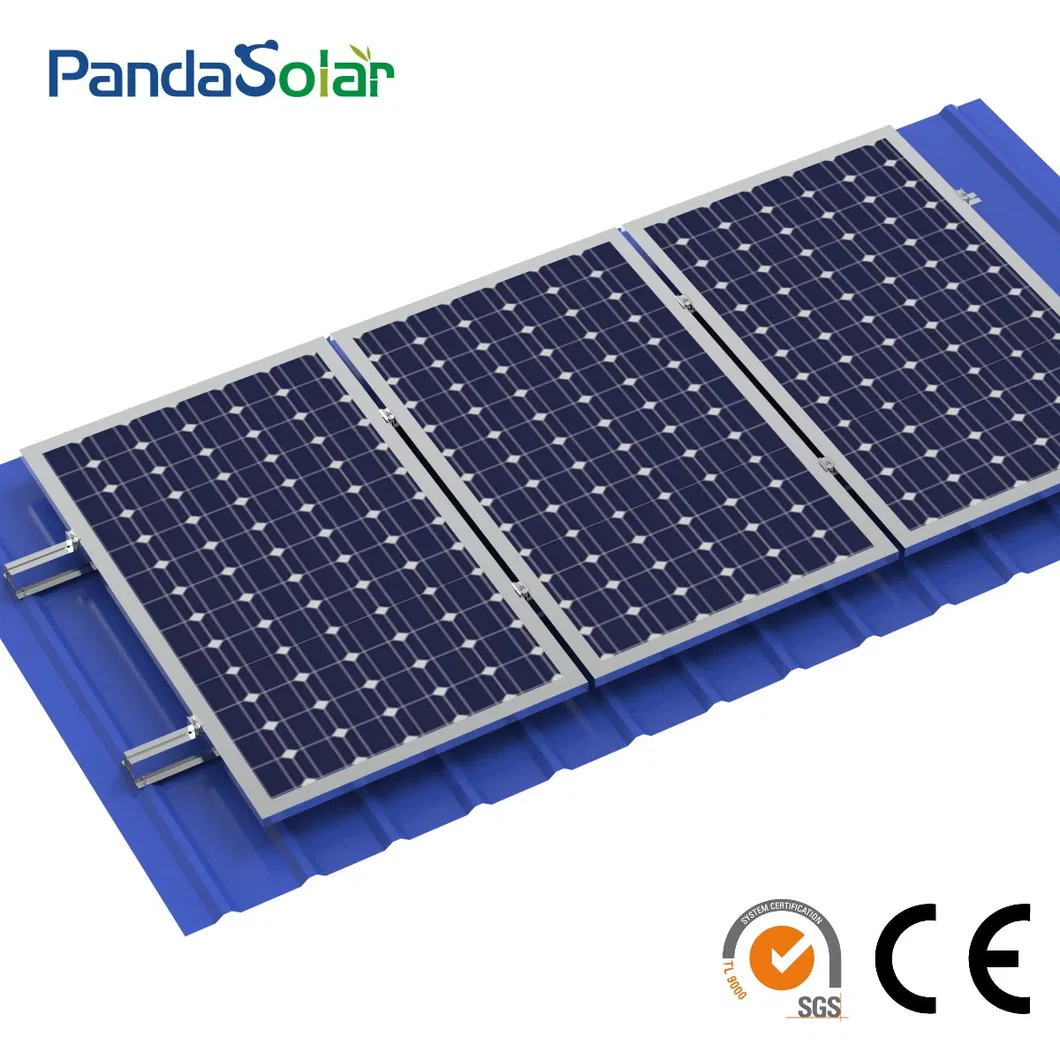

With only a few components, PandaSolar short rail system can be easily fixed with the trapezoidal metal roof sheet, to create an easy and secure mounting system for solar panels. With its low and continuous mounting rail profiles, the short rail system allows the weight and pressure of the solar panels to be distributed evenly across the roof, which avoid heavy point loading that could otherwise damage and deform the trapezoidal roof sheet.
Step 1

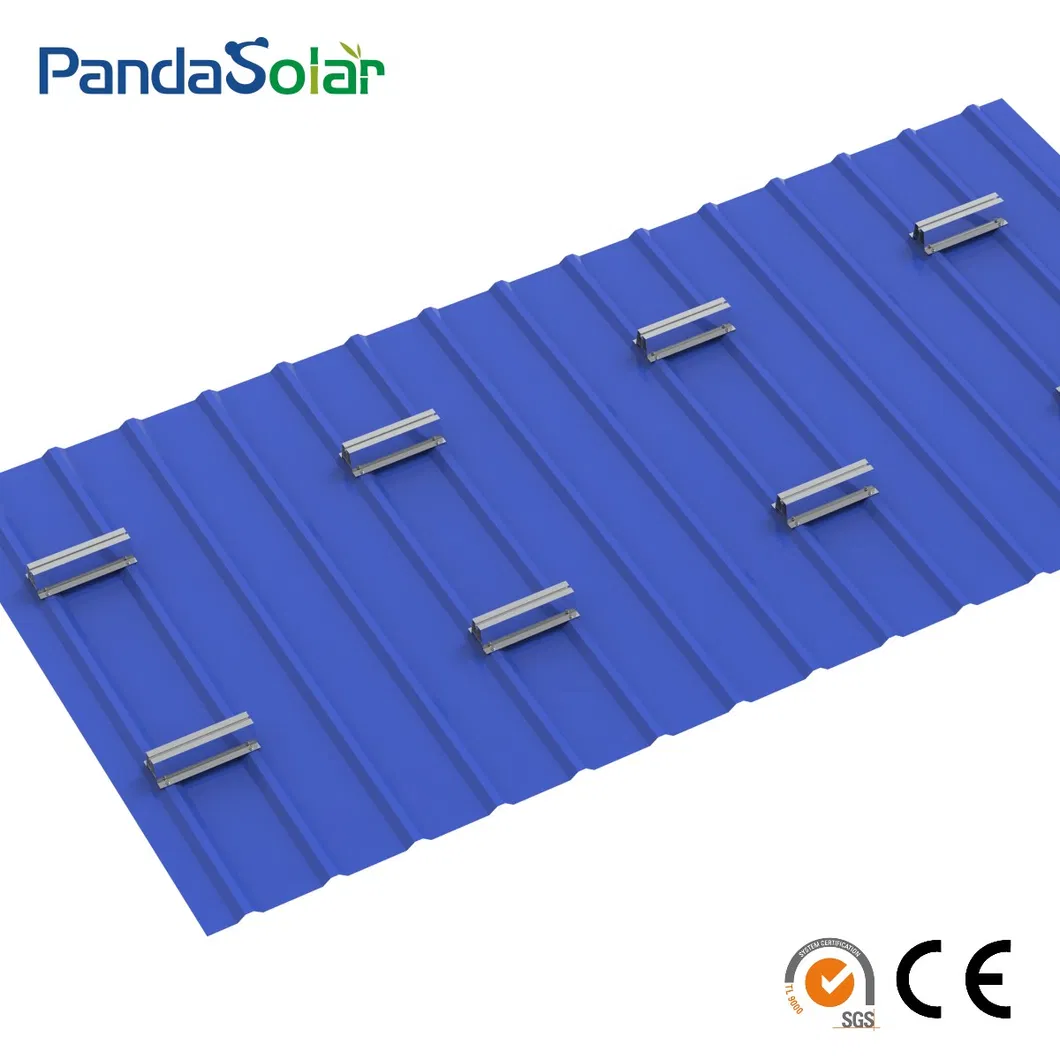

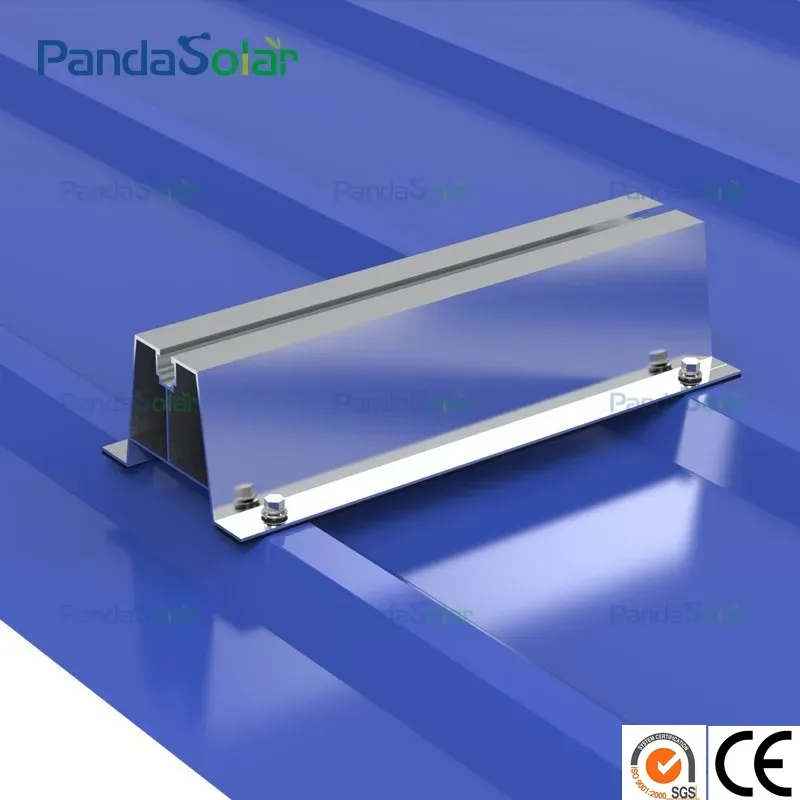

According installation drawing, determine the distance between each of U70 short rail, then fix U70 short rail on the tin roof by self-tap screws.
Step 2

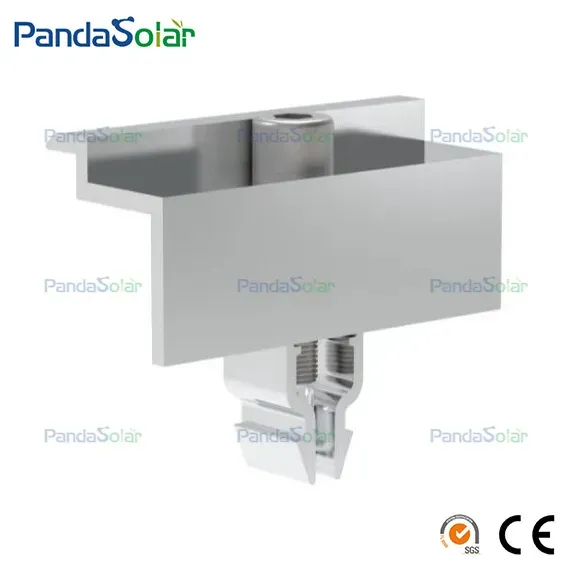

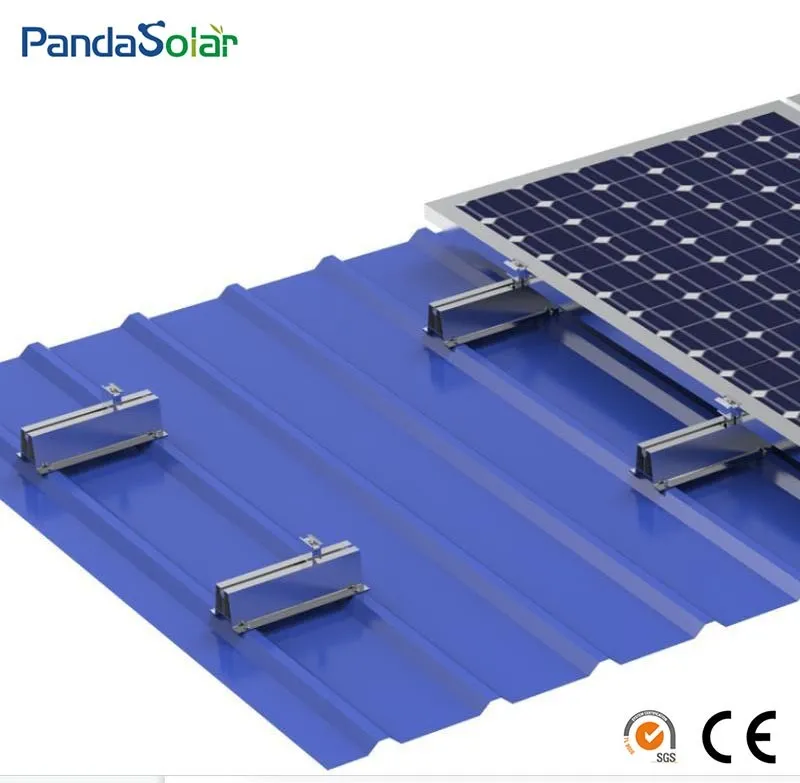

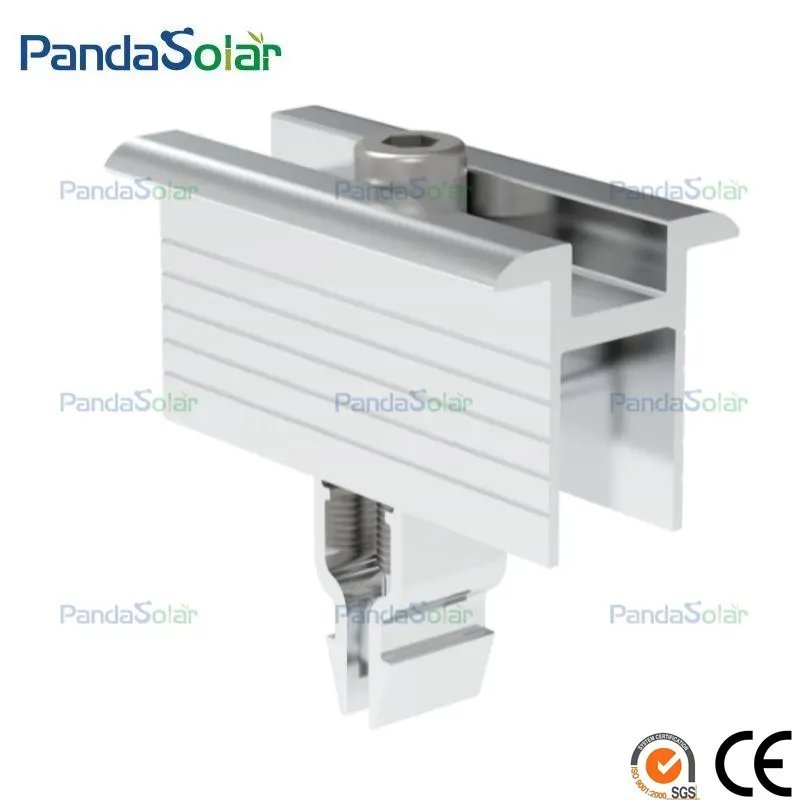

According to drawing, determine suitable solar panels position on U70 short rail, then fix solar panels with solar mid/end clamp. After adjusting the position, lock the bolts to fix the solar panel.
