Product ID: 68580642
High Efficiency Rotary Printing Machine
Contact Now
Description
Basic Info.
Model NO.
KTGP-MS150
Condition
NEW
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Applicable Material
Stickers, Textile, Film, Paper, Plastic, BOPP, CPP, Pet, PVC, PE, Nylon, Metalized Film
Arrangement Position of Color Groups
Combined Gravure Press
Usage
Rigid Packaging Gravure, Flexible Packaging Gravure Printing Machine, Publication Gravure Machine
Feeding Mode
Web Gravure Printing Machine
Automatic Grade
Automatic
Color & Page
Double Faced Multi Colors
Structure
Rotary Type Printing Machine
PVC Printing
Yes
Aluminum Foil Printing
Yes
Paper Printing
Yes
Film Printing
Yes
Speed
150m/Min
Reverse Printing Turn Bar
Optional
Web Video Inspection
Optional
Product Name
Intaglio Printing Machine
Keyword
High Efficiency Printing Machine
Keyword 1
Rotogravure Printing Machine
Keyword 2
Bottle Printing Machine
Keyword 3
Paper Bag Printing Machine
Keyword 4
Printing Machine
Keyword 5
Rotary Printing Machine
Transport Package
Wood
Specification
15400 x 3700 x 2750mm (8 Colors)
Trademark
KETE
Origin
China
Production Capacity
20 Sets/ Month
Product Description

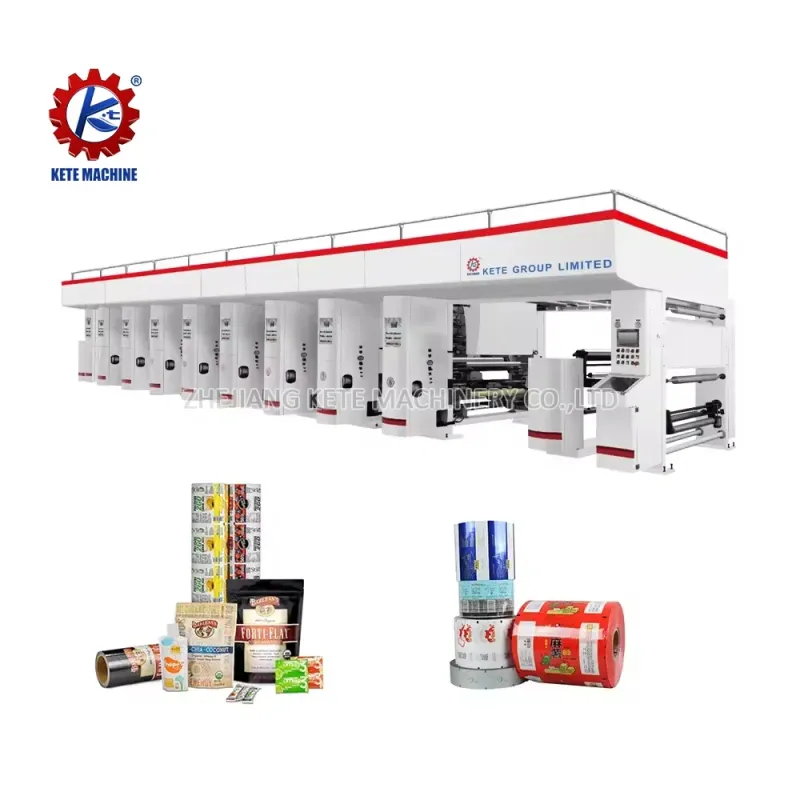

This 8 Color Rotogravure Printing Machine Is Suitable for Roll-To-Roll Printing Materials Such As BOPP, CPP, PET, PVC, PE, Nylon,Metalized Film, Paper, Aluminum
Foil, etc. It Is Widely Used in High-Quality Packaging Material Printing Industries.
Foil, etc. It Is Widely Used in High-Quality Packaging Material Printing Industries.
Ω Unwind and Rewind with Double-Armed Rotary Type Design Ω Auto Ink Recycle System
Ω Unwind and Rewind Manual Splicing and Cutting Ω Doctor Blade Pneumatic Type Design
Ω Doctor Blade Moving Controlled by Separate Motor Ω Shaft-less Type Printing Cylinder Loading Design
Ω With Computer Auto Color Register System Ω With Computer Auto Color Register System
Ω With 3 Motor Drive Tension Control System Ω Optional: Web Video Inspection
Ω Optional: 7 Motor Drive Tension Control System Ω Optional: Water Chilling System
Ω Optional: Reverse Printing Turn Bar Ω Optional: Ink Viscosity Controller
|
Model
|
KTGP-MS150
|
|
Printing Colors
|
4 - 12 Colors
|
|
Printing Material Width
|
600 mm up to 1800mm
|
|
Max. Mechanical Speed
|
150 m/min
|
|
Max. Printing Speed
|
120m/min (Cylinder Diameter ≥ 160mm)
|
|
Unwind Diameter
|
Φ600mm
|
|
Rewind Diameter
|
Φ600mm
|
|
Printing Cylinder Diameter
|
Φ120mm - Φ300mm
|
|
Color Register Precision (Vertical)
|
±0.15mm (BOPP or PET)
|
|
Heating Way
|
Electric Heating / Gas Heating / Oil Heating
|
|
Total Power
|
About 165kw (8colors)
|
|
Machine Weight
|
About 18000kg (8 colors)
|
|
Machine Size (LWH)
|
15400 x 3700 x 2750mm (8 Colors)
|
|
Machine Power
|
3 Phase 220 / 380 / 440v 50/60Hz
|
