Product ID: 68580651

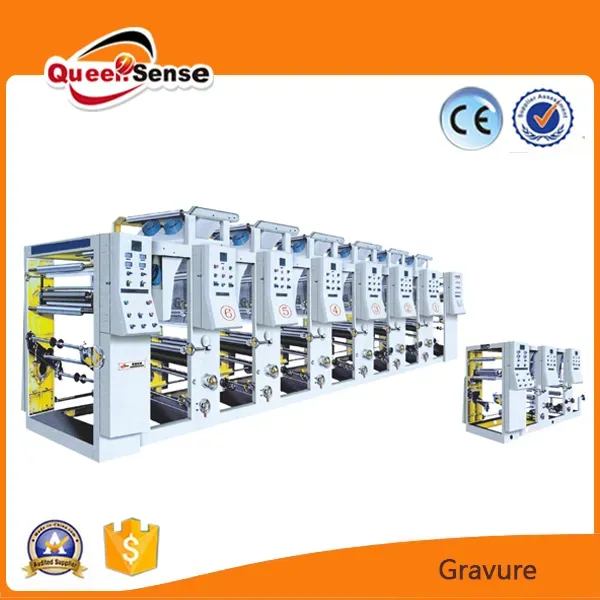

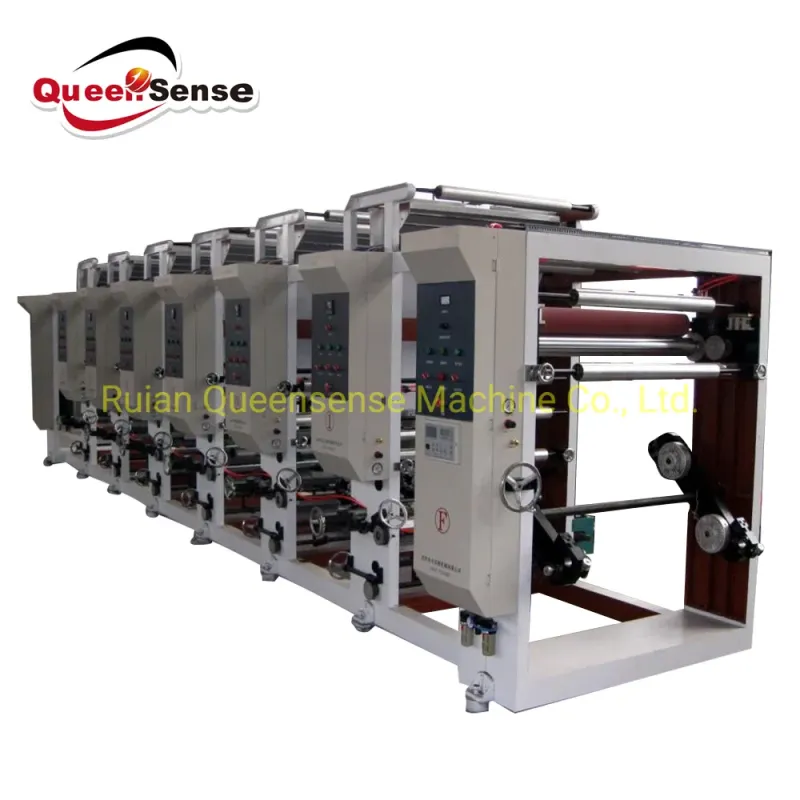

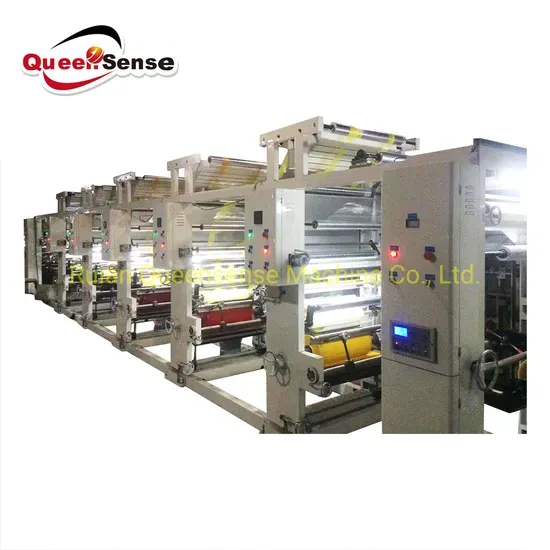

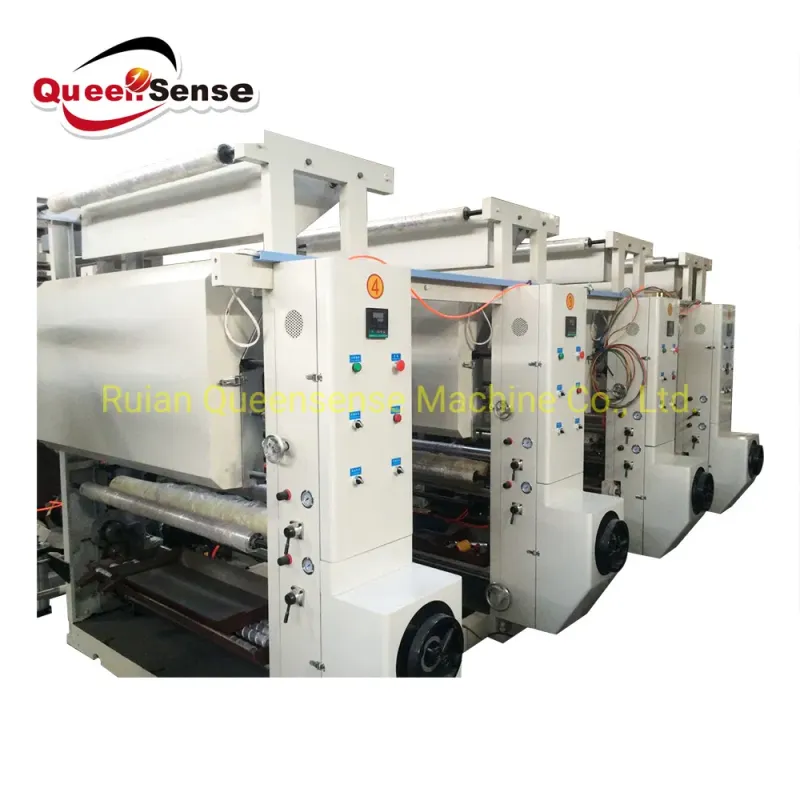

High-Quality Rotogravure Printing Machine
Contact Now
Description
Basic Info.
Model NO.
ASY-B600/800/1000
Color & Page
Multi-Colour Printing Press
Usage
Paper Printer
Automatic Grade
Semi-Automatic
Print Interface
USB2.0
System supported
Windowsxp32
Max Rewinding Width
600/800/1000mm
Max Rewinding Speed
60m/Min
Total Power
84kw
Weight
500kg
Transport Package
Seaworthy
Specification
CE SGS
Trademark
QUEENSENSE
Origin
China
HS Code
8441100000
Production Capacity
1000PCS/Per Year
Product Description
This machine is suitable for printing roll plastic film, non-woven cloth, thin leather, paper, aluminum foil, cloth and various soft packages with excellent performance and it is a kind of ideal printing equipment for wine box, shoe bag, milk film and vest bag.
Performance and Features:
1. The latest improved gear box, 360° Non-stopping registration device.
2. Movable type doctor blade, transverse reciprocating motion.
3. Far-infrared heating tube drying system can keep dry at a speed of 60m/min.
4. Unwinding and traction adopts magnetic powder brake to make material moving more stable.
5. Rewinding and traction adopt magnetic powder clutch to make color register accurate and rolling end face more neat and smooth.
6. Current output type temperature control system makes heating quicker and electricity saving.
7. Turnover double-station unwinding and rewinding mechanism, receiving and replacing material without stopping the machine.
8. Obverse and reverse side once-through continuous printing.
9. Double-oven drying system and large plate device can print the pattern with 1200mm in girth
Type |
ASY-B4600 | ASY-B4800 | ASY-B41000 |
| Effective Printing Width | 600mm | 800mm | 1000mm |
| Max.Width of Web | 620mm | 820mm | 1020mm |
| Max. Printing Speed | 10-60m/min | 10-60m/min | 10-60m/min |
| Max. Diameter of Unwind/Rewind | 600mm | 600mm | 600mm |
| Diameter of Printing Cylinde | 70-390mm | 70-390mm | 70-390mm |
| Accuracy of Registration | ±0.2mm | ±0.2mm | ±0.2mm |
| Heating Power of Oven | 21.6kw | 28.8kw | 36kw |
| Total Power | 29.2Kw | 36.6 Kw | 44Kw |
| Weight of Machine | 6500kg | 7000 kg | 7500 kg |
| Overall Dimension | 8100*1900*2400mm | 8100*2100*2400mm | 8100*2300*2400mm |

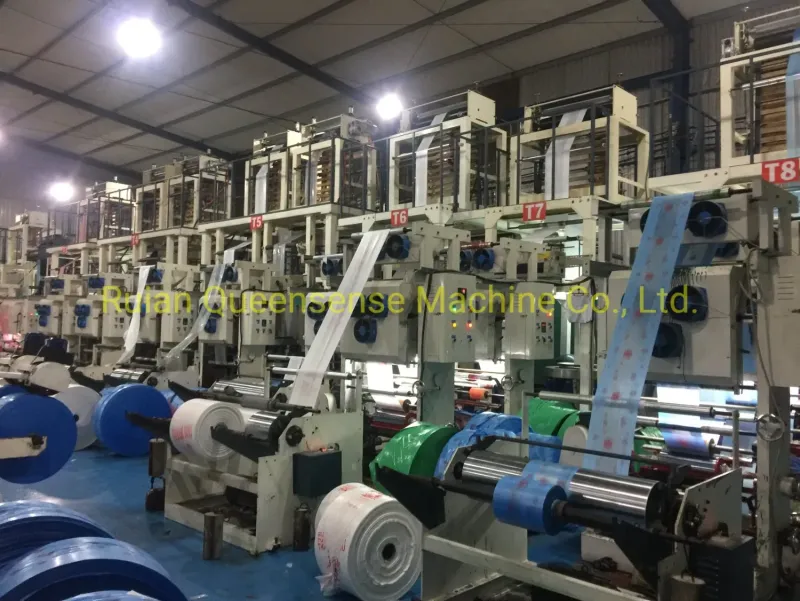

inline working with the film blowing machine:
