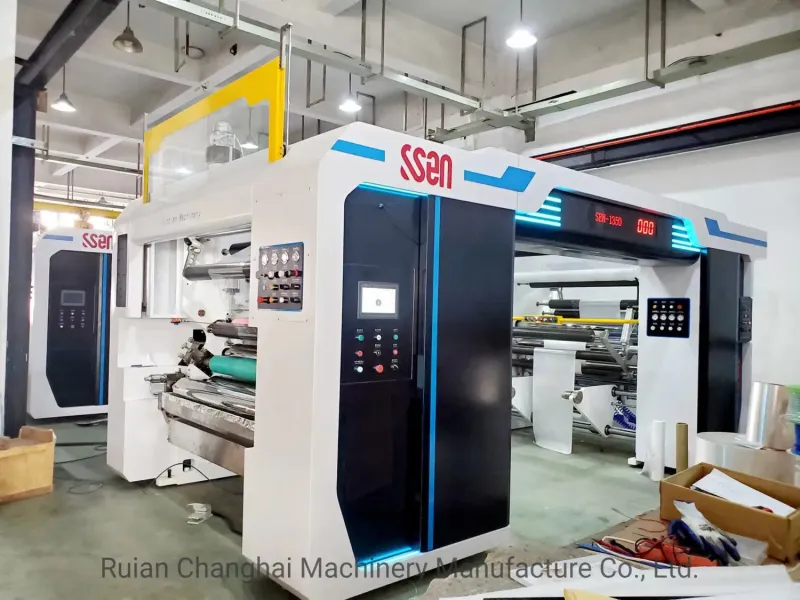

Solventless Laminating Machine Manufacturers in China
Contact Now
Description
Overview
Basic Info.
- Model NO. SEN-1050A, 1350A, 1650A
- Classification Solventless Lamination Machine
- Application Packaging Paper, Film Material
- Driven Type Electric
- Automatic Grade Automatic
- Membrane Material PET Film
- Plastic Film Mulching Modes Two-Layers Lamination Composite
- Performance Food Packaging
- Max. Laminating Speed 500m/Min
- Max. Material Width 1050mm, 1350mm, 1650mm
- Water Heaters Included
- Glue Mixer/Dispenser Included
- Servo Motor 7PCS
- Tension Control Automatic by PLC
- Transport Package Iron Bracket + Film Wrapping
- Specification 5100*3600*2500mm
- Trademark SSEN
- Origin China Mainland
- HS Code 84778000
- Production Capacity 200 sets/Year
Product Description
Machine Basic Parameters
| Model | Parameter | SEN1050A | SEN1350A | SEN1650A |
|---|---|---|---|---|
| Parameters | Max. material width | 1050mm | 1350mm | 1650mm |
| Max. unwind diameter | φ800mm | φ800mm | φ800mm | |
| Max. rewind diameter | φ800mm | φ800mm | φ800mm | |
| Total power | 53kw | 58kw | 62kw | |
| Water heater included | 3sets | 3sets | 3sets | |
| 2-component glue mixer | 1set | 1set | 1set | |
| G. Weight | 11000kgs | 13000kgs | 15000kgs | |
| Dimension (L*W*H) | 5800*3000*3050mm | 5800*3300*3050mm | 5800*3600*3050mm |
Substrate Types
| Laminating substrates | Thickness of substrates | Coating substrates | Thickness of substrates |
|---|---|---|---|
| BOPP | 12-80μm | BOPP | 12-80μm |
| PETP | 8-30μm | PETP | 10-30μm |
| LDPE, LLDPE | 20-200μm | LDPE, LLDPE | 30-200μm |
| OPA | 12-18μm | OPA | 12-18μm |
| NYLON CAST | 20-80μm | NYLON CAST | 30-80μm |
| ALU (Foil) | 6.3-40μm | PP CAST | 60-150μm |
| PP CAST | 20-150μm | PAPER | 40-150gsm |
| COEX FILM | 20-200μm | ||
| PAPER | 40-150gsm |
And other films with the same properties as the above substrates.
