Product Description

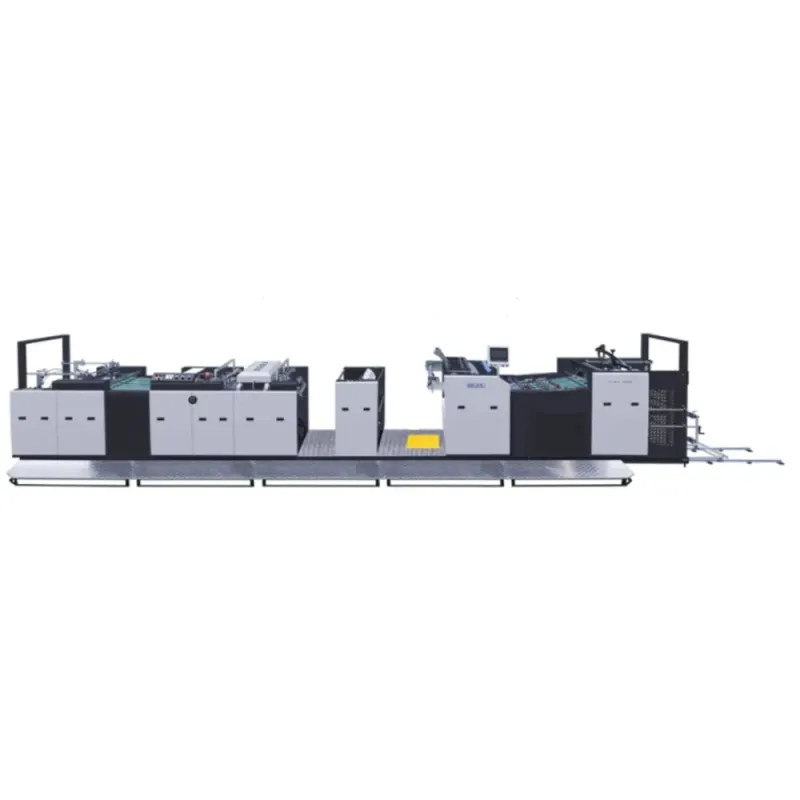

YFMD-1050A Fully Automatic High-speed Pre-coated Film Laminating Machine

The YFMD series Automatic high speed laminating machine is a professional equipment used for plastic film laminating on the surface of paper printed matter. Improving the printing matter grades, and achieve the purpose of dust-proof, waterproof, oil proof. Automatic Thermal Laminating Machines are an essential tool for any business or organization looking to increase their document protection and overall efficiency. With an automatic thermal laminating machine, you can laminate documents quickly and easily with minimal effort and no mess. These machines can save time and money by eliminating the need to manually laminate documents. Additionally, they provide superior protection against fading, water damage, smudging, dirt, dust, and other damaging elements. As a result, your documents will look professional and last longer than ever before.

Key Features

• 1: Pre-stacker mechanism to realize non-stop paper feeding and receiving.
• 2: Adopt high-speed offset feeder (12000 sheets/hour) to ensure fast and stable operation.
• 3: High degree of intelligence, the whole machine is controlled by PLC and man-machine, and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.
• 4: High speed, high efficiency and simple operation.
• 5: The main transmission of the whole machine adopts synchronous belt transmission, which makes the transmission stable and accurate, while ensuring the accuracy, greatly improving the stability and service life of the machine.
• 6: UV curing: Enhance the fastness of the film, especially to solve the problem of the film not sticking to the subsequent creasing and embossing!
• 7: Any combination of powerful multi-functional configuration can solve various problems of laminating process!
• Powder removal: Remove surface dust and impurities to make the surface more beautiful and compacted!
• Double-sided: The upper and lower sides are laminated at the same time, with high efficiency and no waste!
• Double press: Good surface compaction, no whitening, stronger fit, double surface compaction and fastness enhancement effect!
• Embossing: Various embossing embodies the aesthetics of surface decoration!
• Chain knife: Slitting of tailless film and high toughness film such as PET and aluminum foil film!
• Hot knife: High-speed, tailless, for PET, aluminum foil film and other high-toughness film slitting!
• Corona: Solve the post-processing problems such as low corona value, screen printing, box pasting, stamping, etc.
• Injekt coding: Online Coding.

Applications

The YFMD series Automatic high speed laminating machine launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.

Product Parameters

Configurations

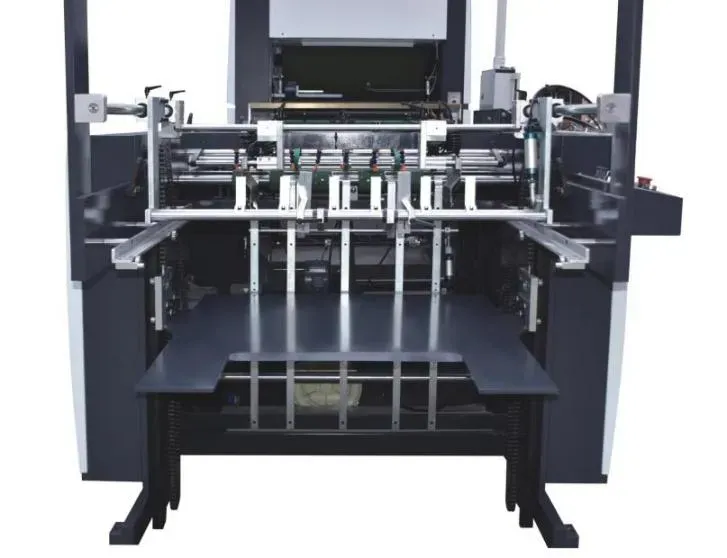

1. Automatic paper feeding system. The paper feeder is an important part of the laminating machine. The function of the paper feeder is to separate the paper one by one automatically, accurately, steadily and periodically, and continuously send it to the regular positioning position. The paper feeding method of this machine is continuous paper feeding, which has the advantages of high degree of automation, compact structure, good performance, convenient operation, accurate paper feeding and high precision. The main components of the paper feeder include the paper feeding bridge, the paper feeding head, the stacking table, the lifting system and the transmission system.

• Adopt oil-free vacuum pump air suction system;
• Adopt high-speed offset feeder (12000 sheets/hour) to ensure fast and stable operation;
• Stepless frequency conversion speed regulation paper feeding;
• The paper conveying table of the production line is positioned and conveyed by vacuum suction to ensure smooth, neat and stable conveying;
• The paper feeding table is equipped with upper and lower limit protection devices; manual rapid lifting;
• The paper feeding table has an automatic replenishment paper feeding system;
• With double-sheet controller, double-sheet or multi-sheet feeding detection stop system, using the sensor of safety voltage detector;
• Servo technology, PLC control and human-computer interaction system centralized control. Paper stacking error ± 2mm;
• Front gauge and side lay positioning system.

Main host

• The whole machine adopts high-precision synchronous belt and some imported chain transmission;

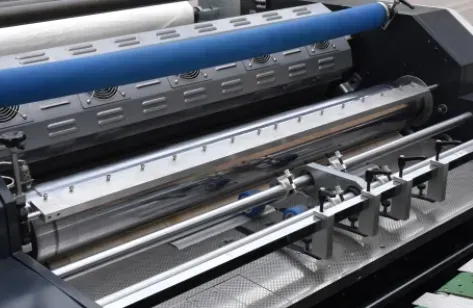

• 320mm composite heating roller, matched with electromagnetic variable power heating system;
• 300mm imported silicone pressure roller, which has good temperature and pressure resistance and non-stick performance;
• Electromagnetic heating;
• Film straight roller;
• Temperature meter outside;
• Automatic hydraulic pressure;
• Paper lacking and breaking system;
• Electric heating powder removal device;
• Anti-debris magnet safety device, protect the iron roller.

Separation system

• Back perforating system;
• High speed rotation knife;
• Anti-curve system;
• Pneumatic cutting system;
• Slot for the separating roller;
• Adopt the centralized control system of the whole machine to realize precise pneumatic breaking.

UV dryer

Sucking and outside air system. The UV part adopts 8-12KW adjustable electronic light source, which has greatly improved safety performance than the traditional voltage source light. The light source can adjust the brightness automatically as the change of machine's running speed, which can be changed from 30% to 100%. Thus the average energy consumption is saved by more than 30%.

Automatic paper stacker

The automatic stacker has a fan-cooled paper pressing structure, which can perfectly collect the paper under the high-speed operation of the machine to ensure that the paper is delivered neatly.

• Thin paper corrugated paper delivery system, vacuum suction paper stabilizer device to keep the paper stable;
• Manual fast lifting of the receiving table;
• The upper and lower limit protection devices of the receiving table;
• The automatic lowering device of the delivery table, and the paper stop and alarm system at the limit of the delivery;
• Automatic paper cumulative counting;
• Match paper jam detection system to realize intelligent deceleration. Paper jam stop system.
• The high-speed pneumatic photoelectric paper-taking system is adopted, and the paper is taken accurately and neatly;
