Product ID: 68580676
Automatic Laminating Machine DH-13
Contact Now
Description
Overview
Basic Info.
- Model NO. DH-13
- Voltage 220V
- Core Components Motor, PLC
- Heating Method Infrared Heating by HotAir
- Max. Heating Temperature 160ºC
- Single & Double Sided YES
- Pressure Hydraulic
- Membrane Material BOPP Film
- Automatic Grade Automatic
- Application Paper Lamination
- Performance Waterproof
- Transport Package Wooden Box
- Specification 1870*750*1450mm
- Trademark BEFITTER
- Origin Hangzhou
- Production Capacity 100 Per Month
Packaging & Delivery
- Package Size 161.00cm * 83.00cm * 126.00cm
- Package Gross Weight 406.000kg
Product Description
Model: DH-13
Laminating Width: 370mm
Laminating Speed: 0-8m/min
Roller Diameter: 180 mm
Maximum Heating Temperature: 160°C
Motor Power: 250W
Power Heating: 3000 W
Power Supply: AC 220V 150, 60 Hz
Heating Method: Infrared Heating by HotAir
Product Size: 1870*750*1450mm
Product Weight: 400kg

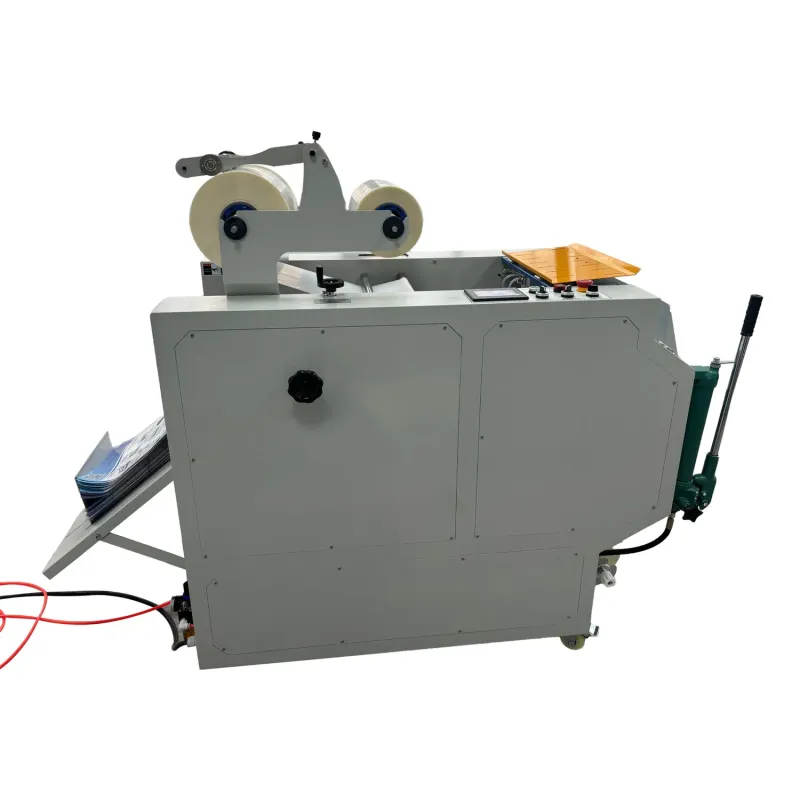

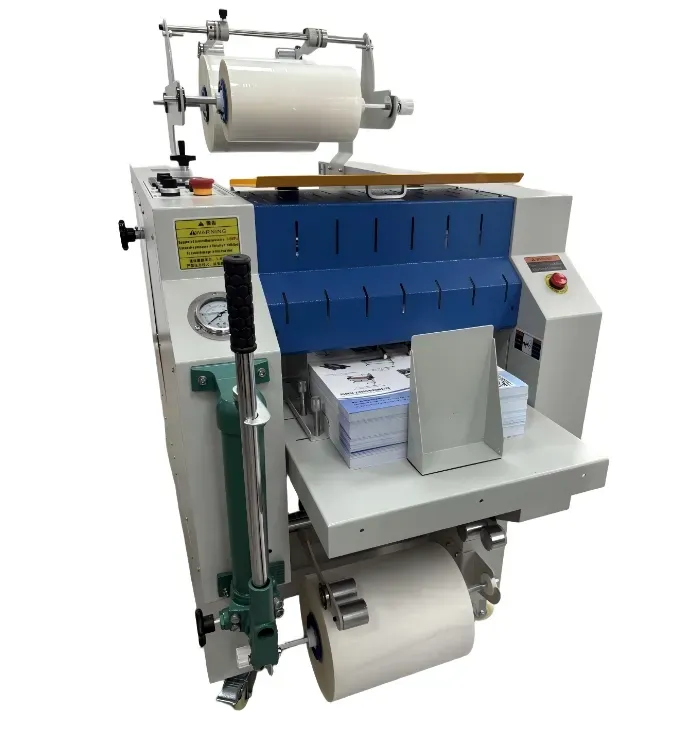

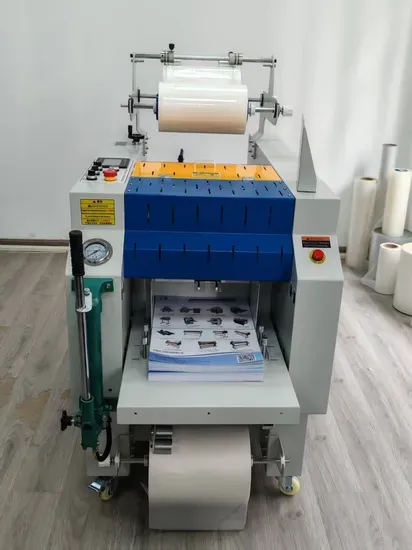

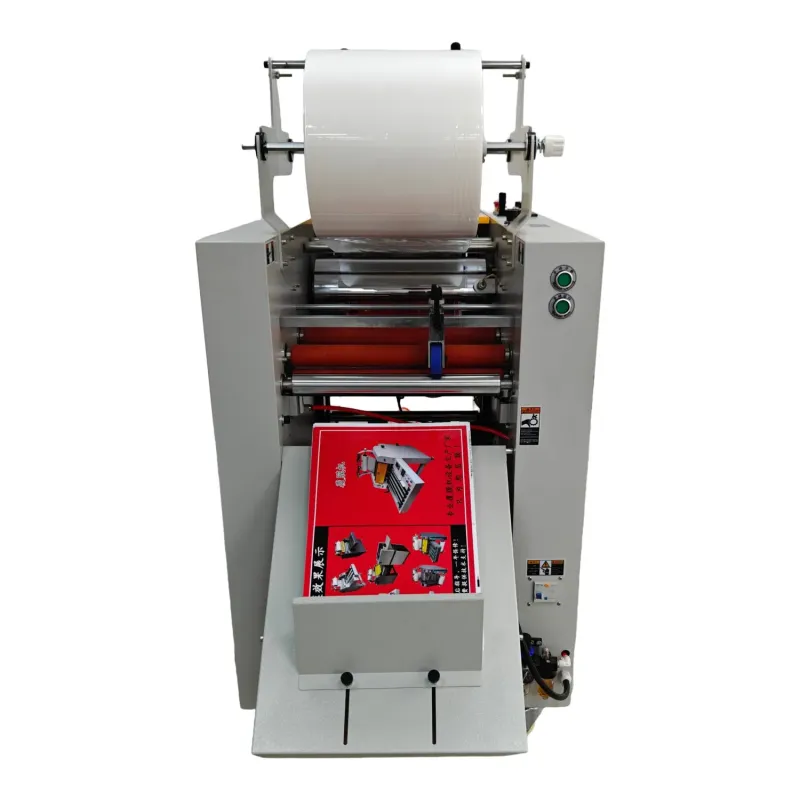

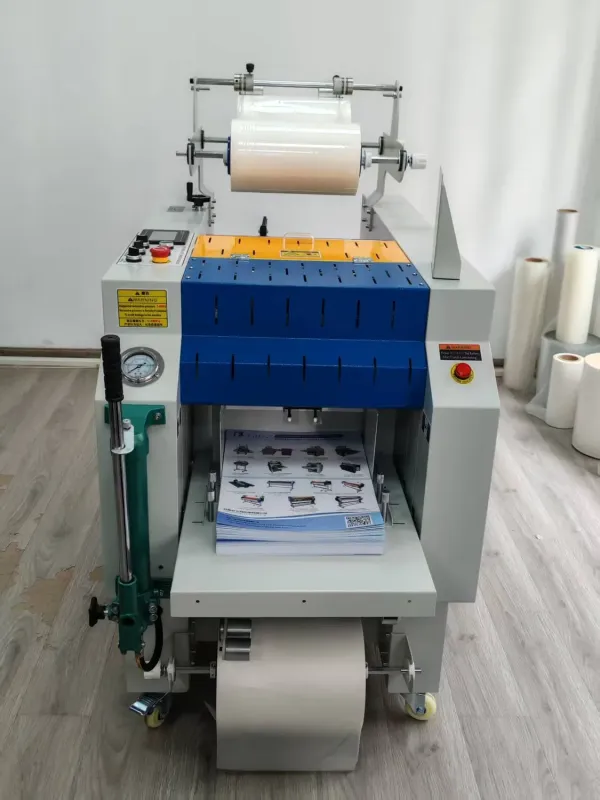

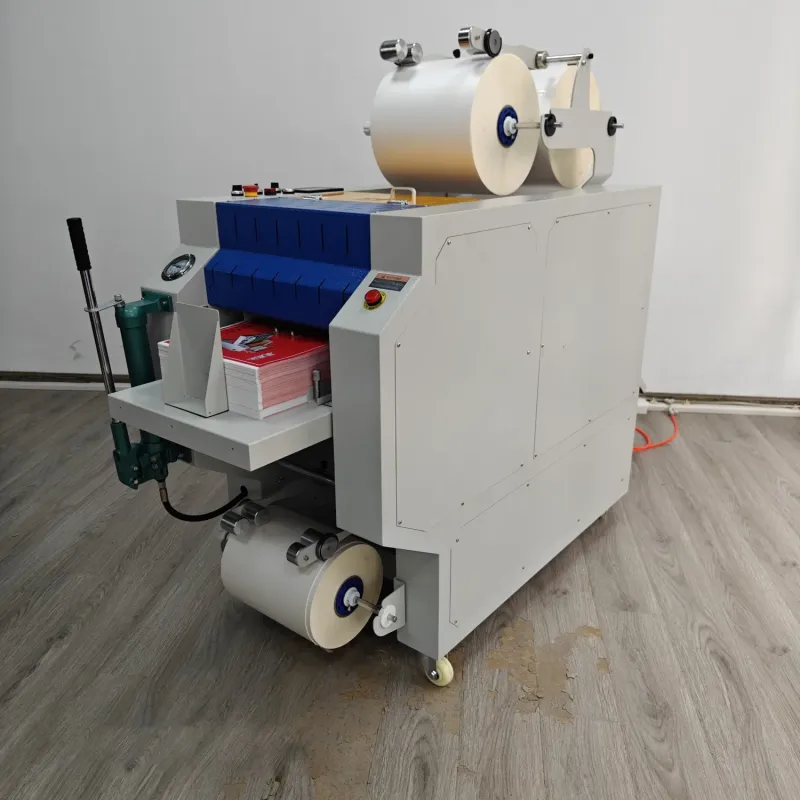

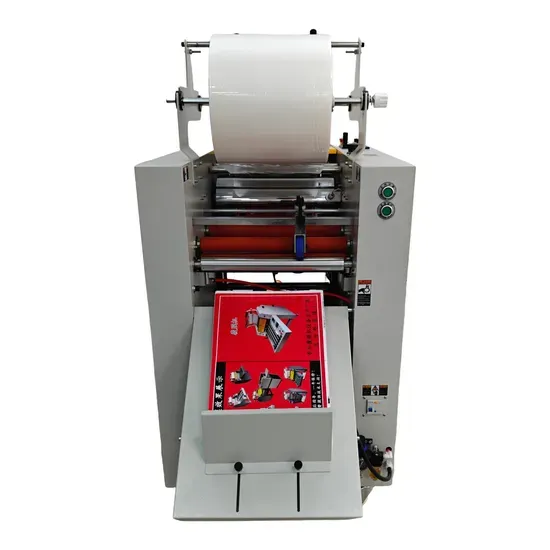

DH-13 Single-sided and Double-sided Fully Automatic Laminating Machine
Function Introduction:
- Fully automatic coating, automatic paper feeding, and automatic paper cutting.

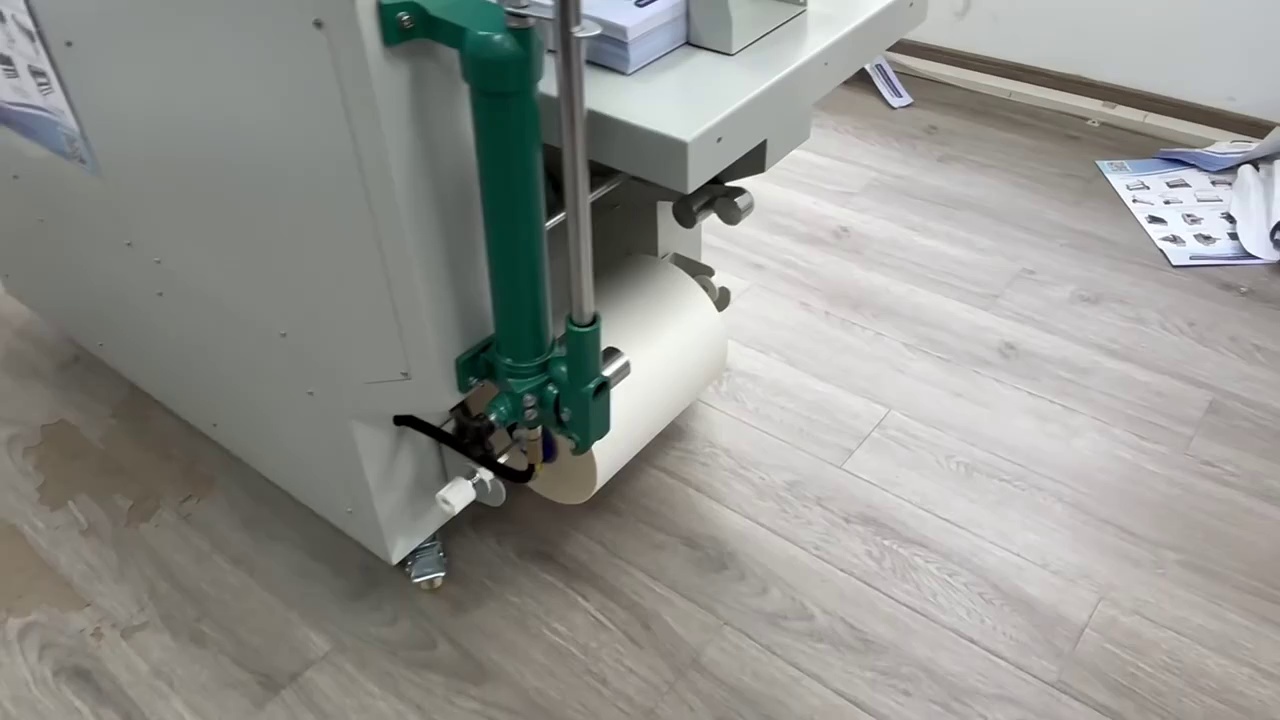

- Manual hydraulic pressure adjustment with anti-vibration pressure display.
- LCD touchscreen display, PLC intelligent control system.
- 20cm large-capacity paper stack, intelligent lifting platform.
- Maximum speed of 8 m/min, effective maximum coating width of 370 mm.
- Steel roller diameter: 180 mm; lower rubber roller diameter: 130 mm.
- 250W three-phase 220V variable-speed gearbox motor with variable frequency speed control for high energy efficiency.
- Dual alarm protection for paper out and paper breakage, automatically shutting down the machine to enable unattended operation and convenient, quick handling.
