Product ID: 68580689
SAFM-1080 Multi-Function Laminating Machine
Contact Now
Description
Overview
Basic Info.
- Model NO. SAFM-1080
- Driven Type Electric
- Automatic Grade Automatic
- Membrane Material Thermal Film
- Plastic Film Mulching Modes Hot Laminating
- Performance Waterproof
Model
- Safm-1080
- Max Laminating Size 1050*1050mm
- Min Laminating Size 300*300mm
- Max Speed 0-80m/Min
- Paper Weight 105-500g
- Power 30kw
- Total Weight 6000kg
- Overall Dimensions 8600X2000X2000mm
- Transport Package Wooden Case
- Specification CE
- Trademark Aochi
- Origin Zhejiang. China
- Production Capacity 20 Set/Sets Per Month
Packaging & Delivery
- Package Size 860.00cm * 200.00cm * 200.00cm
- Package Gross Weight 6000.000kg
Product Description

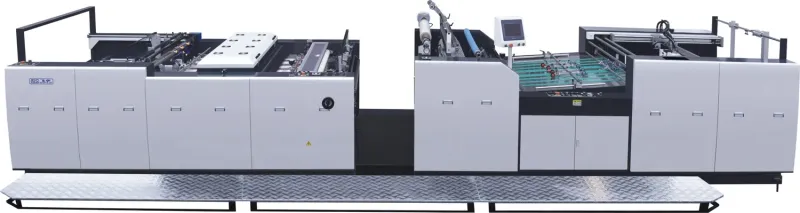

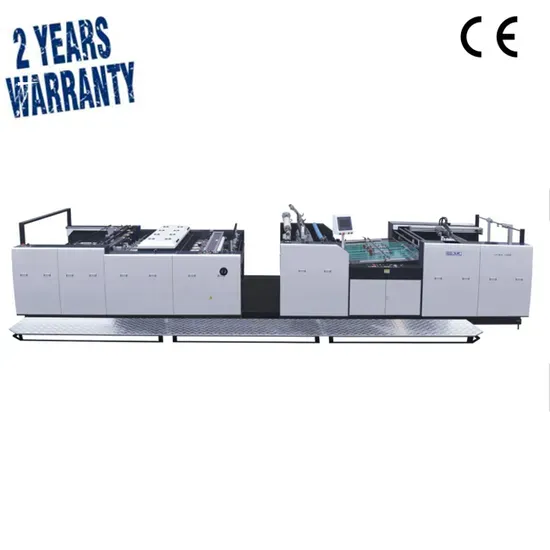

Automatic Multifunction Paperboard Flute Laminating Machine (SAFM-1080)
Configuration:
- Stream feeder, with automatic sheeting and jogger delivery.
- Oil free vacuum pump on stream feeder with both separating and forwarding suckers.
- Servo-controlled pump on stream feeder with both separating and forwarding sucker.
- Colour touch screen interface, programmable for sheet size and overlap.
- Oil heated for stable and precise PID electronic control of temperature.
- Film slitting and perforating system on feed roll.
- Sheet decurling device for production of flat laminated sheets.
- Strong pneumatic laminating pressure.
- Pneumatic film tension brake.
- Swing-away film loading onto airshaft.
- Whole machine is easily moved by pallet trolley for convenient storage in limited spaces.
Product Parameters
| Model | SAFM-850 | SAFM-1080 | SAFM-1200 | SAFM-1200L |
|---|---|---|---|---|
| Max paper size | 850x1050mm | 1050x1050mm | 1200x1050mm | 1200x1450mm |
| Min paper size | 300x300mm | 300x340mm | 300x300mm | 340x340mm |
| Paper weight | 105-500g/m² | 105-500g/m² | 105-500g/m² | 105-500g/m² |
| Laminating speed | 0-80m/min | 0-80m/min | 0-80m/min | 0-80m/min |
| Power | 28KW | 30KW | 30KW | 35KW |
| Total Weight | 5000kg | 6000kg | 7000kg | 8000kg |
| Overall Dimensions | 8600x1800x2000mm | 8600x2000x2000mm | 8600x2200x2000mm | 10500x2200x2000mm |
Detailed Photos
Packaging & Shipping
