Plastic Film Dry Laminating Machine for Sale
Contact Now
Description
Basic Info.
Model NO.
GSGF-800A
Classification
Dry Laminating Machine
Application
Packaging Paper, Film Material
Driven Type
Mechanical
Automatic Grade
Automatic
Membrane Material
Plastic Film, Paper, Non Woven, Alu Foil
Plastic Film Mulching Modes
Hot Laminating
Performance
Anti Wrinkle
Frame
Iron
Color
White
Width
800, 1100, 1200, 1300mm
Unwinding Diameter
600mm
Rewinding Diameter
800mm
Roll Change
Automatic
Speed
150m/Min
Heating
Electric Heating
Power
100kw
Voltage
380V 3 Phase
Weight
9400kg
Dimension
11500*2800*3200mm
Transport Package
Film Packing
Specification
SGS, CE
Trademark
Deguang
Origin
China
HS Code
84778000
Production Capacity
30 Sets/Month
Product Description

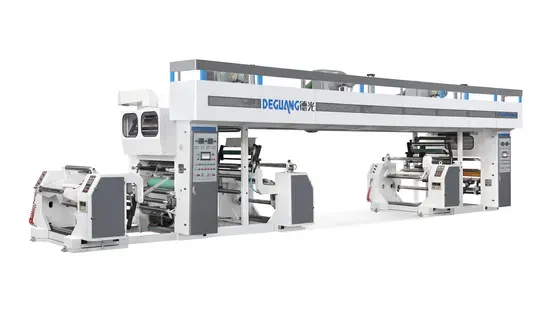

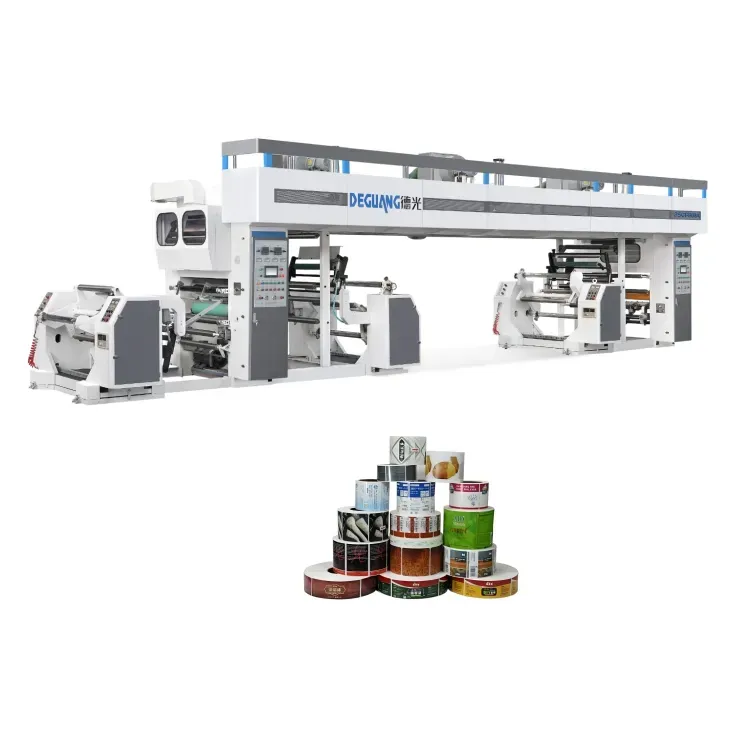

Plastic Film Craft Paper Aluminum Foil Roll To Roll Dry Laminating Machine
Application:
This machine is used to laminate bopp, pet, cpp, pe, paper, aluminum foil, non woven ect.,
it is widely used in soft packaging like food packaging.
Feature:
1. Turret type unwinder and rewinder with automatic splicing and cutting
2. Unwind with ultrasonic EPC device
3. Anilox roller inverter motor control
4. Pneumatic pressing roller and doctor blade
5. Pneumatic oven, oven exit has ultrasonic EPC device
6. Heat recycling system, air exhaust system
7. Heating roller filled with thermal oil
8. Laminating roller inverter motor control9. Equipped with water cooling roller
10. Floating roller to adjust tension
Specification:
| Model | 800/1100mm |
| Max width of material | 800/1100mm |
| Laminating layer | 2 layer |
| Unwind and rewind diameter | 600mm |
| Max speed | 150m/min |
| Oven temperature | 80ºC |
| Heating roller temperature | 70-90ºC |
| Total power | 87/100kw |
| Weight | 8500/9400kg |
| Dimension | 11500*2500/2800*3200mm |

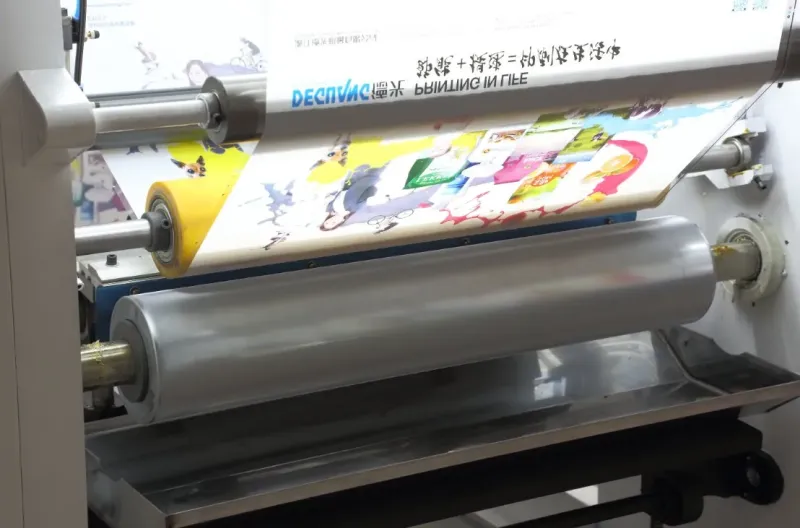

Laminating sample:

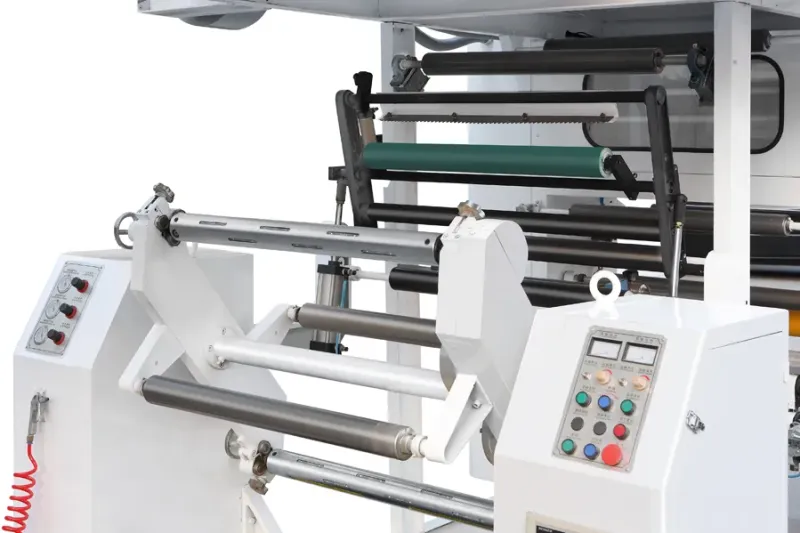

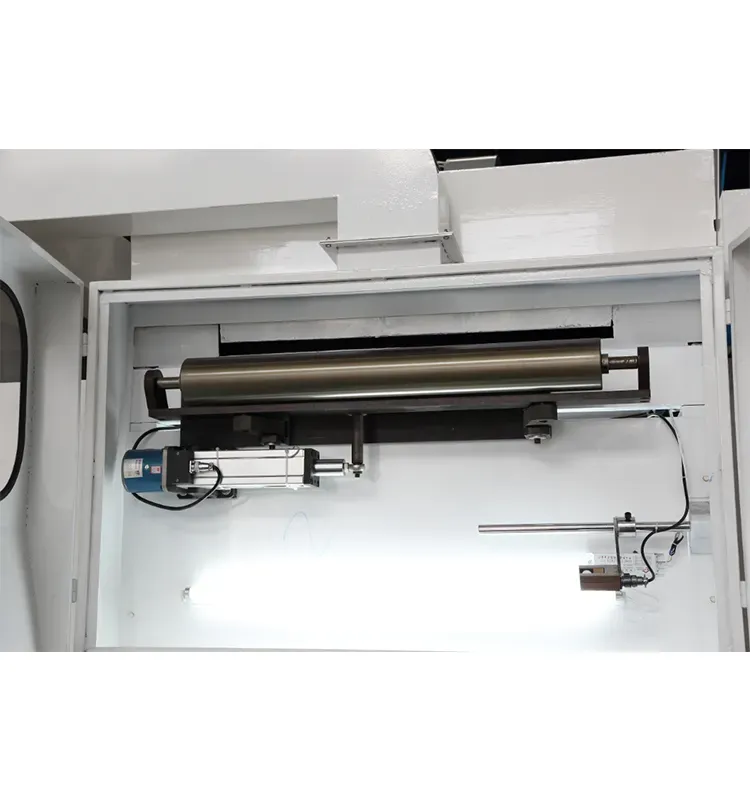

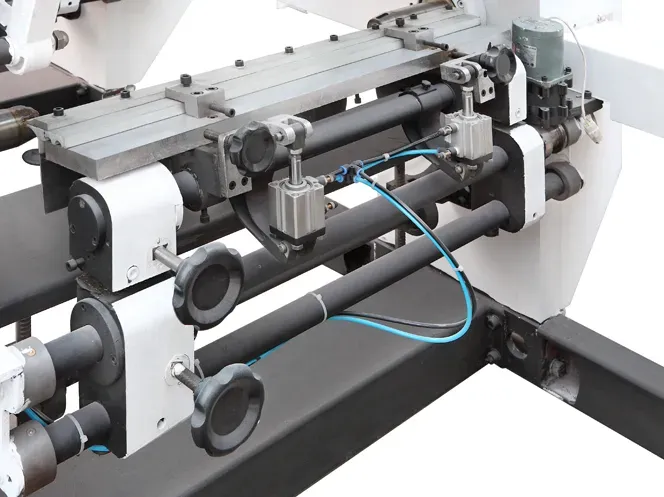

Machine details:
