Efficient PVC/PE Insulation Tape Coating Machine
Contact Now
Description
Basic Info.
- Model NO. FR-1300PVC
- Type Roll Coater
- Driven Type Electric
- Automatic Grade Automatic
- Packaging Material Wrapping Film
- Packaging Type Wood Pallet
- Application Packaging & Construction
- Function PVC Electrical Tape Making
- Features Siemens PLC, Safety System, Safety Measures
- Coating Width 1350mm
- Unwinding Diameter Max. 600mm
- Machine Speed Max. 40m/Min
- Rewinding Diameter Max. 180mm
- Transport Package Container
- Trademark FURIMACH
- Origin China, Anhui
- HS Code 84778000
- Production Capacity 35 Sets/Year
Product Description

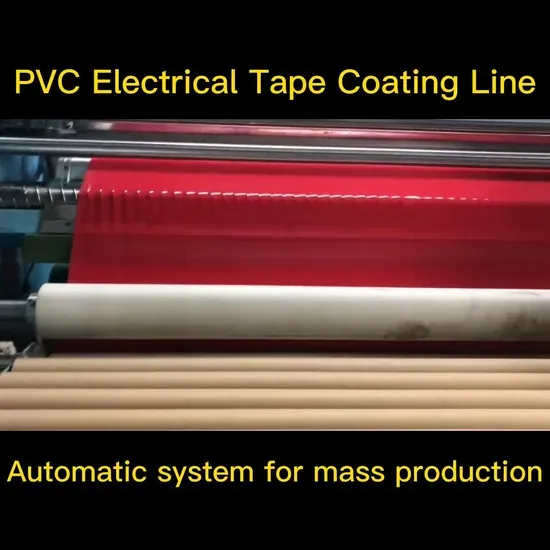

PVC / PE Electrical Insulation Tape Coating Machine - Application: Suitable for coating to produce PVC / PE electrical insulation tapes.
Features:
- Siemens PLC control system for the whole machine, HMI equipped at each key unit like unwinder, rewinder, coating unit. High degree of automation, easy operation, less manpower.
- Safety protection devices, emergency stop system and fault alarm function, safer coating production.
- Independent and precise temperature control for oven partitioned area. 100mm insulation layer inside of oven is more energy-saving.
- Segmented and closed loop tension control for the whole machine ensures more stable tension, with servo correction/web guide, the rewinding effect is more perfect/orderly.
- Technical engineering team supports on-site and remote service, from on-site installation & commissioning to common trouble-shooting, rest assured for after-sale service.
Contact me for more details! Specific pictures subject to each different machine model we did. Customization, like oven length, roller width, machine color and frame structure, etc., are supported for customers.
Tech Parameters
| Parameters | Values |
|---|---|
| Effective coating width | 1350mm |
| Roller width | 1450mm |
| Unwinding diameter | Max. φ600mm |
| Dry heating method | Thermal oil |
| Temperature control accuracy | Max. 130±2 °C |
| Mechanical speed | Max. 40m/min |
Units
| Units | Qty |
|---|---|

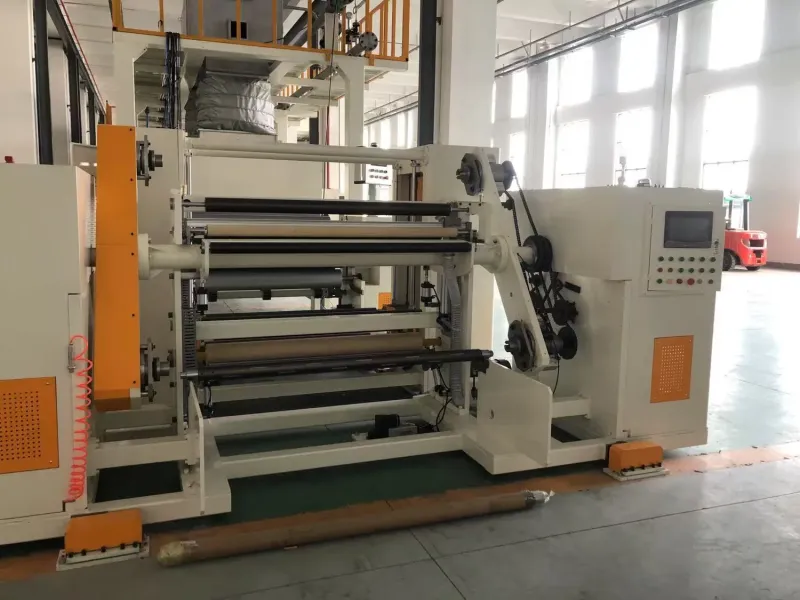

| Unwinding rack | 1 set, double-station type |
| Unwinder film connection | 1 set |
| Unwinding accumulator | 1 set |
| Primer coating unit | 1 set |
| Surface coating unit | 1 set |
| Suction box | 2 sets |
| Conveyor belt drive unit | 3 sets |

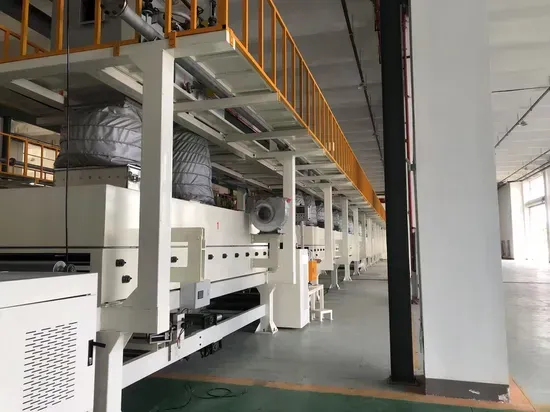

| Pre-heating oven | 1 section, 2m |
| Drying oven for primer coating | 2 sections, 4m/section |

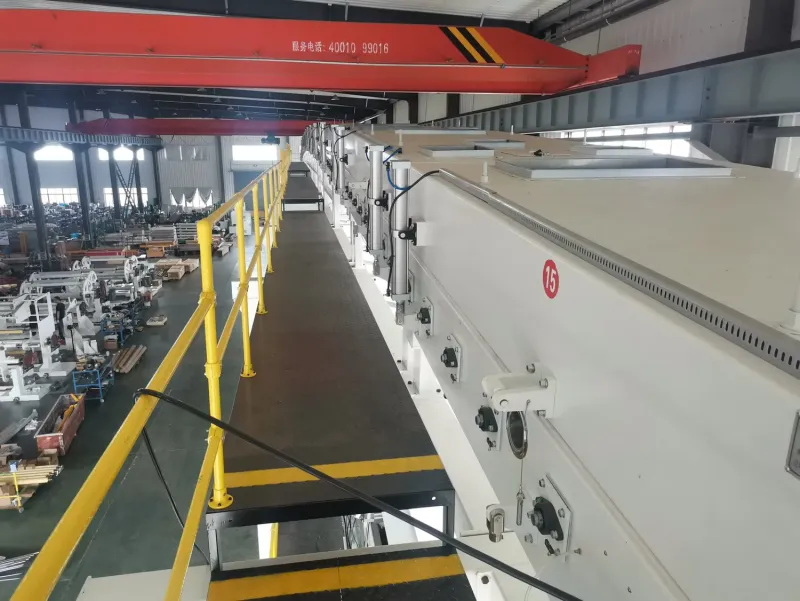

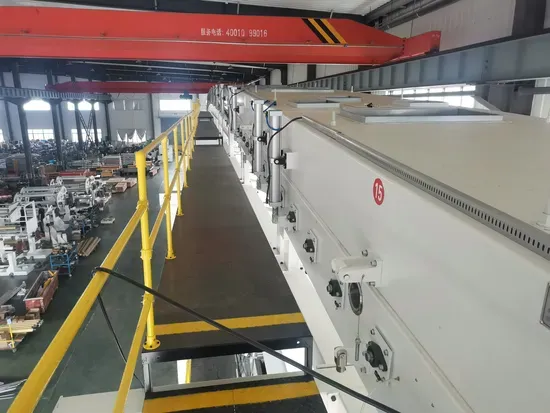

| Drying oven for surface coating | 7 sections, 4m/section |
| Cold oven | 1 section, 4m |
| Pulling unit | 2 sets |
| Rewinding accumulator | 1 set |

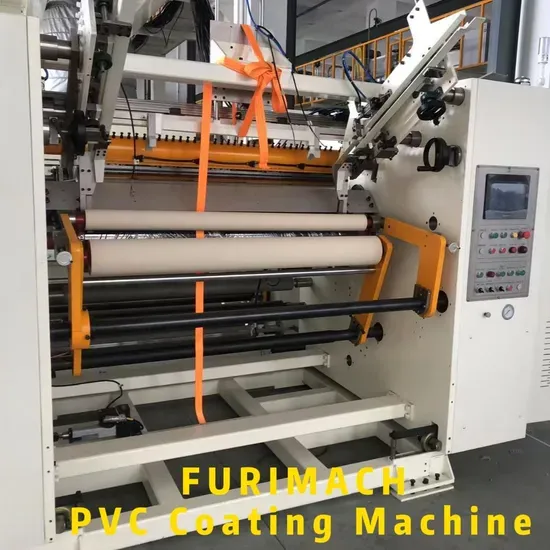

| PVC automatic rewinding table | 1 set |
| Thermal oil heating system | 1 set |
| Drive system | 1 set |
| Electrical control system | 1 set |
| Ventilation system | 1 set |
| Steel frame | 1 set |
