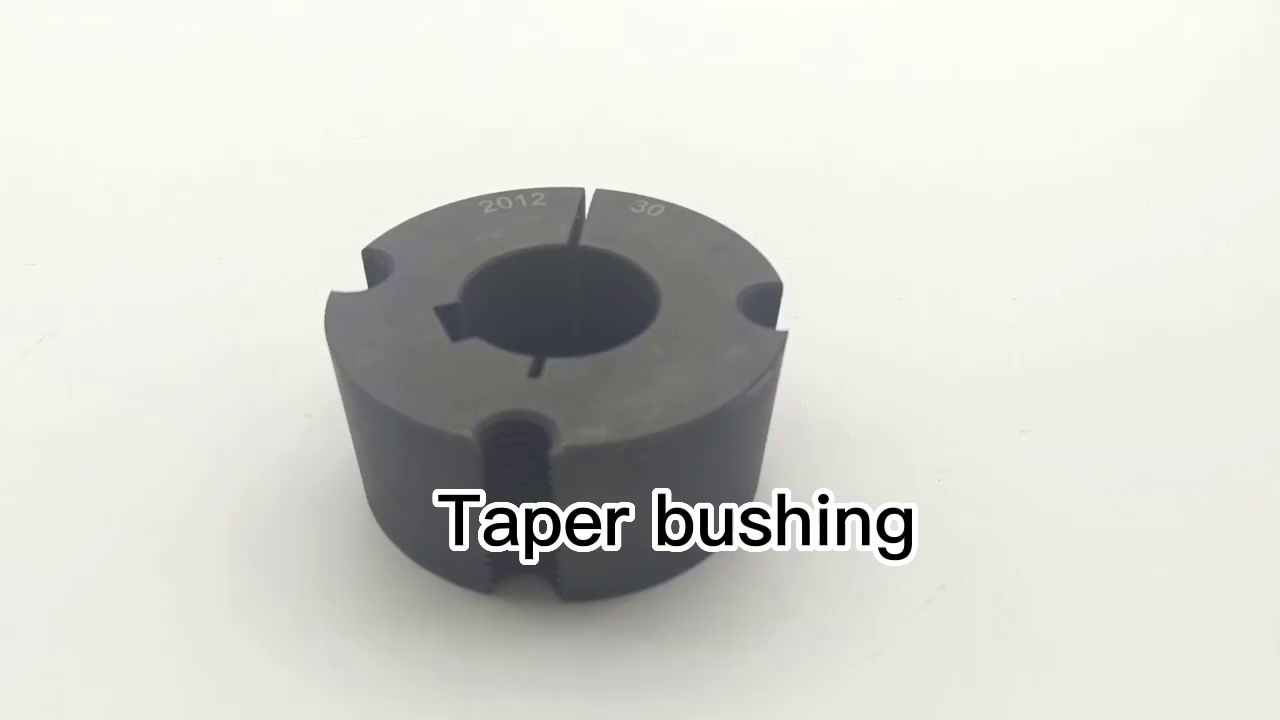

Video
Product ID: 68589143
Hot Sale Stock 2517 Taper Bush
Contact Now
Description
Overview
Basic Info.
Model NO. 2517
Manufacturing Process Casting
Material Carbon Steel
Surface Treatment Polishing
Application Chemical Industry, Grain Transport, Mining Transport, Power Plant
Bore Size Demands
Screw with
Shaft Demands
Bush Demands
Standard DIN/ISO
Transport Package Cartoon Box/Wooden Box
Trademark HRSY
Origin Tianjin
HS Code 8483900090
Model NO. 2517
Manufacturing Process Casting
Material Carbon Steel
Surface Treatment Polishing
Application Chemical Industry, Grain Transport, Mining Transport, Power Plant
Bore Size Demands
Screw with
Shaft Demands
Bush Demands
Standard DIN/ISO
Transport Package Cartoon Box/Wooden Box
Trademark HRSY
Origin Tianjin
HS Code 8483900090
Product Description

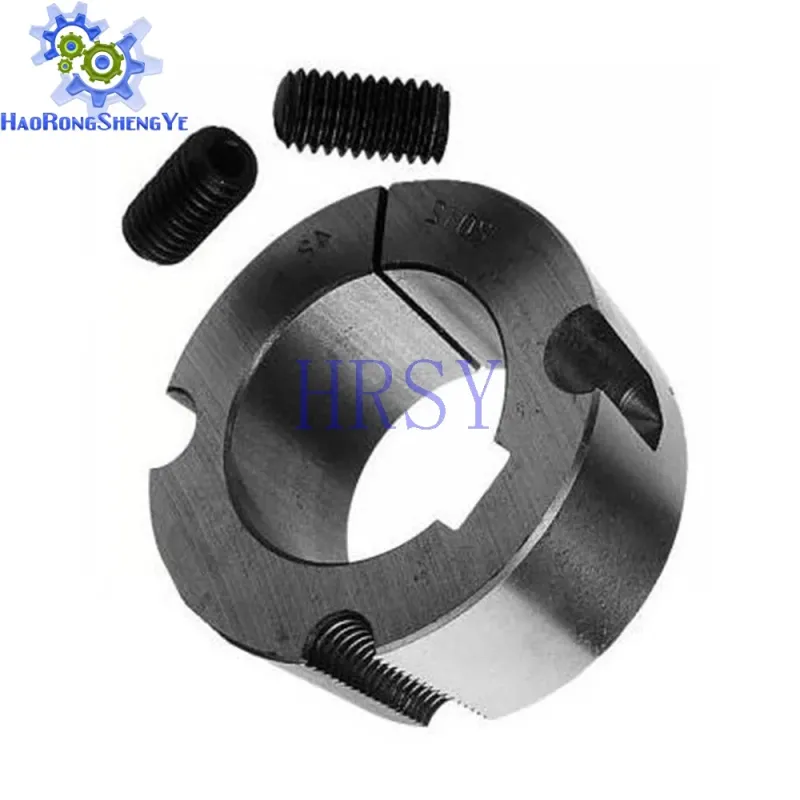

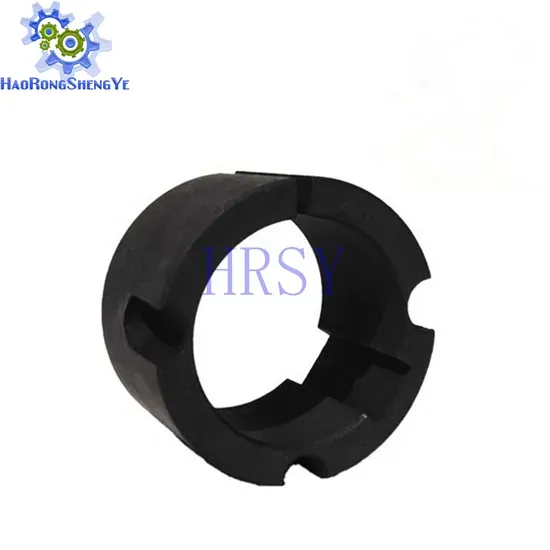

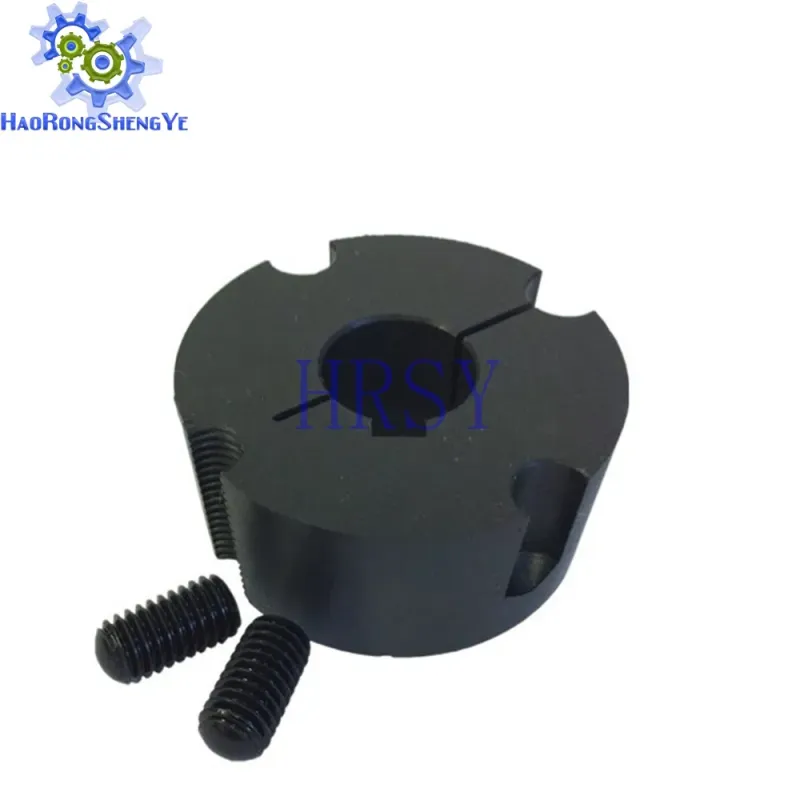

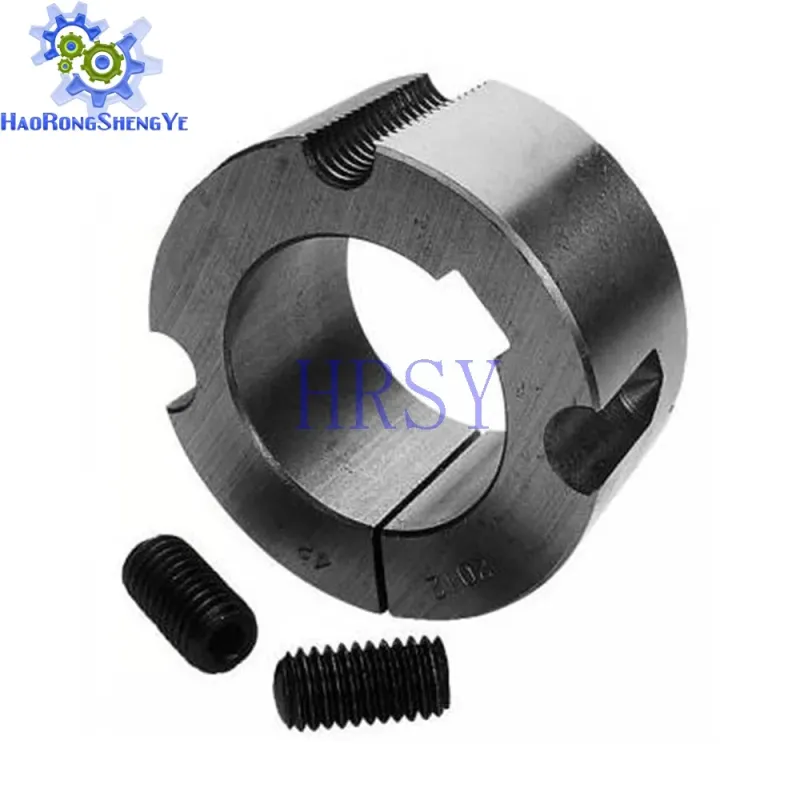

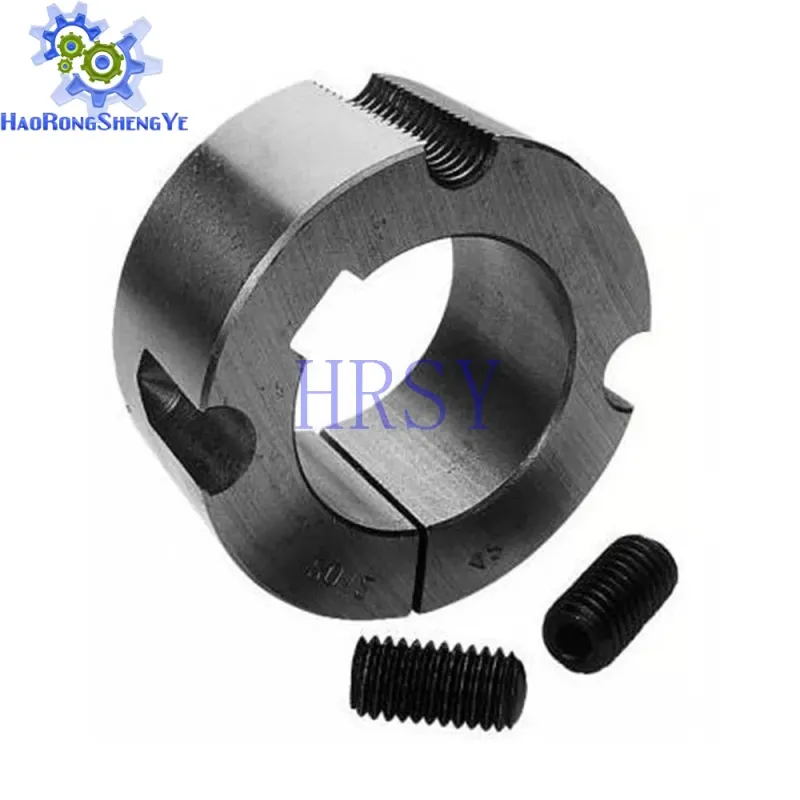

Product name: Taper lock bushing
Material: Steel, Cast iron, Stainless steel
Color: Black, Natural
Application: Accopanying sprocket, V-type pulley, Timing pulley, Gear etc.
Inspection: 100%
> INSTALL
- Clean shaft, bore and outside of bush, and bore of hub. Remove any oil, lacquer or dirt. Place bush in hub and match half holes to make complete holes (each complete hole will be threaded on one side only).
- Lightly oil thread and point of set screws, or thread and under head of cap screws. Place screws loosely in holes that are threaded on hub side.
- Make sure bush is free in hub. Slip assembly onto shaft and locate in the desired position.
- Tighten screws alternately and evenly until all are pulled up tightly (See table for torque settings).
- Hammer against large end of bush using hammer and block or sleeve to avoid damage. Screws can now be turned a little more to the specified torque setting. Repeat this alternate hammering and screw re-tightening until the specified torque is reached. Fill all holes with grease to exclude dirt.
> REMOVE
- Remove all screws. Lightly oil thread and point of set screws, or thread and under head of cap screws.
- Insert screws into removal holes that are threaded on the bush side. In sizes where washers are found under screws heads, be sure to use these washers.
- Tighten screws alternately until bush is loosened in hub and then remove the complete assembly. If bush does not loosen immediately tap on hub.
