Product ID: 68589195
UHMWPE Fender Facing Pad Plates
Contact Now
Description
Overview
Basic Info.
| Model NO. | / |
| Material | PE |
| Kind | Engineering Plastic Sheet |
| Water Absorption | <0.01% |
| Contraction Percentage | <0.4% |
| Tensile Strength | 81~130MPa |
| MOQ | 30 PCS |
| Sample | Available |
| Color | Yellow, Red or Other Colors |
| Standard Size | 500*500*10mm |
| Transport Package | Plastic Film + Wood Pallet and Belt |
| Specification | 100% virgin polythene |
| Trademark | No |
| Origin | China |
| HS Code | 3920109090 |
| Production Capacity | 50, 000 PCS/Year |
Product Description
OEM MANUFACTURER Factory high quality marine fender pad uhmwpe sheet

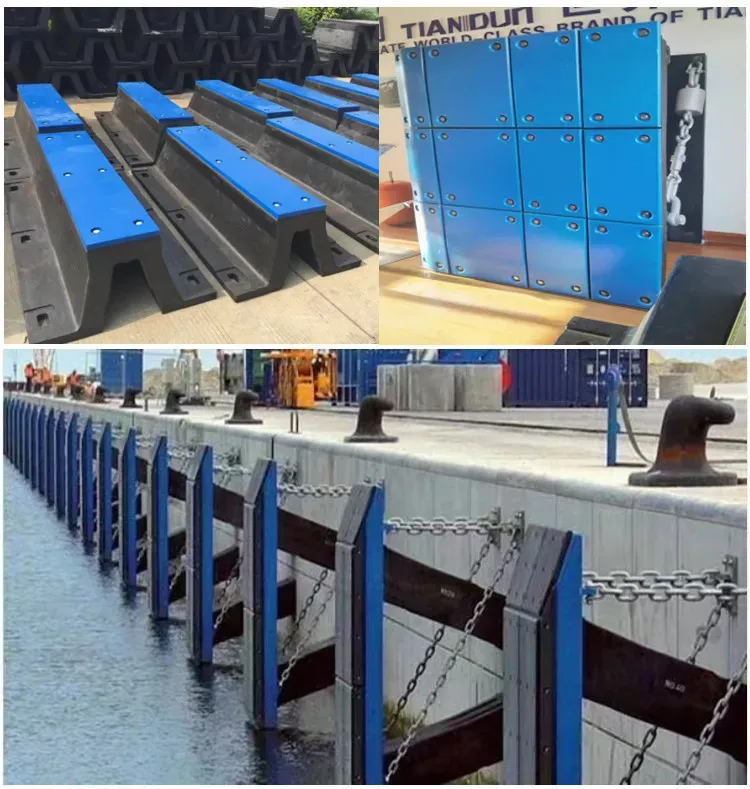

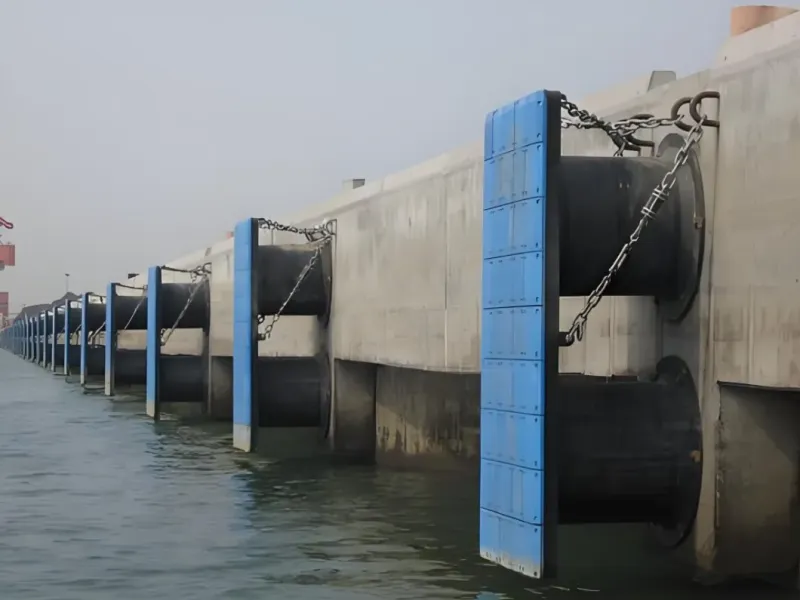

HDPE Fender Facing Pad has wide application in waterway, harbor or dock. HDPE Fender Facing Pad does not rot as the wood, or rust as the steel so that it perform much better.
Main Characters of Marine Fender Facing Pad
- Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
- Very low water absorption
- Excellent impact resistance
- Good Corrosion & Chemical resistance
- Noise-absorption & Vibration-absorption
Product Parameters
| Property | Unit | Value |
|---|---|---|
| Density | g/cm³ | 0.93-0.96 |
| Average molecular weight | g/mol | 3 million - 10 million |
| Tensile strength (23°C in air) | MPa | 22 |
| Breaking strength | MPa | 42 |
| Charpy impact strength (notched) | mJ/mm² | No break |
| Ball indentation hardness | N/mm² | 38 |
| Shore D hardness | -- | 63-70 |
| Abrasion | % | 70-80, steel = 100 |
| Static Friction Coefficient | -- | ≤0.2 |
| Kinetic Friction Coefficient | -- | ≤0.15 |
| Water Absorption | -- | <0.01 |
| Elongation at break at 23 degrees | % | ≥300 |
| Temperature resistance | °C | -269 to +85 |
| Melting Temperature | °C | 130-140 |
Wear Resistance of marine fender facing pad
Materials
- UHMWPE
- PA6
- PA66
- PTFE
- POM
- HDPE
- Brass
| Index No. For slurry abrasion | 1 | 4 | 5 | 5 | 6 | 10 | 27 |
|---|
Impact Absorption of marine fender facing pad
Materials
- UHMWPE
- HDPE
- PC
- ABS
- PA66
- POM
| Impact | ≥140 | 27 | 60~100 | 20~60 | 60~90 | 20 |
|---|
Self-lubricating of marine fender facing pad
Materials
- Dynamic Friction Coefficient
- Lubrication Free
- Water Lubrication
- Oil Lubrication
| UHMWPE | 0.07~0.22 | 0.05~0.10 | 0.05~0.08 |
|---|---|---|---|
| PA66 | 0.15~0.40 | 0.14~0.19 | 0.06~0.11 |
| POM | 0.15~0.35 | 0.10~0.20 | 0.05~0.10 |
| PTFE | 0.04~0.25 | 0.04~0.08 | 0.04~0.08 |
Main Performances of HDPE Fender Facing Pad
- UV resistance, suit to use in outside
- High impact resistance, protect the harbor and dock
- Excellent abrasion resistance
- Low friction coefficient
- Waterproof, durable
- Working temperature rang from -40ºC to 85ºC
- Cheaper than UHMWPE fender facing pad
UHMWPE Fender Facing Board
UHMWPE(Ultra-high Molecular Weight Polythene) fender facing board is harder than HDPE Fender Facing Board. If the port handling capacity is huge, we recommend to choose UHMWPE fender facing board. Compared with HDPE fender facing board, UHMWPE fender facing board is much more stiff and its working temperature rang from -269ºC to 85ºC.
Advantages of UHMWPE Fender Facing Board
- Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
- Very low water absorption
- Excellent impact resistance
- Good Corrosion & Chemical resistance
- Noise-absorption & Vibration-absorption
