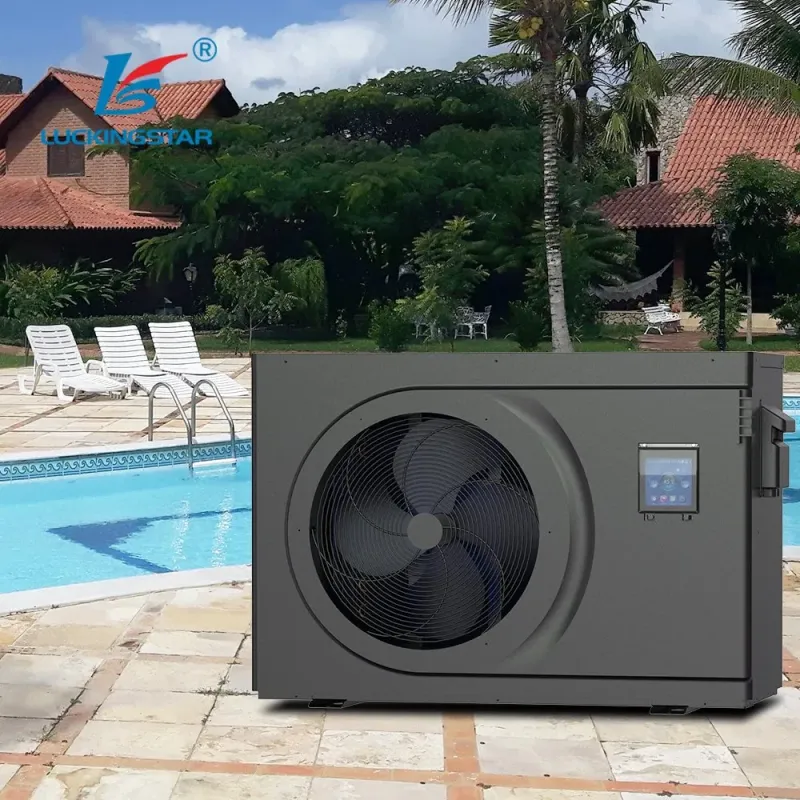

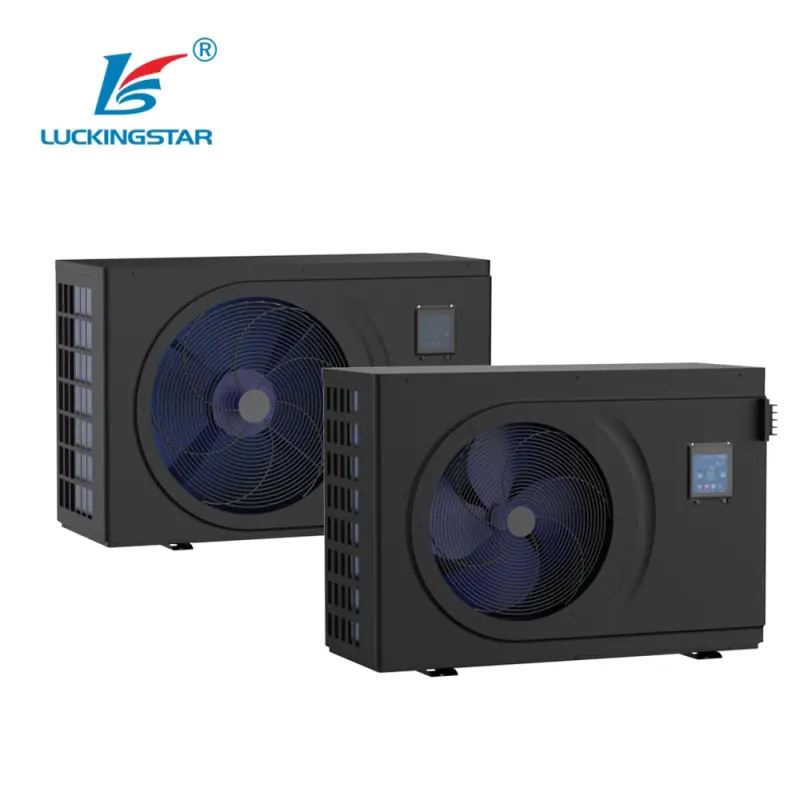

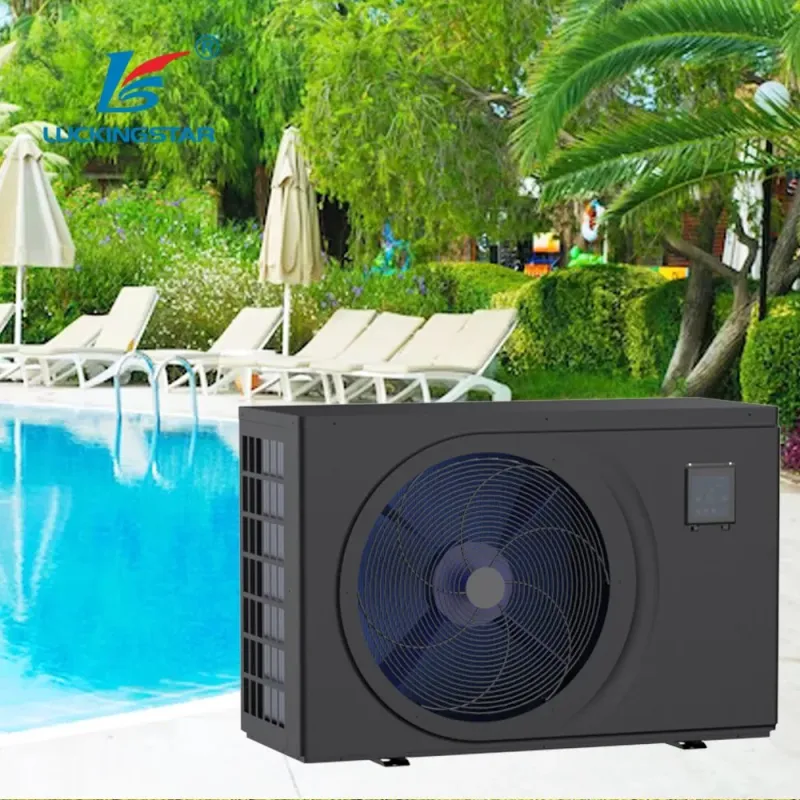

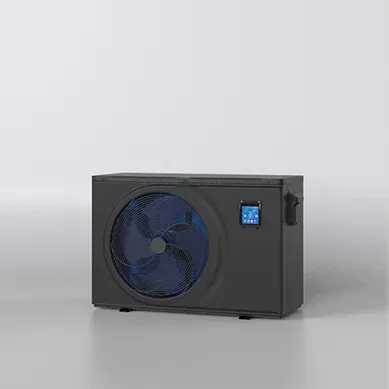

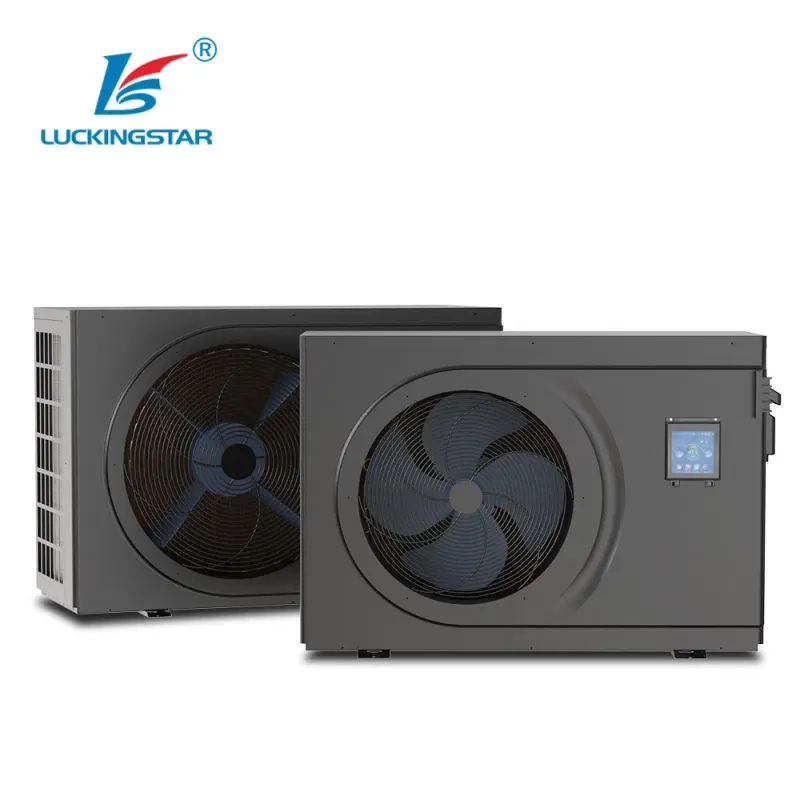

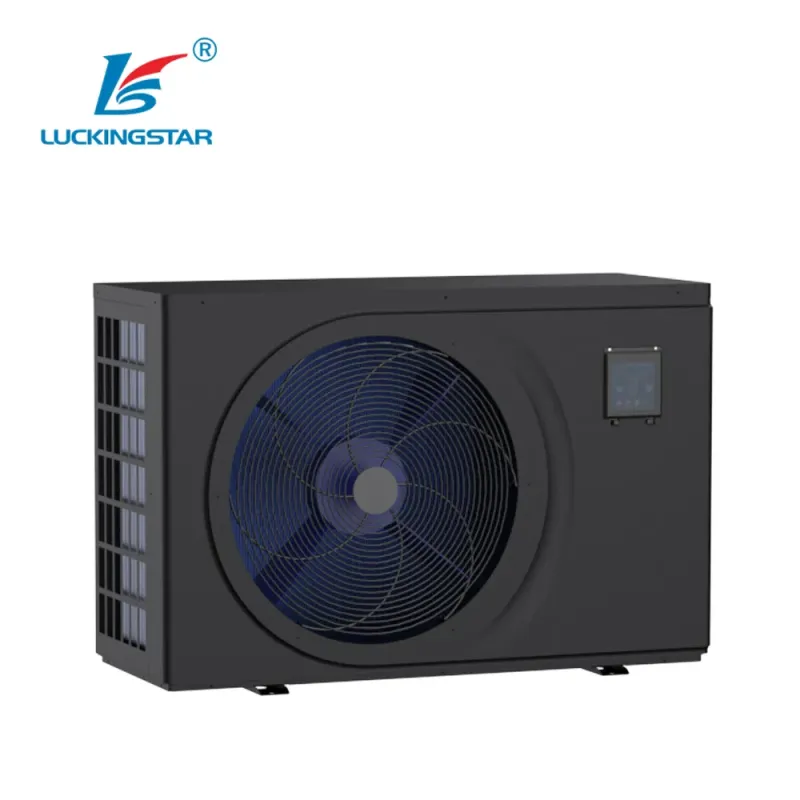

Smart Pool Heater Control with R32 Heat Pump
Contact Now
Description
Basic Info.
Heat Source Type
Air Source Heat Pump
Power Supply
220-240/1/50 (V/pH/Hz)/380-415/3/50(V/pH/Hz))
Function
Heating Pool Water
Heating Capacity
5kw,7kw,9kw,11kw,15kw,18kw,21kw,25kw,28kw
Operating Air Temp.(ºC)
-10~43
Heating Water Temp(ºC)
15~35
Coolinging Water Temp(ºC)
8~28
Transport Package
Factory Standard
Specification
940*382*632mm
Trademark
Luckingstar or OEM
Origin
Guangdong, China
Production Capacity
5000 Sets Per Month
Packaging & Delivery
Package Size
120.00cm * 51.00cm * 87.00cm
Package Gross Weight
93.000kg
Product Description
R32 Swimming pool heat pump
Offering a range of high quality pool heat pump products, we are committed to providing the top pool essentials for our customers to enjoy stress-free pool time all year round.R32 pool heat pump its shell is made of plastic ABS material, this pool heat pump is mainly used in coastal countries or regions of the market, can effectively avoid the impact of Marine climate caused by corrosion. Suitable for swimming pools and spa pools from 15 cubic meters to 100 cubic meters. With the air to water Swimming Pool Heater heat pump, your water park is right in front of you, quality commitment, enjoyment.
Advantage
ECO-friendly refrigerantLuckingstar air to water swimming pool heater heat pump uses the R32 eco-friendly refrigerant whose GWP is lower than 20 and helps curb global warming.
The heat pump with R32 reaches higher efficiency than those with other refrigerants.
Four-season SwimmingWith the full DC inverter technology and the larger heat exchanger, air to water swimming pool heater heat pump is able to run stably in a wide ambient temperature range from -10ºC~43ºC. It is a cost-effective way to extend the pool heating period to four seasons.
Main ComponentsHybrid DC inverter pool heat pump adopts well-known brands DC inverter fan motor and DC inverter compressor,Titanium tube, multi-stage electronic expansion valve and other components, which can make the unit operate efficiently and stably.
--DC inverter fan motor
The DC inverter fan motor allows stepless fan speed with smooth operation and optimum efficiency, which is beneficial to lower running noise and higher efficiency
--Integrated Driver Board
Luckingstar Swimming Pool Heat Pump adopts a new driver board which comes with a mature integration solution and a wire controller to make inverter technology more stable and reliable.
--DC inverter compressor
The adoption of DC inverter Compressor makes a great difference compared with other compressors in the current market, It enables the unit to adjust it's frequency according to the requirements, boosting the unit to reach a COP as high as 14.
--Spiral Titanium Tube
Luckingstar's unique 9.52 mm twisted titanium coils enlarges the surface for heat transferring, maximizing the heat transfer surfaces in the coils with a 30% increase in efficiency compared with standard heat exchangers.
--Electronic Expansion ValvePrecision electronic expansion valve used for outdoor unit, adjusting accuracy can roach 480 pulses, which can adjust the refrigerant flow for the whole system precisely,
--dual Refrigerants
The units are specially developed to fit R32 gas, which brings great convenience for markets.
Operating reliability
-Multi-protections,including pressure protections, water flow protection, temperature protections.
-when there is malfunction happened, diagnosis will be automatically made and the result will be displayed in controller screen.
-Built-in automatic 4-way valve for defrost.
Convenient installation
-It is very convenient that only inlet/outlet water pipes and electricity cables need to connect.
-LCD controller with large screen as standard, and 15mshield cable as optional.
-Inlet and outlet water pipe connectors, drainage pipe for
condensing water and rubber gaskets for unit fixing as accessories.
Save energy and money with high efficient running.
-Well-known brand compressor: GMCC, twin-rotary (except size 031 & 032),DC inverter technology, more efficient.
-High efficient brush less DC motor running with low noise.
-Thanks to electronic expansion valve, more accurate for refrigerant control.
-High COP/EER performance to save energy and money.
-Notes: The swimming pool capacity is 45m3, and the temperature keeps 26°C.
Stable running and high reliable
Full DC inverter technology, the unit can keep more stable running than ON/OFF unit, and keep the temperature of the pool water more accurate.
Soft start design to guarantee the safety of whole-house's electricity supply. When the unit start to working, the current will slowly increase from 0A.
Easy Control
The digital LED display makes setting simple and visible.
Smart Life App---Fingertip control, anywhere,anytime
*On/Off control
*Temperature setting
*Auto, Cooling, Heating and Spa Mode
*Silence Setting
*Timer Setting
Full Inverter Technology
Unlike a traditional heat pump with a single-speed compressor which by switching on and off periodically to adjust the performance of the heating & cooling, a full inverter heat pump uses a variable speed compressor which can automatically adjust the output needed at the lowest consumption of power and maintain the best temperature at different climatic conditions.Thanks to its full DC inverter technology, DC compressor & DC fan motor, air to water swimming pool heater heat pump is with much higher efficiency than the ON/0FF heat pumps, which contributes to saving more energy bill for you.
Quiet Operation
With DC inverter compressor, compressor damping design, and sound-absorbing cotton,air to water swimming pool heater heat pump can run amazingly quietly as low as 34dB(A).
R32 swimming pool heat pump achieves completely soft switching at the start-up stage from an intensity of 0A to28Aat maximum), while the traditional ON/0fF heat pumps start in a current intensity over three times higher, which will greatly impact the family electricity system.
| Power Supply | 220-240V~/ 50Hz | 220-240V~/ 50Hz | 380-415V/3N~/50Hz | ||||||||||
| Performance Condition: Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 24°C/26°C. | |||||||||||||
| Heating Capacity (kW) | 3.00~5.90 | 4.57~7.58 | 5.06~9.40 | 5.48~11.07 | 6.84~15.01 | 7.58~17.28 | 9.45~22.85 | 10.84~25.06 | 9.87~22.61 | 10.99~25.23 | 14.28~28.24 | ||
| Consumed Power (kW) | 0.34~0.78 | 0.55~1.14 | 0.60~1.36 | 0.61~1.45 | 0.79~2.12 | 0.86~2.44 | 1.06~3.00 | 1.24~3.53 | 1.11~3.01 | 1.25~3.54 | 1.69~4.42 | ||
| COP | 8.82~7.56 | 8.31~6.65 | 8.43~6.92 | 8.98~7.64 | 8.66~7.08 | 8.81~7.07 | 8.91~7.61 | 8.74~7.10 | 8.89~7.51 | 8.79~7.13 | 8.45~6.39 | ||
| Boost Mode | Heating Capacity (kw) | 5.9 | 7.58 | 9.4 | 11.07 | 15.01 | 17.28 | 22.85 | 25.06 | 22.61 | 25.23 | 28.24 | |
| COP | 7.56 | 6.65 | 6.92 | 7.64 | 7.08 | 7.07 | 7.61 | 7.1 | 7.51 | 7.13 | 6.39 | ||
| Smart Mode | Heating Capacity (kW) | 4.5 | 5.8 | 7.8 | 9.1 | 11.55 | 14.01 | 17 | 20.4 | 17 | 20.4 | 22.61 | |
| COP | 8.21 | 7.76 | 7.88 | 8.37 | 8.11 | 8.16 | 8.23 | 8.14 | 8.34 | 8.19 | 8.03 | ||
| Silent Mode | Heating Capacity (kW) | 3 | 4.57 | 5.06 | 5.48 | 6.84 | 7.58 | 9.45 | 10.84 | 9.87 | 10.99 | 14.28 | |
| COP | 8.82 | 8.31 | 8.43 | 8.98 | 8.66 | 8.81 | 8.91 | 8.74 | 8.89 | 8.79 | 8.45 | ||
| Performance Condition: Ambient Temperature: (DB/WB) 15°C/12°C; Wate Outlet Temperature: 26°C. | |||||||||||||
| Heating Capacity (kW) | 1.76~4.55 | 3.00~6.57 | 3.15~6.48 | 3.67~8.04 | 4.01~9.68 | 5.48~12.28 | 7.88- 16.75 | 9.87~18.95 | 8.14~16.21 | 10.05~19.14 | 11.11~21.31 | ||
| Consumed Power (kW) | 0.26~0.92 | 0.46~1.32 | 0.47~1.35 | 0.52~1.46 | 0.58~1.91 | 0.77~2.40 | 1.07~3.06 | 1.33~3.51 | 1.12~2.97 | 1.35~3.51 | 1.46~4.05 | ||
| COP | 6.77~4.91 | 6.51~4.98 | 6.61~4.77 | 6.98~5.50 | 6.87~5.06 | 7.05~5.11 | 7.35~5.46 | 7.41~5.39 | 7.21~5.44 | 7.40~5.44 | 7.58~5.26 | ||
| Boost Mode | Heating Capacity (kw) | 4.55 | 6.57 | 6.48 | 8.04 | 9.68 | 12.28 | 16.75 | 18.95 | 16.21 | 19.14 | 21.31 | |
| COP | 4.91 | 4.98 | 4.77 | 5.5 | 5.06 | 5.11 | 5.46 | 5.39 | 5.44 | 5.44 | 5.26 | ||
| Smart Mode | Heating Capacity (kW) | 3.1 | 4.3 | 6.1 | 6.58 | 8.65 | 10.55 | 11.2 | 13.5 | 11.2 | 13.5 | 14.63 | |
| COP | 6.05 | 6.14 | 6.22 | 6.4 | 6.2 | 6.16 | 6.2 | 6.21 | 6.2 | 6.21 | 6.18 | ||
| Silent Mode | Heating Capacity (kW) | 1.76 | 3 | 3.15 | 3.67 | 4.01 | 5.48 | 7.88 | 9.87 | 8.14 | 10.05 | 11.11 | |
| COP | 6.77 | 6.51 | 6.61 | 6.98 | 6.87 | 7.05 | 7.35 | 7.41 | 7.21 | 7.4 | 7.58 | ||
| Performance Condition: Ambient Temperature: (DB/WB) 35°C/-; Water Inlet/Outlet Temperature: 30°C/28°C. | |||||||||||||
| Cooling Capacity (kW) | 1.53~3.00 | 1.85~3.32 | 2.05~5.66 | 2.01~5.48 | 2.98~7.27 | 4.11~10.29 | 5.48 - 12.82 | 7.54 ~12.61 | 5.68 ~13.01 | 7.59 ~ 12.70 | 8.15~14.54 | ||
| Consumed Power (kW) | 0.43~1.23 | 0.48~1.33 | 0.48~1.77 | 0.44~1.68 | 0.61~2.31 | 0.87~3.65 | 1.07~4.16 | 1.41~3.75 | 1.10~4.28 | 1.40~3.72 | 1.68~4.92 | ||
| EER | 3.52~2.43 | 3.84~2.49 | 4.25~3.18 | 4.57~3.25 | 4.88~3.14 | 4.72~2.82 | 5.10~3.08 | 5.34~3.36 | 5.12~3.04 | 5.40~3.41 | 4.84~2.95 | ||
| Boost Mode | Heating Capacity (kw) | 3 | 3.32 | 5.66 | 5.48 | 7.27 | 10.29 | 12.82 | 12.61 | 13.01 | 12.7 | 14.54 | |
| COP | 2.43 | 2.49 | 3.18 | 3.25 | 3.14 | 2.82 | 3.08 | 3.36 | 3.04 | 3.41 | 2.95 | ||
| Smart Mode | Heating Capacity (kW) | 2.3 | 2.92 | 3.5 | 4.89 | 6.45 | 7.77 | 8.89 | 9.8 | 8.92 | 9.8 | 10.55 | |
| COP | 2.95 | 3.08 | 3.76 | 3.84 | 3.93 | 3.88 | 4.05 | 4.36 | 4.08 | 4.4 | 4.13 | ||
| Silent Mode | Heating Capacity (kW) | 1.53 | 1.85 | 2.05 | 2.01 | 2.98 | 4.11 | 5.48 | 7.54 | 5.68 | 7.59 | 8.15 | |
| COP | 3.52 | 3.84 | 4.25 | 4.57 | 4.88 | 4.72 | 5.1 | 5.34 | 5.12 | 5.4 | 4.84 | ||
| Max. Power Input (kW) | 1.31 | 1.61 | 1.75 | 2.3 | 3.2 | 3.9 | 4.1 | 4.5 | 4.1 | 4.5 | 5.4 | ||
| Max. Current (A) | 5.95 | 7.32 | 7.96 | 10.5 | 14.5 | 17.7 | 18.8 | 19.5 | 7.3 | 8.5 | 10.2 | ||
| Advised Pool Volume (m³) | 10~20 | 15~30 | 20~40 | 25~50 | 30~60 | 35~70 | 45~80 | 55~90 | 45~80 | 55~90 | 65~100 | ||
| Running Ambient Temp. Range ( ºC ) | -10~43 | ||||||||||||
| Heating Temperature Range ( ºC ) | 15~35 | ||||||||||||
| Cooling Temperature Range ( ºC ) | 8~28 | ||||||||||||
| Refrigerant | R32 | ||||||||||||
| Compressor Type | Rotary | ||||||||||||
| Compressor Brand | GMCC / Mitsubishi / Panasonic | ||||||||||||
| Gas Control | EEV | ||||||||||||
| 4-Way Valve | Yes | ||||||||||||
| Fan Quantity | 1 | ||||||||||||
| Heat Exchanger | Titanium in PVC | ||||||||||||
| Casing Material | ABS Plastic /Galvanized Sheet | ||||||||||||
| Water Pipe Connection (mm) | 50 | ||||||||||||
| Sound Pressure 1m dB (A) | 43 | 45 | 47 | 47 | 48 | 49 | 50 | 52 | 51 | 53 | 54 | ||
| Water Flow Volume (m³/h) | 2.0~3.0 | 2.5~3.5 | 3.0~4.0 | 4.0~5.5 | 5.5~7.0 | 7.0~8.5 | 8.5~10 | 10.0~11.5 | 8.5~10 | 10.0~11.5 | 11.5~13 | ||
| Water Pressure Drop (kpa) | 15 | 17 | 18 | 15 | 18 | 23 | 32 | 35 | 32 | 35 | 38 | ||
| Electric Shock Proof | CLASS I | ||||||||||||
| Water Proof Level | IPX4 | ||||||||||||
| Unit weight(Kg) | 40 | 45 | 46 | 53 | 58 | 62 | 82 | 87 | 85 | 90 | 93 | ||
| Unit Dimensions(L*W*H) (mm) | 940 ×382×632 | 1030×427×672 | 1160×477×772 | ||||||||||
Guanadong Luckingstar New Energy Co., ltd, as one of the top 10 heat pump brands from China, has beendedicated to producing high-qualitly heat pumps since its establishment in 2006. Luckingstar heat pumpfactory covers an extensive area of 75,000 square meters and is equipped with 7 automatic production lines.This substantial infrastructure enables to achieve an annual production capacity of around 500,000 units of heatpumps. Luckingstar places great importance on ensuring the quality of their products, Luckingstar haveestablished 5 professional performance test laboratories specifically desianed for air source and water sourceheat pumps, These state-of-the-art laboratories are capable of operating in extreme temperatures as low as-41.5°C and have a capacity range of 1 to 500 kw.Thanks to the unwavering commitment to quality,Luckingstar heat pumps have gained popularity worldwide and have been successfully exported to more than40countries including Europe, Asia, Africa ,Australia and America etc.areas.
Q: Who are we?A: We are a professional heat pump manufacturer with R&D, lf you are looking for a lead-
ing heat pump supplier, please contact us immediately!
Q: can you do OEM/ODM/OBM?
A: Yes, we can do OEM / ODM /OBM which depends on your requirement , we are familarwith all kinds of cooperations.
Q: What's your MOQ?
A: For official orders, our MOQ is a full container load of 40-foot container.
Q: What's your lead time for orders?
A: For samples ; 10-20days ; For mass orders: 30-35 days to be discussed.
Q: What's the payment terms?
A: Normally by T/T,Samples/LCL orders: 100% paid before production;Mass orders: 30% down payment, balance paid beforeshipment.
Q: What's your production capacity?
A: Inverter Swimming Pool Heat Pump: 150-300pcs/production line/dayInverter Space Heat Pump: 100-200pcs/production line/dayDomestic Hot Water Heat Pump: 150-300pcs/production line/dayCommercial Heat Pump: 30-100pcs/production line/day
Q: How long is your warranty?
A: 24 months for complete units, 36 months for main components like compressors, heatexchangers.3-5year warranty is available with added cost.
