Basic Info.

• Model NO. P1.95
• Pixel Pitch 1.95mm
• Pixel Configuration 1R, 1G, 1B
• Pixel Density 262,144 Pixels /M2
• Scanning Mode 1/32 S
• System Operating Platform WIN XP
• Display Type LED Video Display
• Application Stage Performance, Advertising, Shopping Guide
• IP Rating IP43
• Certification CE, RoHS, FCC
• Transport Package Wooden Case / Flight Case
• Specification 500*1000MM / 250*1000MM / 250*750MM
• Trademark MZCLED
• Origin China
• HS Code 8528591090
• Production Capacity 6000sqm /Month

Product Description

1. Product Details:

Innovative module: The innovative design of the module ensures that the viewing angle of the light beads is not affected when rotating the module direction. There will be no color difference. Not only does it improve the visual comfort, but it also enhances the visual effect. The attractiveness of fruit.

The module is hard connected to the box, and the module adopts magnetic suction automatic adsorption, which is reliable and does not fall off.

Pixel Pitch

• P1.25
• P1.56
• P1.95
• P2.5
• P2.604
• P2.976
• P3.91

LED Type

• SMD1010(GOB)
• SMD1212(GOB)
• SMD1515(GOB)
• SMD1515
• SMD1515
• SMD1515
• SMD2020

Physical density(Dot/sqm)

• 640000
• 409600
• 262144
• 160000
• 147456
• 112896
• 65536

Module size(mm)

• 250X250MM
• 250X250MM
• 250X250MM
• 250X250MM
• 250X250MM
• 250X250MM
• 250X250MM

Module resolution

• 200X200
• 160X160
• 128X128
• 100X100
• 96X96
• 84X84
• 64X64

Panel Dimension

• 1000×500×33 1000×250×33 750×250×33 500×250×33
• 1000×500×33 1000×250×33 750×250×33 500×250×33
• 1000×500×33 1000×250×33 750×250×33 500×250×33
• 1000×500×33 1000×250×33 750×250×33 500×250×33
• 1000×500×33 1000×250×33 750×250×33 500×250×33
• 1000×500×33 1000×250×33 750×250×33 500×250×33
• 1000×500×33 1000×250×33 750×250×33 500×250×33

Panel Resolution

• 800×400
• 800×200
• 600X200
• 400×200
• 640×320 640×160 480×160 320X160
• 512×256
• 512×128
• 384×128
• 256×128
• 400×200 400×100 300×100 200×100
• 384×192
• 384×96
• 288×96
• 192×96
• 336×168
• 336×84
• 252×84
• 168×84
• 256×128 256×64 192×64 128×64

Maintenance Mode

• front access

Cabinet Material

• Die-casting aluminum

Brightness(Nits)

• ≥600
• ≥600
• ≥600
• ≥600
• ≥600
• ≥600
• ≥600

Color temperature(K)

• 1000-18500 Optional
• 1000-18500 Optional
• 1000-18500 Optional
• 1000-18500 Optional
• 1000-18500 Optional
• 1000-18500 Optional
• 1000-18500 Optional

Viewing angle(V/H)

• 170°/170°

rightness/Color uniformity

• ≥99.8%

Contrast ratio

• 10000 : 1

Frame frequency

• 50/60 Hz

Drive mode

• 1/50 scan
• 1/40 scan
• 1/32 scan
• 1/25 scan
• 1/32 scan
• 1/28 scan
• 1/16 scan

Grey level

• 16 bit
• 16 bit
• 16 bit
• 16 bit
• 16 bit
• 16 bit
• 16 bit

Refresh rate(Hz)

• 3840 ~7680 Hz

Power input

• AC 110V-220V±10%

Wroking & Storage temperature/humidity(ºC/RH)

• -20~60ºC/10%~85%

Certificatiom

• CE, ROHS, FCC

Max power consumption(W/sqm)

• 350

Average power consumption(W/sqm)

• 100

Product Details

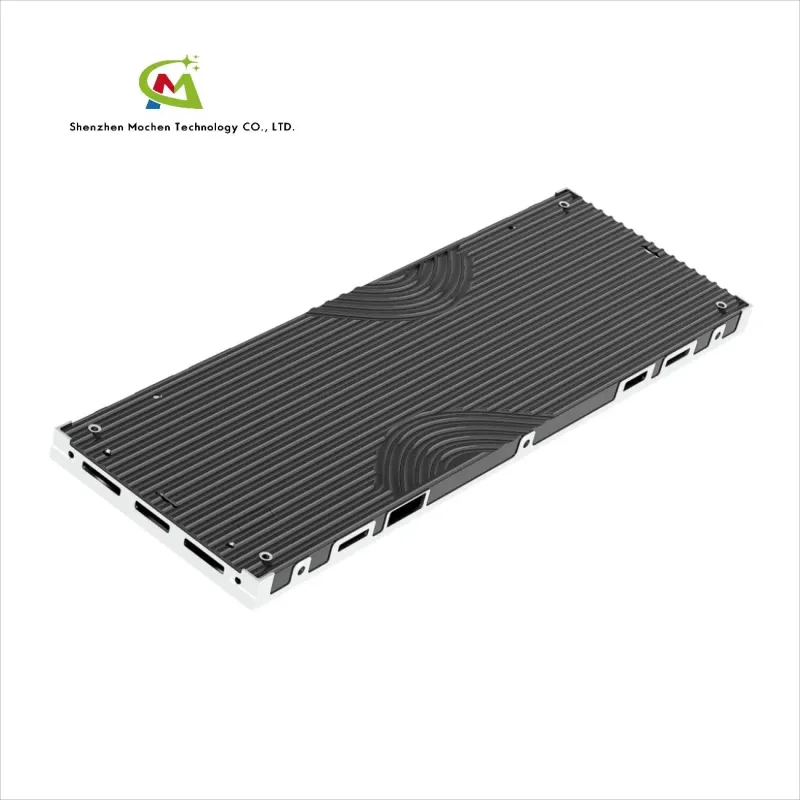

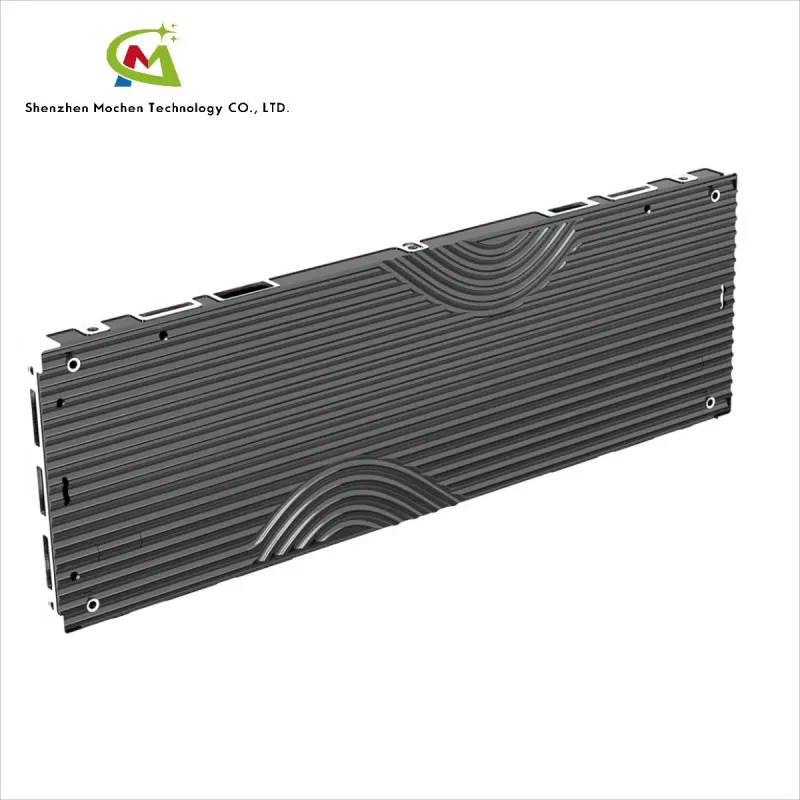

Integrated power signal quick plug interface reduces internal wiring work in the box, making installation faster. The box is made of high-precision die-casting material, with integrated molding, positioning columns, eagle hook locks (screws that cannot be loosened), reinforcement ribs and other details designed for higher flatness. Effectively improve installation efficiency and enhance customer experience.

2. CERTIFICATE & COOPERATION BRAND:

3. PACKAGE & SHIPPING :

4. FAQ :

Q1: Are you a factory or just a trade company?

A1: Our MZCLED is a led display factory with R&D department and production line, professional engineering team and energetic sales team. Warmly welcome to visit our MZCLED factory and have face-to-face business talk to better understand each other. Or when you are free, we can have SKYPE VIDEO TALKING, and show our MZCLED factory.

Q2: Can you tell me why I should choose your company?

A2: Concentration makes professional. Professional achieves successful. Our MZCLED have 10+ years professional led technical experience. We are 5 years gold supplier for China government led project. Now, we are largely expanding our international market. From 2013 to now, we only do LED. Now and In the future, we still do LED. We can cooperate from trail order to establish trust step by step.

Q3: What's the warranty of your LED Display?

A3: 2-5 years warranty. and 100,000 hours life span. During the warranty period, we can offer you related after-sales service. Our professional engineering team are ready for your question during 9:00-23:30.

Q4: What's your payment term? How long is your delivery time?

A4: We accept T/T, Trade Assurance, Paypal, Western Union, Money Gram, and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-15 working days after receiving the deposit. If your order is rapidly urgent, we can arrange your order firstly.

Q5: How can I get technical support?

A5: We treasure every customer that shake hands with our MZCLED. We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide.

Q6: What about your service?

A6: We have a professional 8 years technical team answering your question during 9:00-23:30. We have an energetic and patient sales team. We can offer a complete LED design solution for your LED project before confirming the order. We can instruct you how to use, configure your led display, and do some maintenance with spare parts. Also, we can send professional engineer to your city to offer on-site guide and offer training. Mostly, our led display do not have big problems within warranty time.

Q7: Is Available to print customer required logo on your led product ?

A7: Surely it is. Please inform and confirm the logo design details with our team ahead of the production. Then, we will follow your requirements.

If you want to know more, you can freely contact Our MZCLED Team.

Welcome to visit for further information!
