Customized Stainless Steel Conveyor Chain
Description
Basic Info.
Model NO. 06B-1, 08B-1, 10B-1, 12B-1, 16B-1, 20B-1, 24B-1
Surface Treatment Polishing
Feature Heat Resistant
Chain Size 1/2"*3/32"
Structure Roller Chain
Color Solid Color
Model Ss08b-1
Stainless Steel Ss304, Ss316
Warranty 12months
Pack Neutral Pack
Transport Package Plastic Bag+Box+Case
Specification All Kinds
Trademark TAI, OEM
Origin Suzhou, China
HS Code 73151190
Production Capacity 50, 000m/Month
Packaging & Delivery
Package Size 30.00cm * 6.00cm * 34.00cm
Package Gross Weight 1.000kg
Product Description

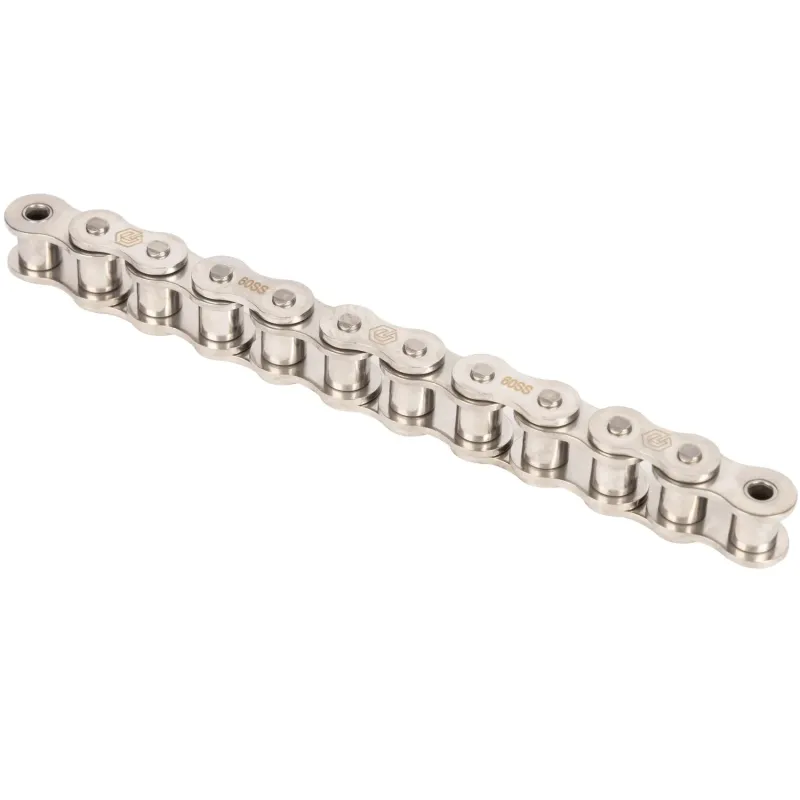

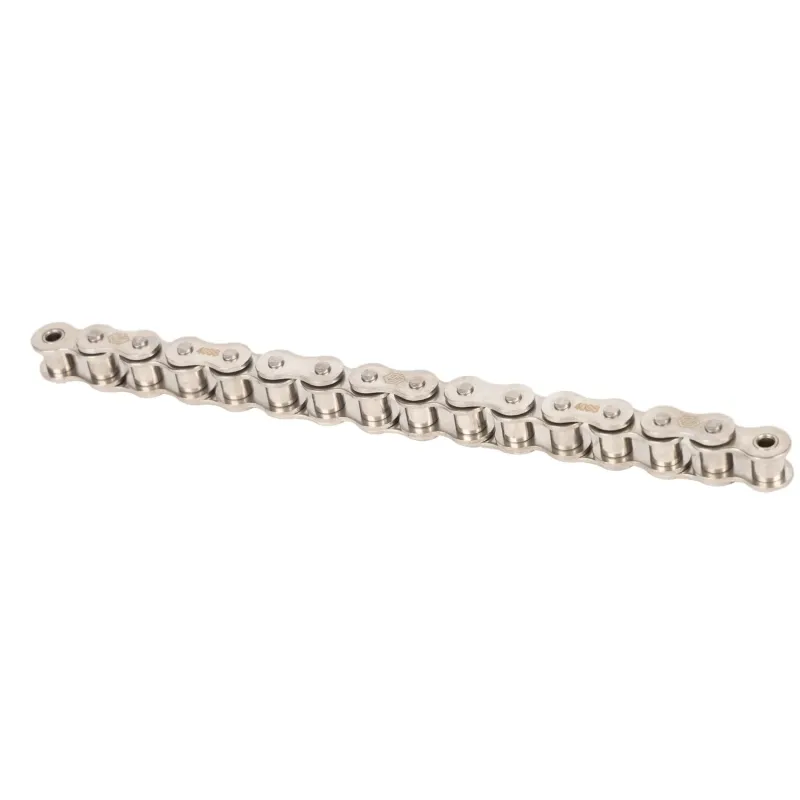

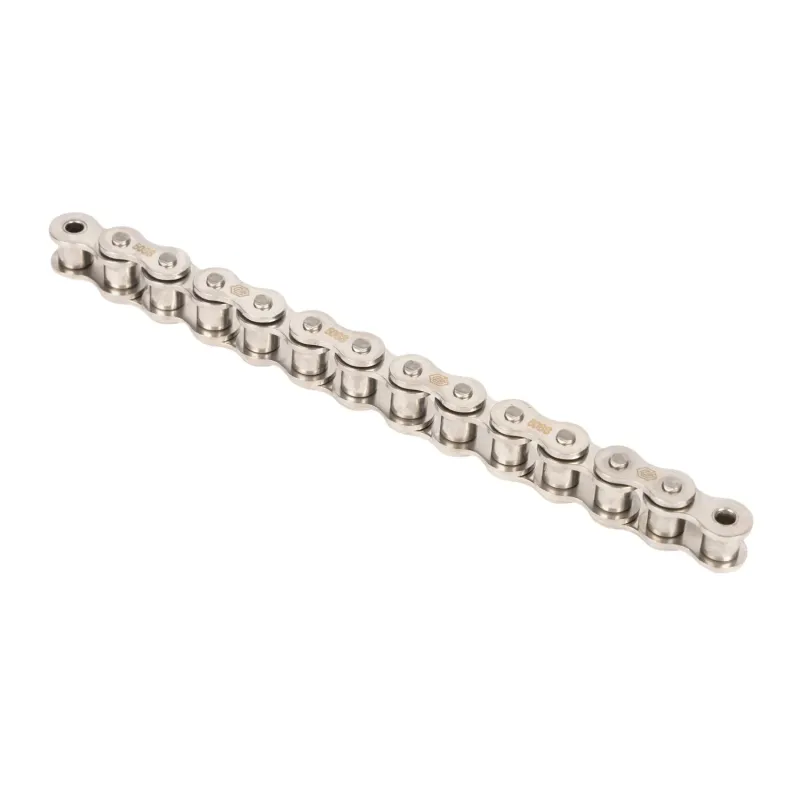

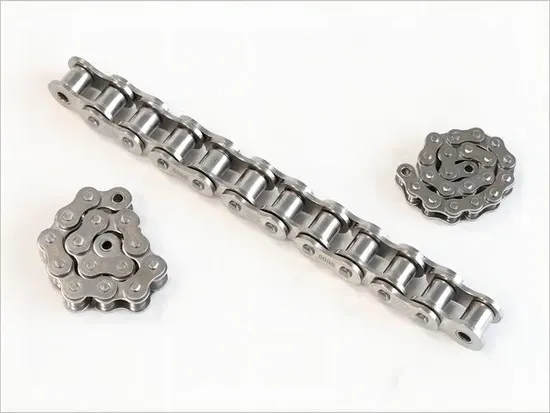

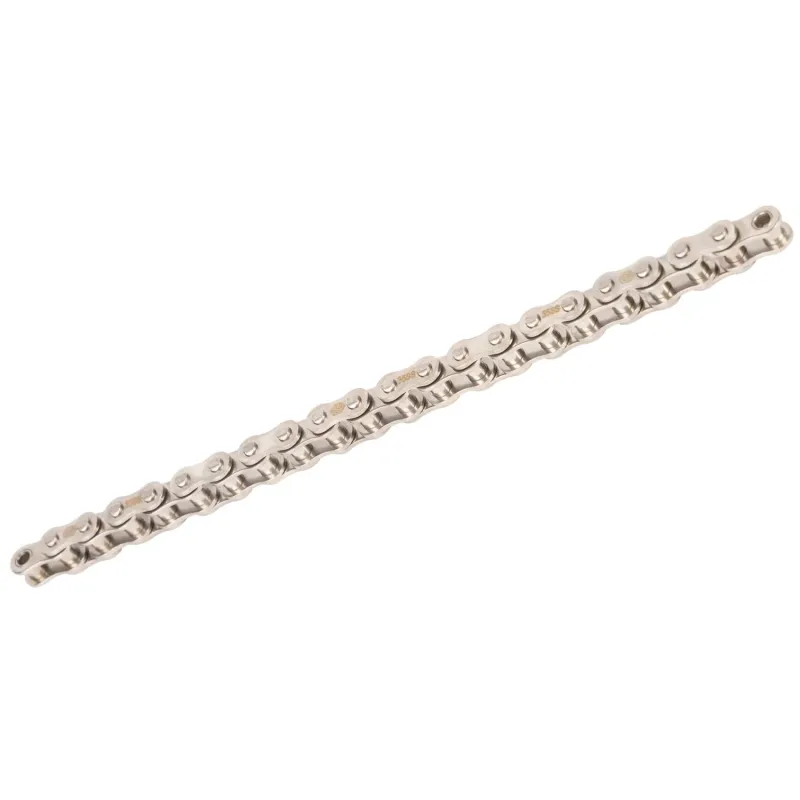

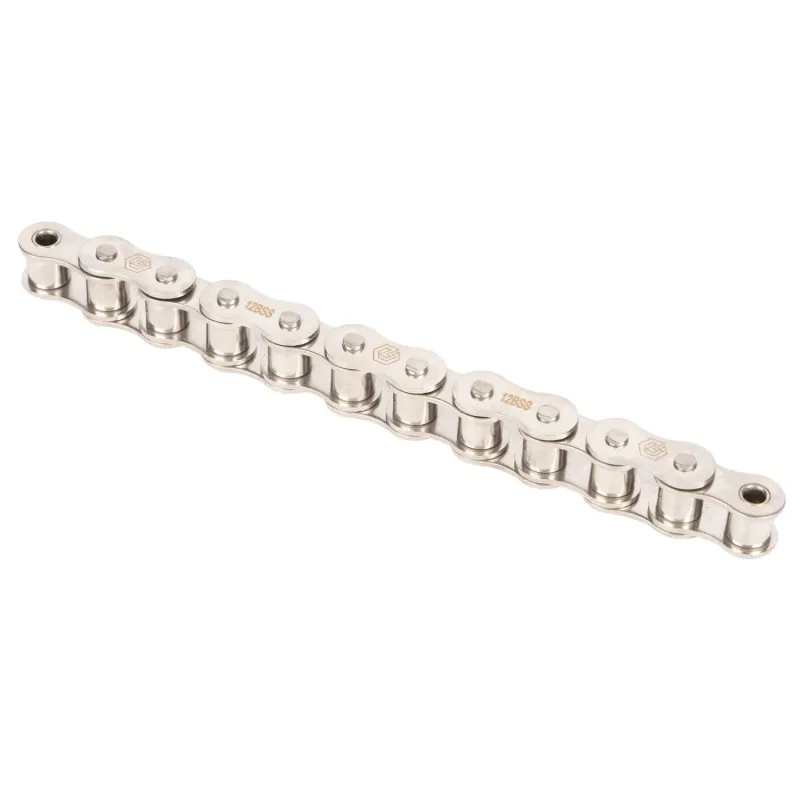

Simplex stainless 304 Roller Chain (08B-1, 24B-1)
The most commonly used chain is roller chain or as it is also known transmission chain. These are the simplest chain drives, Used mainly for transmitting power. Can be supplied from 3mm pitch up to 4" pitch in either mild steel or stainless steel.
| DIN/ISO | Chain No. | Pitch | Roller Diameter | Width Between Inner Plates | Pin Diameter | Pin Length | Inner Plate depth | Plate thickness | Ultimate Tensile Strength | Average Tensile Strength | Weight Per Meter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 04B-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.80 | 5.00 | 0.60 | 3.0/682 | 3.2 | 0.11 |
| 05B-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.90 | 7.10 | 0.80 | 5.0/1136 | 5.9 | 0.20 |
| *06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | 9.0/2045 | 10.4 | 0.41 |
| 08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 18.0/4091 | 19.40 | 0.69 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.09 | 19.50 | 20.90 | 14.70 | 1.70 | 22.4/5091 | 27.50 | 0.93 |
| 12B-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.2 | 16.00 | 1.85 | 29.0/6591 | 32.20 | 1.15 |
| 16B-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.4 | 21.00 | 4.15/3.1 | 60.0/13636 | 72.80 | 2.71 |
| 20B-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.0 | 26.40 | 4.5/3.5 | 95.0/21591 | 106.7 | 3.70 |
| 24B-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.0/4.8 | 160.0/36364 | 178.0 | 7.10 |
| 28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.5/6.0 | 200.0/45455 | 222.0 | 8.50 |
| 32B-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.0 | 42.00 | 7.0/6.0 | 250.0/56818 | 277.5 | 10.25 |
| 40B-1 | 63.50 | 39.37 | 38.10 | 22.89 | 82.20 | 89.2 | 52.96 | 8.5/8.0 | 355.0/80682 | 394.0 | 16.35 |
| 48B-1 | 76.20 | 48.26 | 45.72 | 29.24 | 99.10 | 107.0 | 63.80 | 12.0/10.0 | 560.0/127272 | 621.6 | 25.00 |
| 56B-1 | 88.90 | 53.98 | 53.34 | 34.32 | 114.60 | 123.0 | 77.80 | 13.5/12.0 | 850.0/193180 | 940.0 | 35.78 |
*Bushing chain: d1 in the table indicate the external diameter of bushing
We own the sophisticated equipment and the advanced technology, such as:
- CAD Designer
- Wire Cutting Machine
- Chain Running In Machine
- Conveyor Furance
- Ball Drift
- Shot Peened Parts
- Design Of Link Plate Waist
Company Detail:
GOODLUCK TRANSMISSION is one of a professional exporter with exporting POWER TRANSMISSION PARTS: Roller chains, conveyor chain, stainless steel chains, agricultural chains, steel detachable chains, special chains, sprockets, s. Sprockets, HRC couplings, pulleys, bushes etc. All these products have been supplied regularly to World Wide for over 15 years.
Welcome contact for more detail.
