Metal Conveyor Belt for Heating Treatment Equipment and Food Processing
Description
Basic Info
| Model NO. | chain19.05mm |
| Inside Material | Stainless Steel, Only Steel |
| Feature | Heat-Resistant, Cold-Resistant |
| Tensile Strength | Common |
| Wire Mesh Belt | Mesh Conveyor Belt |
| Metal Conveyor Belt | Wire Mesh Conveyor Belt |
| Mesh Conveyor Belt | Metal Conveyor Belt |
| Chain Driven Belt | Food Wire Mesh Belt |
| Transport Package | Standard Wooden |
| Specification | chain pitch 25.4mm, 38.1mm, rod 5mm |
| Trademark | leneng |
| Origin | Yangzhou |
| HS Code | 73141200 |
| Production Capacity | 60m /Day |
Product Description
wire mesh chain belt, Chain Driven Metal Mesh Belts, Straight Running Belts, Chain Weave Conveyor Belt

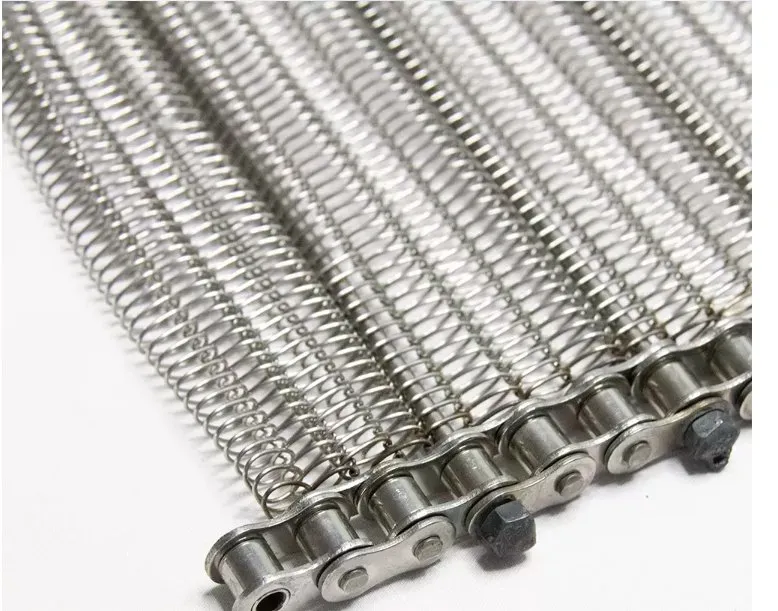

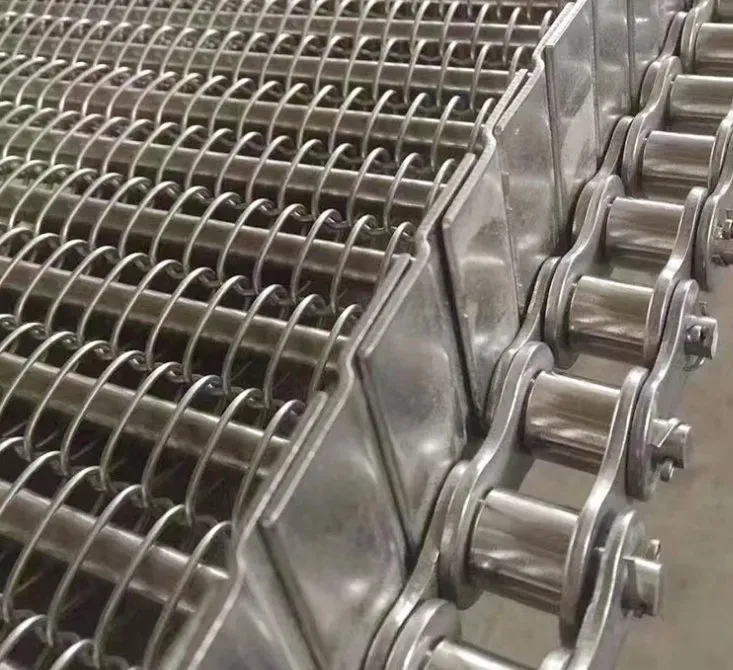

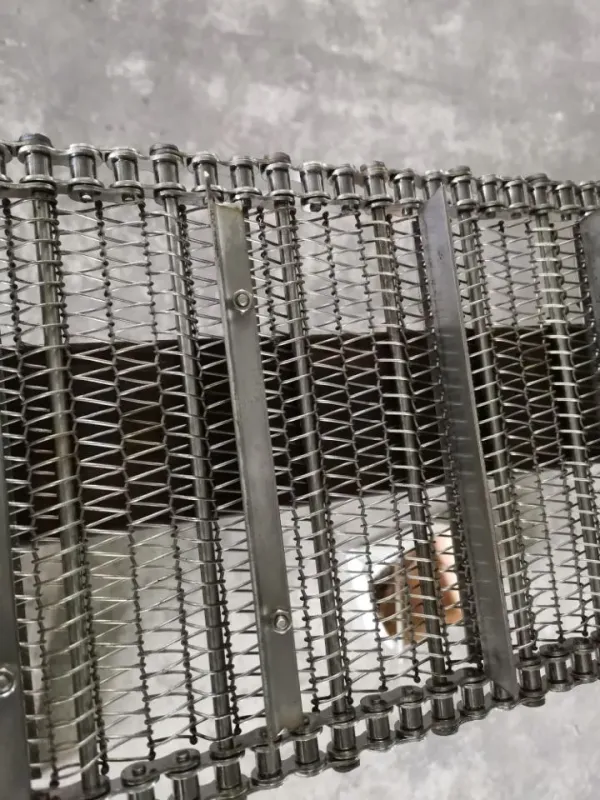

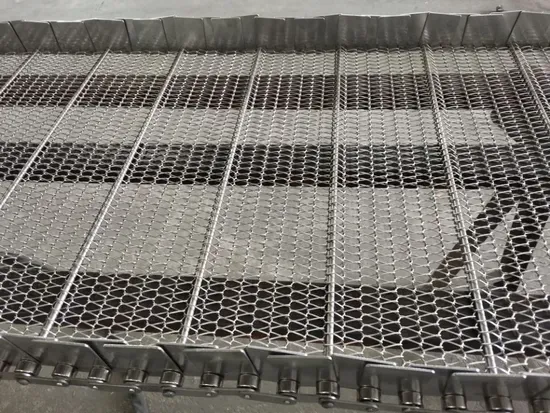

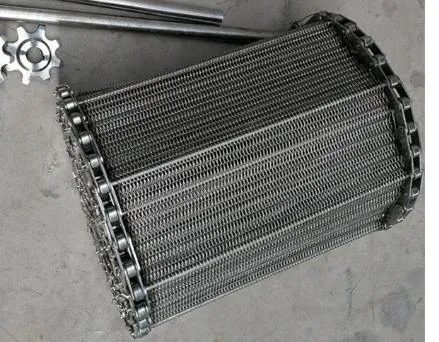

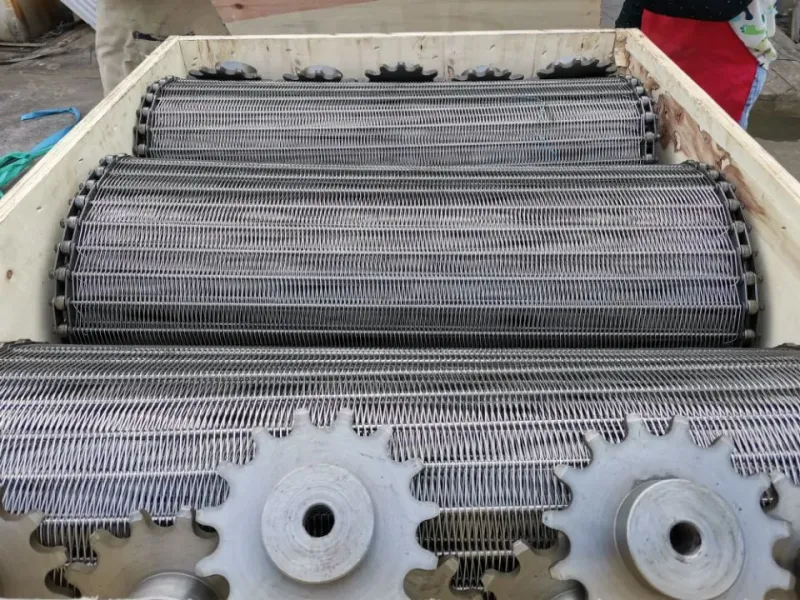

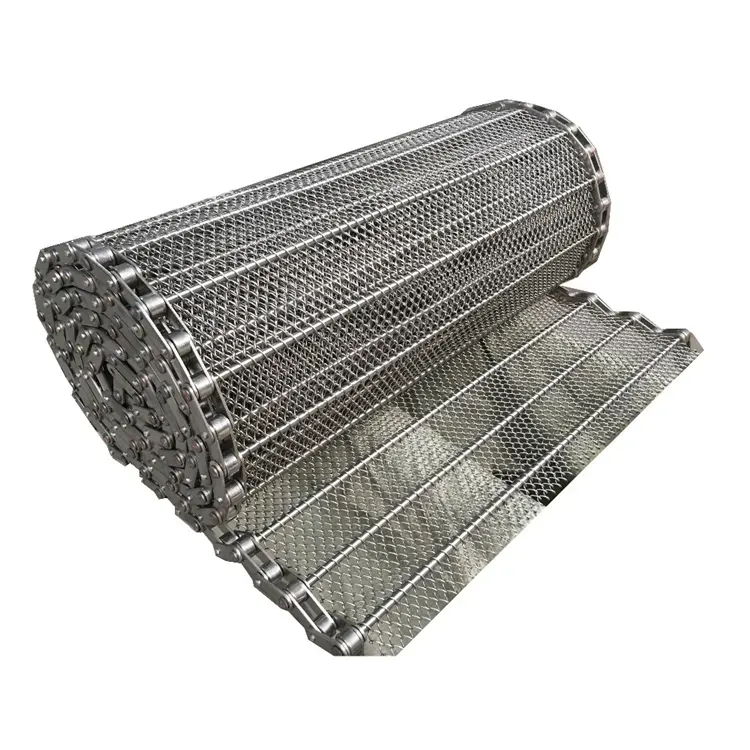

Description: Chain Driven Mesh Belts is a main conveyor form of transportation, is a wire conveyor belt to be attached to chain on both side. Belt and chain are synchronized running through an intermediate connecting rod. Provide efficient operation in applications where friction drive belts are not adequate. In cases such as travel-up inclines, under heavy loads, for long distances, through quenching liquids, cooking oils or other slippery conditions. Chain driven mesh belt is also the only belts that are self supporting. It can provide efficient operation in applications where friction drive belt would not be desirable. Any mesh can be used in a chain driven construction, but the selection is made on the basis of what is needed to support the product. Balanced weave kind should be given first consideration, as it is economical and appropriate for most conditions.
- the surface is flat, smooth, so that heavy loading can be transported
- the allowable tension is high, so that the belt can be used for processing under pressure
- it is driven by sprocket, not occur
- various types of chain can be applied by adjusting belt pitch
Specifications
| size | material | wire diameter (mm) | spiral pitch (mm) | chain pitch (mm) | rod pitch (mm) | rod diameter (mm) |
|---|---|---|---|---|---|---|
| length xm x width 1035mm (steel chain) | ss304 | 1 | 3.175 | 31.75 | 190.5 | 1.2 |
| length xm x width 1225mm (steel chain) | ss304 | 1.2 | 3.175 | 31.75 | 190.5 | 1.5 |
| length xm x width 1020mm (without chain) | ss304 | 1 | 3.175 | 12.7 | 1.2 | |
| length xm x width 1215mm (without chain) | ss304 | 1.2 | 3.175 | 12.7 | 1.5 |
Images
