Overview

Basic Info.

Model NO.	Customized
Inside Material	Food-Grade Stainless Steel 304 or 316
Feature	Heat-Resistant, Cold-Resistant, Wear-Resistant
Tensile Strength	Strong
Application	Freezer, Food Delivery
Service	Installation, Commissioning, Training
Processing Capacity	500kg/H-3000kg/H
Certificate	CE, ISO
Transport Package	Wooden Cases
Specification	Customized
Trademark	yurnfreeze
Origin	Nantong, China
HS Code	841869
Production Capacity	300 Pieces/Year

Packaging & Delivery

Package Size	1209.00cm * 235.00cm * 269.00cm
Package Gross Weight	10000.000kg

Product Description

Material & Strength

The high-strength conveyor belt is made using imported special equipment. The strength of the mesh belt meets the American "Ashworth" standard and has a long service life. The mesh belt is made of food-grade SUS304 or 316 stainless steel, ensuring compliance with hygiene standards.

Design & Structure

The mandrel diameter and the chain piece thickness can be customized.

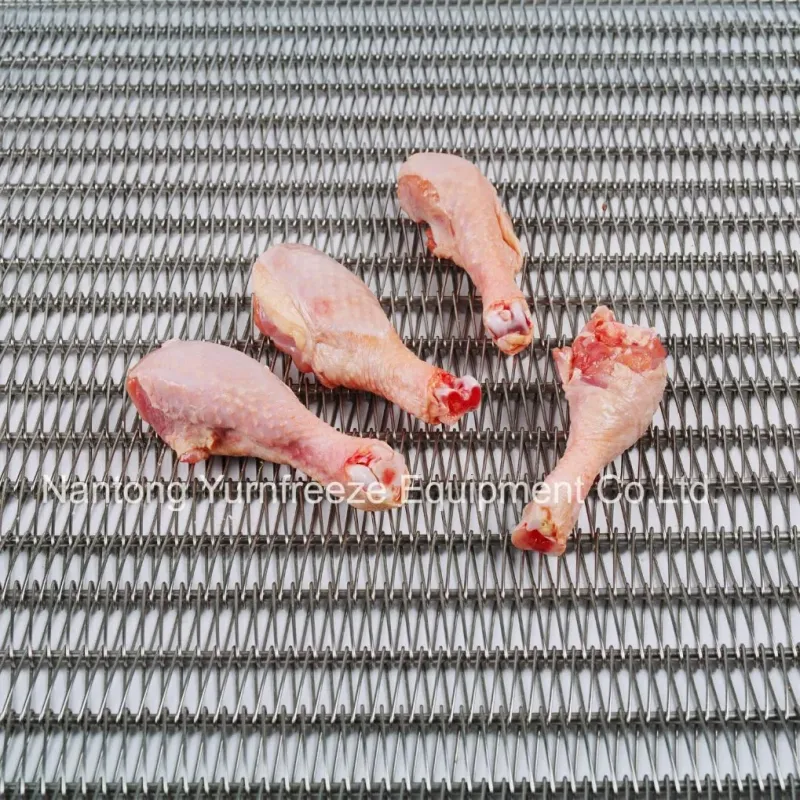

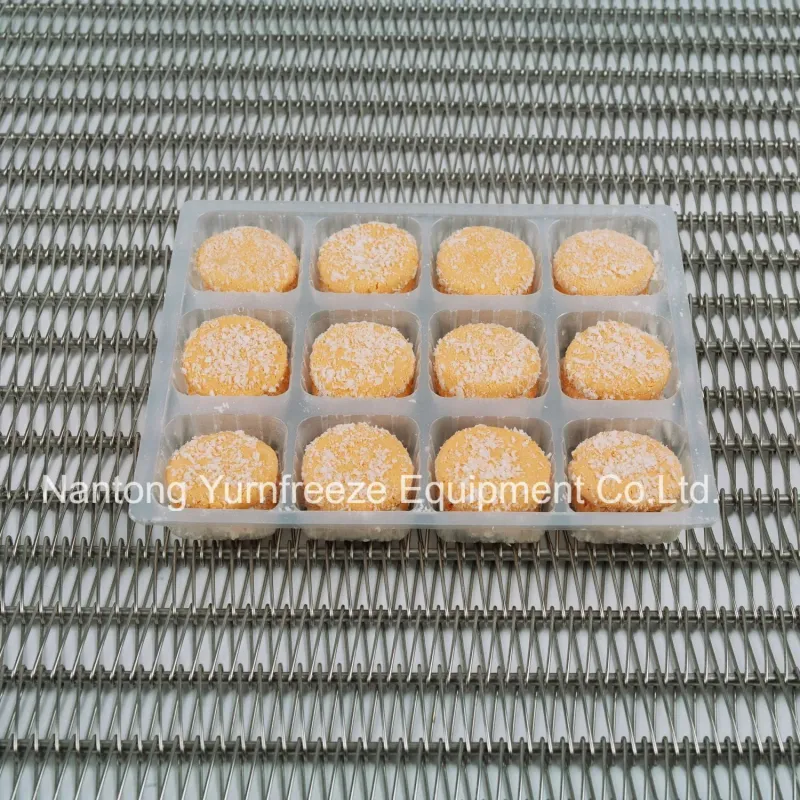

The surface is smooth and aesthetically pleasing and frozen products can be placed directly on the conveyor belt for freezing.
The mesh belt is internally retractable, adapting to different load requirements.
The side guards can be configured on both sides of the chain, so that the product is not easy to slide off the conveyor belt, preventing the product from slipping out and colliding with other structures during the freezing process and causing jamming.

Detailed Photos

Metal Mesh Belt Factory Supply Food Processing Freezer Stainless Steel 304 Spiral Wire Mesh Conveyor Belt

Material & Structure

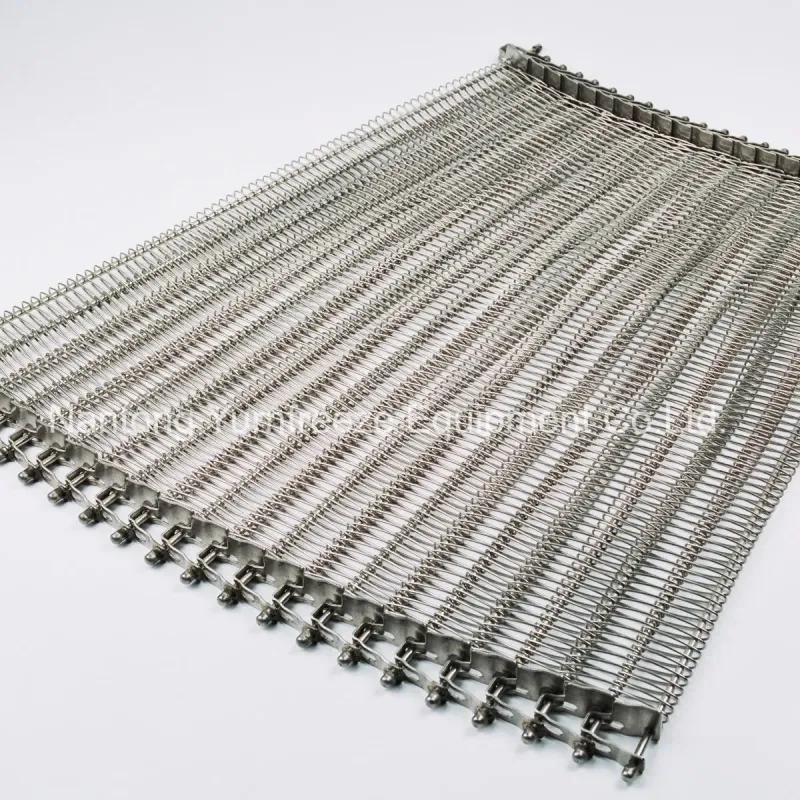

Main materials: Food-grade stainless steel 304 or 316, low carbon steel wire, nickel wire. Structure: Side U-shaped links, cross rods, and an optional mesh overlay.

Common Specifications

Pitch options: 19.05mm (3/4"), 25.4mm (1"), 27.43mm (1.08"), 30.5mm (1.2"), 38.1mm (1.5").
Mesh overlay: Made from spring stainless steel, customizable according to product size.
Side plate height: Customizable based on customer requirements.
Mesh belt width: 150mm to 5500mm.
Operating temperature: -40ºC to 1300ºC.

Process Features

Round rod ends are processed by hot upsetting and are strongly welded to the links.
Weaving process: Common braiding, reinforced braiding, sectional type ordinary weaving.
Electrolytic polishing and thorough water washing ensure the belt's hygiene and shine.
Features: Fixed position of each spiral coil prevents the belt from deforming and elongating, ensuring durability and stable conveying.

Product Parameters

Material	SUS 201 304 316, carbon steel
Mesh belt width	150mm - 5500mm
Wire diameter	1mm - 3 mm
Rod diameter	4mm - 12 mm
Rod pitch	5mm - 30 mm
Spiral wire pitch	3mm - 20 mm or customized
Chain pitch	19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Side Guard	Without / 12.7mm, 19.1mm, 25.4mm, 38.1mm, 50.8mm above mesh / customized

Application

Ideal for refurbishing existing spiral freezers, spiral coolers, spiral proofers, spiral cookers, and other spiral systems.

Widely used in the oil, mineral, pharmaceutical, glass, dairy food, packaging, and vessel-producing industries, as well as for product drying, heating, and cleaning processes.
