Product Description

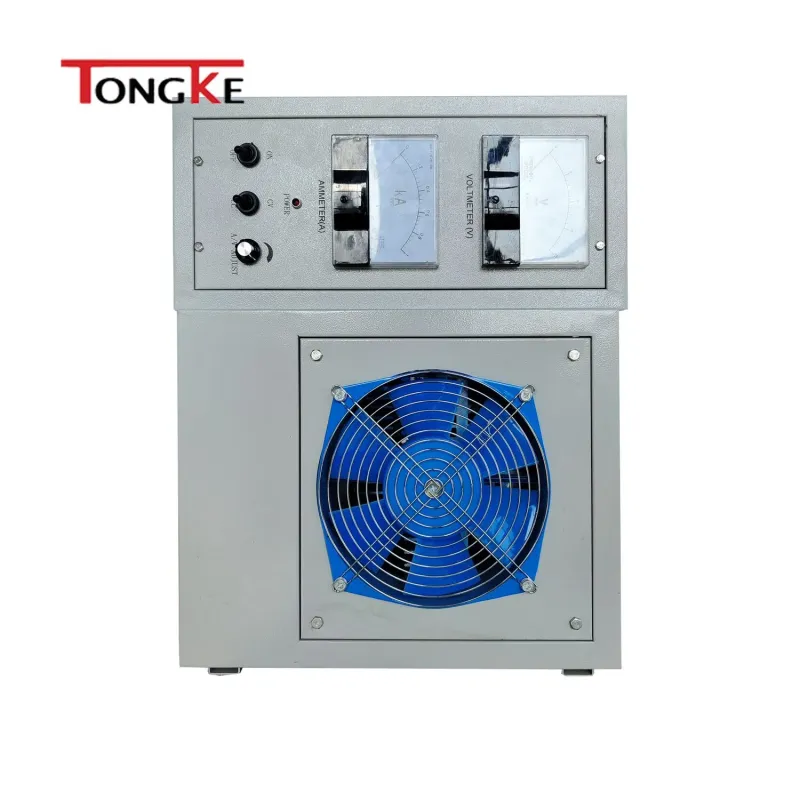

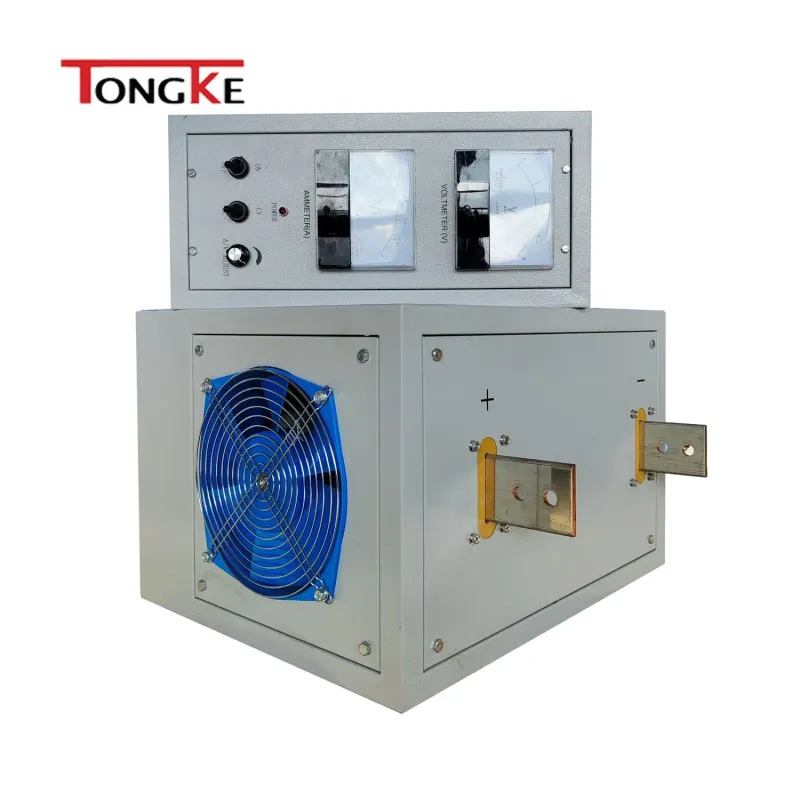

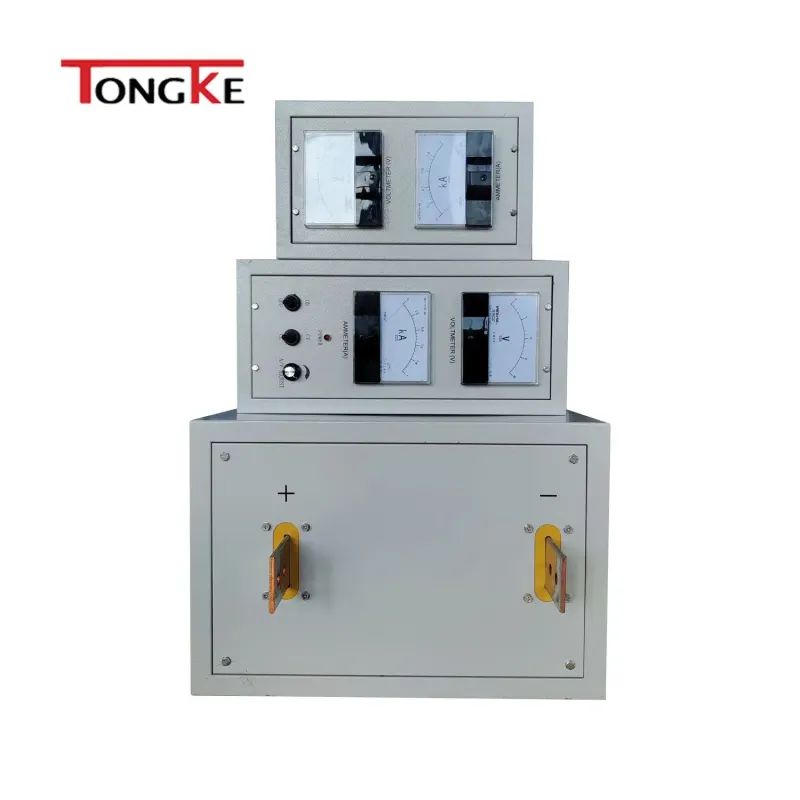

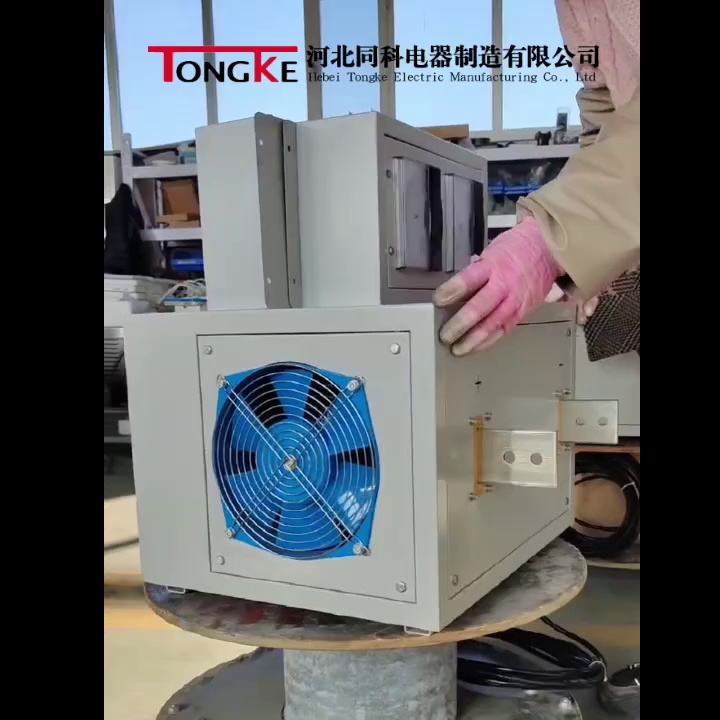

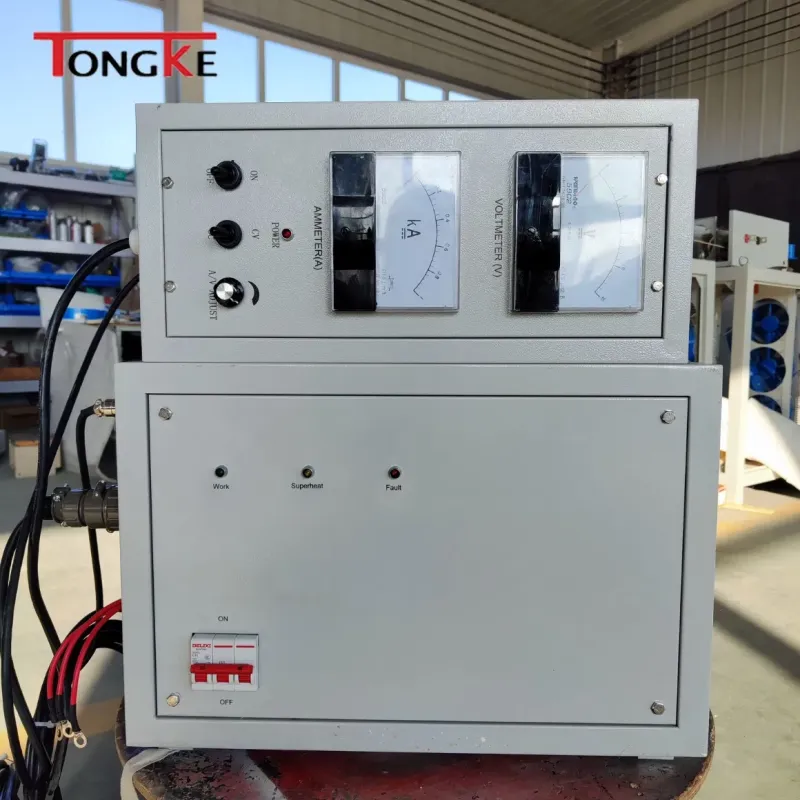

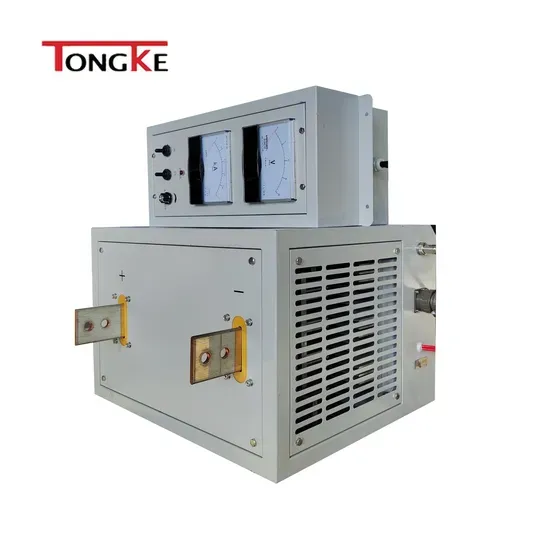

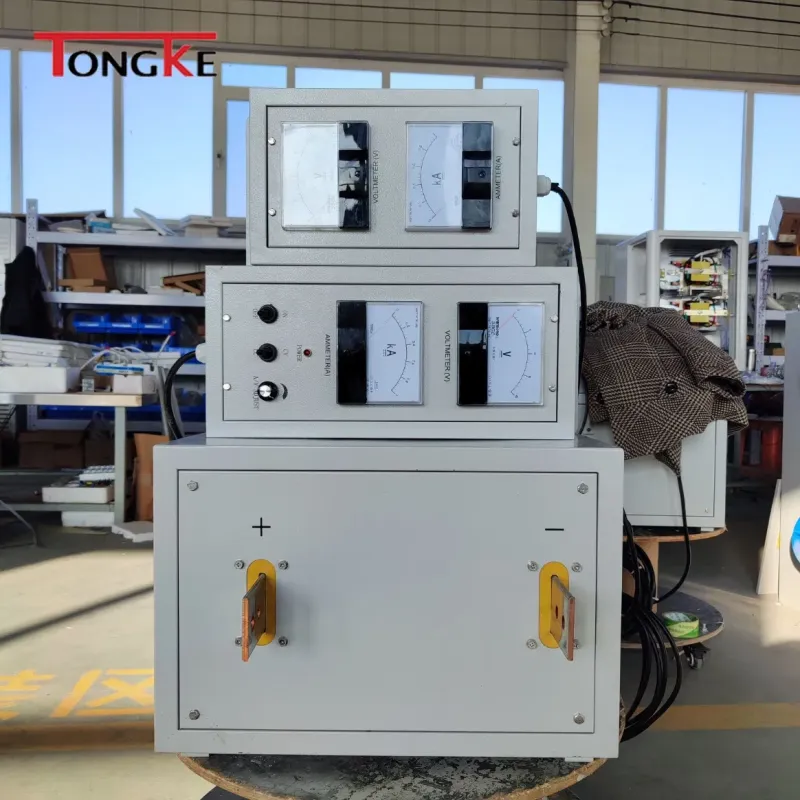

Pulse Power Supply

HIGH EFFICIENCY/LOW RIPPLE/LONG SERVICE

Product Parameters

Input

• Rated voltage: 3-phase 4-wire AC380V
• Voltage range: 380V±15%
• Frequency: 50HZ±5%

Output

• Voltage setting range: 0~Customized voltage continuously adjustable
• Current setting range: 0~Customized current continuously adjustable
• Working mode: Constant voltage mode (current limit)/constant current mode (voltage limit) (switching between two modes of stable voltage and stable current)
• Type: PWM switching power supply
• Voltage regulation accuracy: Source effect: ≤0.1% rated value ±1 word Time drift: ≤0.1% rated value ±1 word Temperature drift: ≤0.4‰/ºC±1 word (within half an hour) Load effect: ≤0.5% of rated value ±1 word
• Stabilized current accuracy: Source effect: ≤0.1% rated value ±1 word Time drift: ≤0.1% rated value ±1 word Temperature drift: ≤0.4‰/ºC±1 word (within half an hour) Load effect: ≤0.5% rated value ±1 word
• Control method: Local control panel/external host computer
• Startup shock: <1% of rated voltage
• Communication interface: RS485 (optional)
• Operation mode: Long-term

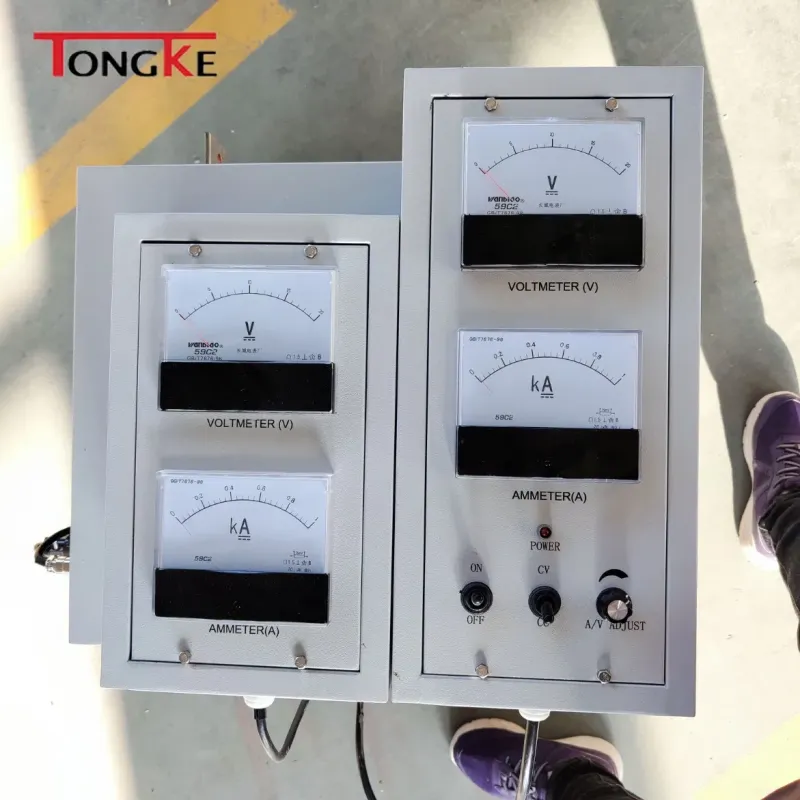

• Control display: Show contents: Display of operating state/fault state/overheating state Output current, voltage display, working time
• Operation function: Output start and stop, preset working hours Output voltage and current setting
• Voltage and current display accuracy: Better than 0.5%

Protect

• Input protection: Power input overvoltage, undervoltage, phase loss, etc;
• Output protection: Power output current limiting, voltage limiting, overload, etc;
• Overtemperature protection threshold: 80ºC
• Protection method: Shutdown alarm

Reliability

• Usage method: 24h continuous operation
• Main components: IGBT adopts imported chip modules, which are reliable and stable.
• Design lifespan: ≥ 20 years

Comprehensive Characteristics

• power factor: ≥0.95
• Efficiency: ≥95% (rated output)
• Transient response time: ≤10ms
• Noise: <75dB
• Inlet and outlet line mode: Incoming line at the lower part of the rear panel of the chassis, terminal output at the rear panel of the cabinet
• Cooling method: Air cooling/water cooling/oil cooling
• Protection level: IP20, circuit board three-proofing and overall protection treatment
• Insulation strength: Input-output-chassis: AC1500V, 10mA, 1 minute
• Insulation resistance: Input-output-output: ≥20MΩ Input-shell

Environment Condition

• Storage temperature: -25ºC~50ºC
• Working humidity: ≤90%
• Altitude: ≤2000m
• Operating ambient temperature: -20ºC~35ºC

PRODUCT ADVANTAGES

• Energy saving and efficient: The overall working efficiency of the machine is high, usually above 95%, with low energy consumption and low operating costs
• Stable and reliable: The power supply has high stability and low heat generation during operation, ensuring stable operation and precise control of current and voltage
• Sturdy Structure: Adopting a cabinet style structure, electrostatic spraying protection, beautiful appearance, and sturdy structure
• High safety: the design has multiple safety protection measures, such as overvoltage, undervoltage, and phase loss of power input; Power output overcurrent, short circuit, overload, etc., to ensure the safety of equipment and personnel.
• Intelligent control: fully digital design, more precise intelligent control, optional touch screen control, equipped with RS485 communication interface, using MODBUS protocol, easy to network with remote PLC or industrial PC
• Environmental Protection: No secondary pollutant emissions during power operation, environmentally friendly
• Easy to maintain: The power supply design is simple and easy to maintain and replace components, reducing long-term maintenance costs
• Heat dissipation design: advanced heat dissipation design concept, multiple complementary heat dissipation methods, optional air cooling and water cooling heat dissipation, ensuring the high efficiency and stability of the product

DETAIL DISPLAY

MAIN TRANSFORMER

Adopting high-frequency nanocrystalline transformer Efficient and energy-saving, with high coupling

IGBT

The main power component of the power supply is an original imported chip module

Rectifier Bridge

original imported chip rectifier bridge

Output Rectifier Tube

Original imported international first-class brand AN Motorola Schottky

Heat Dissipation Aluminum Plate

designed and manufactured using high-purity, high-quality pure aluminum with a thickness of up to 22mm. Features: greatly improving the heat dissipation effect of the entire machine and improving the corrosion resistance of the equipment

Power Cabinet

made of high-quality galvanized cold-rolled iron plate with deep processing and anti-corrosion coating treatment, it has beautiful appearance, strong shock resistance and anti-corrosion performance! It can realize long-distance transportation and handling and long-term use!

APPLICATION AREA

Environmental Protection | Electroplating | Electrolysis

Oxidation | Electrophoretic | Hydrogen production

Rare earth smelting | Battery Charging | Fluorine production
