Basic Info.

Model NO. 001
Type Organic
Melting Point 501℃-600℃
Chemical Composition Ai, K
Function Protect Weld Metal, Make the Liquid Solder Flow
Application Submerged-arc Welding, Electroslag Welding
Manufacturing Method Smelting
Logo Custom
Colour Custom
Shipping Air/Sea
Transport Package Carton
Specification Customized
Trademark Customized
Origin China
Production Capacity 500000kg/Month

Packaging & Delivery

Package Size 20.00cm * 30.00cm * 40.00cm
Package Gross Weight 10.000kg

Product Description

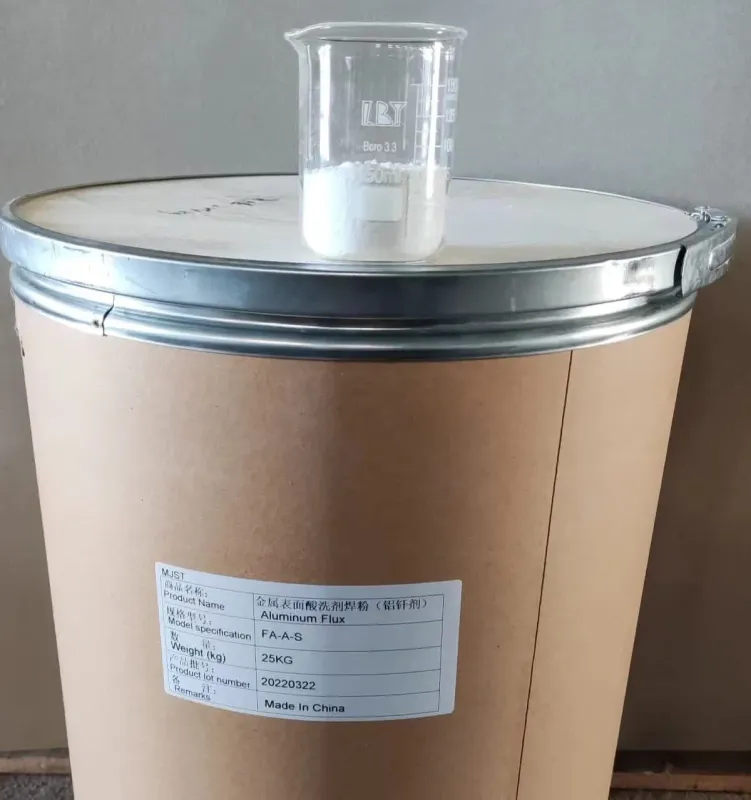

FA-A Aluminum Flux

Special for brazed aluminum heat exchanger

1. Product Description

Aluminum flux is a white powdery mixture of potassium krypton aluminate (non-corrosive and non-hygroscopic). This fiber agent is a high-quality and high-purity product, which has passed an extremely strict production process and quality control process.

The melting point of the aluminum fiber agent ranges from 550 to 574, which is the melting point of the low-kilo aluminum-silicon fiber welding alloy. The particle size distribution ranges from 0.1 μm to 50 μm, and the particle size distribution range of this product is different according to the difference of the use process. At present, there are mainly two methods of using the process, one is the spraying or brushing and soaking process dispersed with water, and the other is the process of using electrostatic spraying dry powder. In the process of aluminum fiber welding, the aluminum injection can dissolve the oxides on the surface of the aluminum material (mainly remove the AL2O3 on the surface of the aluminum material), and make the solder layer on the metal surface flow capillary and flow freely into the welding place. The residue after cooling is a thin film form is attached to the surface and is non-corrosive and non-hygroscopic, and the welding area does not need to be cleaned after brazing.

2. Physical Properties

Appearance: white powder
Melting range: 560~570 "C
Apparent density: 0.40~0.55 g/cm³
Solubility (20°C): 4.4 g/1
Particle Size Distribution: Average Particle Size 7.0 ± 1.0µm, Distribution in 2-6µm No Less 46%
