Boshida BD-45B2 7X-45X Zoom Stereo Microscope
Description
Overview
Basic Info.
- Model NO. BD-45B2
- Magnification 7X-45X
- Type Stereo Microscope
- Number of Cylinder ≥Three
- Mobility Desktop
- Stereoscopic Effect Stereoscopic Effect
- Kind of Light Source LED
- Shape Compound
- Usage Teaching, Research, Industry
- Principle Optics
- Principle of Optics Bright Field
- Viewing Head Binocular/Trinocular
- Theory Stereo Microscope
- Eyepiece Wf10X/15X/20X
- Objective 0.7X-4.5X
- Auxiliary Lens 0.5X, 2X
- Light Sourse LED
- Illumination Bottom & Top Illumination
- Focusing Coarse Adjustment Focusing
- Base Plate Glass Base Plate
- Camera Optional
- Dimension 220X260X350mm
- Material Metal, Glass
- Customized Support OEM
- Transport Package Carton
- Specification 50x28x40cm, 7kg
- Trademark boshida
- Origin Zhejiang, China
- HS Code 9011100000
- Production Capacity 500PC Per Month
Packaging & Delivery
- Package Size 50.00cm * 28.00cm * 40.00cm
- Package Gross Weight 7.000kg
Product Description
Products Description

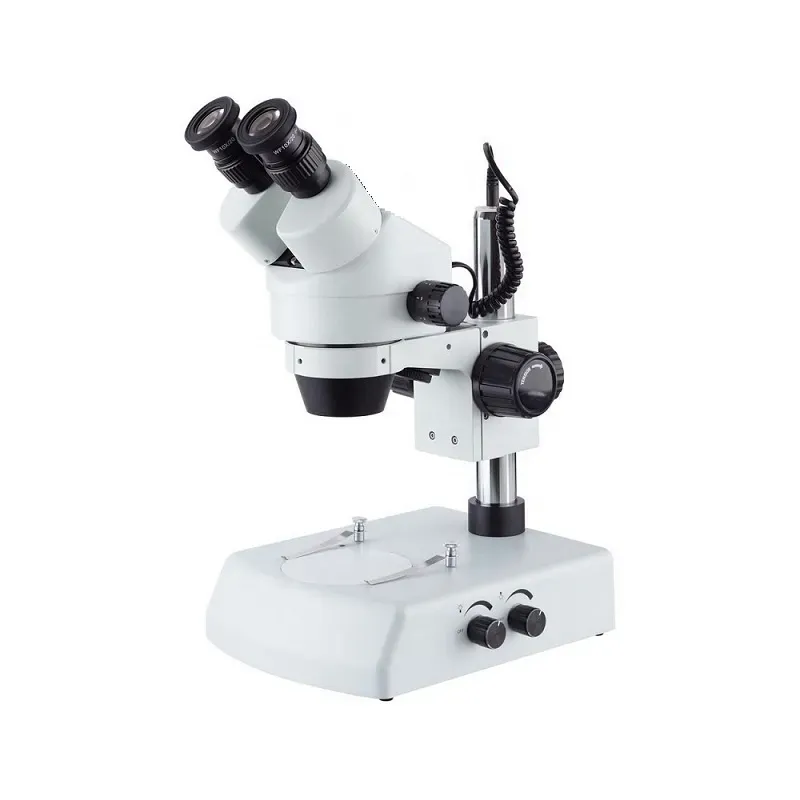

Binocular Version

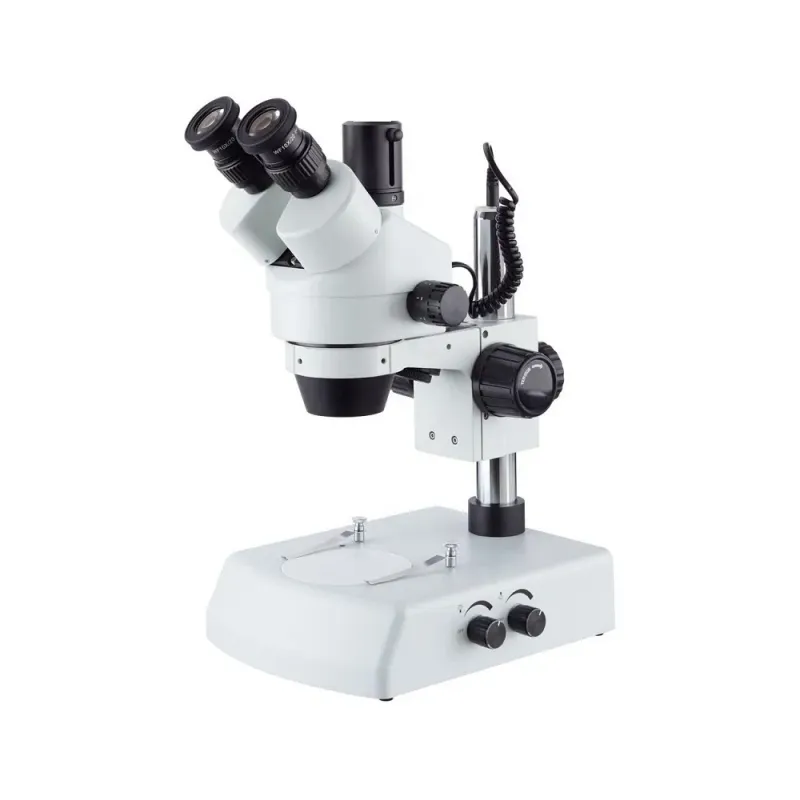

Trinocular Version
Model
BD-45B2
View tube
Binocular/trinocular, 45 ° inclined.
Magnification
Standard: 7X-45X
Can be extended to 3.5X-180X.
Zoom ratio
1:6.4
Eyepiece
WF10X(Φ20mm)
Optional: 15X, 20X
Objective
0.7X-4.5X
Auxiliary Lens
0.5X, 2X
Working distance
100mm
Depth of field
15mm
Illumination
Top LED and bottom LED
Stage baseplate
Φ95mm glass board or black and white board.
Camera adapter
For trinocular: 1X or 0.5X C-Mount.
Stage size
200*255mm
Digital camera
Optional
Auxiliary Lens
Scale Eyepiece
LED ring light
FAQ
Q1 How can you do sample testing?
A1 We can suggest microscope according to applications of user. We had thousands of sucessful cases. If user is not sure of the microscope image quality, user can send us samples for testing. We will send pictures to user. If user is not satisfited with it, don't need to buy it.
Q2 What kind of customization you can supply?
A2 Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget. For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements.
Support OEM & ODM
- Free sample testing: We can test sample of user and help user to choose the most suitable microscope according to applications and requirements.
- Online trainning.
- Life time technical service.
- Free Solutions: We can suggest solutions according to applicatins and requirements.
- Customized: We can customize products according to applicatins and requirements.
Warranty
- We provide one year warranty for whole machine, three month for consumable spare parts.
- We will cover all cost due to quality problem during the warranty period.
- For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
- We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
