Overview

Basic Info

Model NO. SZN71
Magnification 0.67X - 4.5X
Type Stereomicroscope
Number of Cylinder Binoculars
Mobility Desktop
Stereoscopic Effect Stereoscopic Effect
Usage Teaching, Research
Principle Optics
Eyepiece PL10X/22mm
Working Distance 110mm
Transport Package Carton
Trademark OEM ODM
Origin Shanghai
HS Code 9011809090
Production Capacity 500 Piece/Pieces Per Month

Packaging & Delivery

Package Size 76.00cm * 43.00cm * 28.00cm
Package Gross Weight 8.000kg

Product Description

Adopting Greenough optical system, SZN71 with compact structure is sleek and sporty. New designed optical path and click stop function, make it more precision and practical for inspection of electronic components and PC board in industrial field, also available for scientific research, education and antiques identification etc.

Click Stop Function

Zoom hand wheel with click stop as a key improvement ensures accurate amplification, is very useful for sample dimension confirm.

DOF and Flatness

Greenough optical system with convergence angle of 10 degree, and working with wide field plan eyepieces, ensures the excellent flatness and depth of field.

Szn71 Industrial Zoom Stereo Microscope Zoom Objective 0.67X - 4.5X, Working Distance: 110mm Magnification From 3.3X to 135X

Diverse Auxiliary Objectives

Three auxiliary objectives 0.5X/0.7X/1.5X for option, to expand SZN71 magnification from 3.3X to 135X. The Max. working distance is 177mm while the Min. is 47mm, to meet all the requirements from different applications.

Abundant Illumination Systems

LED/halogen/fluorescence for option, either built-in illuminator or external type is available, provide the best image by choosing a suitable light.

Viewing Head

45° inclined binocular head with fixed eyepiece tube, inter-pupillary range: 52mm - 76mm, with click stop and interlock mechanism

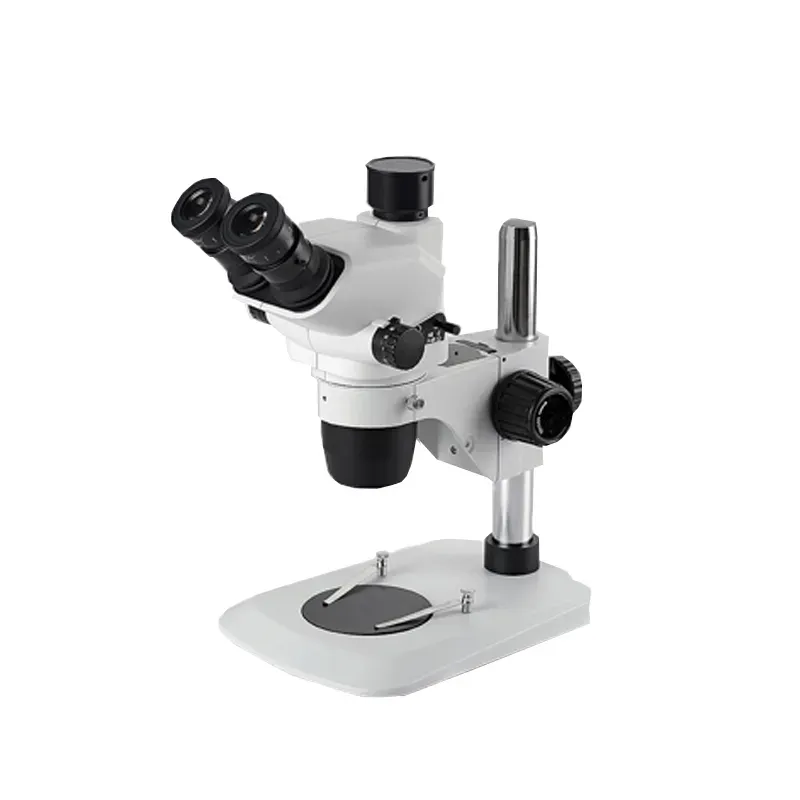

45° inclined trinocular head with fixed eyepiece tube, inter-pupillary range: 52mm - 76mm, with click stop and interlock mechanism

Eyepiece

High eye-point wide field plan eyepiece PL10X/22mm, with adjustable diopter
High eye-point wide field plan eyepiece PL15X/16mm, with adjustable diopter
High eye-point wide field plan eyepiece PL20X/12.5mm, with adjustable diopter

Main Objective

Zoom objective 0.67X - 4.5X, working distance: 110mm

Auxiliary Objective

0.5X/177mm, 0.7X/120mm, 1.5X/47mm

Stand

Arm stand with fixed focus holder
Pillar stand, can be equipped with different focus holders

Base

Plan base

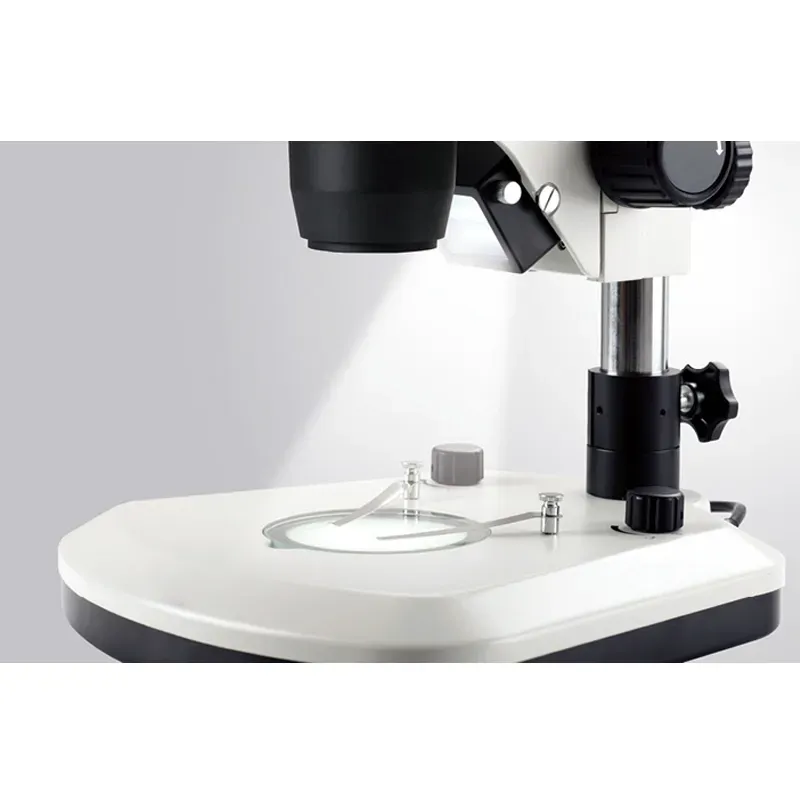

Base with illumination

Camera Adapter

0.35X/0.5X/0.65X/1X C-mount adapter

Others

Precision measuring stage, gem clip
