Overview

Basic Info.

Model NO. Ball Mill Liners
Material Aluminum
Type Wear Resistant Plate
Color White
MOQ 50kg
Delivery Time 15~25 Days as Your Request
Samples Free Samples Can Be Provided
Transport Package Safe Carton with Pallet
Specification Customized
Trademark Ultraming
Origin China
HS Code 6909120000
Production Capacity 18000 Tons/Years

Product Description

Alumina ceramic lining tiles for coal and other material handling and processing industries. Ceramic linings provide long-lasting solutions to the problems caused by abrasive wear and corrosion in a variety of hostile environments. Alumina ceramic linings will outlast lower grade materials commonly used to line or protect processing and material handling equipment, including Basalt, stainless steel, carbon steel and wear resistant plates, by factors of 3 to 15 times. QM X's wear resistant ceramic tiles can be cut into any shape and are easy to install and maintain. They are suitable for both wet and dry processing applications. Advanced ceramics combine high strength and toughness with extreme hardness to deliver exceptional wear resistance. Wear Protection ceramic Linings are used throughout Mineral Processing to protect the steel surfaces of equipment from wear and corrosion. They are used on a range of equipment including pipes, tanks, chutes, pumps, flotation cells, thickeners, launders and feed spouts or chutes.

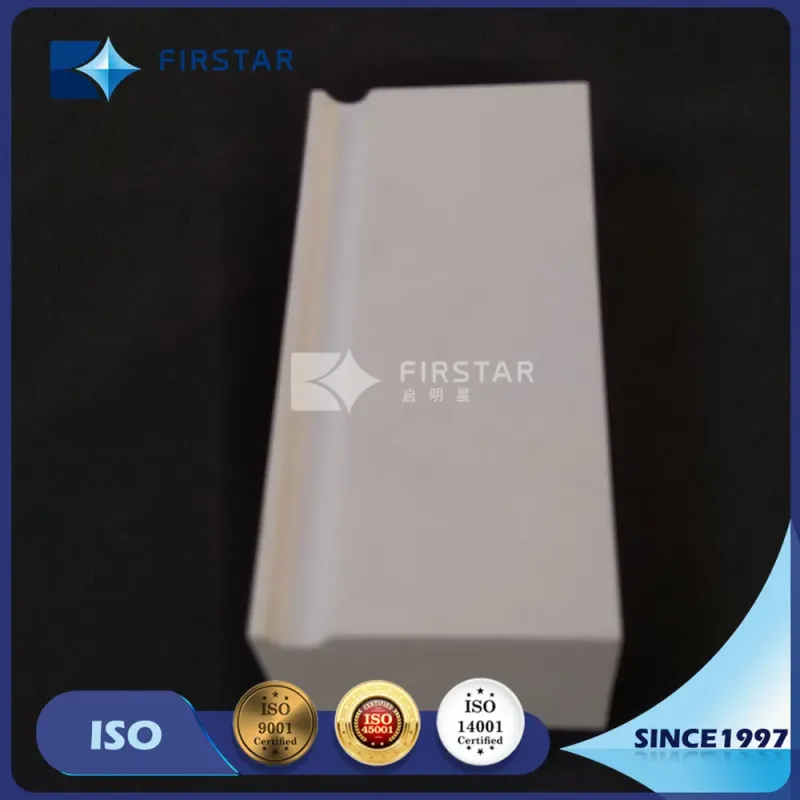

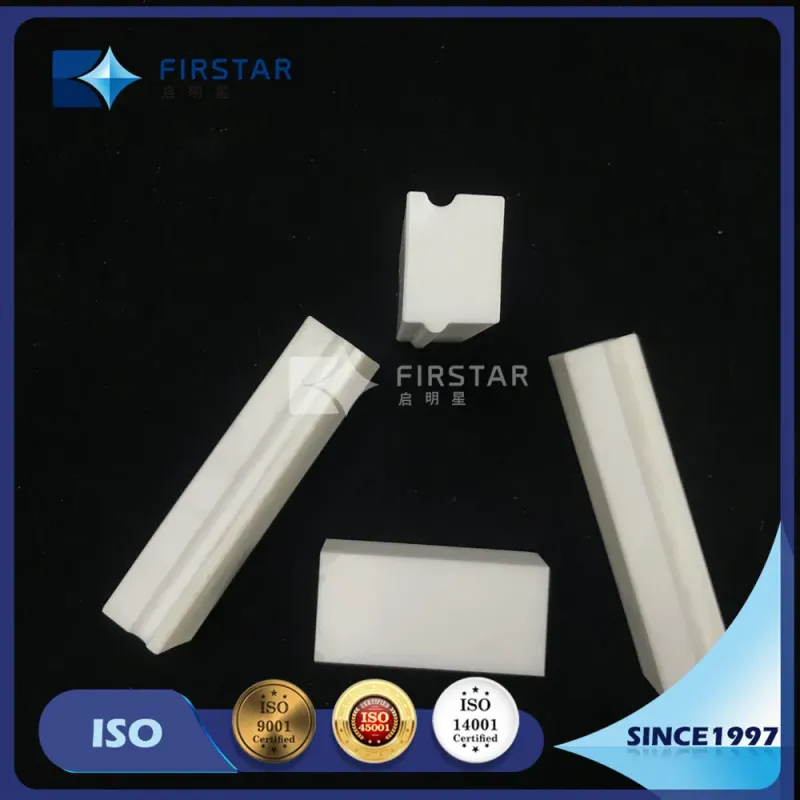

Wear Resistant Ceramic Liner Plates for Ball Mills/Alumina Interlocking Lining Brick

Product Parameters

Character	92	95	T95	99	ZTA	ZrO2
Density (g/cm³)	≥3.6	≥3.65	≥3.7	≥3.83	≥4.15	≥5.9
Al2O3 (%)	≥92%	≥95%	≥95%	≥99%	≥75%	/
ZrO2 + Y2O3	/	/	/	/	≥21%	≥99.8%
Bending Strength (MPa)	≥220	≥250	≥300	≥330	≥400	≥800
Compressive Strength (MPa)	≥1050	≥1300	≥1600	≥1800	≥2000	/
Fracture Toughness (MPa.m¹/²)	≥3.2	≥3.2	≥3.5	≥3.5	≥5.0	≥7.0
Rockwell Hardness HRA	≥82	≥85	≥88	≥89	≥90	≥88
Vickers Hardness HV20 (MPa)	≥950	≥1000	≥1100	≥1200	≥1400	≥1100
Wear Volume (cm³)	≤0.25	≤0.20	≤0.15	≤0.10	≤0.05	≤0.05
