Basic Info.

Model NO.	ZM-920/ZM-1020
System Supported	No Need
After-Sales Service Provided	Engineers Available to Service Machinery Overseas
Printing Interface	No Need
Applicable Material	Stickers, Film, Paper, Plastic
Arrangement Position of Color Groups	Combined Gravure Press
Usage	Rigid Packaging Gravure
Feeding Mode	Sheet-Fed Gravure Press
Automatic Grade	Automatic
Color & Page	Single-Colour Printing Press
Structure	Rotary Type Printing Machine
Product Name	Board Sheet Intaglio Gravure Pressing Printing Mac
Name	Intaglio Press Machine
Feeding Sheet Size	363mm390mm-650mm920mm
Paper Weight Range	80~350g/Sqm
Max. Printing Area	638mm*920mm
Print Ink	Pearl Iuster Ink, Gold Ink, Silver I
Print Materails	Coated Paper, Aluminized Paper, Gold an
Max. Rotation Speed	8, 000PCS/H
Max. Printing Speed	6, 000PCS/H
Paper Pile Height	1400mm
Transport Package	Wooden Case
Specification	One container to load
Trademark	ZOMAGTC
Origin	China
HS Code	8443170090
Production Capacity	8000PCS/H

Product Description

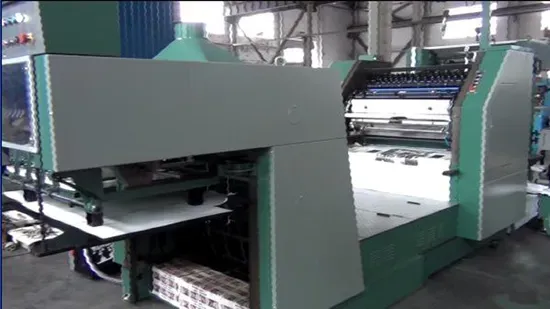

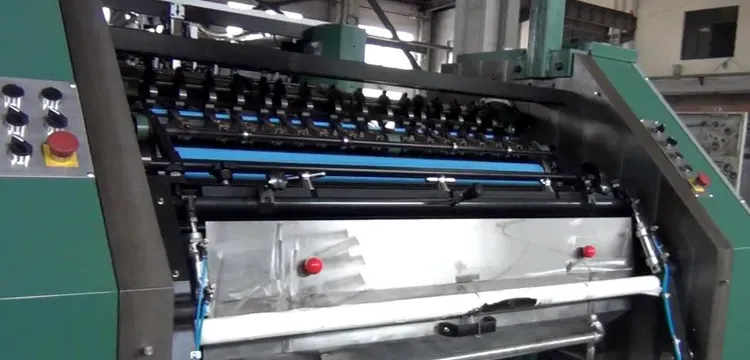

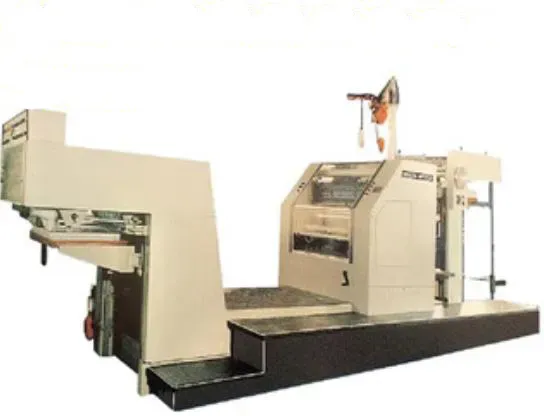

Board Sheet Intaglio Gravure Pressing Printing Machine

Brief introduction of the gravure printing machine:

Standard configuration function:
- Gold printing
- Silver printing
- Gold and silver cardboard
- Large full mold print
- Pearlescent ink
- Solvent ink including water-based ink
- The uper printing are all ok with the standard configuration machine
Drying method: Hot air drying / infrared drying
Need one set of UV drying system:
- UV ink
- UV bump ink
Inks that require two sets of UV drying systems:
- Ice ink, ice ink is the effect of etching printing
- Snowflake ink, UV ink will bloom during UV drying
The general machine cannot be embossed. If it needs to be modified, it can be modified to be embossed. The cost of the transformation needs USD 51470. Basically there is no embossing required by customers, rarely
Polishing:
- Water-based varnish: all machine standard can be used
- UV varnish coating requires a set of UV
- The machine can do coating and spot coating.

Model	920	1020
Feeding Sheet Size	363mm390mm-650mm920mm	420mm520mm-720mm1020mm
Paper Weight Range	80~350g/sqm
Max. Printing Area	638mm*920mm	707mm*1020mm
Print ink	Metal color ink, pearl luster ink, gold ink, silver ink and so on
Print materails	coated paper, aluminized paper, coated paper, gold and sliver cardboard
Max. Rotation Speed	8,000rph
Max. Printing Speed	6,000pcs/h
Bite white border	13mm
Paper pile height	1400mm
Dimension (LxWxH)	6240mm3300mm2740mm	6240mm3370mm2740mm
Machine Weight	8200kg	9000kg
Total Electrical Power	30.4kw

Metal color ink, pearl luster ink, gold ink and silver ink can be used.
No ink balance problem, no color difference or bar or ink.
PLC programming control and variable frequency speed control system.
High efficiency paper transmission, continuous (not stop) paper collection, printing speed up to 6,000 pcs/h.
Pneumatic on-off device, pneumatic ink scraper.
Ink fountain and ink box used in combination, and equipped with circulation ink device.
Hot air drying tube, equipped with standard temperature control infrared drying system, optional UV curing equipment.
