Product Description

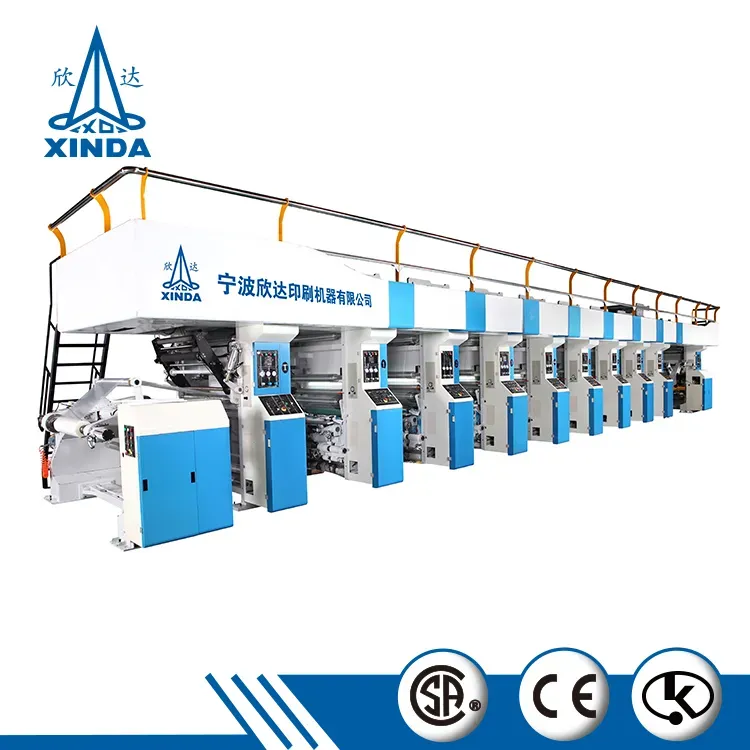

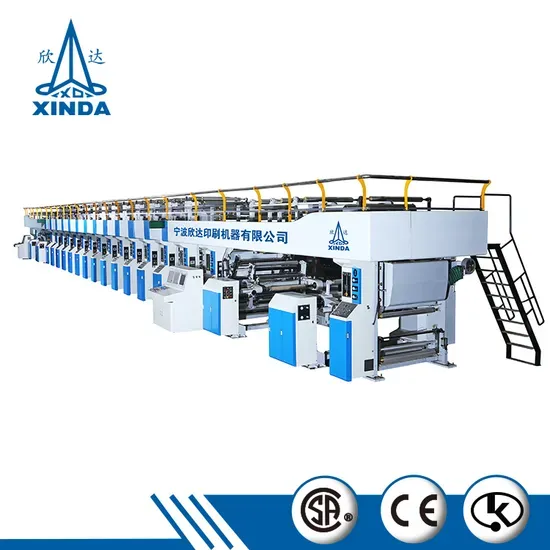

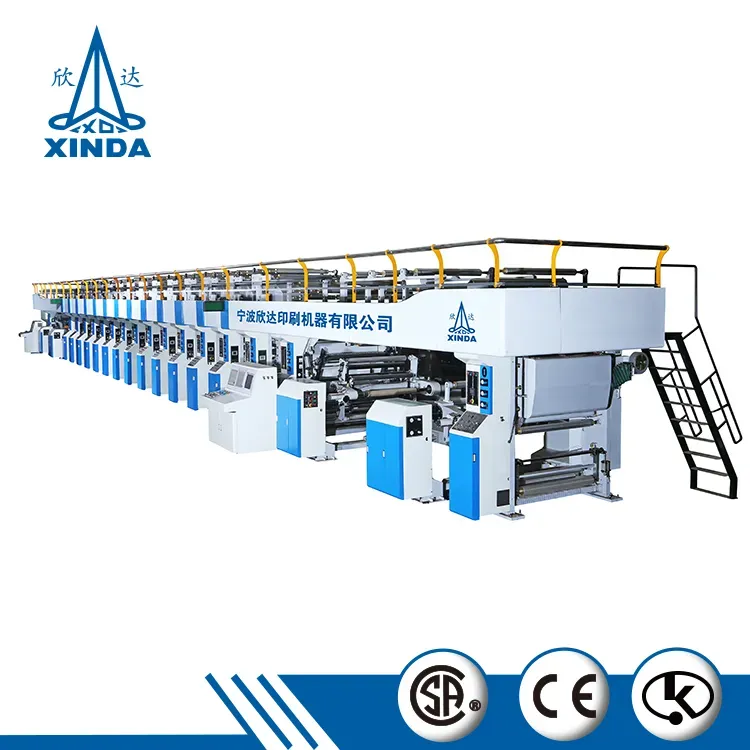

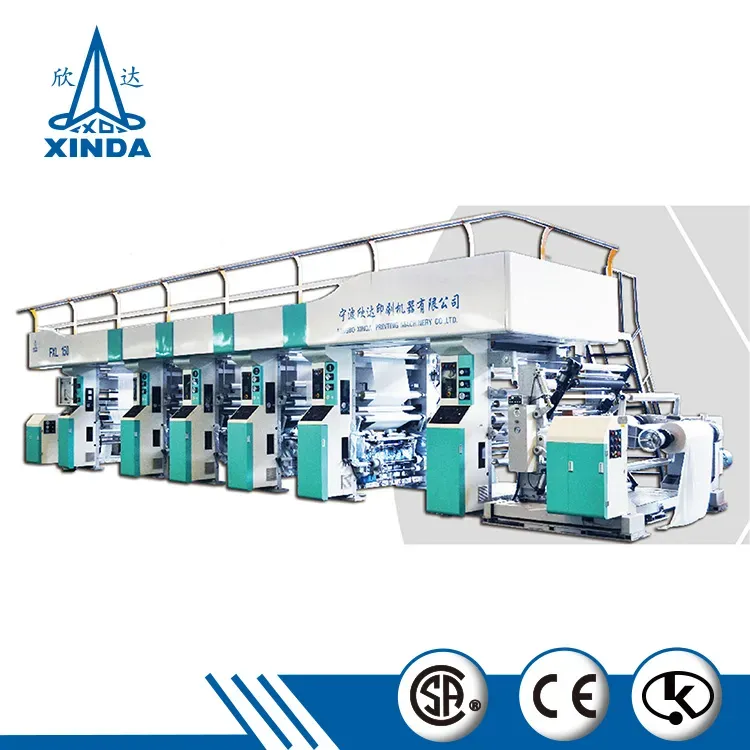

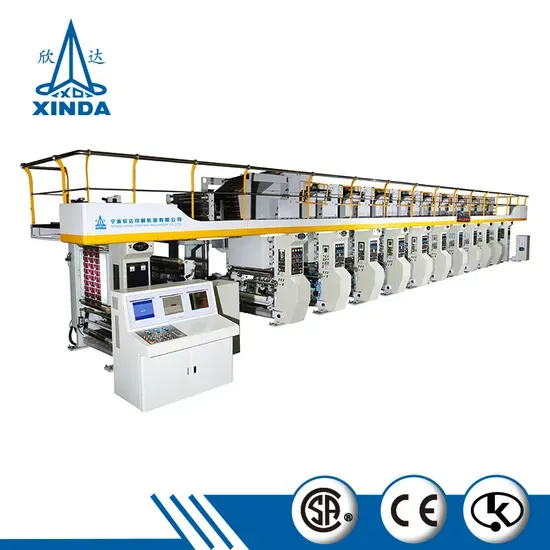

The YA801250EST series electronic shaft driven rotogravure printing machine is a high printing speed machine to print OPP, BOPP, PET, BOPA, PVC and etc films.
Independent double-arms turret type unwind and rewind units can finish automatic cut and splicing without stopping machine.
The machine uses servo motor tension control system and every plate cylinder is driven by servo motor for synchronization compensation of register.

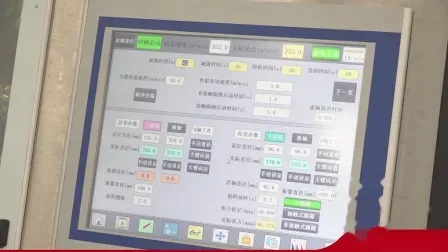

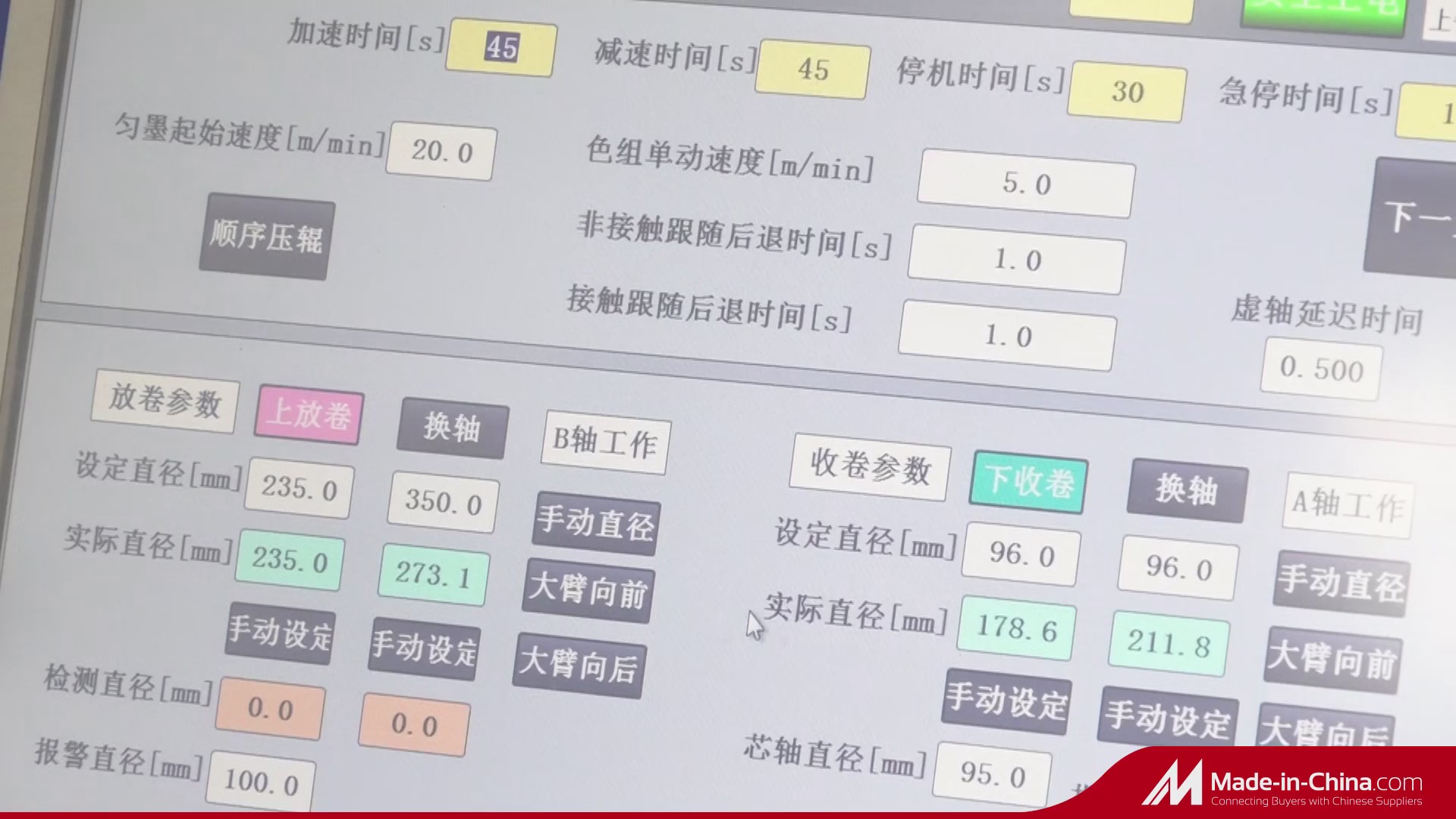

The parameters are set or modified on a touch screen (HMI). This machine has hot air recycle system and sealed drying ovens with unique hot air nozzles.
The rigidity and stability of the machine is ensured by using high quality materials which are processed on high precision CNC machines.
Human oriented design of the machine is easily and conveniently for users to run.

Film direction From left to Right
Power supply 3 P 380 ±10%V 50 Hz (3-phase 5-line system)
Print color 8 colors
Max. web width 1250mm
Max. print area 1200mm
Max. mechanical speed 270m/min
Max. printing speed 250m/min (plate cylinder dia. ≥Φ170)
Tension range 2~30kg
Tension accuracy ±0.2kg
Register accuracy Vertical register ≤±0.1mm (automatic register adjustment), Horizontal ≤±0.1mm (automatic register adjustment)
Max. unwind & rewind web dia. Φ600mm;800mm
Paper core size of unwind & rewind Shaftless pneumatic 3" cone chuck the paper core of web or chuck on a 3" air expanding shaft
Rewind tension attenuation 0~100%
Plate cylinder width range 850mm~1350mm
Plate cylinder perimeter/dia. 377mm~942mm/Φ120mm~Φ300mm
Ink transferring roller Φ100mm solvent-proof rubber
Dry method Electric heater (option: steam, thermal oil, natural gas, heat pump system)
Main frame thickness 75 mm
Space between two standard print stations 1700 mm
Unwind & rewind motor AC7.5kw+ENCODER+FAN, Equipped with Germany Rexroth Servo control system
Infeed & outfeed motor Servo motor 17.5Nm, 2.75kw with Germany Rexroth servo control system
Plate cylinder motor Servo motor 28Nm, 5.86kw with Germany Rexroth servo control system
Overall size (L*W*H) 21750×4980×3710(mm)
Machine weight About 54000kg
