Product ID: 68580663

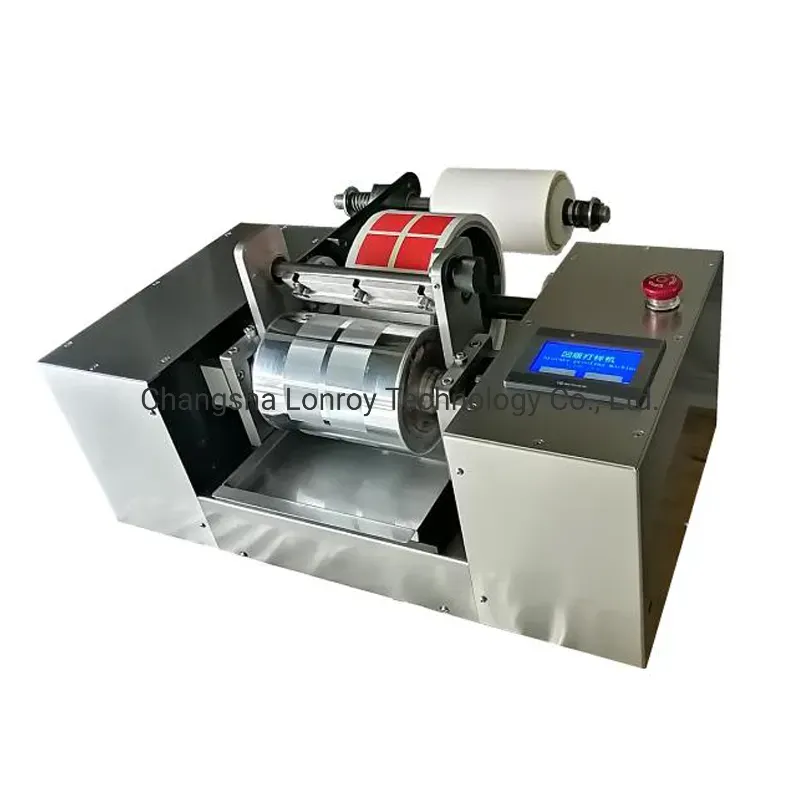

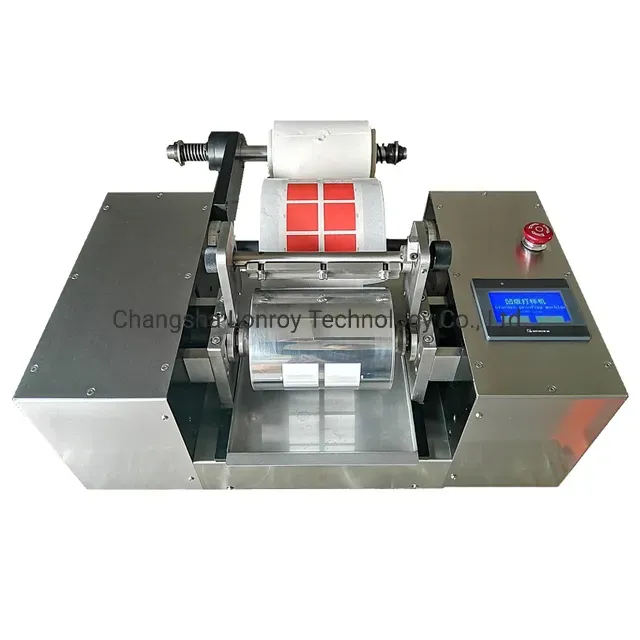

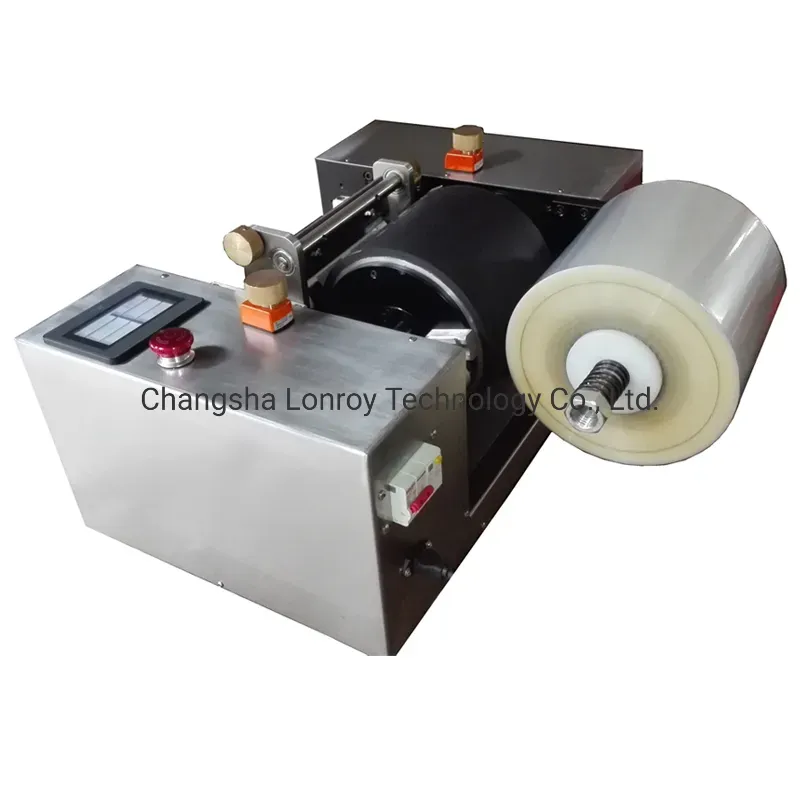

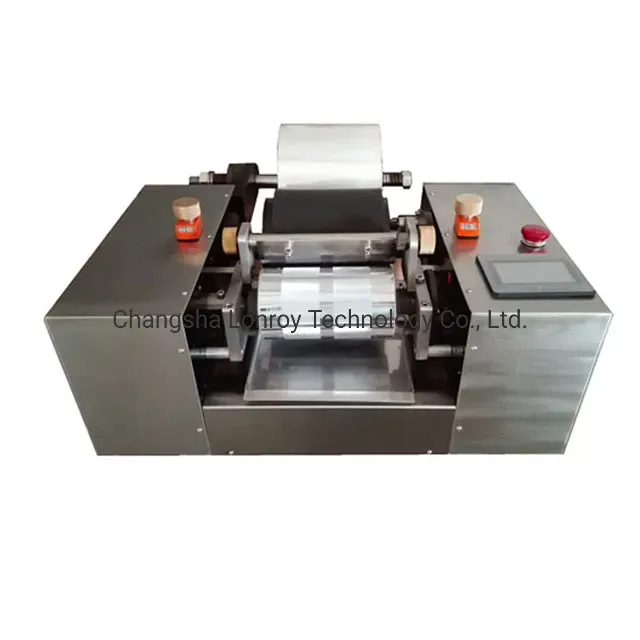

Intaglio Proof Ink Gravure Proofing Machine for Printing Lr-N002 Proofer
Contact Now
Description
Basic Info.
- Model NO. LR-N002
- Weight 100kg
- Flattening Width 700mm
- Rate of Power 450W
- Color Sample Size 55X70mm/Grid
- Transport Package Plywood Case
- Specification 300*500*700MM
- Trademark LONROY
- Origin Dongguan
- HS Code 9024800000
- Production Capacity 5000PCS Per Year
Product Description
Intaglio Proof Ink Gravure Proofing Machine For Printing LR-N002 Proofer
Character
- Motor driving system pressure
- Circle pressure circle printing way (Printing pressure: 0 to 4 mm, printing speed about 0-100 m/min), can be low overprint precision

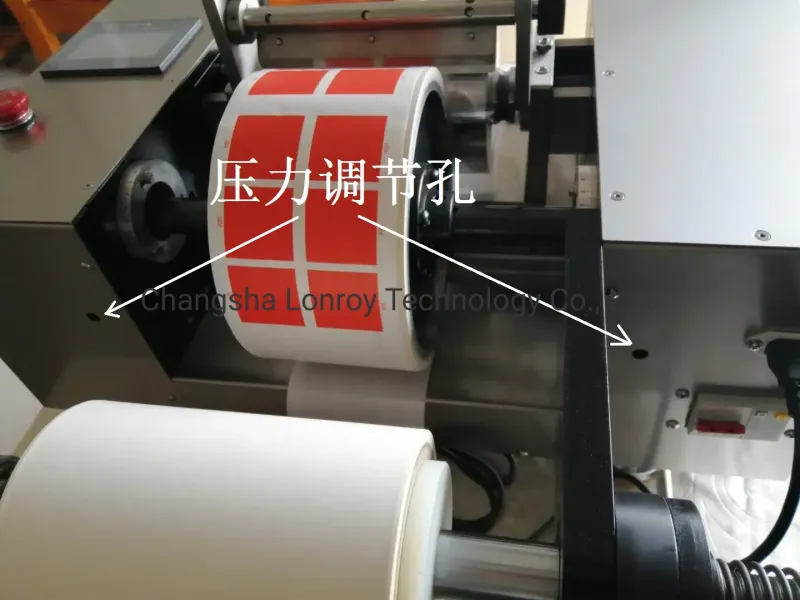

- Printing scraping blade pressure can be adjusted, speed adjustable, computer process control system
- Suitable for gravure printing ink proofing (water-based, solvent-based inks), Conductive ink, easy to use
- Using spectral density meter with test ink color
Specification
- N/G Weight 100KG
- Flattening Height 300MM
- Flattening Length 500MM
- Flattening Width 700MM
- Input Voltage 220V 50Hz
- Printing area:
- Gravure Roll size: (Length) 200mm, diameter 110mm
- Rubber roller size: (Length) 180mm, diameter 220mm
- Rate of power 450W
- Color sample size 55X70mm/Grid (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 85%, 90%, 95%, 100%, gray level)
