2 4 6 Colors Gravure Printing Machine for Nylon Aluminum Foil
Contact Now
Description
Basic Info.
- Model NO. KTGP-MS150
- Condition NEW
- After-Sales Service Provided Engineers Available to Service Machinery Overseas
- Applicable Material Stickers, Textile, Film, Paper, Plastic, BOPP, CPP, Pet, PVC, PE, Nylon, Metalized Film
- Arrangement Position of Color Groups Combined Gravure Press
- Usage Rigid Packaging Gravure, Flexible Packaging Gravure Printing Machine, Publication Gravure Machine
- Feeding Mode Web Gravure Printing Machine
- Automatic Grade Automatic
- Color & Page Double Faced Multi Colors
- Structure Rotary Type Printing Machine
- PVC Printing Yes
- Aluminum Foil Printing Yes
- Paper Printing Yes
- Film Printing Yes
- Speed 150m/Min
- Reverse Printing Turn Bar Optional
- Web Video Inspection Optional
- Product Name Rotogravure Printing Machines
- Keyword Intaglio Printing Machine
- Keyword 1 Gravure Printing Machine
- Keyword 2 Rotogravure Machine
- Keyword 3 2 Color Rotogravure Printing Machine
- Keyword 4 Roto Gravure Printing Machine
- Keyword 5 Gravure Printing Machine Price
- Keyword 6 Automatic Gravure Printing Machine
- Transport Package Wood
- Specification 15400 x 3700 x 2750mm (8 Colors)
- Trademark KETE
- Origin China
- Production Capacity 20 Sets/ Month
Product Description

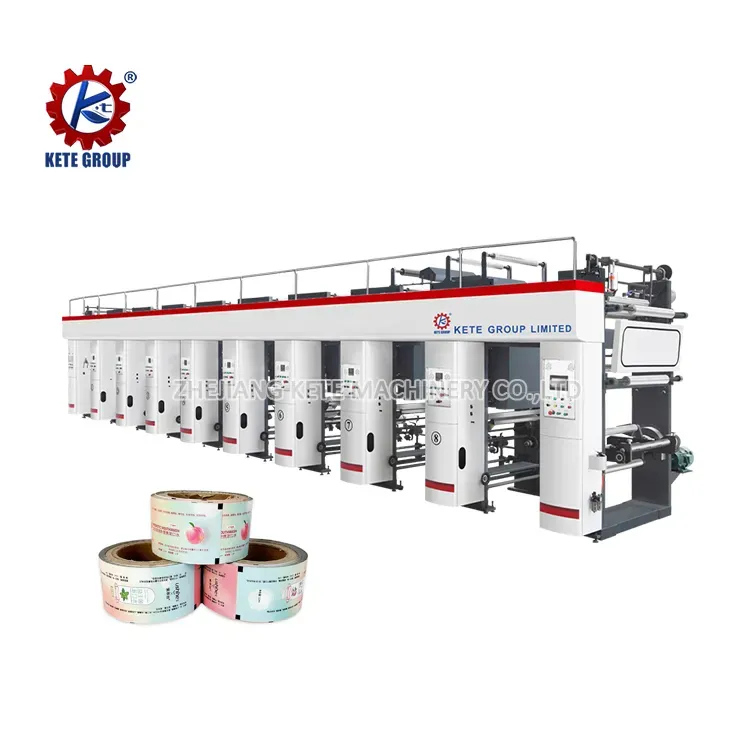

This 8 Color Rotogravure Printing Machine Is Suitable for Roll-To-Roll Printing Materials Such As BOPP, CPP, PET, PVC, PE, Nylon, Metalized Film, Paper, Aluminum Foil, etc. It Is Widely Used in High-Quality Packaging Material Printing Industries.
- Ω Unwind and Rewind with Double-Armed Rotary Type Design
- Ω Auto Ink Recycle System
- Ω Unwind and Rewind Manual Splicing and Cutting
- Ω Doctor Blade Pneumatic Type Design
- Ω Doctor Blade Moving Controlled by Separate Motor
- Ω Shaft-less Type Printing Cylinder Loading Design
- Ω With Computer Auto Color Register System
- Ω With 3 Motor Drive Tension Control System
- Ω Optional: Web Video Inspection
- Ω Optional: 7 Motor Drive Tension Control System
- Ω Optional: Water Chilling System
- Ω Optional: Reverse Printing Turn Bar
- Ω Optional: Ink Viscosity Controller
Model
KTGP-MS150
Printing Colors
4 - 12 Colors
Printing Material Width
600 mm up to 1800mm
Max. Mechanical Speed
150 m/min
Max. Printing Speed
120m/min (Cylinder Diameter ≥ 160mm)
Unwind Diameter
Φ600mm
Rewind Diameter
Φ600mm
Printing Cylinder Diameter
Φ120mm - Φ300mm
Color Register Precision (Vertical)
±0.15mm (BOPP or PET)
Heating Way
Electric Heating / Gas Heating / Oil Heating
Total Power
About 165kw (8colors)
Machine Weight
About 18000kg (8 colors)
Machine Size (LWH)
15400 x 3700 x 2750mm (8 Colors)
Machine Power
3 Phase 220 / 380 / 440v 50/60Hz
