Basic Info.

Model NO. JPS-320C-TR
Species Rotary Die-Cutting Machine
Imprinting Type Rotary Platen
Placing Form of Template Circle
Die Cutting Tool Magnetic Cylinder + Flexible or Engraved Cylinder
Computerized Computerized
Automatic Grade Automatic
Application Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products, Paper, Film, Foam, Blank Label, Sticker, Paper Roll
Rewind Mode Turret Rewind
Unwind Tension Semi-Automatic Constant Tension Control
Rewind Tension Full-Automatic Constant Tension Control
Slitter Speed 120m/Min
Die-Cutting Speed 80m/Min
Die-Cutting Length 240-476mm
Max Unwind Diameter 700mm
Max Rewind Diameter 700mm
Unwind & Rewnd Shaft 1", 1.5", 3" Optional
Dimension 1.7X0.9X1.4m (L x W x H)
Die Cutter Blank Roll: Label, Paper, Sticker, Foam, Film
Slitter Rewinder Blank & Printed Roll: Label, Paper, Sticker, Foam
Transport Package Export Wooden Case
Specification CE
Trademark JPS
Origin Kunshan, China
HS Code 844110000
Production Capacity 300 Sets/Month

Packaging & Delivery

Package Size 180.00cm * 123.00cm * 198.00cm
Package Gross Weight 1000.000kg

Product Description

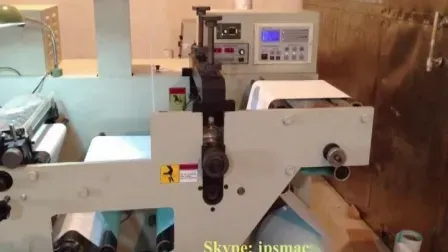

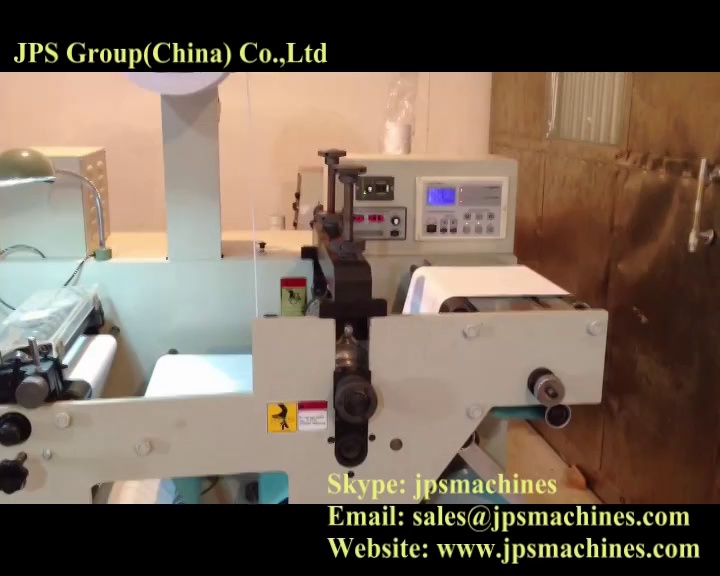

Jps-320c-Tr Automatic Blank Label Printing Paper Rotary Die Cutting & Slitting Rewinding Machine / Auto Film Sticker Roll Die Cutter Slitter Rewinder (Turret Rewinder)

Feature:

This product is suitable for blank label. Die cutting, slitting, rewinding can be in one process. It has an automatic tension controller system for unwinding and rewinding, automatic inflating air for air shafts, optional start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily.
