Overview

Product Description

Featuring cutting-edge solar panel technology, our street lights expertly harness solar energy to generate clean, renewable power. During daylight, the solar panels efficiently capture sunlight and convert it into electricity, storing it within the integrated battery system. At dusk, the street lights automatically illuminate, ensuring uninterrupted brightness throughout the night.

Equipped with high-power LEDs, our solar street lights provide exceptional brightness and visibility for cyclists, drivers, and pedestrians. Additionally, their energy-efficient design significantly reduces energy consumption and operational costs.

Our solar street lights are not only highly efficient but also robust and weather-resistant. Constructed with premium materials, they endure harsh weather conditions such as rain, snow, and extreme temperatures, guaranteeing lasting performance with minimal maintenance.

Opting for our efficient solar street lights promotes a greener, more sustainable urban environment. Reduce your carbon footprint, eliminate the dependency on traditional grid-powered street lights, and enhance the beauty and safety of your cityscape.

Detailed Photos

Product Parameters

Model NO. ED-light

Lamp Body Material Aluminum

Power 30W

Application Square, Highway, Garden, Parking Lot, Road

IP Rating IP65

With Light Source With Light Source

High Power 500W/1000W/1500W

Mounting Height 6m

Color Temperature 2700-6500K

Lumen 130lm/W

Solar Panel 5V 15W Polycrystalline Silicon

Rendering Index Ra>75

Voltage DC 12V

Transport Package Carton & Pallet

Specification Normal, Standard specification or

Trademark Edobo

Origin China

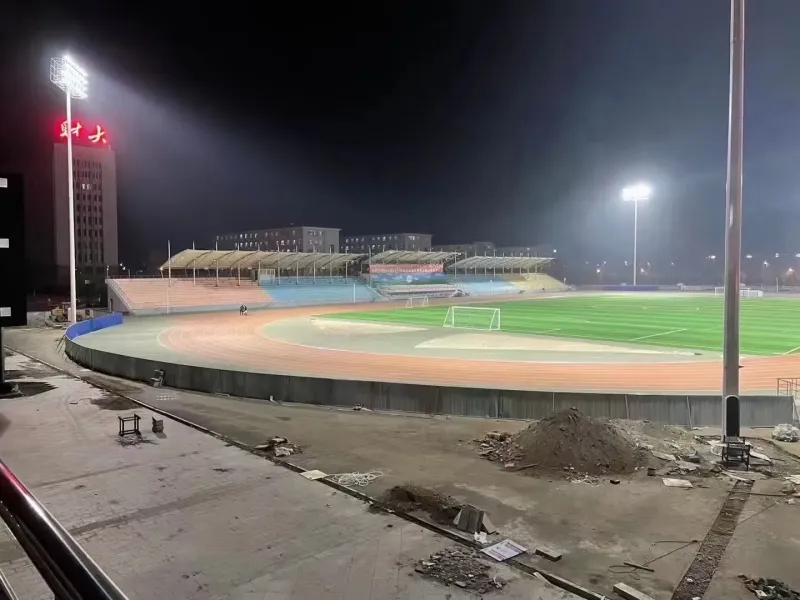

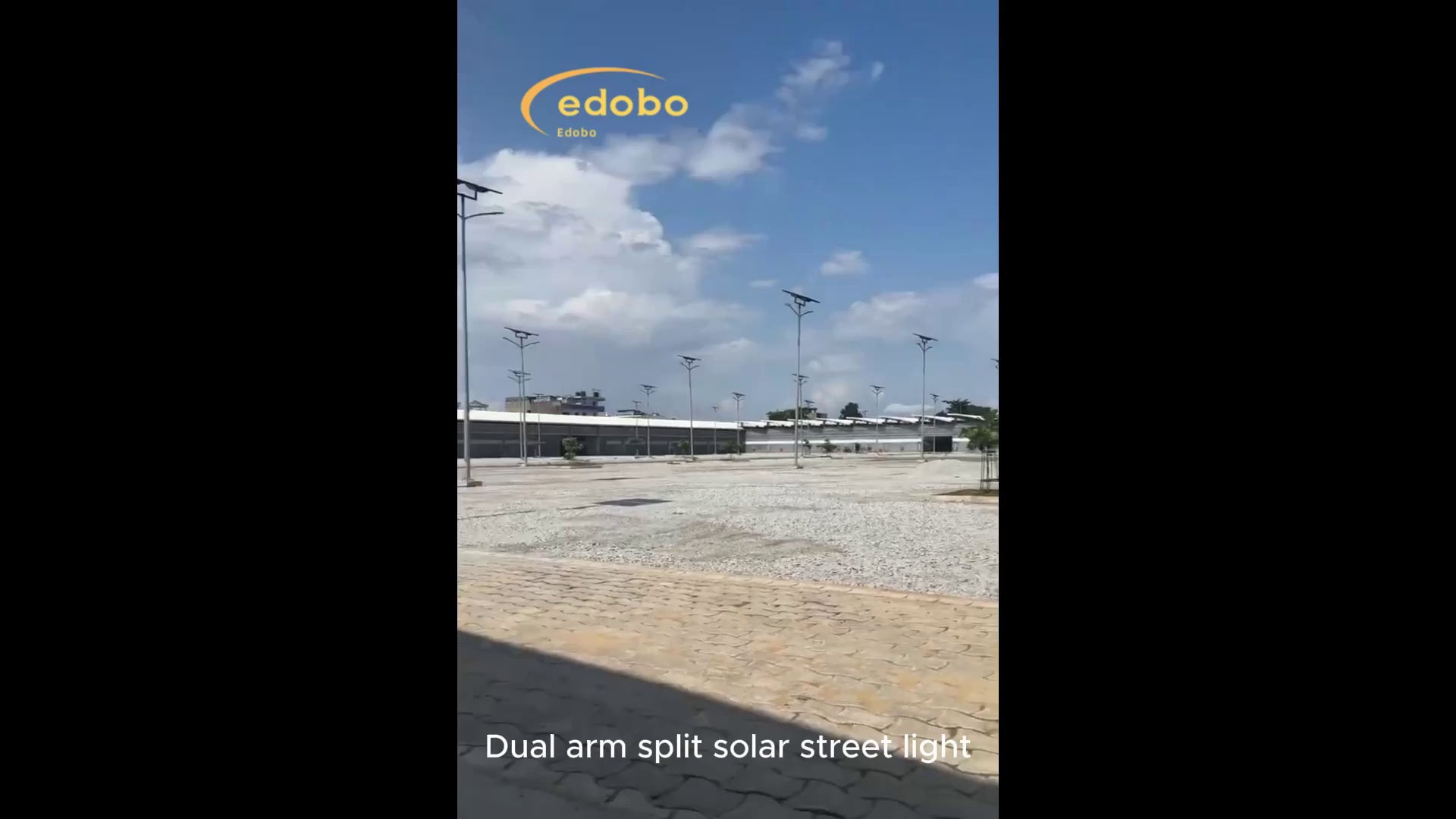

Completed Projects

Unique Integration Design

• Easy to transport, install, and maintain
• Lamp bracket adjustable in vertical and horizontal directions
• Protects battery via software and hardware, supports 0V battery charging
• High-efficiency LED chip, up to 210lm/w
• More intelligent and energy-saving
• Embedded single string control technology, more stable with a longer lifespan

Product Parameters (Detailed)

LED Street Light

• Power: 30W
• LED Chip: CREE/NICHIA/Other
• Lumens: 130lm/W
• Voltage: DC12V
• Color temperature: 2700-6500K
• Color Rendering index: Ra>75
• IP rating: IP65

• Power: 60W
• LED Chip: CREE/NICHIA/Other
• Lumens: 130lm/W
• Voltage: DC24V
• Color temperature: 2700-6500K
• Color Rendering index: Ra>75
• IP rating: IP65

• Power: 80W
• LED Chip: CREE/NICHIA/Other
• Lumens: 130lm/W
• Voltage: DC24V
• Color temperature: 2700-6500K
• Color Rendering index: Ra>75
• IP rating: IP65

• Power: 100W
• LED Chip: CREE/NICHIA/Other
• Lumens: 130lm/W
• Voltage: DC24V
• Color temperature: 2700-6500K
• Color Rendering index: Ra>75
• IP rating: IP65

Solar Panel

• Power: 120W
• Operation Voltage: 18V
• Operation Current: 6.67A
• Open circuit voltage: 22V
• Short circuit current: 6.75A
• Material Type: Mono Crystalline Silicon
• Efficiency of solar cells: 18%

• Power: 120W*2 PCS
• Operation Voltage: 18V
• Operation Current: 6.67A
• Open circuit voltage: 22V
• Short circuit current: 6.75A
• Material Type: Mono Crystalline Silicon
• Efficiency of solar cells: 18%

• Power: 150W*2 PCS
• Operation Voltage: 18V
• Operation Current: 8.4A
• Open circuit voltage: 22V
• Short circuit current: 8.8A
• Material Type: Mono Crystalline Silicon
• Efficiency of solar cells: 18%

• Power: 200W*2 PCS
• Operation Voltage: 18V
• Operation Current: 11.12A
• Open circuit voltage: 22V
• Short circuit current: 11.46A
• Material Type: Mono Crystalline Silicon
• Efficiency of solar cells: 18%

Battery Options

Option 1: Gel Battery

• Rated Capacity: 100AH
• Rated Voltage: 12V
• Deep Cycle
• Maintenance Free

• Rated Capacity: 100AH*2 PCS
• Rated Voltage: 12V
• Deep Cycle
• Maintenance Free

• Rated Capacity: 120AH*2 PCS
• Rated Voltage: 12V
• Deep Cycle
• Maintenance Free

• Rated Capacity: 150AH*2 PCS
• Rated Voltage: 12V
• Deep Cycle
• Maintenance Free

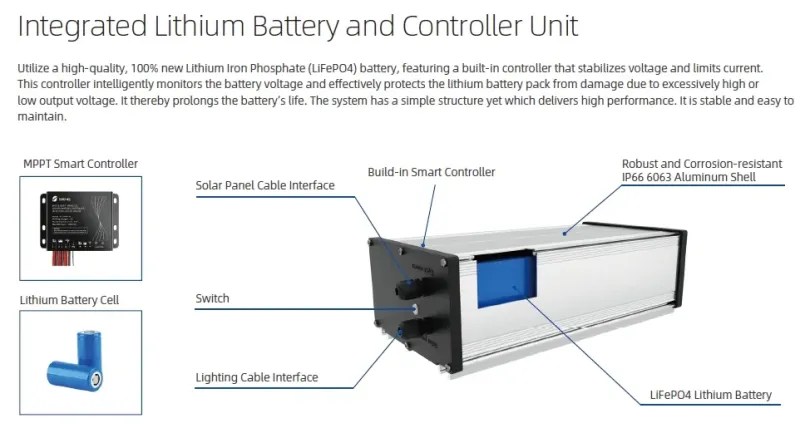

Option 2: Lithium Battery

• Rated Capacity: 72AH
• Rated Voltage: 12.8V
• Deep Cycle: 2500 times
• Maintenance Free
• Type: LiFePO4 18650 / 32650

• Rated Capacity: 72AH
• Rated Voltage: 25.6V
• Deep Cycle: 2500 times
• Maintenance Free
• Type: LiFePO4 18650 / 32650

• Rated Capacity: 84AH
• Rated Voltage: 25.6V
• Deep Cycle: 2500 times
• Maintenance Free
• Type: LiFePO4 18650 / 32650

• Rated Capacity: 102AH
• Rated Voltage: 25.6V
• Deep Cycle: 2500 times
• Maintenance Free
• Type: LiFePO4 18650 / 32650

Solar Controller

• Rated Voltage: 12V/24V
• Rated Current: 10A
• Automatic Light and Time Control
• Over-Charging / Discharging Protection
• Reverse connection

• Rated Voltage: 12V/24V
• Rated Current: 15A
• Automatic Light and Time Control
• Over-Charging / Discharging Protection
• Reverse connection

• Rated Voltage: 12V/24V
• Rated Current: 20A
• Automatic Light and Time Control
• Over-Charging / Discharging Protection
• Reverse connection

• Rated Voltage: 12V/24V
• Rated Current: 20A
• Automatic Light and Time Control
• Over-Charging / Discharging Protection
• Reverse connection

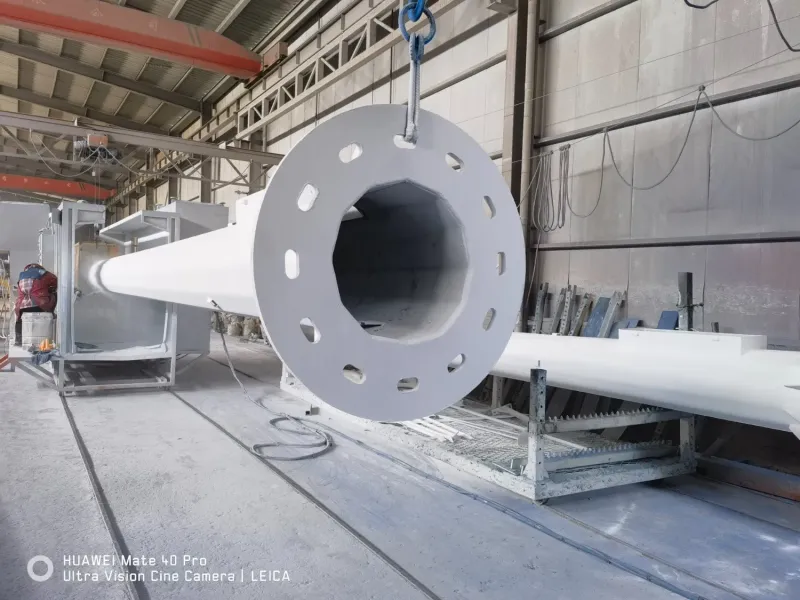

Street Light Pole

• Height: 6m
• Top/ Bottom Diameter: 70/140 mm ; Thickness: 3.0mm
• Flange: 240*240*12 mm
• Hot dip galvanized pole
• with powder coating

• Height: 8m
• Top/ Bottom Diameter: 80/160 mm ; Thickness: 3.5mm
• Flange: 300*300*14 mm
• Hot dip galvanized pole
• with powder coating

• Height: 10m
• Top/ Bottom Diameter: 90/190 mm ; Thickness: 4.0mm
• Flange: 350*350*18 mm
• Hot dip galvanized pole
• with powder coating

• Height: 12m
• Top/ Bottom Diameter: 100/210 mm ; Thickness: 4.5mm
• Flange: 400*400*20 mm
• Hot dip galvanized pole
• with powder coating

Anchor Bolt

• J bolt : M16
• Number of J bolt: 4 pcs
• Length of J bolt: 500 mm
• (hot galvanized J bolt available)

• J bolt : M18
• Number of J bolt: 4 pcs
• Length of J bolt: 700 mm
• (hot galvanized J bolt available)

• J bolt : M18
• Number of J bolt: 4 pcs
• Length of J bolt: 900 mm
• (hot galvanized J bolt available)

• J bolt : M20
• Number of J bolt: 4 pcs
• Length of J bolt: 1100 mm
• (hot galvanized J bolt available)

Cable

• RVV 2*2.5mm²
• RVV 2*2.5mm²
• RVV 2*2.5mm²
• RVV 2*2.5mm²

Shipping

We ship worldwide via DHL, UPS, FEDEX, EMS, air, or sea. We choose the fastest and most reliable delivery method to save on shipping costs and ensure safe delivery.

• Items will ship within 2-7 business days after payment is received.
• You can freely mix items to place an order, helping you save shipping costs.
• Import duties, taxes, and charges in the buyer's country are not included in the item price or shipping charges. These charges are the buyer's responsibility.

Return & Warranty

• Items will be tested before shipping.
• 3 to 5 years manufacturer's limited warranty for defective items (excluding items misused or physically damaged by the buyer).
• Defective items MUST be reported and returned within the warranty period in the original packaging, including a return tracking number.
