High Power Waterproof LED Floodlight with Motion Sensor
Description
Overview
Basic Info.
- Model NO. MF-HM-E600W
- IP Rating IP65
- Certification CCC, CE, EMC, ETL, LVD, RoHS, SAA, VDE
- Suger Protection 6kv/10kv
- Luminous Efficacy 150lm/W
- Warranty Period 5 Years
- Lifespan 50, 000hrs
- Thd 15%
- PF >0.95
- Lens Material Polycarbonate
- CRI 70+/80+
- Driver Sosen / Meanwell / Inventronics
- Beam Angle 10°/20°/40°/60°
- Transport Package Carton Box
- Specification 365 L*201 W*269 H mm
- Trademark MF
- Origin China
- HS Code 9405499000
- Production Capacity 10000PCS Per Months
Product Description
600W 1200W High Power Narrow Beam Angle Floodlight Waterproof IP65 Dali Dimmable Power Adjustable Motion Sensor LED High Mast Light LED Flood Light
Quick Detail
- Construction
- Ruggedly designed with die cast aluminum housing and clear polycarbonate lens.
- Intelligently designed heat sink to facilitate maximum air flow.
- Fixture is lightweight compared to most sports floods and has and slip fit mount for precise aiming.
- Electrical
- Standard unit comes with 100-277v/347v/480v driver with 6kV internal surge suppressor and 10kV external surge suppressor and has powerfactor above 0.95.
- Light Performance
- Standard unit comes with a dedicated CCT of 3000K to 6500K.
- Fixture is available in 10°,20°,40°,60° distributions for Sports flood applications.
- Mounting
- 2 mounting options available - Yoke, highbay yoke. Purchase mounting option separately. Mounting option is field installed.
- Cold Weather Starting
- Minimum starting temperature is -40°C (-40°F)
- Maximum Ambient Temperature
- Suitable for use in up to 40°C (104*F)
- Housing
- Die-cast aluminum
- Factory Installed Options
- 7 PIN Receptacle with Shorting Cap
- ANSI C136. 41-2013 compliant, Photocell
- Optional 20kV Surge Protection
- Tilt increment
- Trunnion: +-90°
- Lens
- Clear Polycarbonate Lens
- Gaskets
- High-temperature silicone
- Green Technology
- Mercury and UV free. RoHs-compliant components.
- Finish
- Formulated for high durability and long lasting color. Available in bronze & white, black, silver finish.
- IP Rating
- Ingress protection of IP65 for dust and water
Specifications
| Wattage | 200W | 400W | 600W | 800W | 1000W | 1200W | 1400W | 1600W | 1800W |
|---|---|---|---|---|---|---|---|---|---|
| Lumen Output | 29600LM | 60000LM | 90000LM | 120000LM | 150000LM | 180000LM | 210000LM | 240000LM | 270000LM |
| LED Brand | Lumi-leds | ||||||||
| LED Driver | SOSEN/MEANWELL/INVENTRONICS | ||||||||
| Luminous Efficacy | 150LM/W | ||||||||
| Beam Angle | 10°/20°/40°/60° | ||||||||
| Color Temperature | 3000K,4000K,5000K,6000K, CCT etc | ||||||||
| Input Voltage | 100-277V | ||||||||
| CRI | 70/80/90 | ||||||||
| Life Hours | 50000H | ||||||||
| Surge Voltage | 10KV | ||||||||
| Operation Temperature | Ta=40 | ||||||||
| IP Rating | IP65 | ||||||||
| Warranty | 5years |

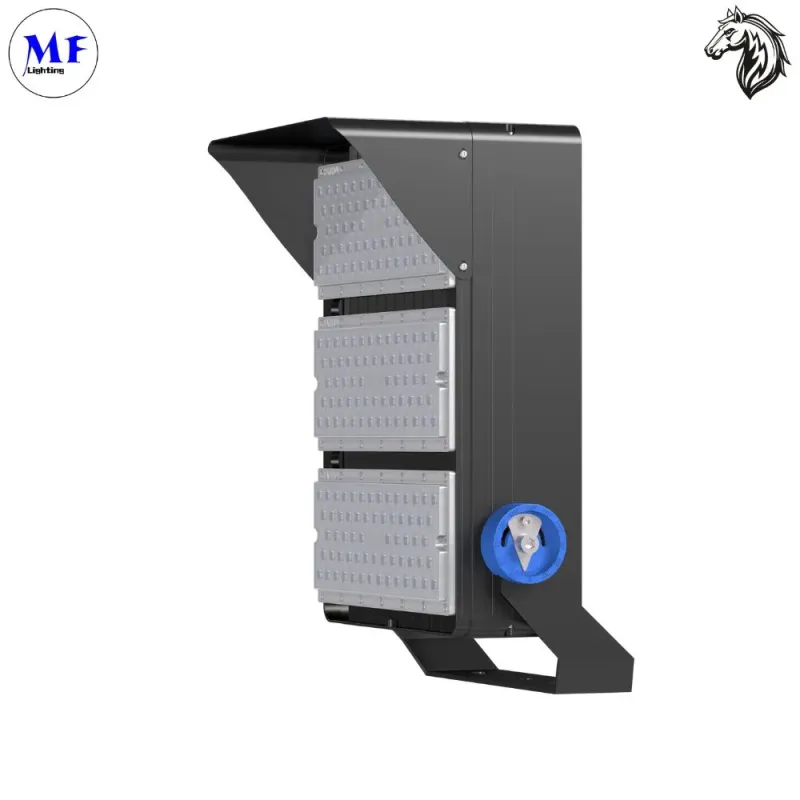

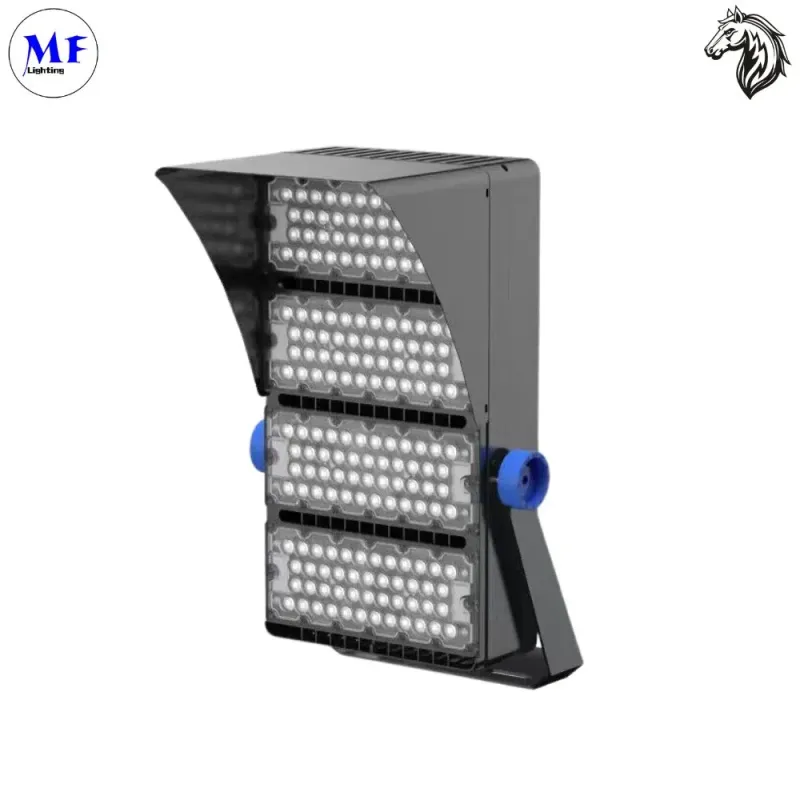

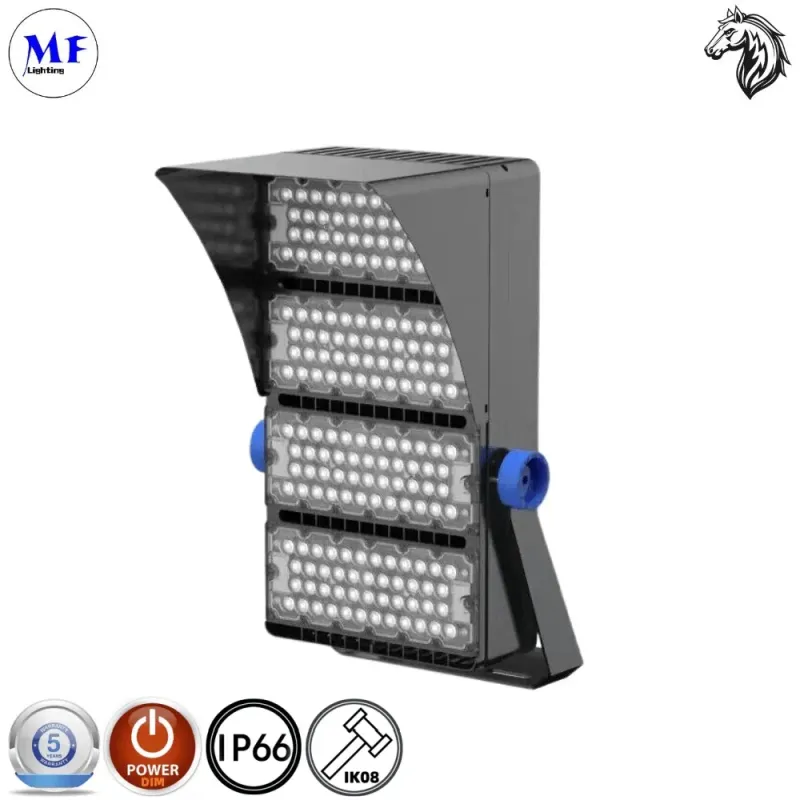

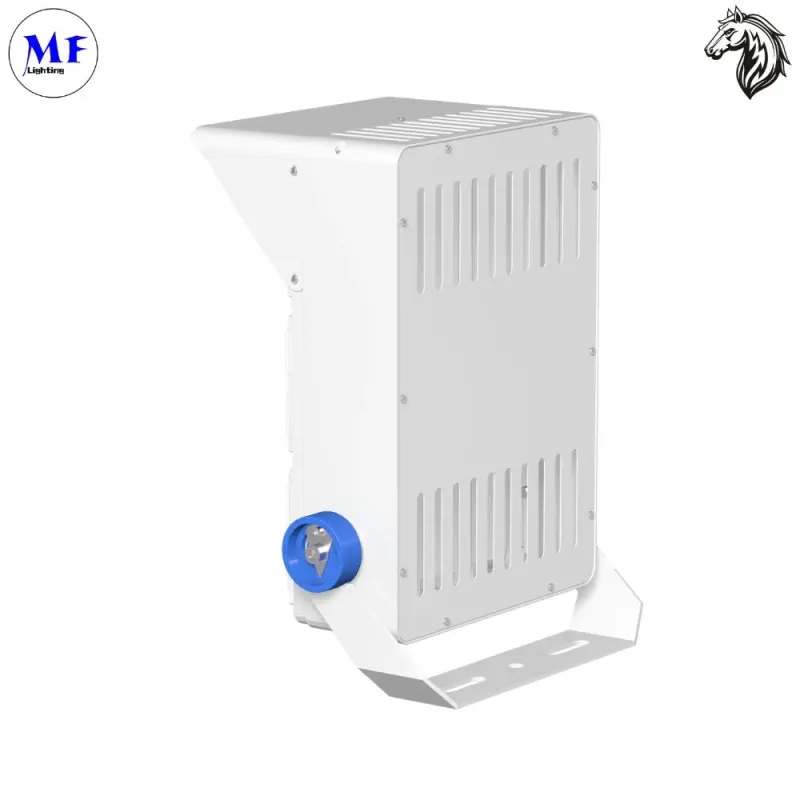

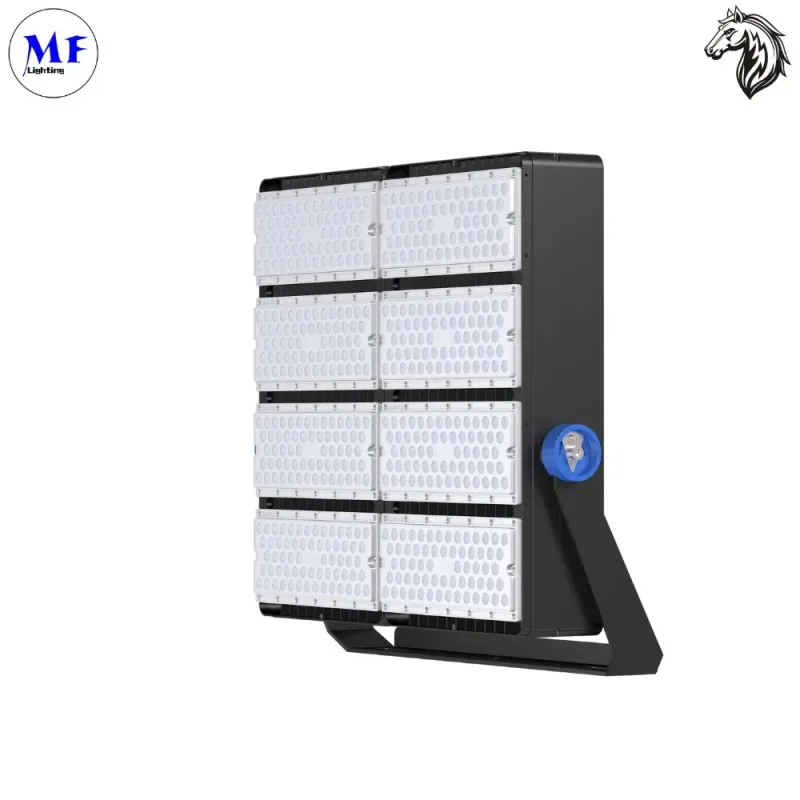

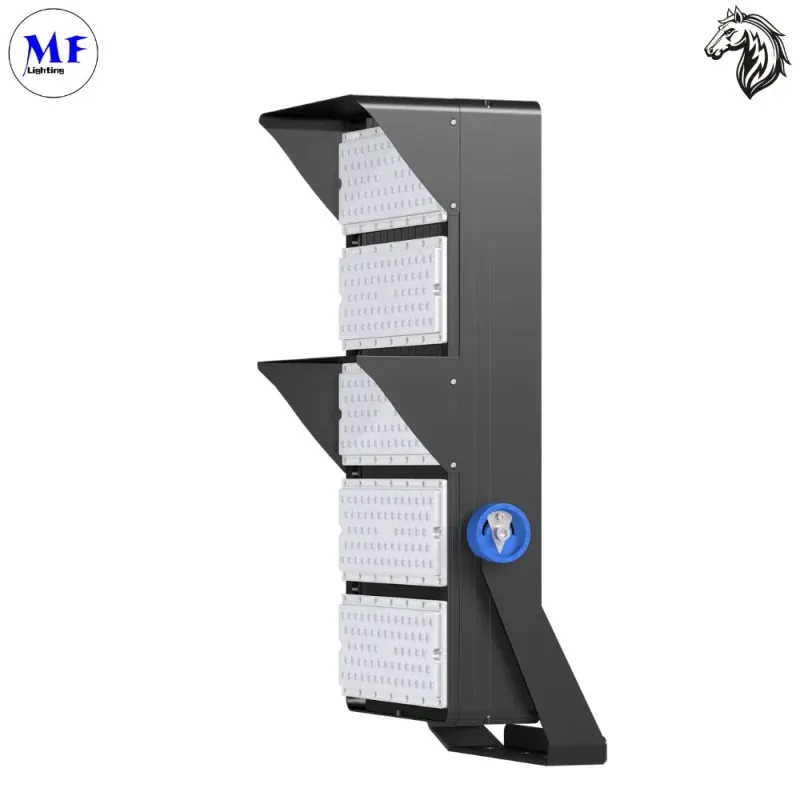

Detailed Photos
The Hi-flood fixture is a versatile, high performance sports flood light designed for recreational and collegiate outdoor fields. It can also be used as a highbay fixture for high ceiling applications such as airplane hangers and large warehouses and distribution centers.
Dimension
Installation Instructions
Packaging & Shipping
Applications
This LED floodlight is suitable for a wide range of commercial, public, and industrial lighting applications. It can be used to illuminate tunnels, supermarkets, large retailers, schools, billboards, and buildings, among others. In public lighting, it is ideal for lighting up airports, train stations, bus stations, and toll stations. For industrial lighting, it is perfect for use in manufacturing facilities, warehouses, parking lots, exhibition centers, and gas stations. It can also be used in stadiums and other sports facilities. With its high-quality components and versatile design, this LED floodlight is a reliable and efficient lighting solution for a wide range of environments.
- Outdoor Sports
- Soccer Fields
- Stadium
- Airport/Seaport
- Parking Lots
- Exhibition Center
- Golf course
- High Mast
FAQ
What is an LED floodlight? An LED floodlight is a type of lighting fixture that uses Light Emitting Diodes (LEDs) to provide high-intensity, broad-beamed lighting for outdoor spaces. LED floodlights are commonly used for illuminating sports fields, parking lots, building facades, and other outdoor areas.
How long do LED floodlights last? LED floodlights have a long lifespan, typically lasting up to 50,000 hours or more. This is significantly longer than traditional lighting solutions, which typically last between 1,000 and 10,000 hours.
Are LED floodlights energy-efficient? Yes, LED floodlights are highly energy-efficient, consuming significantly less power than traditional lighting solutions. This results in reduced energy costs and a lower carbon footprint.
Can LED floodlights be dimmed? Yes, LED floodlights can be dimmed using compatible dimming controls. However, it is important to ensure that the LED floodlight is compatible with the specific dimming control being used.
Are LED floodlights suitable for outdoor use? Yes, LED floodlights are designed to withstand harsh weather conditions, making them ideal for outdoor use. They are resistant to water, dust, and other environmental factors, ensuring long-term reliability and performance.
