High Mast Pole LED Sports Lighting Fixtures
Description
Overview
Basic Info.
Model NO. RB-FLL-1000WSD
Power 500W 600W 750W 1000W 1500W
Projection Distance 30-100m
Application Park, Square, Factory, Garden, Sports Stadium, Football Field
IP Rating IP66
Certification CCC, CE, EMC, ETL, LVD, RoHS, SAA, VDE
Operating Voltage 100-277V/347-480V
Input Voltage 220V
LED Chips Brand Osram
Control Method 0-10V/Dali/DMX/Photocell Sensor/Bluetooth
Power Efficiency >95%
Driver Meanwell/Inventronics/Sosen
LED Luminous Efficiency 160-170lm/W
CCT 3000K/4000K/5000K/5700K/6500K/10000-20000K
Housing Color Black, Grey, White
Working Temperature -40 to +65 C
Warranty 5 Years
Beam Angle 15/20/30/40/60/90/120/100X150 Deg
Lifespan 70000 Hours
CRI Ra>80/Ra>90
Installation Height 15m 18m 20m 25m 30m 35m 40m 50m
OEM Yes
Transport Package 1 PCS/CTN
Specification European Standard
Trademark RAYBORN
Origin China (Mainland)
HS Code 9405409000
Production Capacity 30000 PCS/Month
Packaging & Delivery
Package Size 75.00cm * 65.00cm * 55.00cm
Package Gross Weight 21.000kg
Product Description
High Quality Factory Direct Sales High Power LED Flood Light for High Power Outdoor High Mast Pole Lighting 400W 500W 600W 750W 800W 1000W 1200W 1500W DMX Sport Field Tennis Court Football Basketball Arena Cricket Stadium Football Pitch soccer field LED Flood Lighting
Product Parameters
| Model | Power | Input Volt | LED Type | LED (pcs) | Power Factor | Power Efficiency | Driver | RA | Lumen (Lm/W) | Control method | Light body material | Beam angle | CCT | Protection level | Installation diameter | Lightning protection level | Work temp | Work humidity | Warranty/Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-FLL-50WSD | 50W | 100-277V/277-480V/AC 50/60Hz | 3030SMD | 64/84pcs | >0.98 | >95% | MEANWELL, INVENTRONICS,SOSEN, according to customer needs | Ra>80/Ra>90 | 140l-160m/W | Ordinary, 0/1-10V, PMW, DALI,DMX,Photocell sensor | Die-casting aluminum lamp body + pc cover +304 stainless steel screws | 15/25/40/60/90/120/138*75Deg | 3000K/4000K/5000K/5700K/6500K/10000K | IP66/IK09 | Adjustable angle bracket installation | 10KV or 20KV, according to the actual needs of customers | -40ºC~65ºC | 10%~90% | 5years/50,000hrs |
Primary Competitive Advantages of Rayborn New Design Outdoor /Indoor Stadium LED Flood Lights
- Taiwan MeanWell or INVENTRONICS drivers, 3030/5050SMD single power LED chips.
- Finned radiators, very good heat dissipation.
- Flexible positions can be adjusted within 180°.
- Waterproof IP66 design, elimination mist, avoid condensation, widely used for indoor and outdoor environment.
- Reflector 20° /40°/ 60°/90°/120°/140*100° beam angles are available, meet the requirements of professional light distribution and can be use at different place.
- 100W to 1500W can be chosen, 5 years warranty.

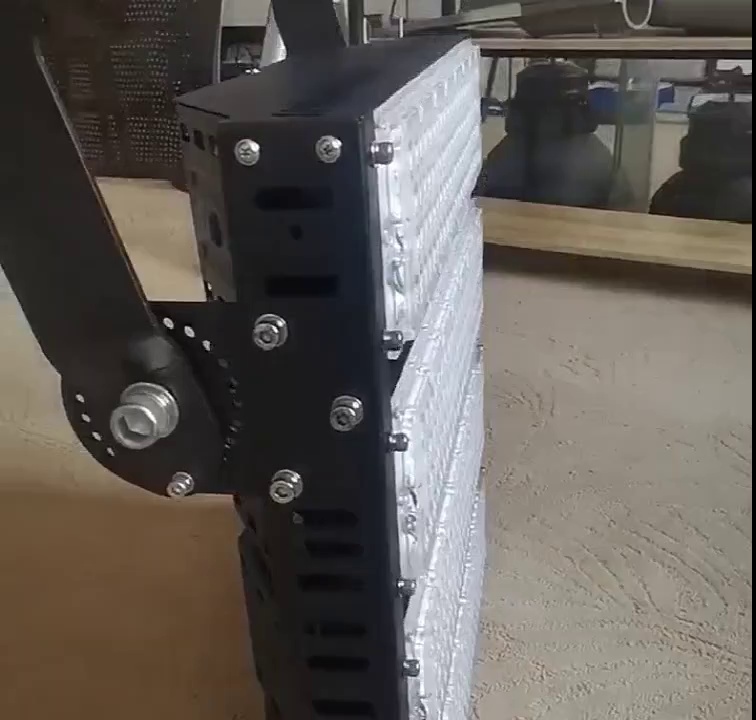

Detailed Photos
Product Description
Features of Outdoor Rayborn LED Stadium Flood Light:
- 200W 300W 400W 500W 600W, 750W ,800W, 1000W 1250W 1500W 2000 Watt power, two installation methods :
- Total luminous flux up to 170lm/W;
- High index CRI>90, TLCI>90, R9>20, common CRI>80 optional;
- High-purity aluminum integrated cold segment fin heat dissipation, fast heat conduction and excellent heat dissipation performance;
- Professional light distribution, the lens is available in a variety of angles such as narrow, medium and wide;
- Professional anti-overflow hood to effectively control spillage and avoid light pollution;
- Protection grade IP66, IK08, resistance to 17 winds, no fear of outdoor harsh environment;
- Maximum surge voltage (T3) Vmax 20KV.
Product Production
Industrial Waterproof IP66 Floodlight LED Sports Lighting Production Workshop:
Before shipping, all our LED football lighting will be over 12 hours aging tested, inspection department will test 100% products including light up test, power wattage test, high-Voltage test, waterproof test, ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Strict Tests of LED Flood Arena Lights Used Outdoor/Indoor:
Packaging & Shipping
Packaging of Outdoor LED Sports Floodlight : Our individual package maximize protecting the lights from transfer damage in transit.
- Label on backside of each flood LED lights and your required label is available.
- One piece led flood Light/reflectors for soccer fields per carton.
- This is our regular packing of the led flood lamps, if you need, we can also custom color packing and put your logo on it.
Shipping of High Mast Sports Light : By Sea,Train:
- Soccer field lights Big quantity advised to be shipped by sea.
- Samples advised to be shipped by express or Air
Design Simulation
LED Sports Flood Light/Reflectors for Soccer Fields Dialux:
Product Testing Equipment:
Certification:
Applications
Applications of IP66 LED Stadium Flood Light :
- Advertising board, playground and stadium lighting.
- Parking lot and airport lighting.
- Highway and Railway tunnel lighting.
- Bridge and culvert lighting.
- Square and building lighting.
Widely used in factory, gymnasium, billboards, buildings, and Lighting project etc.
