High-Power LED Flood Lights for Sports Facilities
Description
Basic Info.
Packaging & Delivery
Product Description
Specifications of Outdoor LE Sports Flood Lights :
| Model | RB-FLL-50WSD | RB-FLL-100WSD | RB-FLL-150WSD | RB-FLL-200WSD |
| Power | 50W | 100W | 150W | 200W |
| Input Volt | 100-277V/277-480V/AC 50/60Hz | |||
| Led Type: | 3030SMD | |||
| Led(pcs) | 64pcs | 128pcs | 192pcs | 256pcs |
| Power Factor: | >0.98 | |||
| Power Efficiency: | >95% | |||
| Driver | MEANWELL, INVENTRONICS,SOSEN, according to customer needs | |||
| Ra | Ra>80/Ra>90 | |||
| Lumen(Lm/W) | 140lm/W | |||
| Control method | Ordinary, 0/1-10V, PMW, DALI,DMX,Photocell sensor | |||
| Light body material | Die-casting aluminum lamp body + pc cover +304 stainless steel screws | |||
| Beam angle | 30/60/90/70*145Deg | |||
| CCT: | 3000K/4000K/5000K/5700K/6500K/10000K | |||
| Protection level | IP66/IK09 | |||
| Installation diameter | Adjustable angle bracket installation | |||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | |||
| Work temp | -40ºC~65ºC | |||
| Work humidity | 10%~90% | |||
| Warranty/Life | 5years/50,000hrs | |||
| Model | RB-FLL-250WSD | RB-FLL-300WSD | RB-FLL-400WSD | RB-FLL-500WSD |
| Power | 250W | 300W | 400W | 500W |
| Input Volt | 100-277V/277-480V/AC 50/60Hz | |||
| Led Type: | Chip 3030SMD | |||
| Led(pcs) | 320pcs | 384pcs | 512pcs | 640pcs |
| Power Factor: | >0.98 | |||
| Power Efficiency: | >92% | |||
| Driver | MEANWELL, INVENTRONICS,SOSEN, according to customer needs | |||
| Ra | Ra>80 | |||
| Lumen(Lm/W) | 140lm/W | |||
| Control method | Ordinary, 0-10V, PMW, DALI,DMX,Photocell sensor | |||
| Light body material | Die-casting aluminum lamp body + pc cover +304 stainless steel screws | |||
| Beam angle | 30/60/90/70*145Deg | |||
| CCT: | 3000K/4000K/5000K/5700K/6500K/10000K | |||
| Protection level | IP66/IK09 | |||
| Installation diameter | Adjustable angle bracket installation | |||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | |||
| Work temp | -35ºC~65ºC | |||
| Work humidity | 10%~90% | |||
| Warranty/Life | 5years/50,000hrs | |||
| Model | RB-FLL-500WSDC | RB-FLL-600WSDC | RB-FLL-800WSDC | RB-FLL-1000WSD |
| Power | 500W | 600W | 800W | 1000W |
| Input Volt | 100-277V/277-480V/AC 50/60Hz | |||
| Led Type: | Chip 5050SMD | |||
| Led(pcs) | 184pcs | 276pcs | 368pcs | 460pcs |
| Power Factor: | >0.98 | |||
| Power Efficiency: | >92% | |||
| Driver | MEANWELL, INVENTRONICS,SOSEN, according to customer needs | |||
| Ra | Ra>80 | |||
| Lumen(Lm/W) | 140lm/W | |||
| Control method | Ordinary, 0-10V, PMW, DALI,DMX,Photocell sensor | |||
| Light body material | Die-casting aluminum lamp body + pc cover +304 stainless steel screws | |||
| Beam angle | 8/20/40/60/90/100*140Deg | |||
| CCT: | 3000K/4000K/5000K/5700K/6500K/10000K | |||
| Protection level | IP66/IK09 | |||
| Installation diameter | Adjustable angle bracket installation/Adjustable module | |||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | |||
| Work temp | -40ºC~65ºC | |||
| Work humidity | 10%~90% | |||
| Warranty/Life | 5years/50,000hrs | |||
Primary Competitive Advantages of Our New Design Outdoor Arena LED Flood Lights as Below :
1. Taiwan MeanWell or INVENTRONICS drivers, 3030/5050SMD single power LED chips.

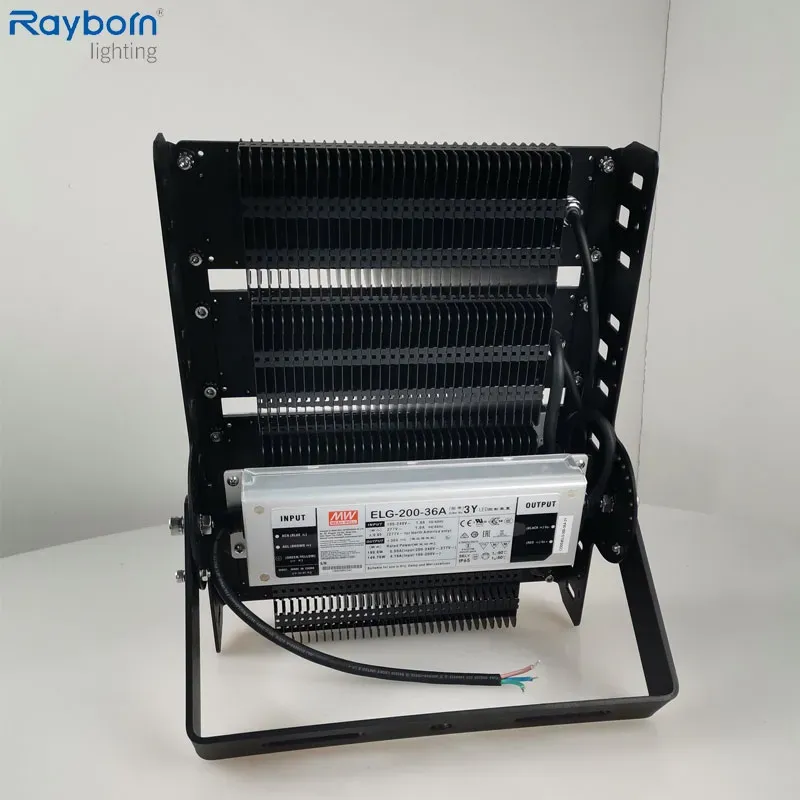

2. Finned radiators, very good heat dissipation.
3. Flexible positions can be adjusted within 180°.
4. Waterproof IP66 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5. Reflector 8°/20° /40°/ 60°/90°/120°/140*100° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 100W to 1500W can be chosen, 5 years warranty.
Features of Outdoor Flood light LED :
2. Total luminous flux up to 170lm/W;
3. High index CRI>90, TLCI>90, R9>20, common CRI>80/CRI>90 optional;
4. High-purity aluminum integrated cold segment fin heat dissipation, fast heat conduction and excellent heat dissipation performance;
5. Professional light distribution, the lens is available in a variety of angles such as narrow, medium and wide;
6. Professional anti-overflow hood to effectively control spillage and avoid light pollution;
7. Protection grade IP66, IK10, resistance to 17 winds, no fear of outdoor harsh environment;
8. Maximum surge voltage (T3) Vmax 20KV.
LED Stadium Lights Production Workshop:
Strict Tests of industrial IP66 flood LED Lights :
Before shipping, all our LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Rayborn Testing Equipment:
Packaging of Outdoor led flood Light :
Our individual package maximize protecting the lights from transfer damage in transit.
1.Label on backside of each flood LED lights and your required label is available.
2.One piece led flood Light per carton.
3.This is our regular packing of the led flood lamps,if you need,we can also custom color packing and put your logo on it.
Shipping of Flood LED Lights : By Sea,Air,Express,Railway
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.
LED Flood Light Dialux:
Certification:
Applications of IP66 Outside Flood Light LED :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,landscaping,the site of light project and decorative lighting project etc.
