Product ID: 68551334
Hydraulic UBC Metal Baler for Scrap Aluminum, Can, Steel & Industrial Metal Shaving Machine
Contact Now
Description
Overview
Basic Info.
- Model NO. WEMA-63
- Type Scrap Metal Baler
- Automation Automatic
- Certification ISO, CE
- Bale Size 200*200mm
- Motor Power 7.5kw/10HP
- Chamber 800*500*450mm
- Pressure 63tons
- Weight 3tons
- Transport Package Wooden Case
- Specification 3000*1800*1400mm
- Trademark WELL-Atech
- Origin China
- HS Code 8422400090
- Production Capacity 300sets
Packaging & Delivery
- Package Size 310.00cm * 190.00cm * 150.00cm
- Package Gross Weight 3050.000kg
Product Description
WEM series hydraulic metal baler is used for compressing various metal scraps into blocks, which can not only reduce transportation and smelting costs, but also increase production. It's the ideal equipment for metal scrap treatment in steel plants, non-ferrous metal plants and smelting plants.

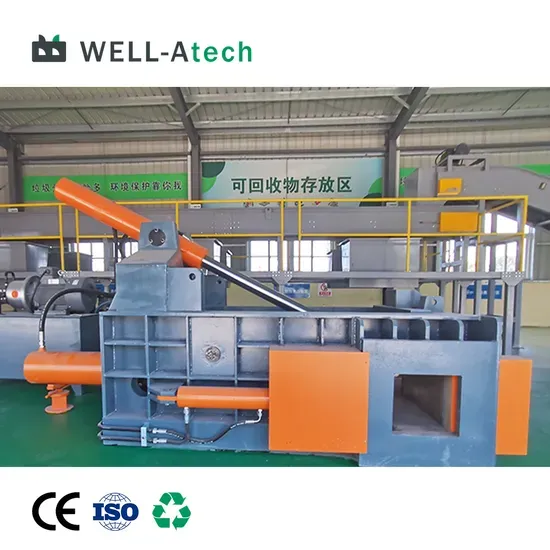

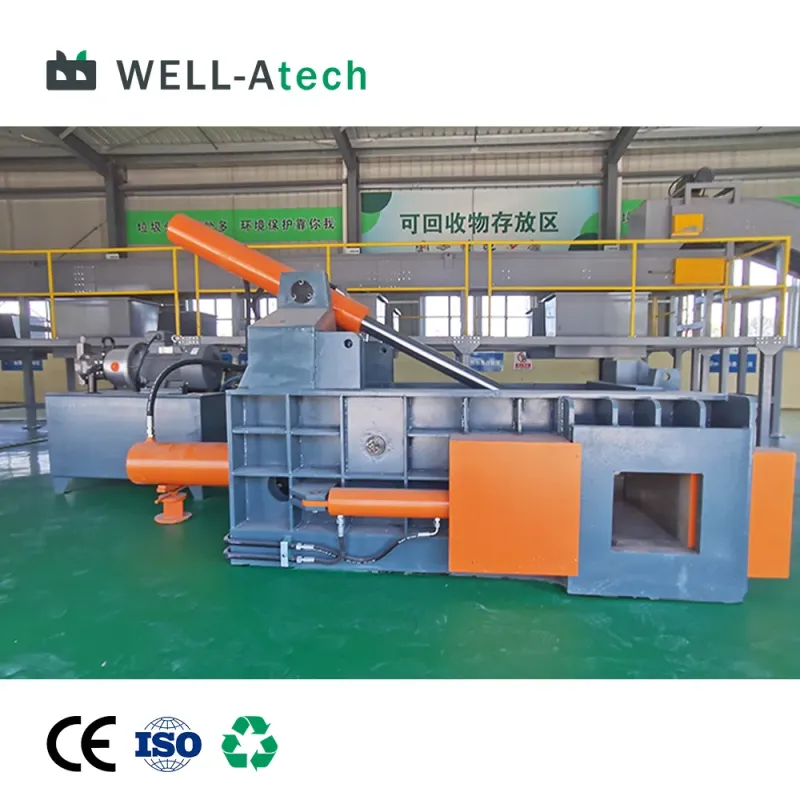

Project Site
Product Parameters
| Model | WEM-63 | WEM-125 | WEM-160 | WEM-200 | WEM-250 |
|---|---|---|---|---|---|
| Pressure(ton) | 63 | 125 | 160 | 200 | 250 |
| Power | 7.5 KW | 15 KW | 30 KW | 18.5 KW*2 | 22 KW*2 |
| 10 HP | 10 HP | 20 HP | 40 HP | 25 HP*2 | 30 HP*2 |
| Hopper Size(L*W*H) | 800*500*450 mm | 1200*700*600 mm | 1400*800*700 mm | 1800*1200*800 mm | 2000*1400*900 mm |
| Bale Size | 200*200 mm | 250*250/300*300 mm | 300*300/400*400 mm | 300*300/400*400 mm | 400*400/500*500 mm |
| Bale Weight | 10 kg | 15/20 kg | 30/50 kg | 100/150 kg | 200/250 kg |
| Cycle Time | 60 s | 90 s | 100 s | 120 s | 120 s |
| Net Weight | 3 t | 4.8 t | 9 t | 16 t | 19 t |
| Dimension | 3000*1800*1400mm | 4200*2150*1800mm | 8450*3150*2260mm | 5250*5450*2100mm | 5450*5650*2200 mm |
| Voltage | Can be customized |
Features
Application
Mainly used for UBC, scrap metal, metal shavings, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrap car etc.
