Basic Info.

Model NO.	HSS-450
Application	Machinery & Hardware, Food, Commodity, Kitchen
Type	High Speed Rewinding Machine
Work Method	Flat Knife Slitting
Structure	Cutting Part
Packaging	Case
Classification	High Speed Rewinding Machine
Applicable Process	Final Inspection
Suitable Substrates	Aluminum Foil, Baking Paper, Silicon Paper
Packaging Material	Box
Hotmelt Glue	Yes
Auto Label	Yes
Power	7.5kw
Voltage	3p, 380V
Frequency	20A, 50Hz
Certificate	CE

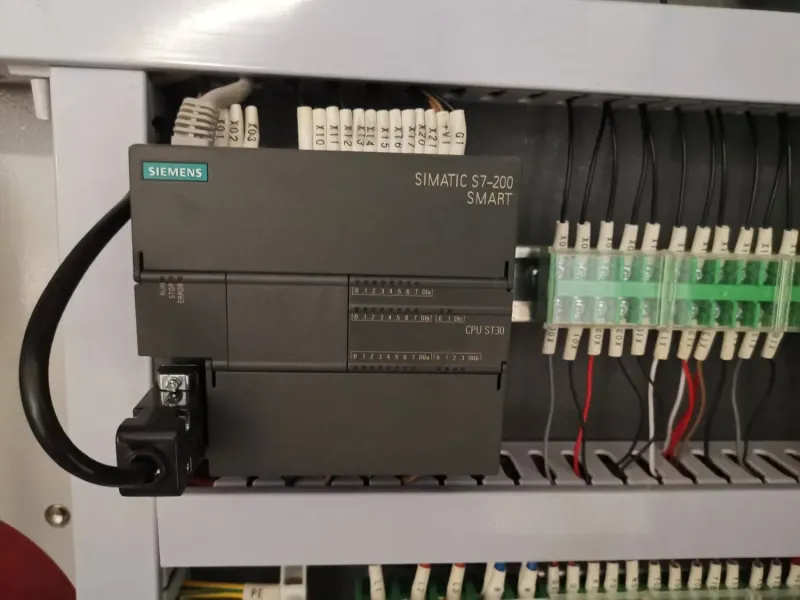

PLC	Siemens Germany
Servo Motor	Delta

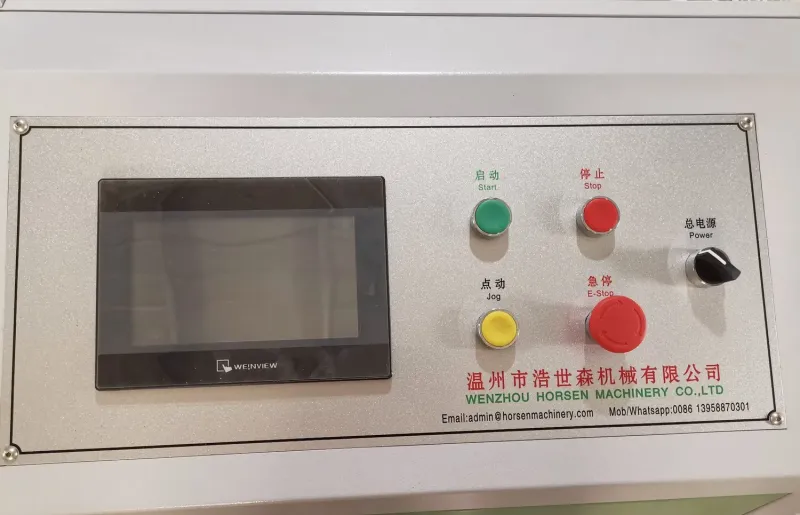

Touch Screen	Weinview
Tension Control	Auto
Transport Package	Wooden Case
Specification	245176182cm
Trademark	Horsen
Origin	China
HS Code	8477800000
Production Capacity	30 sets/Month

Packaging & Delivery

Package Size	245.00cm * 176.00cm * 182.00cm
Package Gross Weight	1600.000kg

Product Description

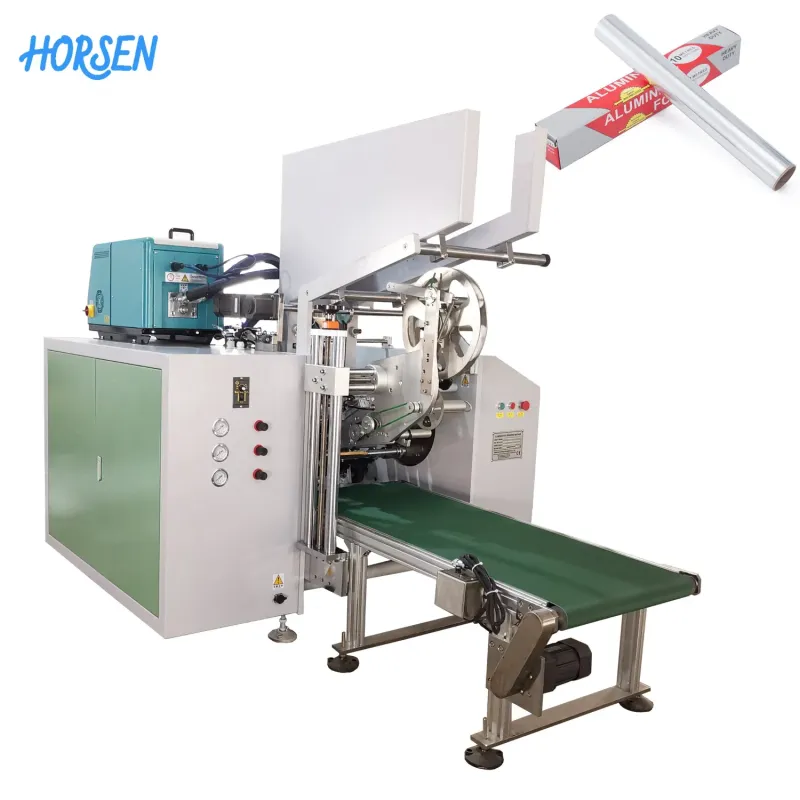

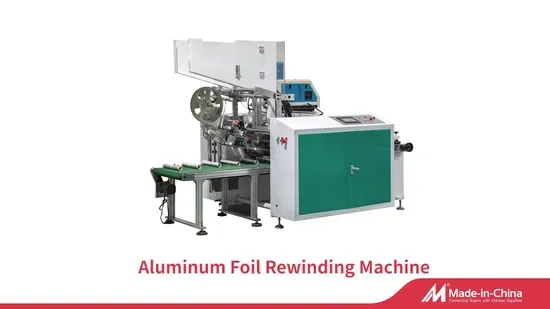

AUTOMATIC ALUMINUM FOIL REWINDER WITH AUTO LABEL & HOTMELT GLUE was used for rewind from jumbo roll to small roll, which widely used for kitchen foil.

Factory Direct Automatic Tin Foil Cutter Jumbo Roll Aluminum Foil Baking Paper Kraft Paper Insulation Foil Cutting Slitting Rewinding Making Machine Rewinder

Specification

Item	Aluminum foil rewinding machine
Rewinding Material	Aluminum foil, baking paper, silicon paper, plastic bag
Width of material	260-450mm
Width of products	260-450MM
Diameter of un-winder roll (Max)	Ф700mm
Diameter of re-winder roll (Max)	Ф90mm
Core size of un-winder	3'' or 6"
Core size of re-winder	30mm,35mm or 38mm (customized available)
Rewinding speed	550m/min
Thickness of material	0.009-0.025mm
Productivity	20-40pcs/min
Main motor	4kw
Air pressure	≥ 0.4Mpa
Sticker motor	Servo
Invertor	Delta
PLC	SIEMENS GERMANY
Touch screen	WEINVIEW

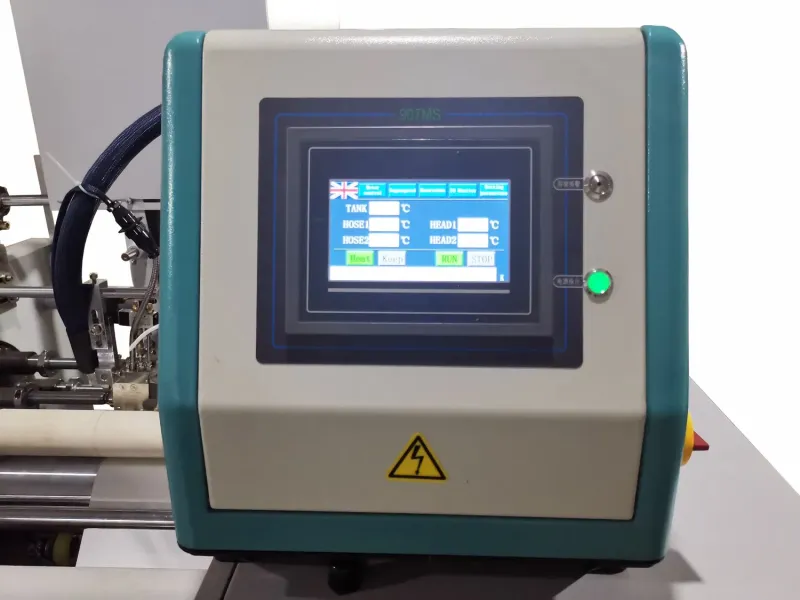

Hotmelt glue machine	China brand
Unwind and rewind tension	Automatic tension
Weight	1600kg
Packing Type	wooden case
Packing Size	245176182cm
