Basic Info.

Model NO.: HN1600 New Generation

Application: Slitting

Type: Roll Slitter

Work Method: Flat Knife Slitting

Structure: Frame Part

Packaging: Case

Classification: Film Slitting

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Exporting Wooden Box

Speed: 500m/Min

Slitting Width: 1300mm

Tension Control: Automatic

Blade: Shavor Blade

Rewinding Shaft: Slipping Air Shaft

PLC: Mitsubish

Servo Motor: Taiwang

Mini Slitting Width: 30mm

Lead Time: 35 Days

Rewinding Dia: 600mm

Unwinding Dia: 800mm

Transport Package: Standard Exporting Wooden Box

Specification: 1300mm

Trademark: HAVESINO

Origin: China

HS Code: 8441100000

Production Capacity: 20PC/Month

Packaging & Delivery

Package Size: 200.00cm * 180.00cm * 200.00cm

Package Gross Weight: 2000.000kg

Product Description

China Factory Wholesale Price New Automatic Cutting BOPP PE PVC Film Foil Paper Fabric Roll Cutter Slit Slitter Rewinder Slitting Rewinding Making Machine - HN1600 SLITTING MACHINE

• Automatic Tension Control
• Automatic Unloading Function
• Automatic Unloading Turret Frame
• Film/Foil/Non-Woven/Label/Lamination Material Slitter Rewinder

HAVESINO Material to machine

Click one you are interested

What Material Do You Want to Cut?

What Slitting Machine We Have to Cut Your Material?

APPLICATION

• A. 12-180um HOT STAMPING FOIL, COLDING FOIL, HOLOGRAPHIC FOILS, METALIZED FOIL and so on
• B. 12-180um PRIMARY FILM (BOPP, PVC, LDPE, PET, SINGLE SILICON FILM and so on)
• C. 12-180um LAMINATES (FILM to FILM, FILM TO FOIL, FILM TO PAPER and so on)
• D. Non-Woven FABRIC
• E. 40-80gram PAPER/LABEL/ADHESIVE LABEL
• F. 20-40UM ALUMINUM FOIL
• AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)

BASIC INFORMATION

• 1. SLITTING WIDTH: 300mm-1300MM
• 2. SLITTING THICKNESS: 12-250UM
• 3. UNWIND DIA.: MAX1000MM
• 4. UNWIND CORE I.D.: SHAFTLESS 3 INCH AND 6 INCH
• 5. REWINDING DIA.: MAX 600MM
• 6. REWINDING WIDTH: MINI 30MM
• 7. REWINDING CORE I.D: 3 INCH SLIPPING AIR SHAFT
• 8. SLITTING UNIT: RAZOR BLADE EACH 10 PCS / SHEAR CIRCLE BLADE 10 PCS
• 9. MECHANICAL SPEED: MAX550M/MIN
• 10. WORKING SPEED: MAX500M/MIN
• 11. MACHINE FRAME THICKNESS: 50MM
• 12. METER COUNTER: METER COUNTER
• 13. WASTE EDGE UNIT: AIR BLOWER
• 14. POWER SOURCE: 380V, 3 PHASE 4 WIRES, 50Hz
• 15. PNEUMATIC SOURCE: 0.8MPA
• 16. LASER POSITIONING: 10 PCS
• 17. WITH AUTO UNLOADING FUNCTION FOR FINISHED ROLL
• 18. MACHINE SIZE (REF. ONLY): 2950mm (not including unloading frame tree) × 2550mm × 1970mm
• 19. 4590mm (including the unloading frame tree) × 2550mm × 1970mm
• 20. FLOOR SPACE (REF.ONLY): 4200MM*3300MM
• 21. N.W/G.W (REF. ONLY): 3000/3500

FUNCTIONAL DESCRIPITION

Rewinding:

• 1. 3 INCH SLIPPING FRICTION AIR SHAFT to ensure the rewinding tension stable;
• 2. Full width pressing rollers by air control to ensure the finished roll surface keep smooth;
• 3. Anti Stati Remove Brush for both up and down rewinding press roller;
• 4. Small individual press roller specially designed for the individual roll which not average thickness;
• 5. Manual laser core position units help to set paper/plastic cores easily and quickly, begin next slit run with very short downtime.
• 6. Automatic tension control to ensure the rewinding tension stable.

Unwinding:

• 1. Magnetic Brake with load cell close loop system for unwind tension control;
• 2. 3 inch and 6 inch shaftless unwinding system, easily change the jumbo roll;
• 3. Hydraulic lifting system to help the operator loading the jumbo roll max. 1 ton from floor;
• 4. Material splice table, easy change and guarantee edge consistency;
• 5. EPC ultrasonic edge guider to avoid the influence from shining material which reflect light back;
• 6. Back Control Button & Screen Display make the operator easily control the slitter at back side;
• 3. SECURITY GRAVITY CARPET to ensure the safety of the operator;

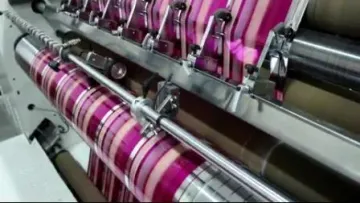

Blade Unit:

• 1. Shavor or Razor blade setting easily setting by wrench losing and fixing, very quick and easy;
• 2. Shear Circle Blade slit for all kind of material stable slitting at high speed.

Unloading:

• 1. AUTO VERTICAL ROLL UNLOADING DEVICE not only can move horizontally and parallelly, make finished roll unloading much easier than before;
• 2. Auto unloading function to avoid manual hand push, save time and energy of operator.

About Havesino

HAVESINO is one of top suppliers for Semi Automatic and Fully Automatic thermal paper slitter re-winders and converting machinery for more than 12 years. We have in excess of hundreds of machine installations all around the world!

GUARANTEE AND SERVICE

• 1. 100% Test and Check Before Shipment.
• 2. Detailed Instruction Manual.
• 3. Two Year Guarantee for All Key Parts.
• 4. 7×24Hours Online Service
• 5. Installing and Operator Training Service Provided.
• 6. Whole-Life Free Technical Support.
• 7. Regular On-Site Routine Inspection.
