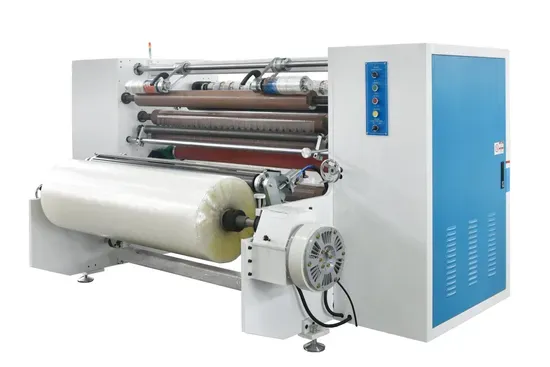

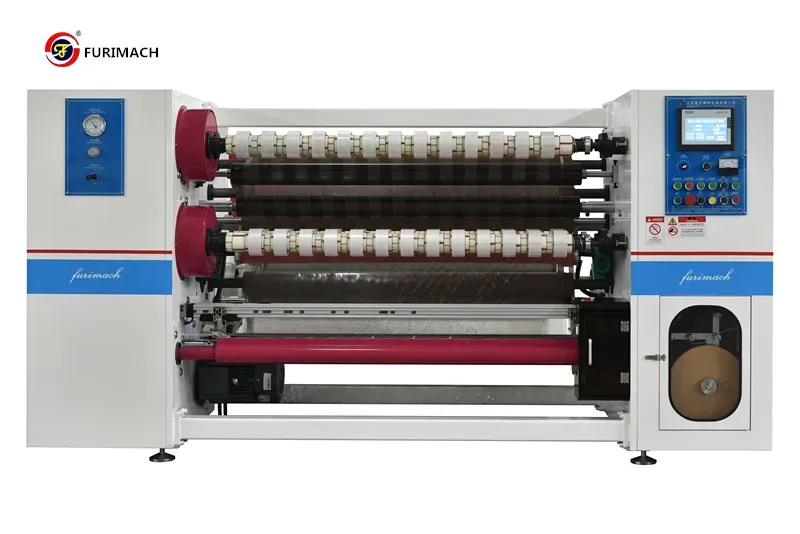

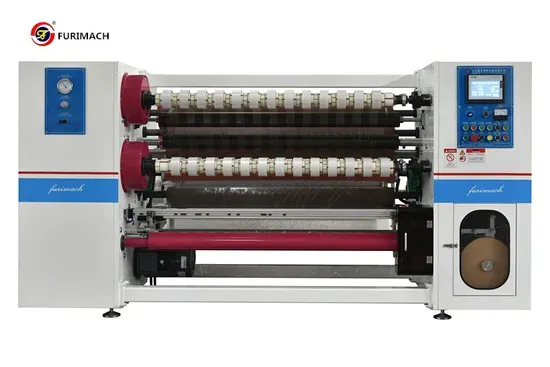

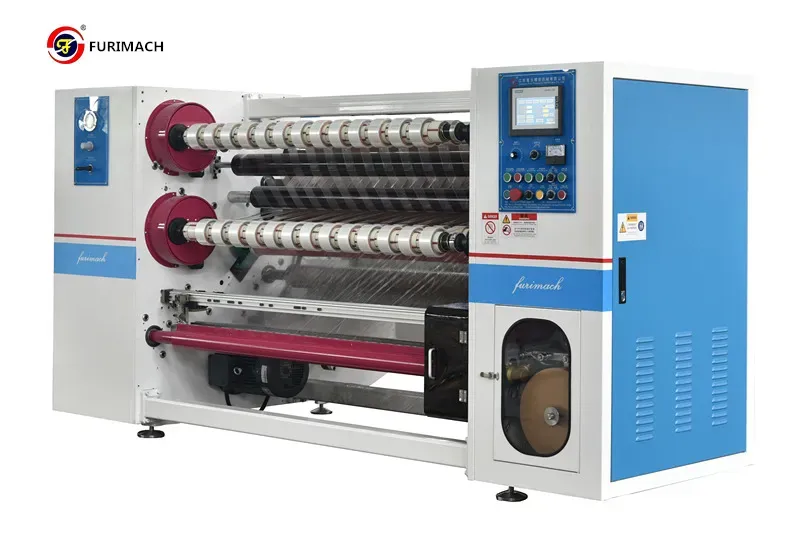

Precision BOPP Tape Slitting Rewinding Machine
Description
Overview
Basic Info.
- Model NO. FR-210N
- Application Machinery & Hardware
- Type Roll Slitter
- Work Method Round Knife Cutting
- Structure Cutting Part
- Packaging Case
- Classification Tape Slitter
- Applicable Process Disk
- Usable Substrates Film Cutting
- Usage Widely Used
- Transport Package Wood Case
- Specification 2.67*1.6*1.5M
- Trademark FURI
- Origin Wuhu, Anhui
- HS Code 8477800000
- Production Capacity 1000set/Year
Product Description
BSP-S BOPP TAPE SLITTING MACHINE

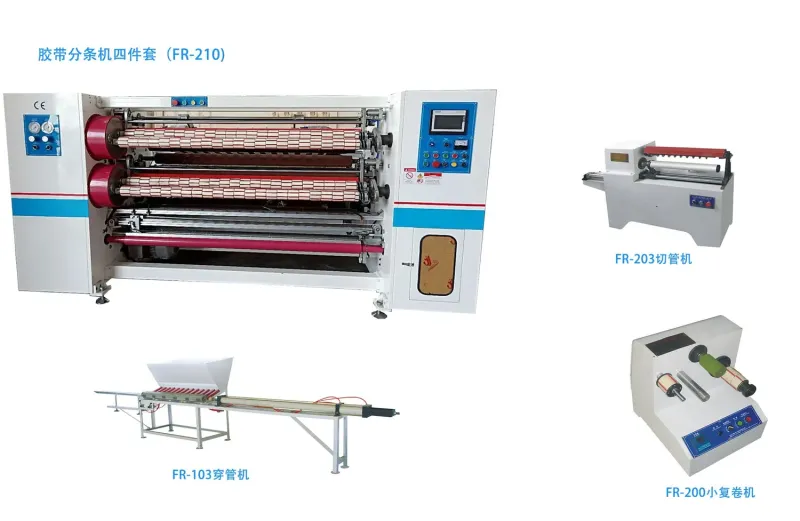

To slit BOPP tape, the slitting line consists of a core cutting machine, core loading machine, slitting machine, and mini rewinding machine.
UNWIND PART OF SLITTING MACHINE
Low-noise press roller added to make operator more comfortable during slitting;
Optional jumbo roll uplifter during unloading & loading;
Pneumatic fix type: rewind to save effort;
Spooled waste collect: collect more waste at one time.

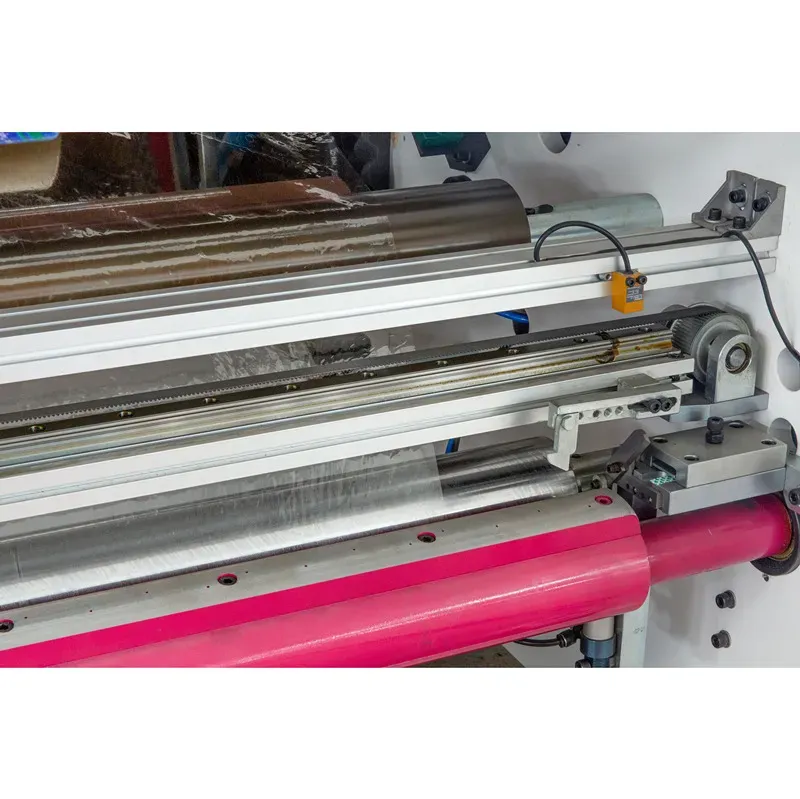

REWIND VIEW OF SLITTING MACHINE
Shaft is positioned and fixed by air cylinder which is easier than old mechanical system;
Optional auto device: no stop.
Paper core loading machine: To load core and unload finished roll tape
Mini rewinding machine: To re-wind unqualified finished roll
Paper core cutting machine: To cut core of BOPP tape, cutting thickness: 3-10mm
Slitting Effective
- 1300 mm / 1600 mm
Max. unwind diameter
- 800 mm
Min. slitting width
- 12 mm
Max. rewind diameter (four shafts)
- 180 mm
Machine speed
- Max. 240 m/min
Slitting blade
- Razor blade
Company Profile
Anhui Furi Intelligent Equipment Co., Ltd. mainly serves for electronic machinery. Our company is applied with European advanced design drawings and manufacturing technologies of its kind and specializes in the manufacturing and marketing of adhesive tape machinery such as coating machine, automatic roll cutting machine, rewinding machine, slitting machine and electronic machinery such as rotary die cutting machine, automatic packing machine, etc. Thanks to the continuous improvements of the company, the machine has come up to world standards in machinery, electronics, gas and liquid, etc.
Packaging & Shipping
